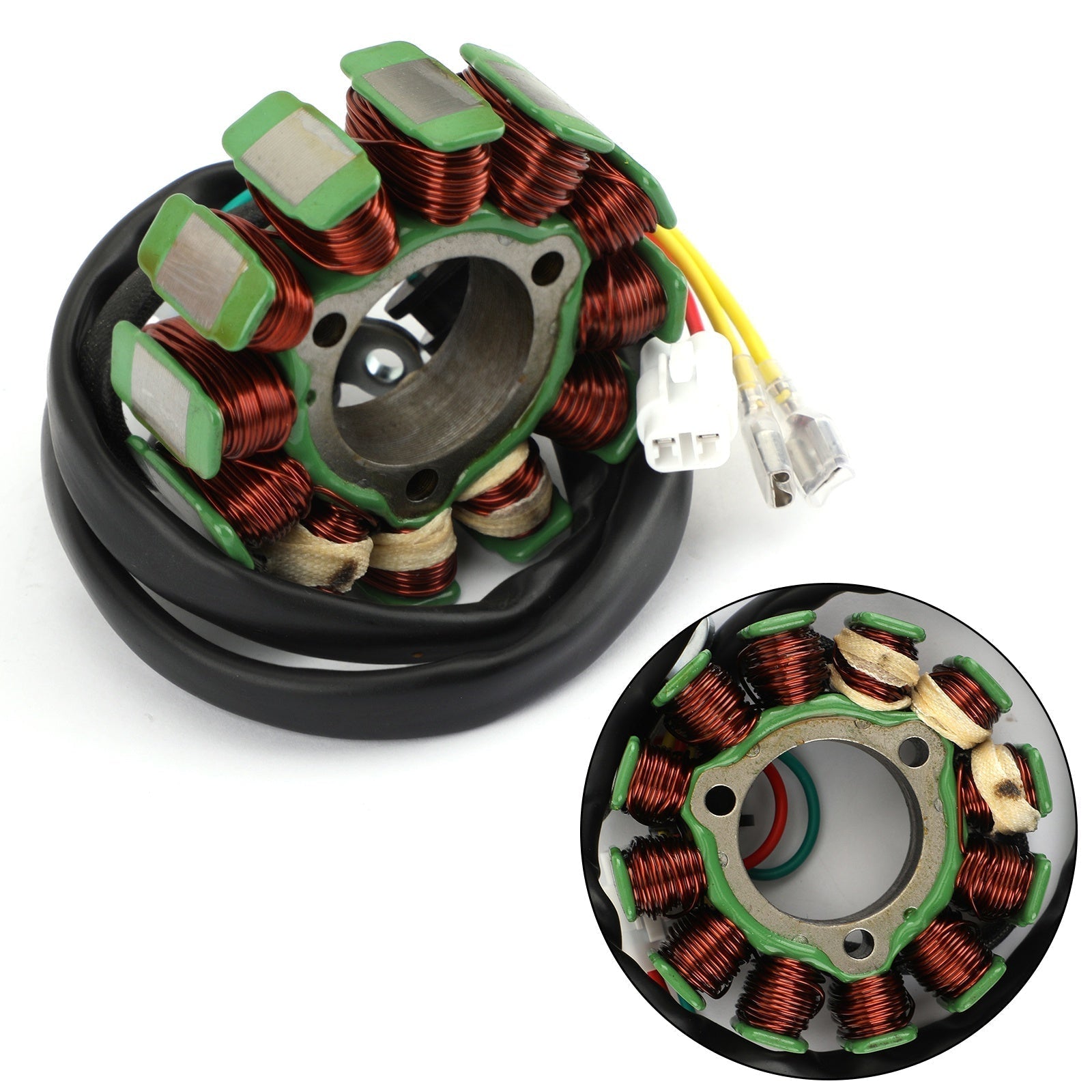

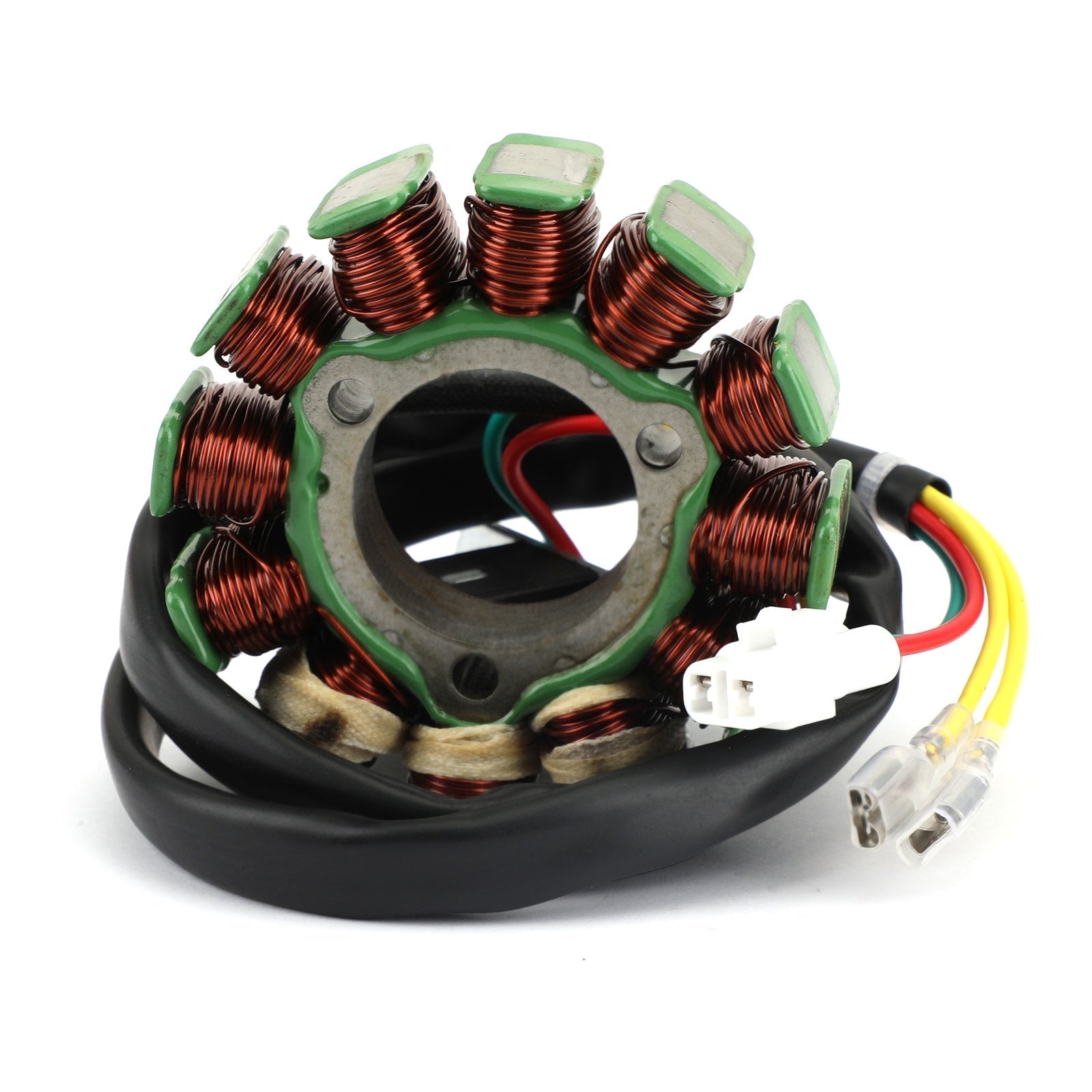

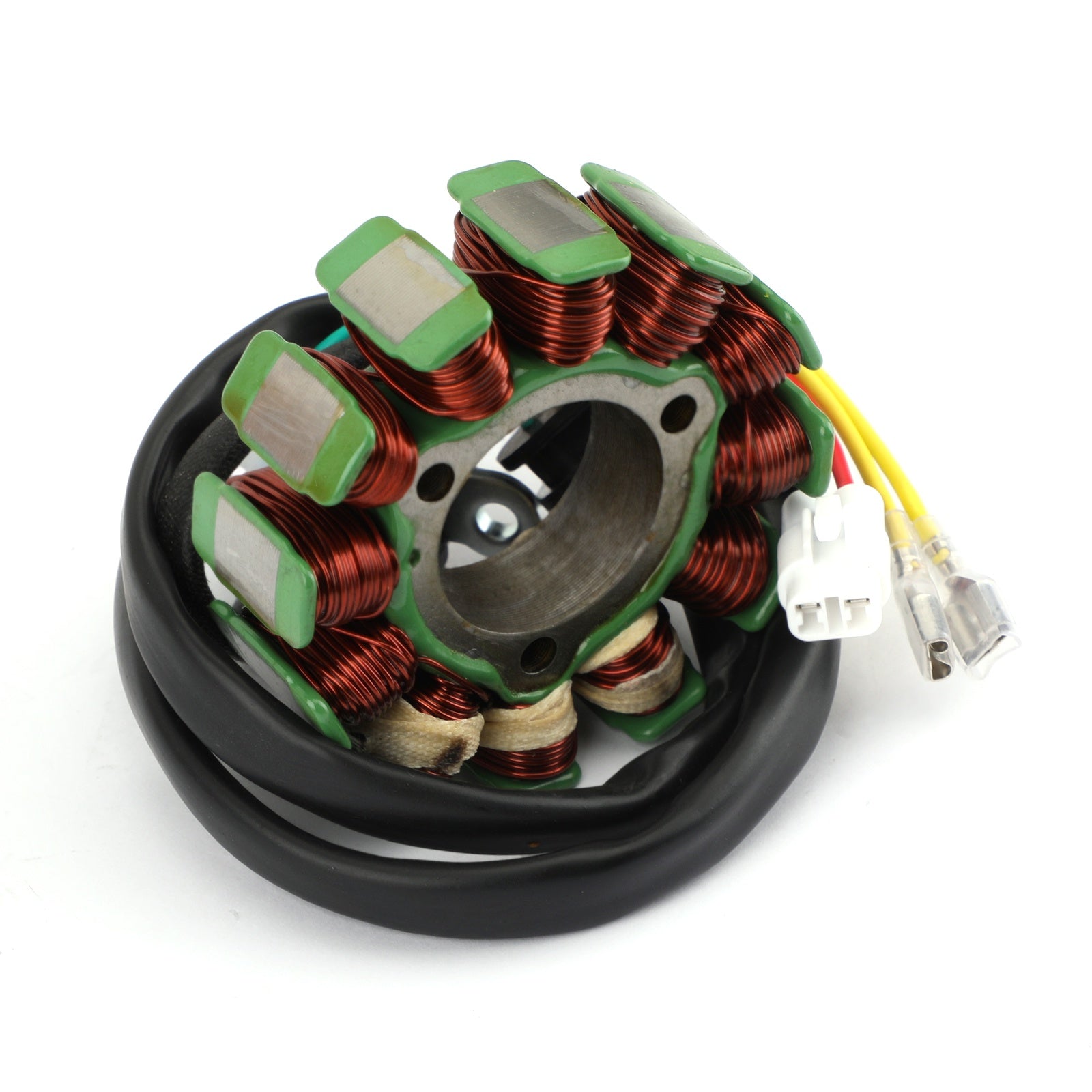

Magneto Generator Engine Stator Coil Fit For KT SXF XCF / Husqvarna FC FX FS 250 350 450

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

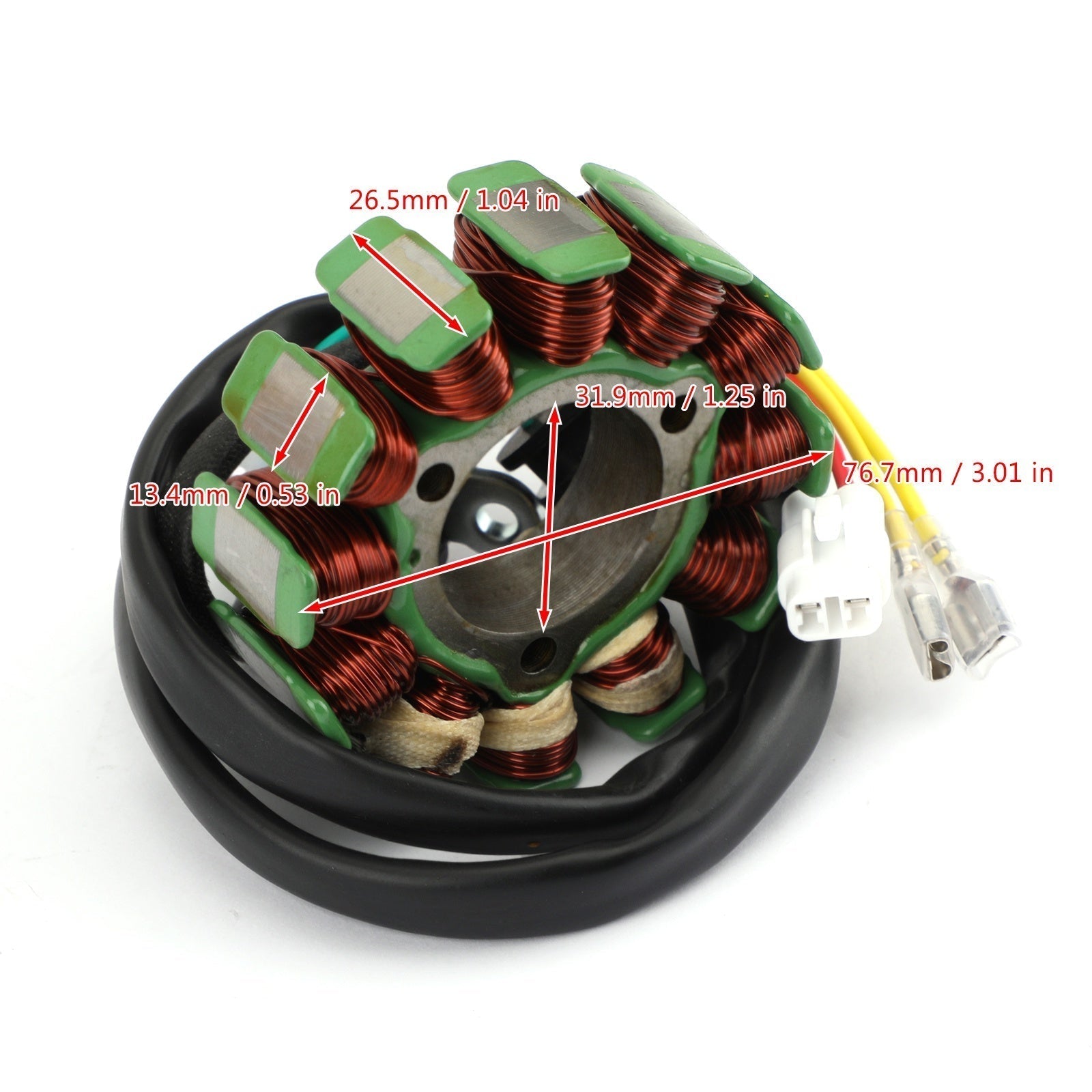

Dimensions :
Interior diameter : 31.9mm / 1.25 inches
Exterior diameter : 76.7mm / 3.01 inches
Pole's Thickness : 26.5mm / 1.04 inches
Pole's Width : 13.4mm / 0.53 inches

Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 3
Number of fixation holes: 3
Number of poles: 12

PART NUMBER(S):
79239004000
79239004100

FITMENT:
Fits Husqvarna 79239004000
Fits Husqvarna FC250 2015-2019
Fits Husqvarna FC350 2015-2018
Fits Husqvarna FC450 2016-2019
Fits Husqvarna FC450 ROCKSTAR EDITION 2019
Fits Husqvarna FS450 2016-2019
Fits Husqvarna FX350 2017-2019
Fits Husqvarna FX450 2017/2019

Fits KTM 79239004000
Fits KTM 79239004100
Fits KTM SX-F 250 2016-2019
Fits KTM SX-F 250 Factory Edition 2015-2016
Fits KTM XC-F 250 2016-2019
Fits KTM SX-F 350 2016-2019
Fits KTM SX-F 450 2016-2019
Fits KTM SX-F 450 FACTORY EDITION 2015-2019
Fits KTM XC-F 450 2016-2019

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
