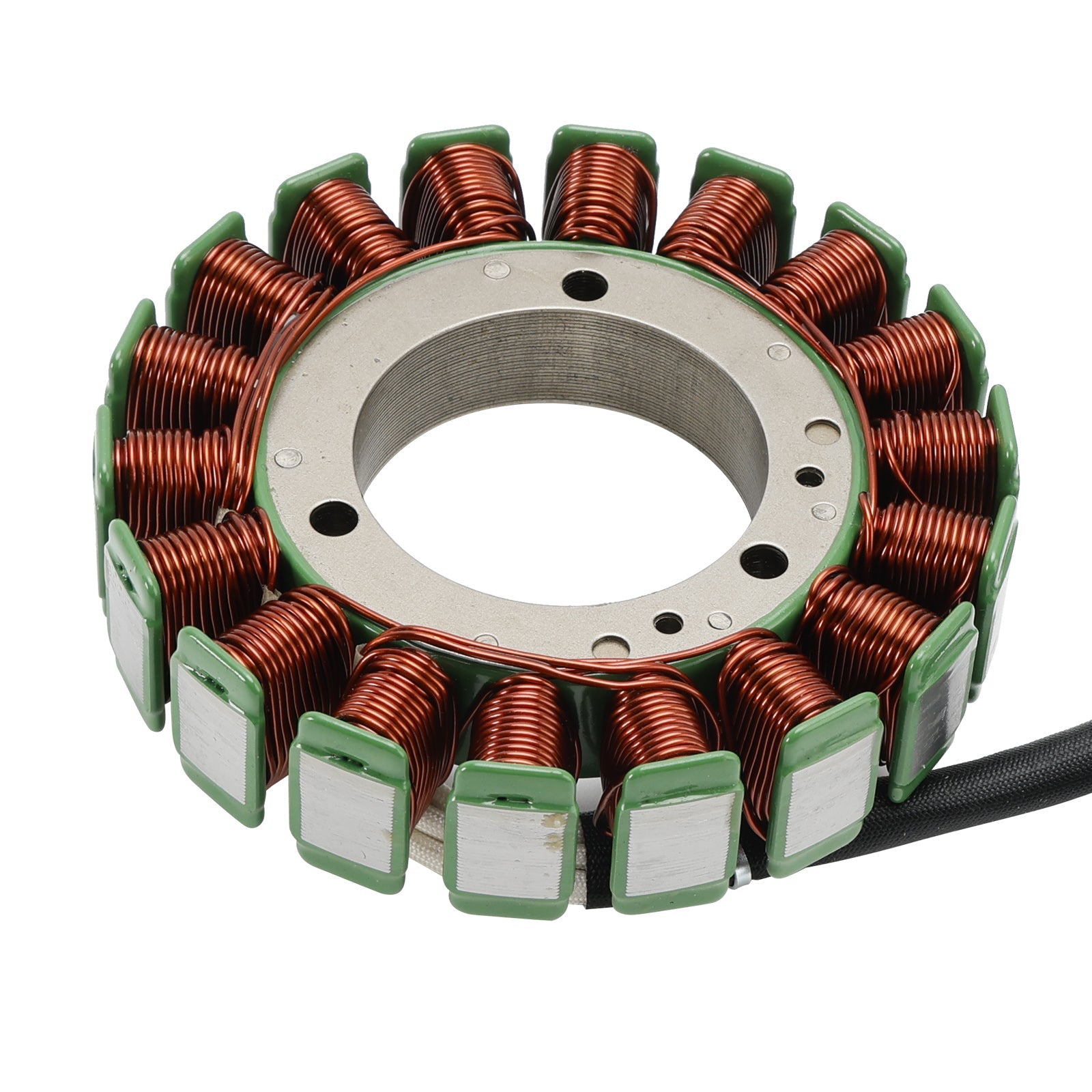

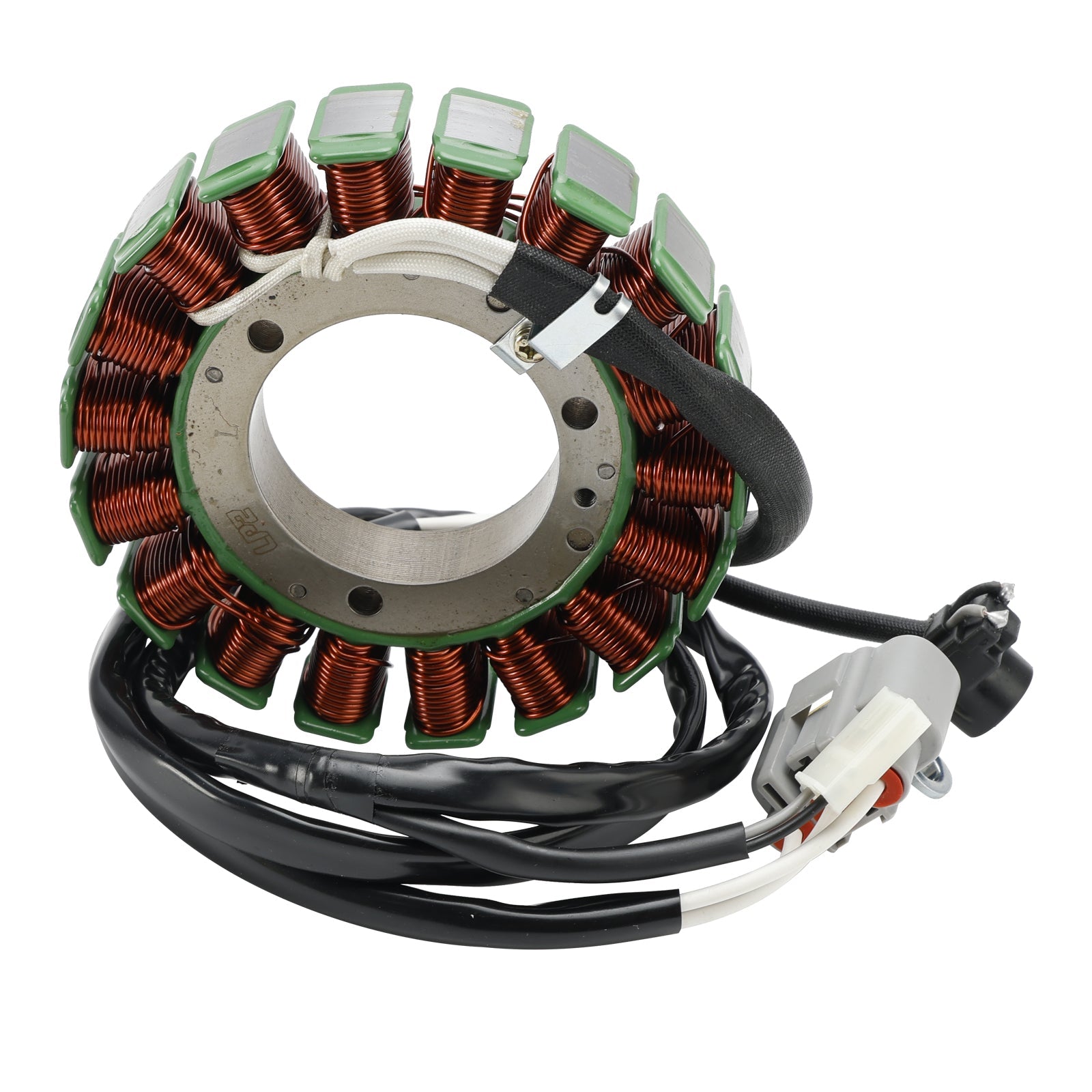

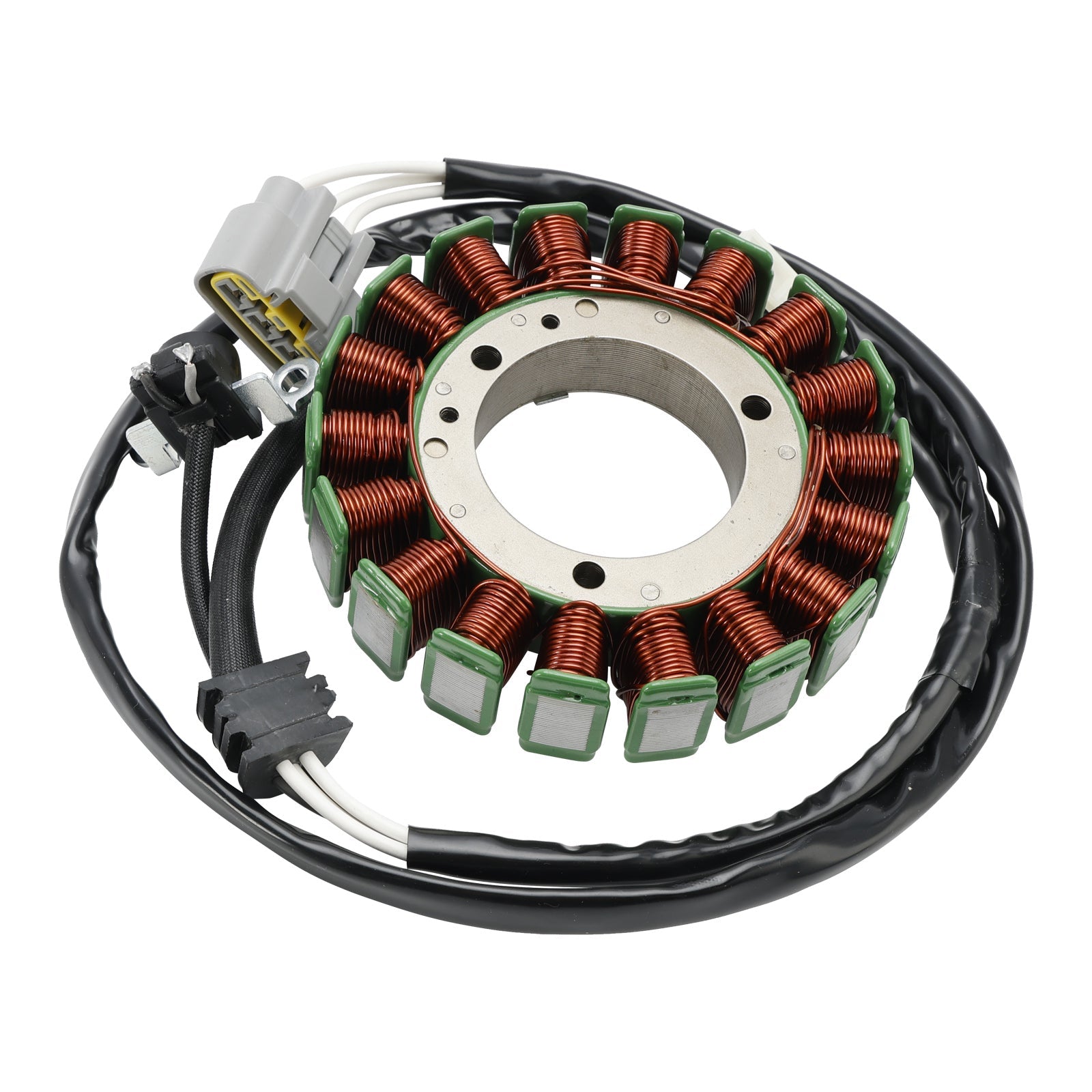

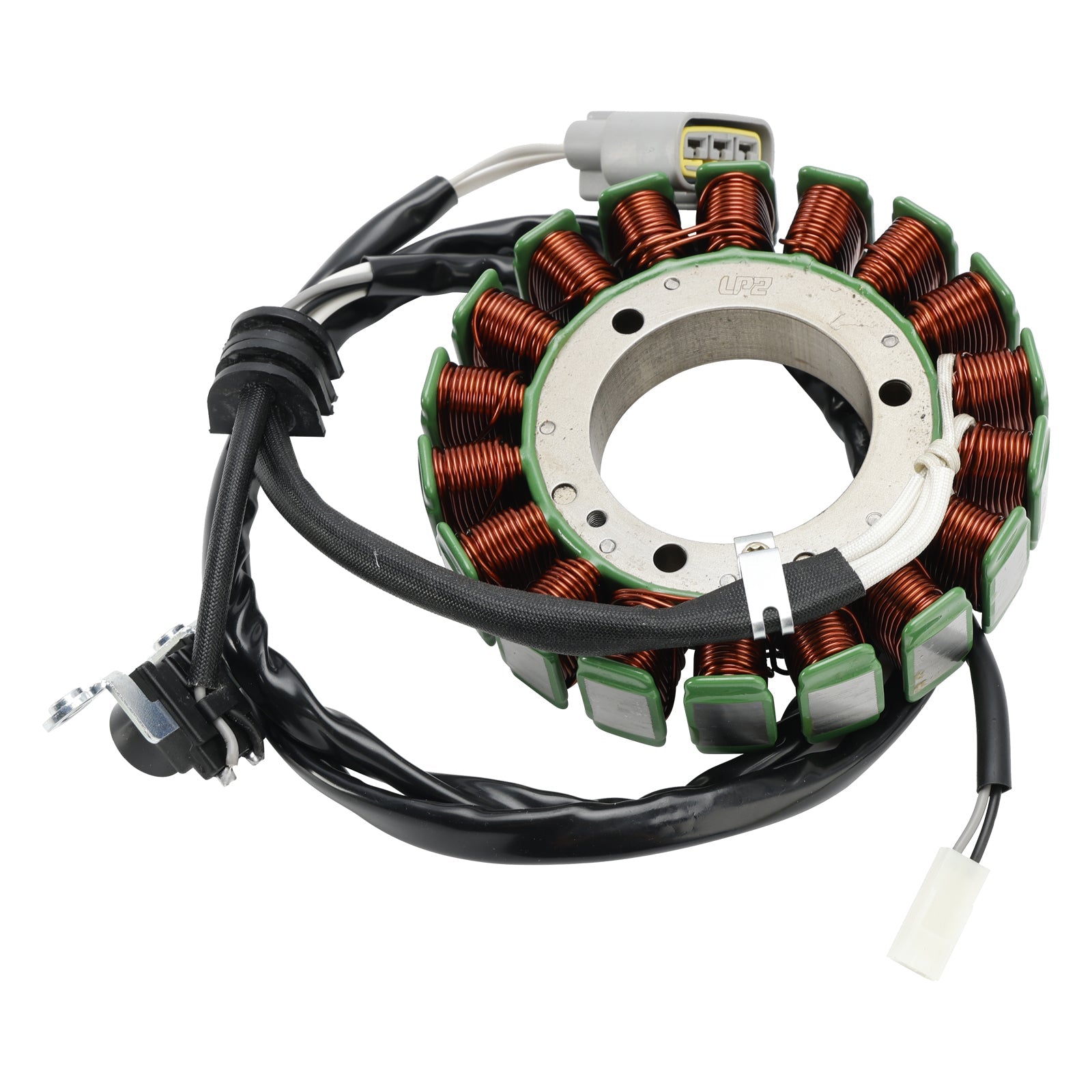

Magneto Generator Stator Fit for Yamaha XVS 950 V-Star / Bolt / R-Spec 2009-2024

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

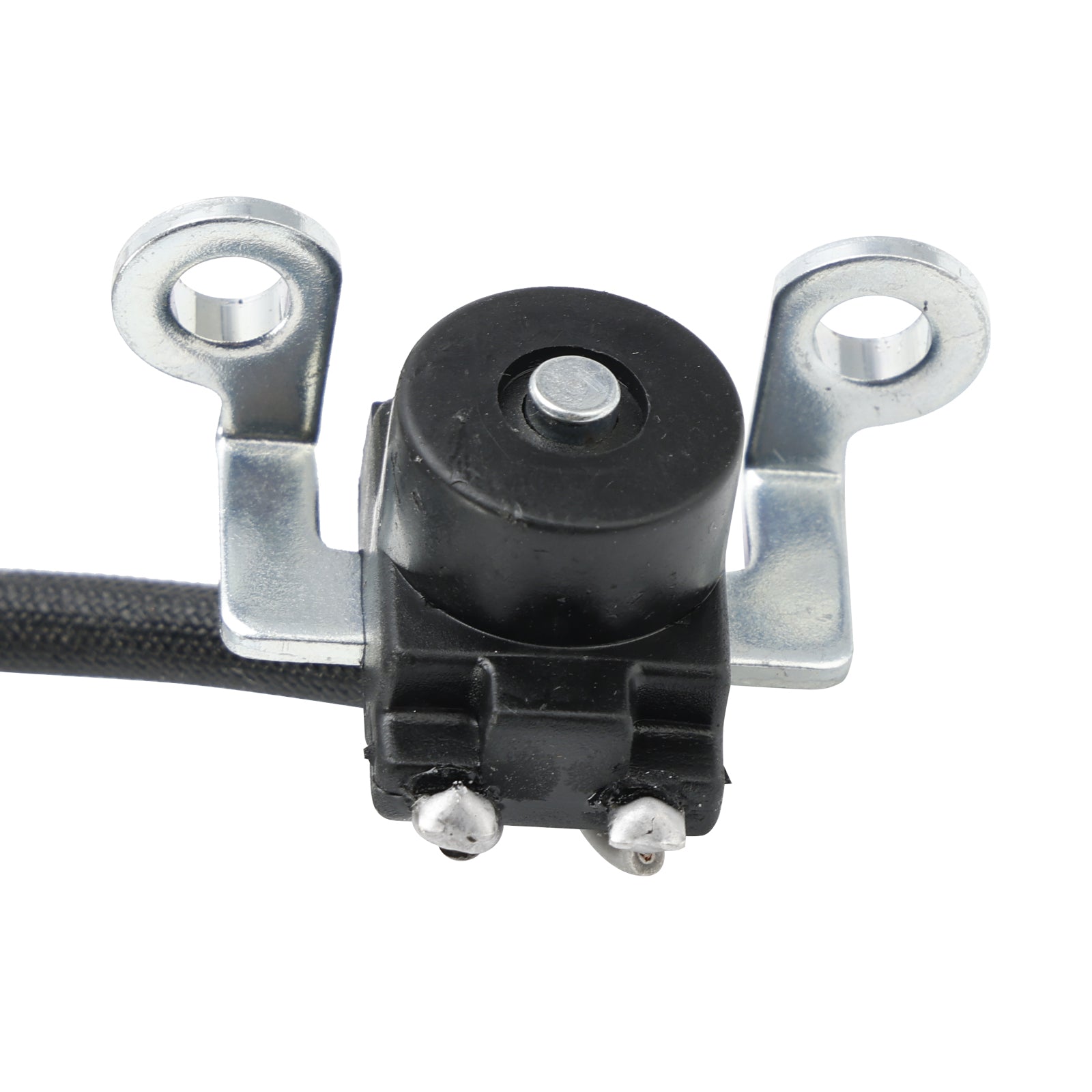

Pick up pulsar coil included.

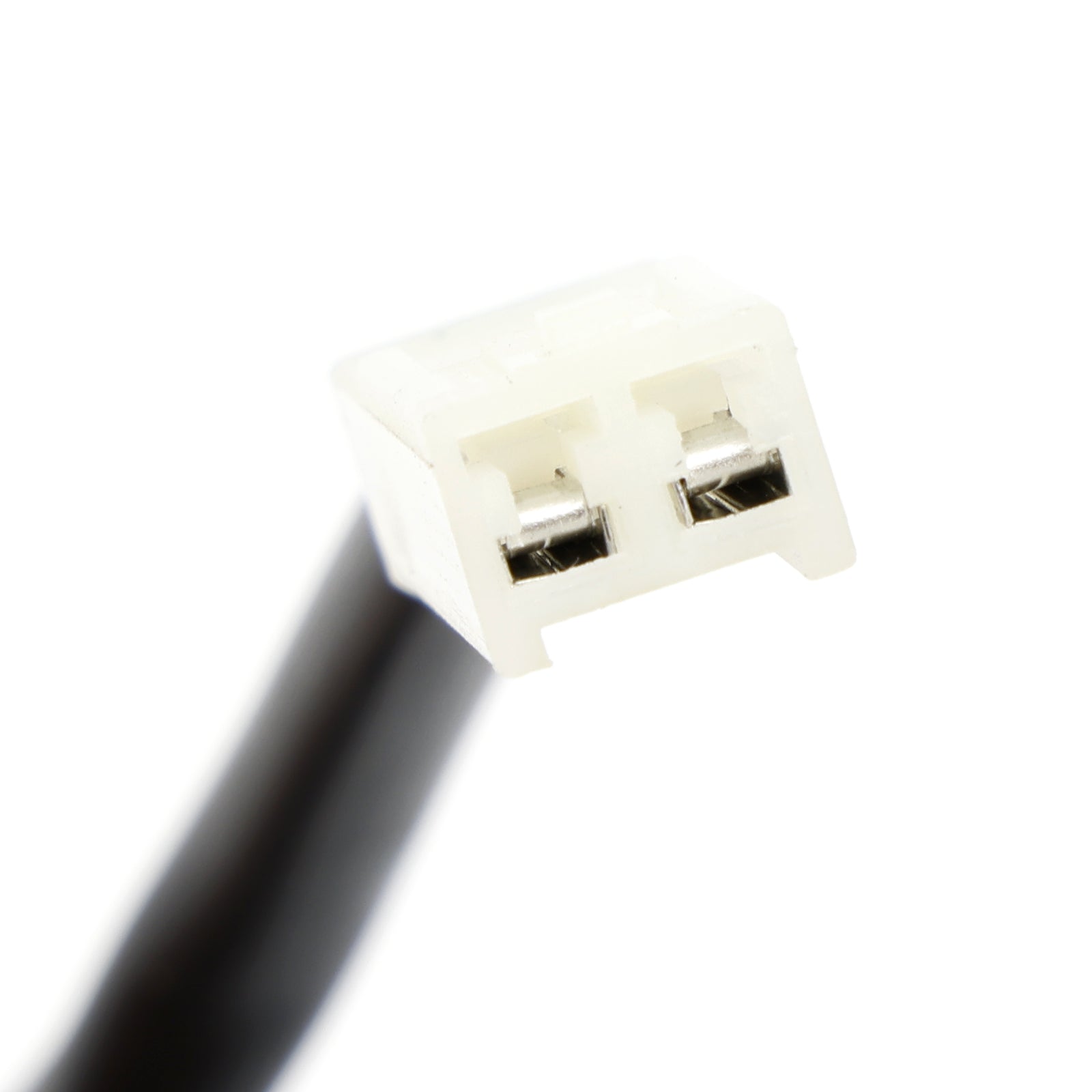

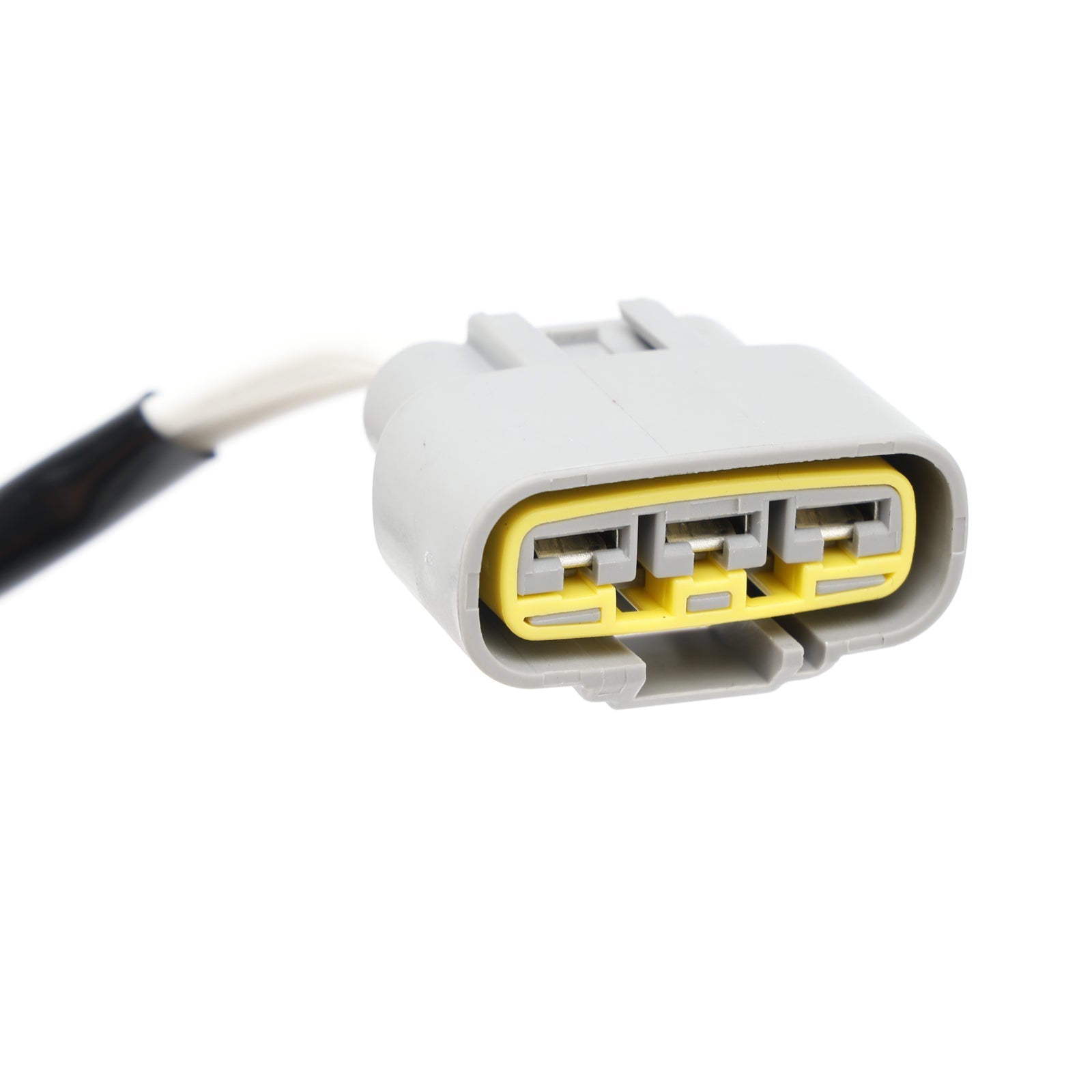

Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18

Dimensions:
Exterior diameter: 130mm
Interior diameter: 58mm

Replacement Part Number:
5S7-81410-00
1TP-81410-00

Fits Make/Model/Year:
5S7-81410-00
Fit for Yamaha XVS950A Midnight Star 950 2009-2015
Fit for Yamaha XVS950A V-Star 950 2009-2016
Fit for Yamaha XVS950 V-Star Tourer 2009-2017

1TP-81410-00
Fit for Yamaha XVS950 Bolt 2014-2020
Fit for Yamaha XVS950 XV950 R-Spec 2014/2016-2017
Fit for Yamaha XVS950 XV950 Racer 2015-2016
Fit for Yamaha XVS950 XV950 ABS 2014/2016
Fit for Yamaha XVS950 Bolt C-Spec 2015-2016
Fit for Yamaha XVS950 Bolt R-Spec 2014-2024
Fit for Yamaha XVS950 SR950 SCR950 2017

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
