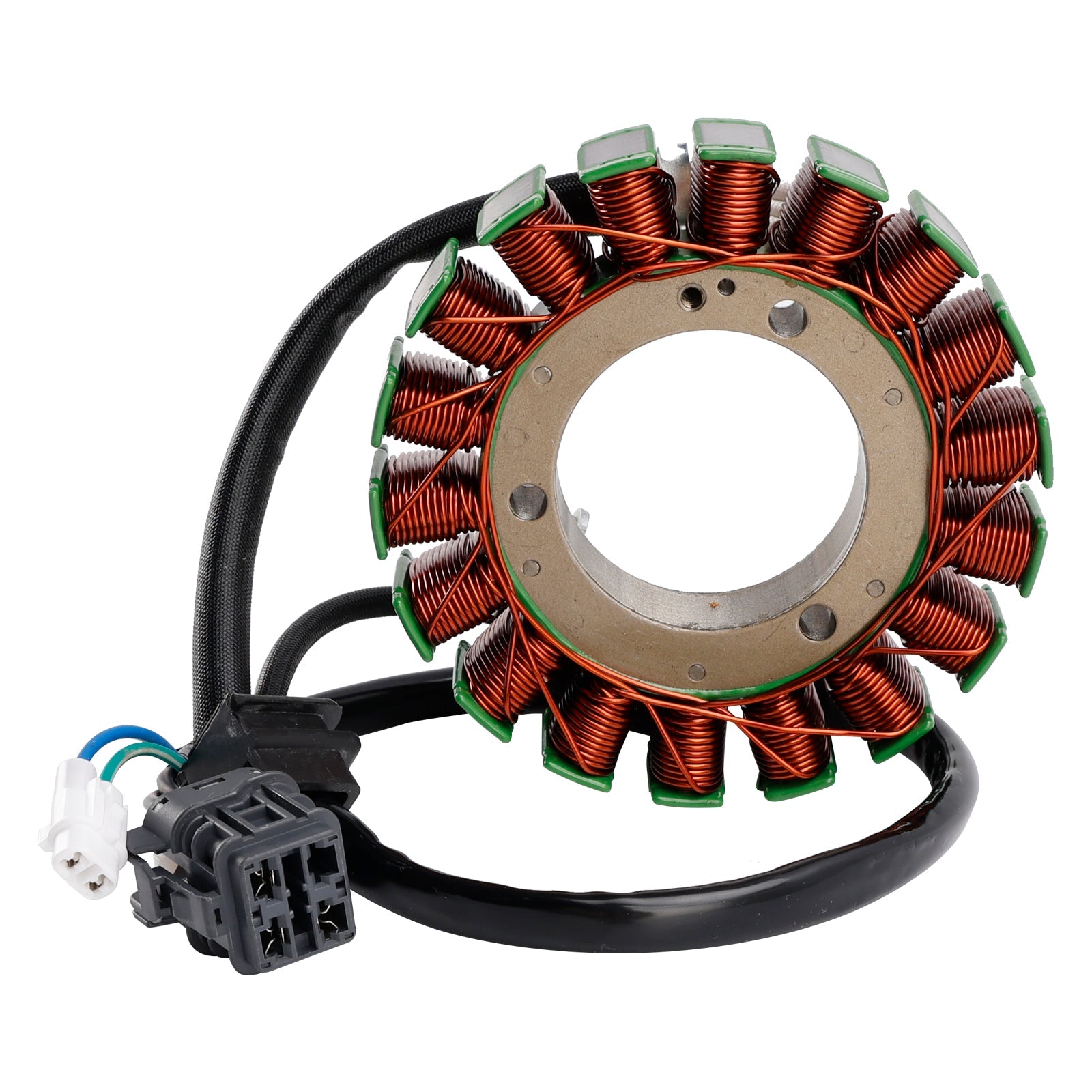

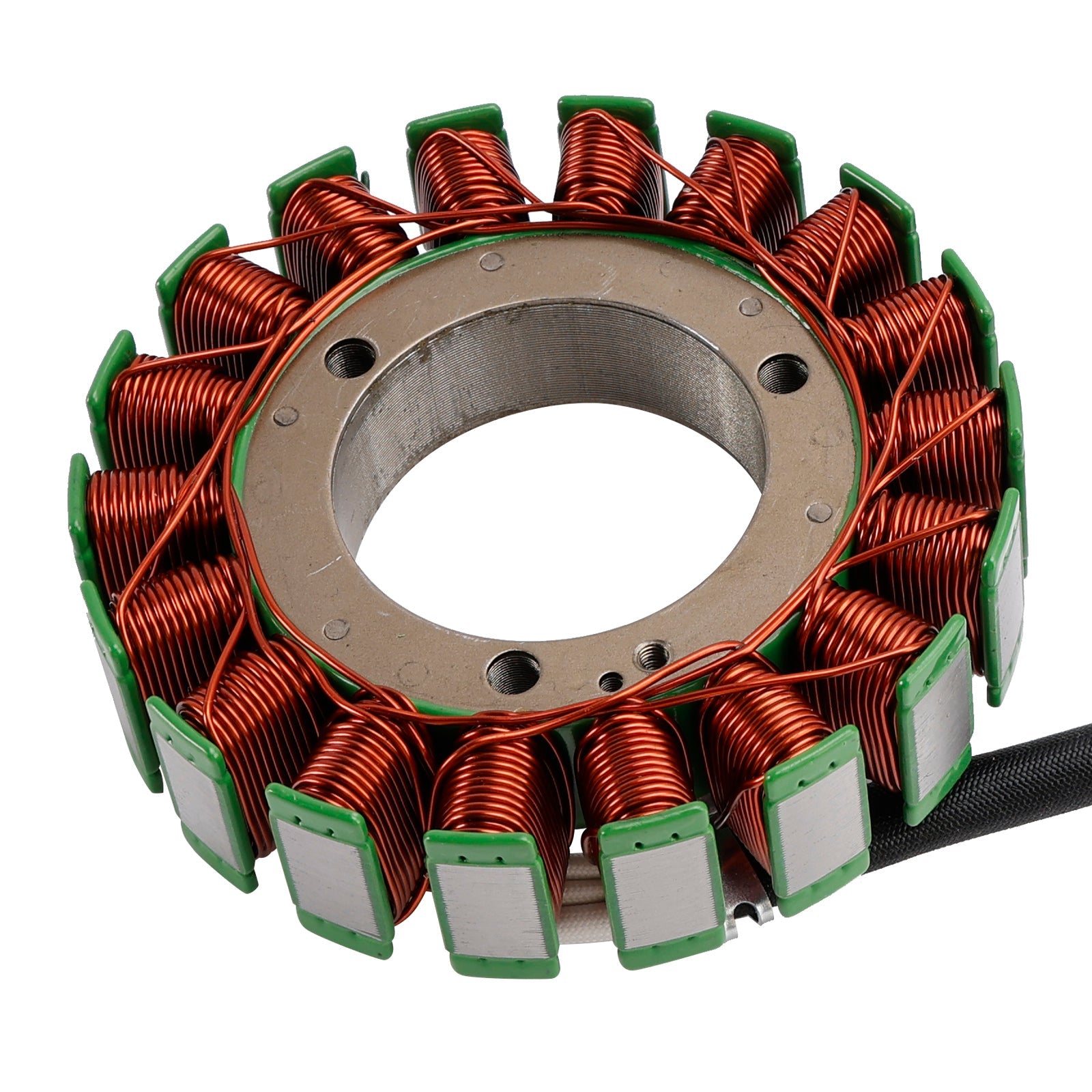

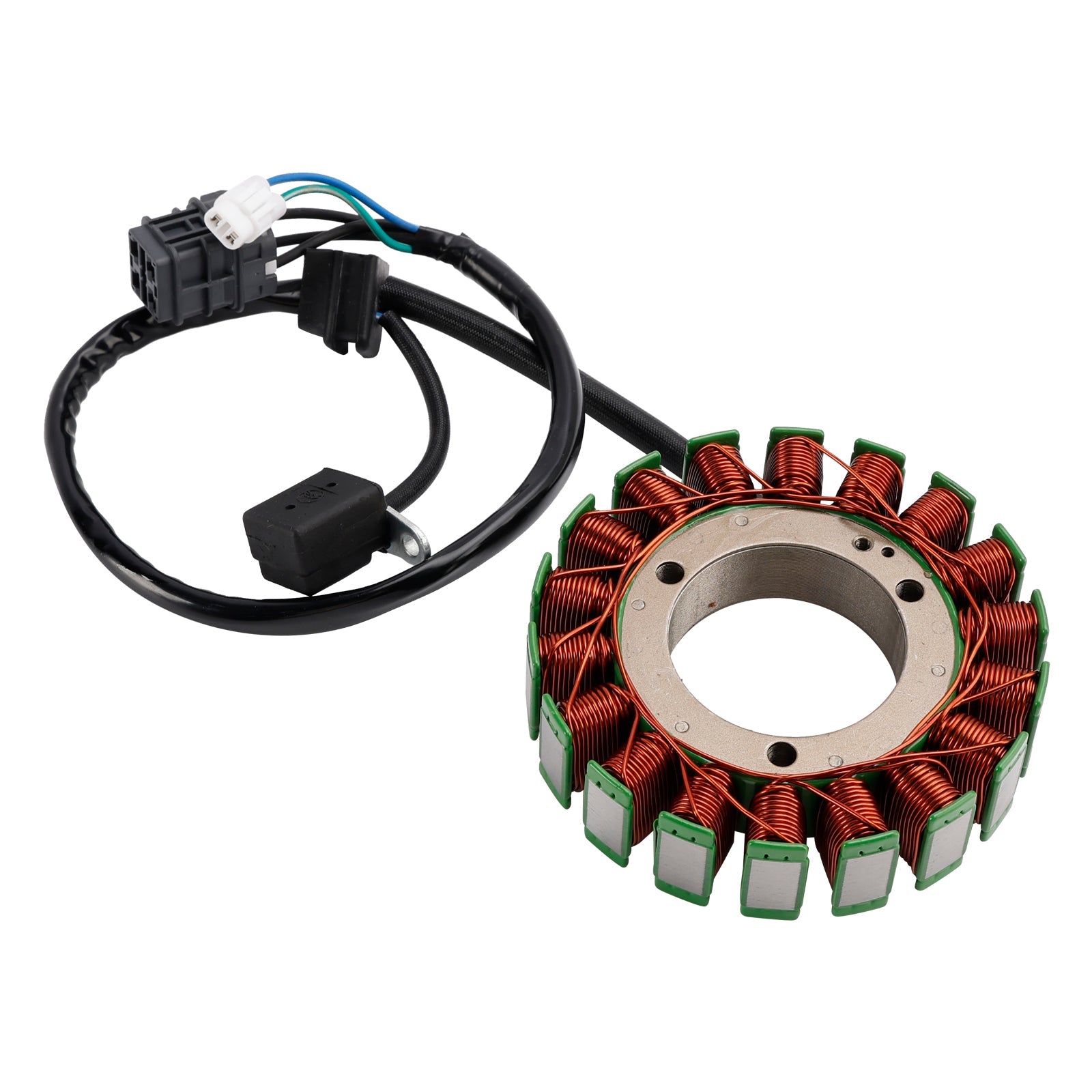

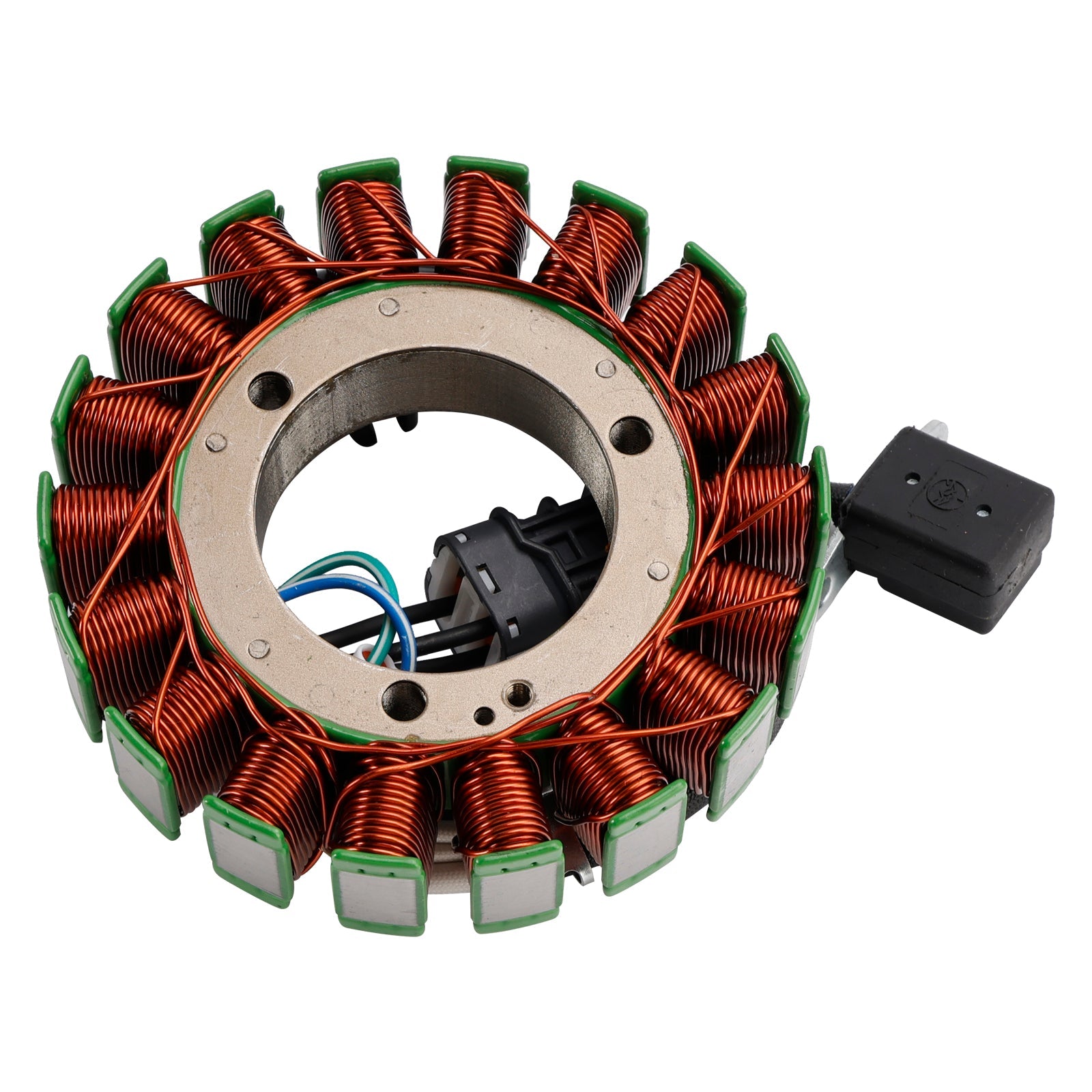

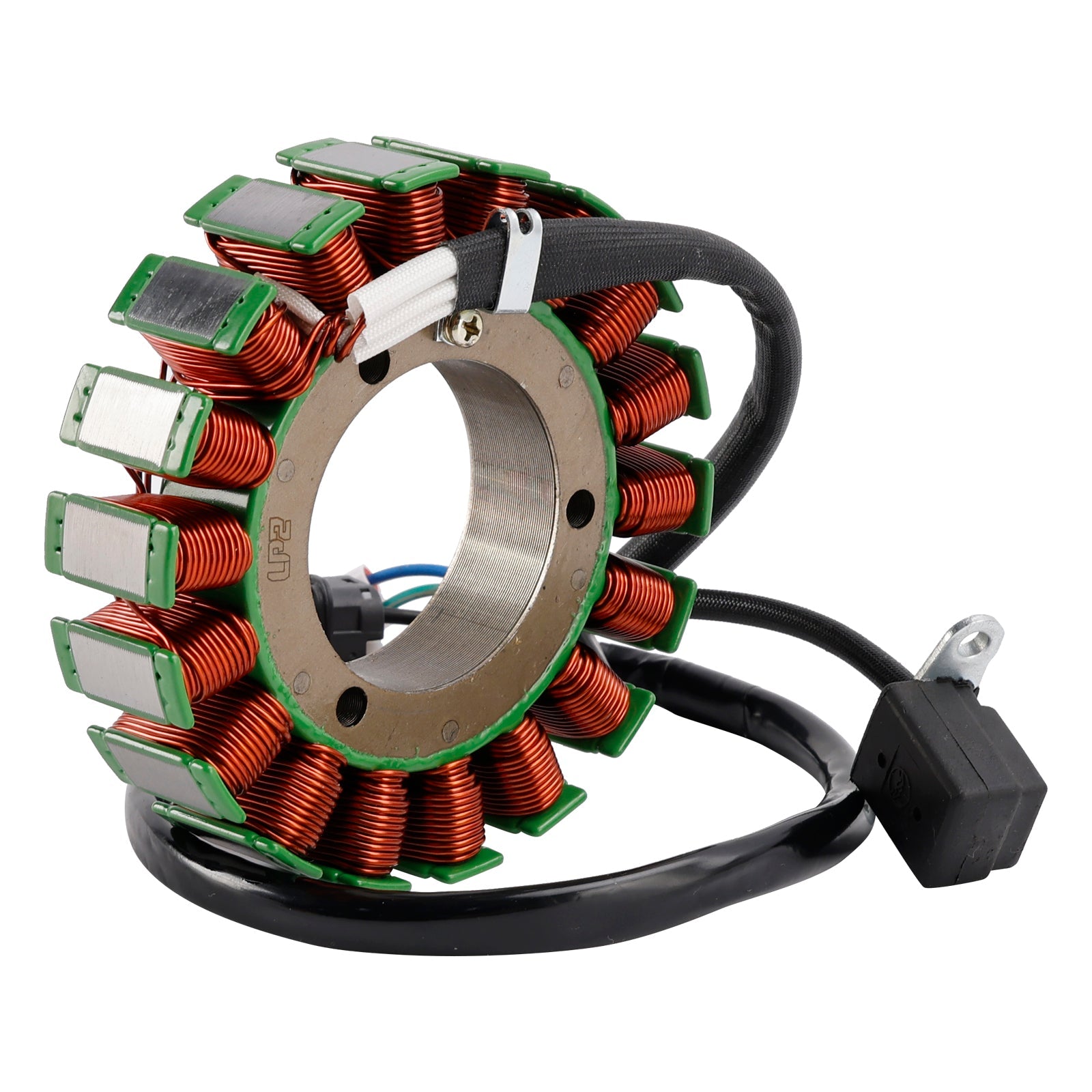

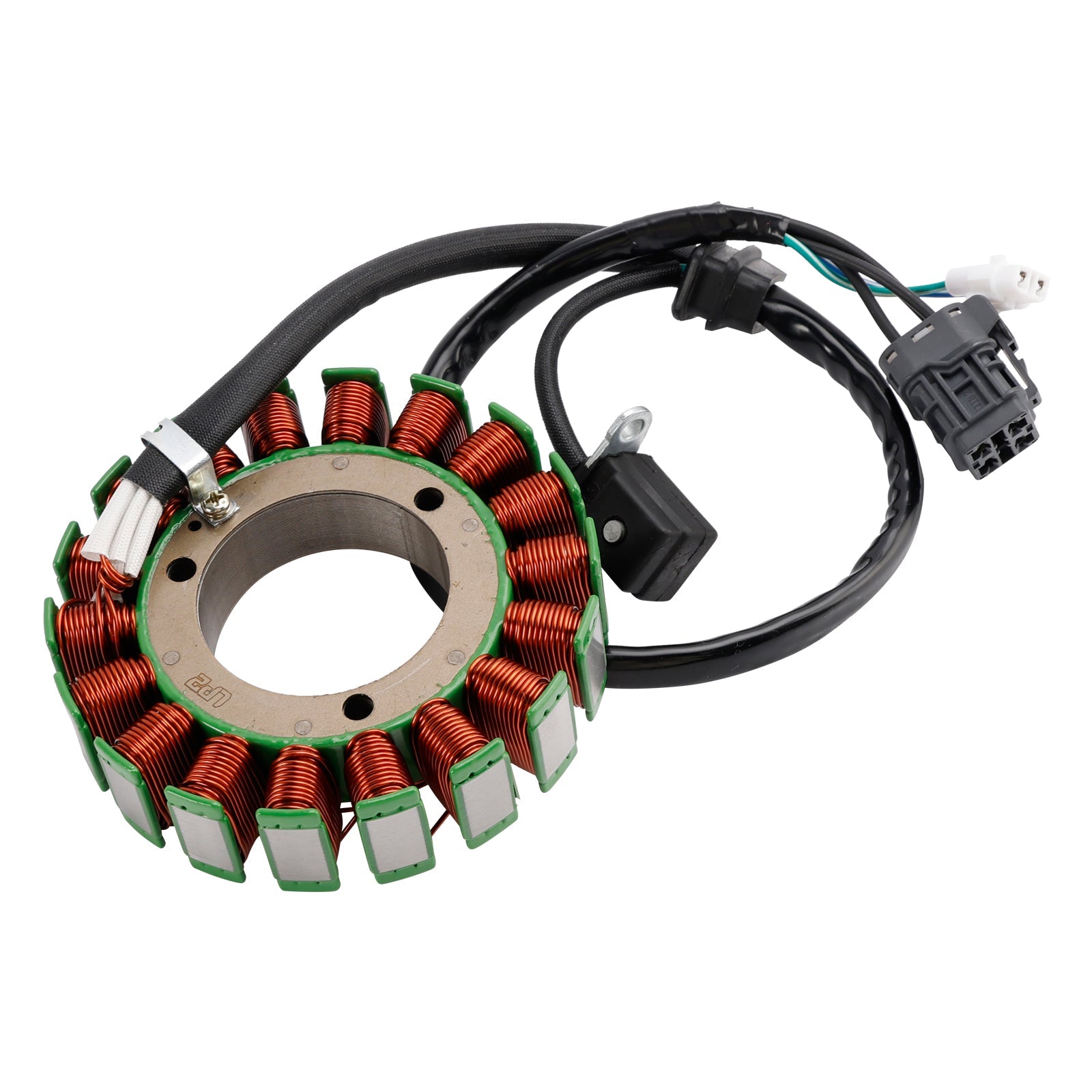

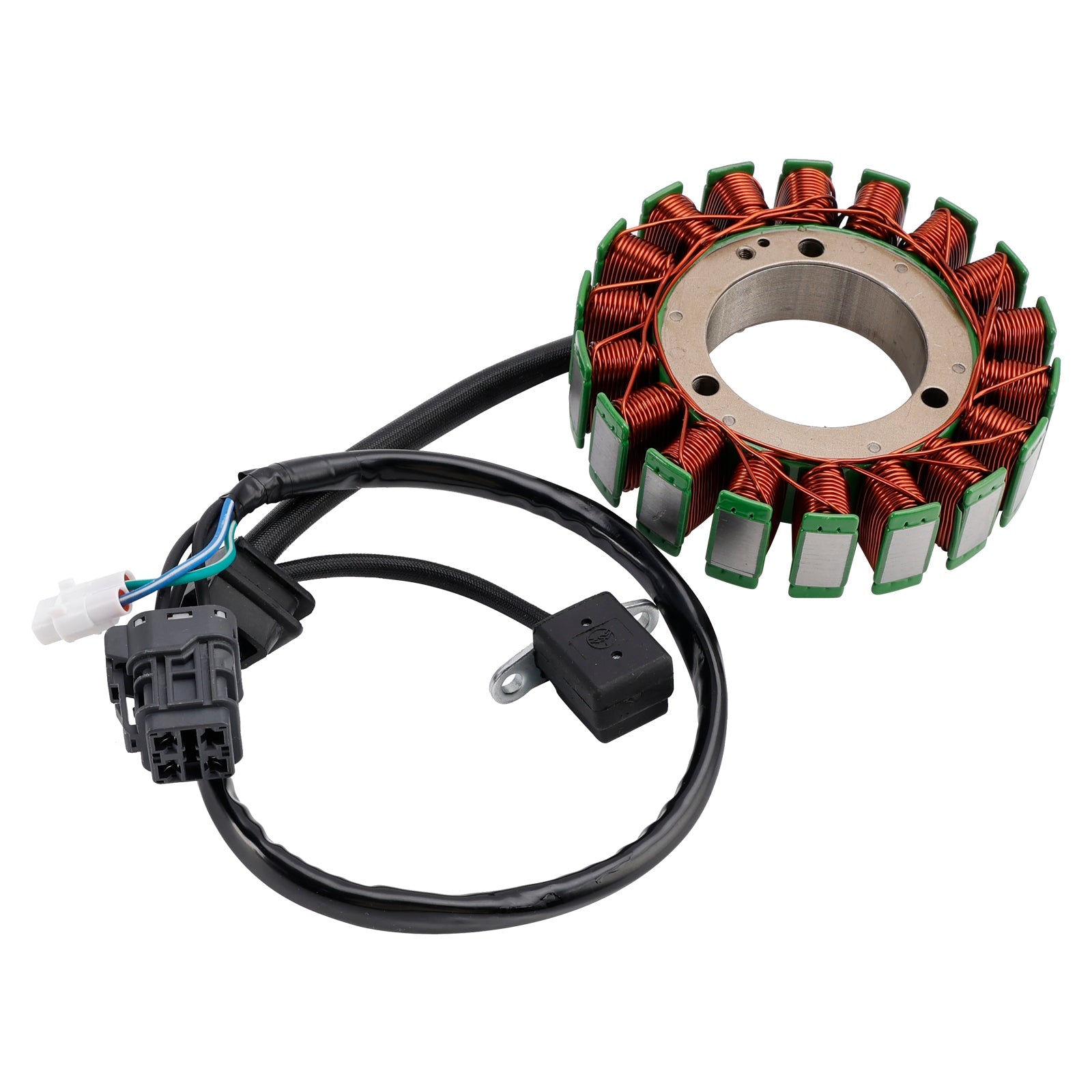

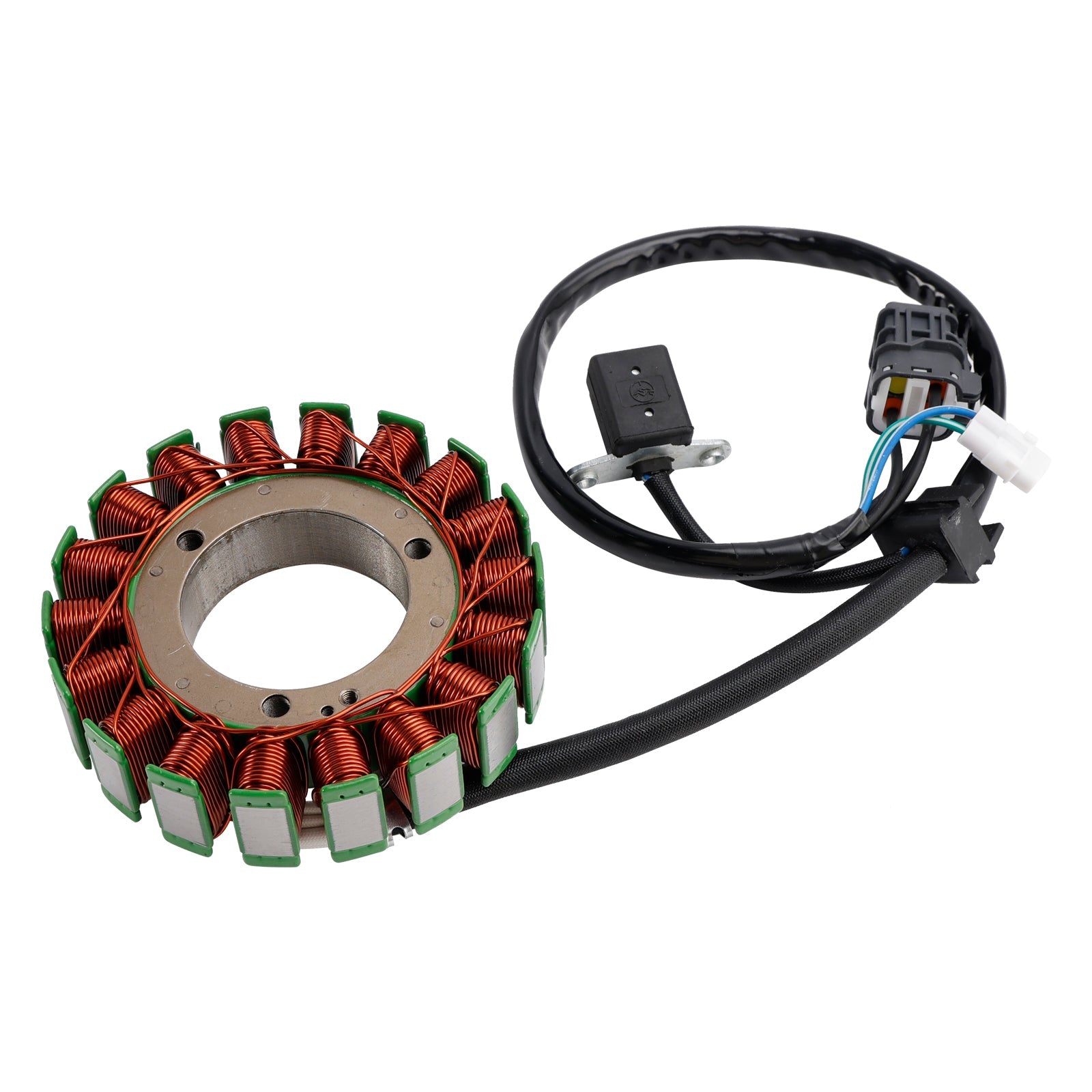

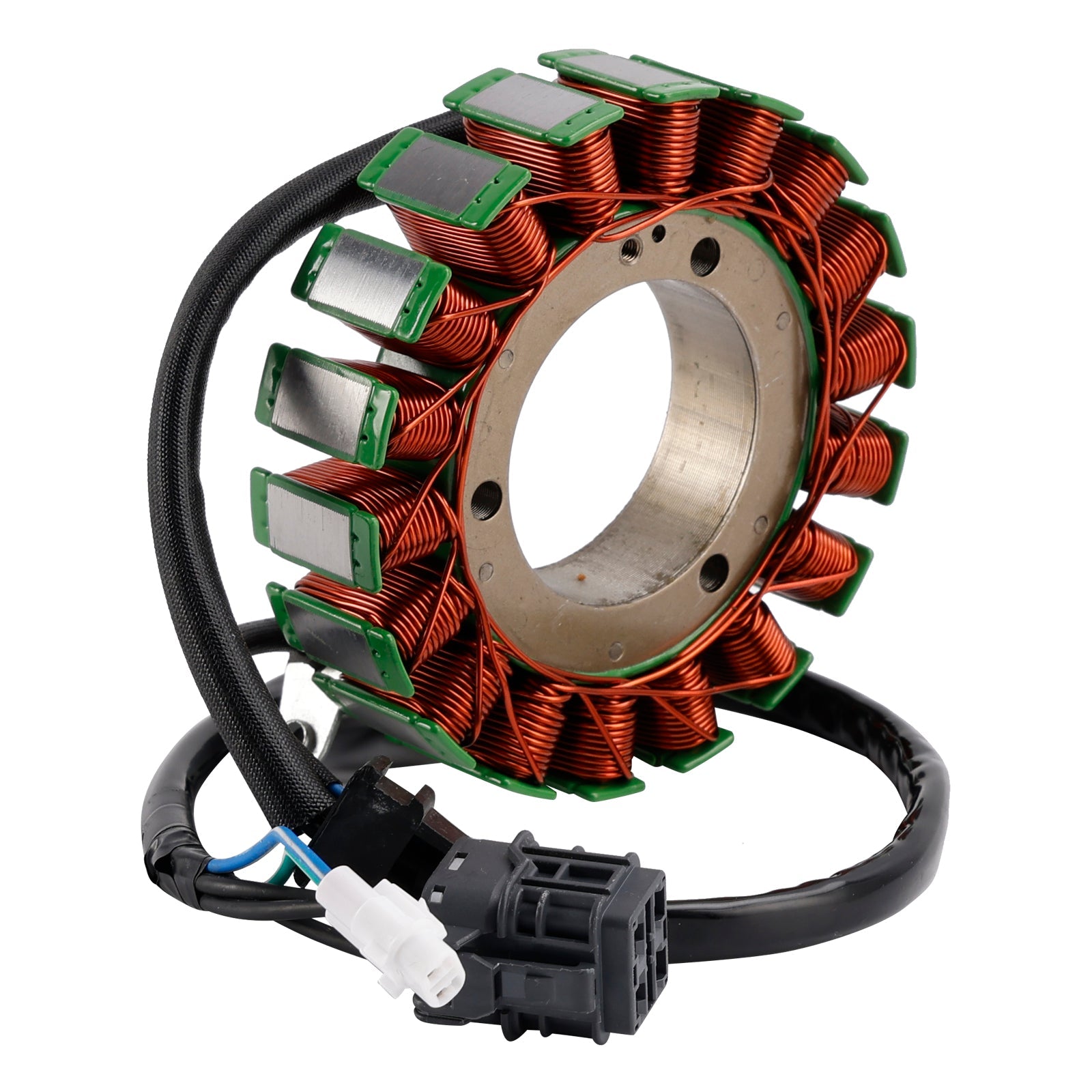

18-Pole Magneto Generator Stator Fit for TGB BLADE TARGET 400/460/500/525 /550/600

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

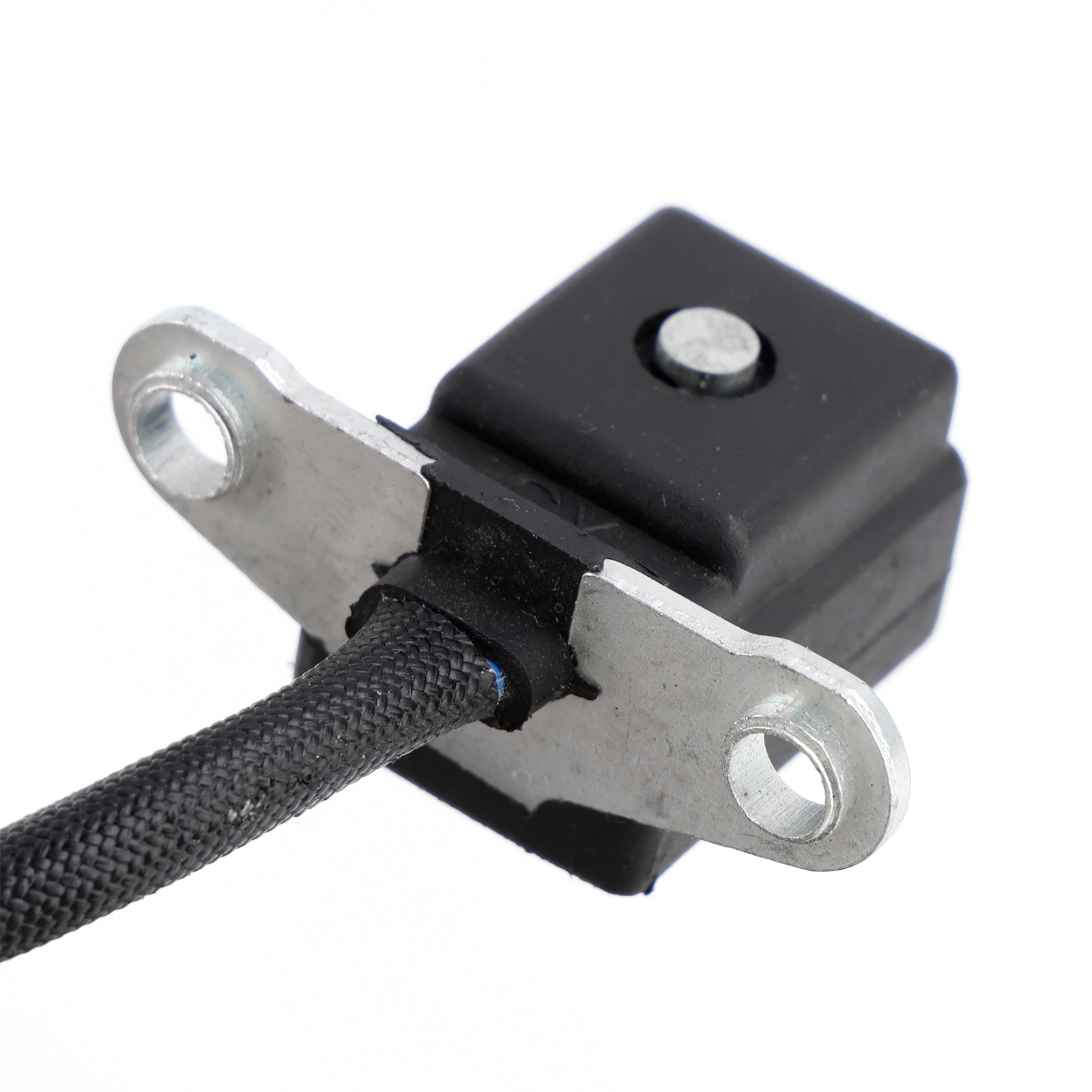

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 5
Number of plugs: 2 (1x 3-pin Square shape plug, 1x 2-pin Oval shape plug)
Number of pins: 3 + 2
Number of fixation holes: 3
Number of poles: 18

Please compare the number of pins and plugs with the old part before purchasing.

Size:
Inner diameter: 54mm
Outer diameter: 115mm

Replacement Part Number:
924415E
924415A
924415B
927995A

(Always compare part numbers to your parts schematics and cross reference appropriately.)

Fits Make/Model:
924415E
Fit for TGB ATV Blade 400
Fit for TGB ATV Blade 425
Fit for TGB ATV Blade 500 IRS 2015
Fit for TGB ATV Blade 500 IRS Facelift 2014
Fit for TGB ATV Blade 500R
Fit for TGB ATV Blade 500R Facelift
Fit for TGB ATV Blade 525 4x2 onroad
Fit for TGB ATV Blade 525 4x4 IRS offroad
Fit for TGB ATV Blade 550 (Vergaser)
Fit for TGB ATV Blade 550 LT (Vergaser)
Fit for TGB ATV Blade 550 Winter Edition (Vergaser)
Fit for TGB ATV Target 460 IRS 2011
Fit for TGB ATV Target 500 4x4 IRS
Fit for TGB ATV Target 500R
Fit for TGB ATV Target 525

924415A
Fit for TGB ATV Blade 425

924415B
Fit for TGB ATV Blade 550
Fit for TGB ATV Target 550 IRS Sniper

927995A
Fit for TGB ATV Outback 425 2007-2008
Fit for TGB ATV Blade 425
Fit for TGB ATV Blade 550
Fit for TGB ATV Blade 600LT E4
Fit for TGB ATV Blade 600LT T3b
Fit for TGB ATV Blade 600SE T3b
Fit for TGB ATV Blade 600LTX T3b
Fit for TGB ATV Blade 600LTX E4
Fit for TGB ATV Blade 600LTX E5
Fit for TGB ATV Blade 600LTX MAX E5
Fit for TGB ATV Target 600 E4
Fit for TGB ATV Target 600 T3b

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 115mm Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
