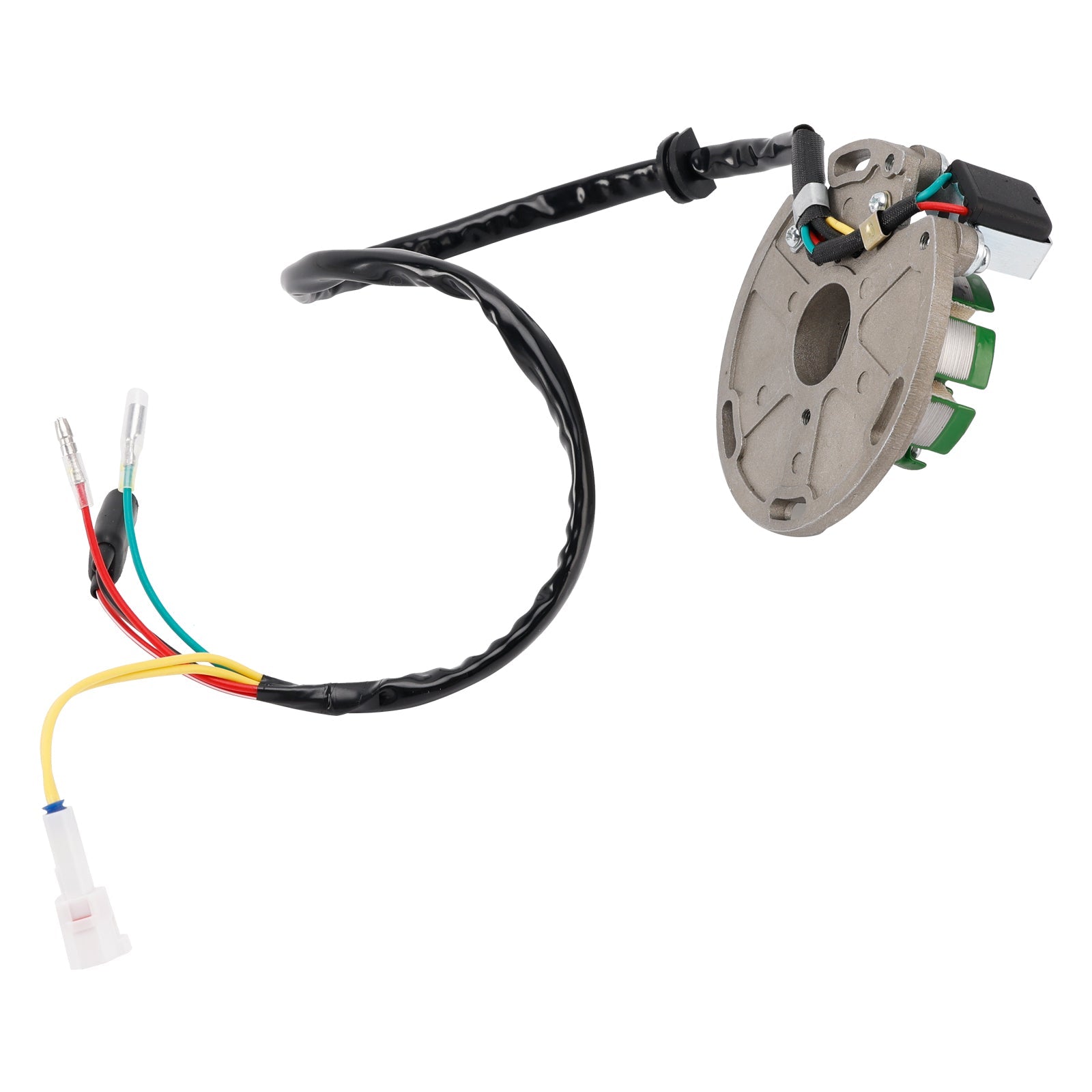

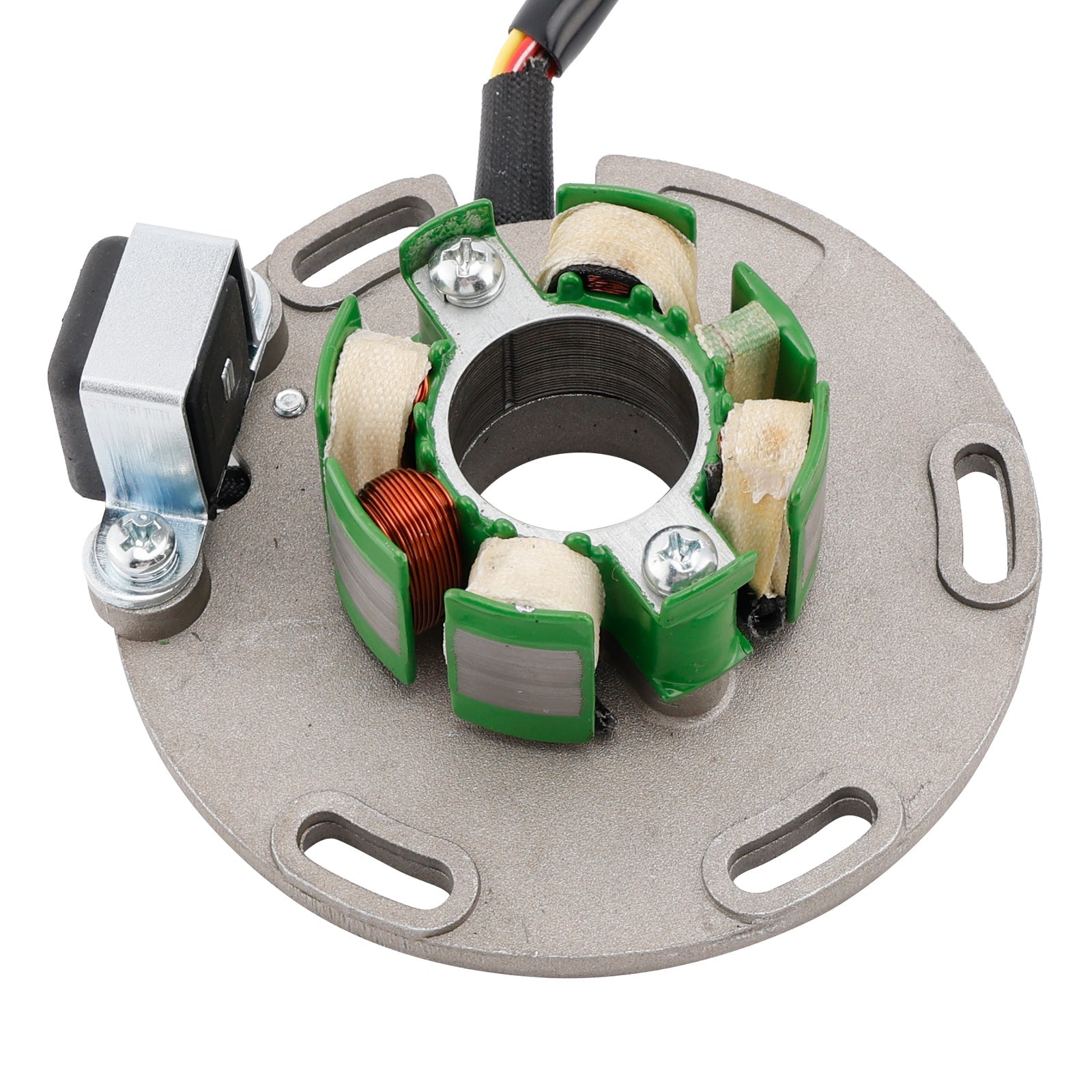

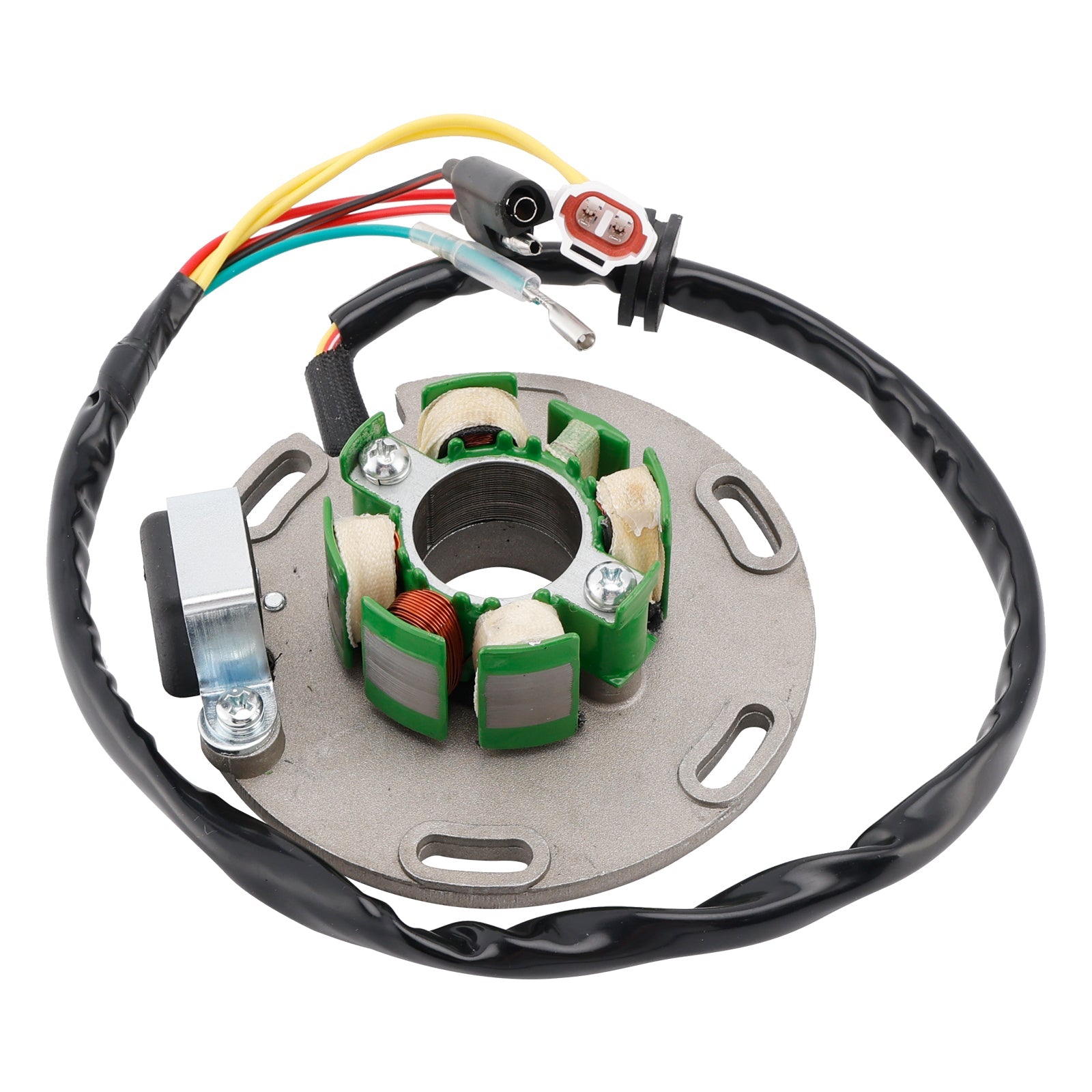

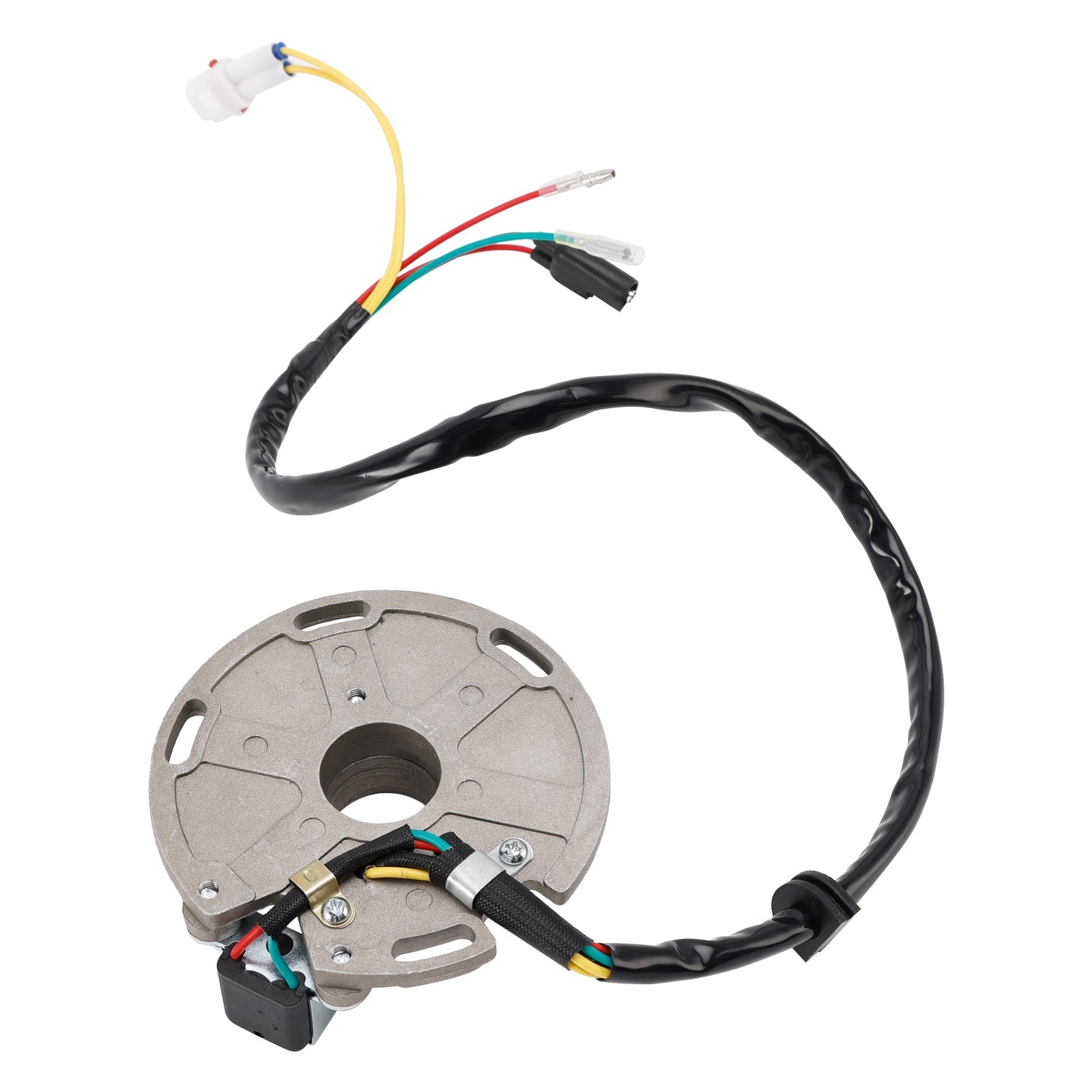

6-Wire 6-Pole Magneto Generator Stator Fit for TM Racing 85-100-125-144 EN MX 2T - X GEN.KOKUSAN END

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

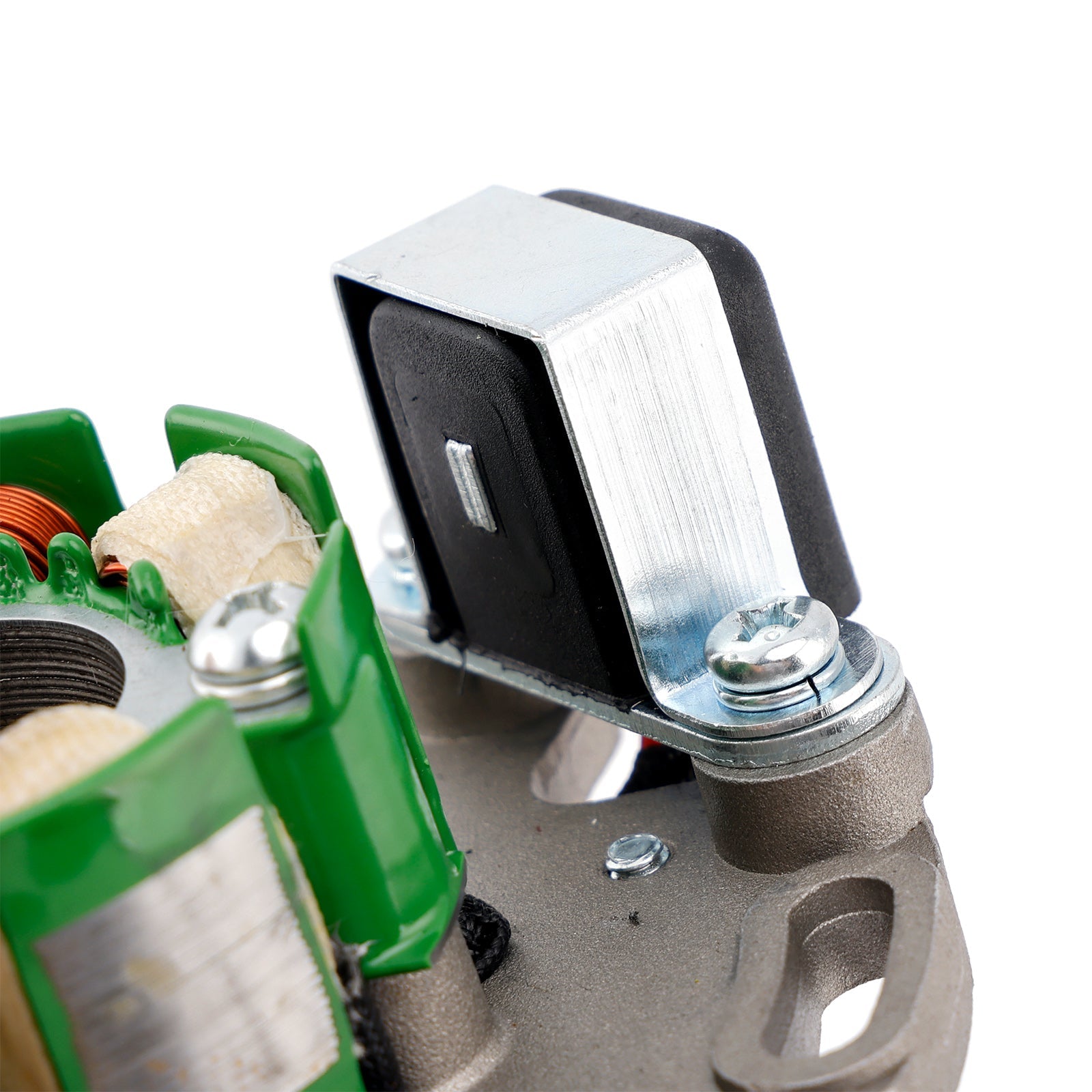

Pick up pulsar coil included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 6

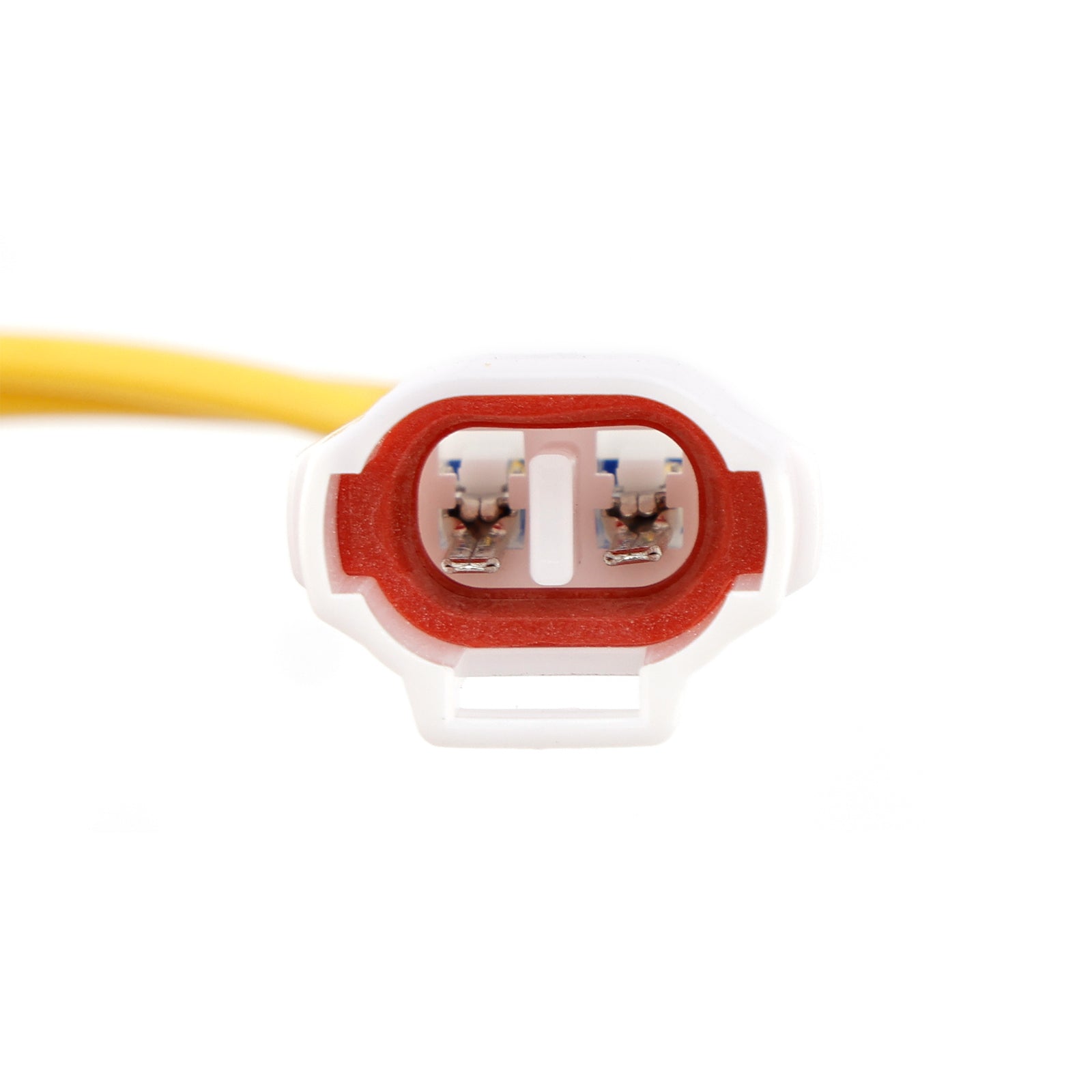

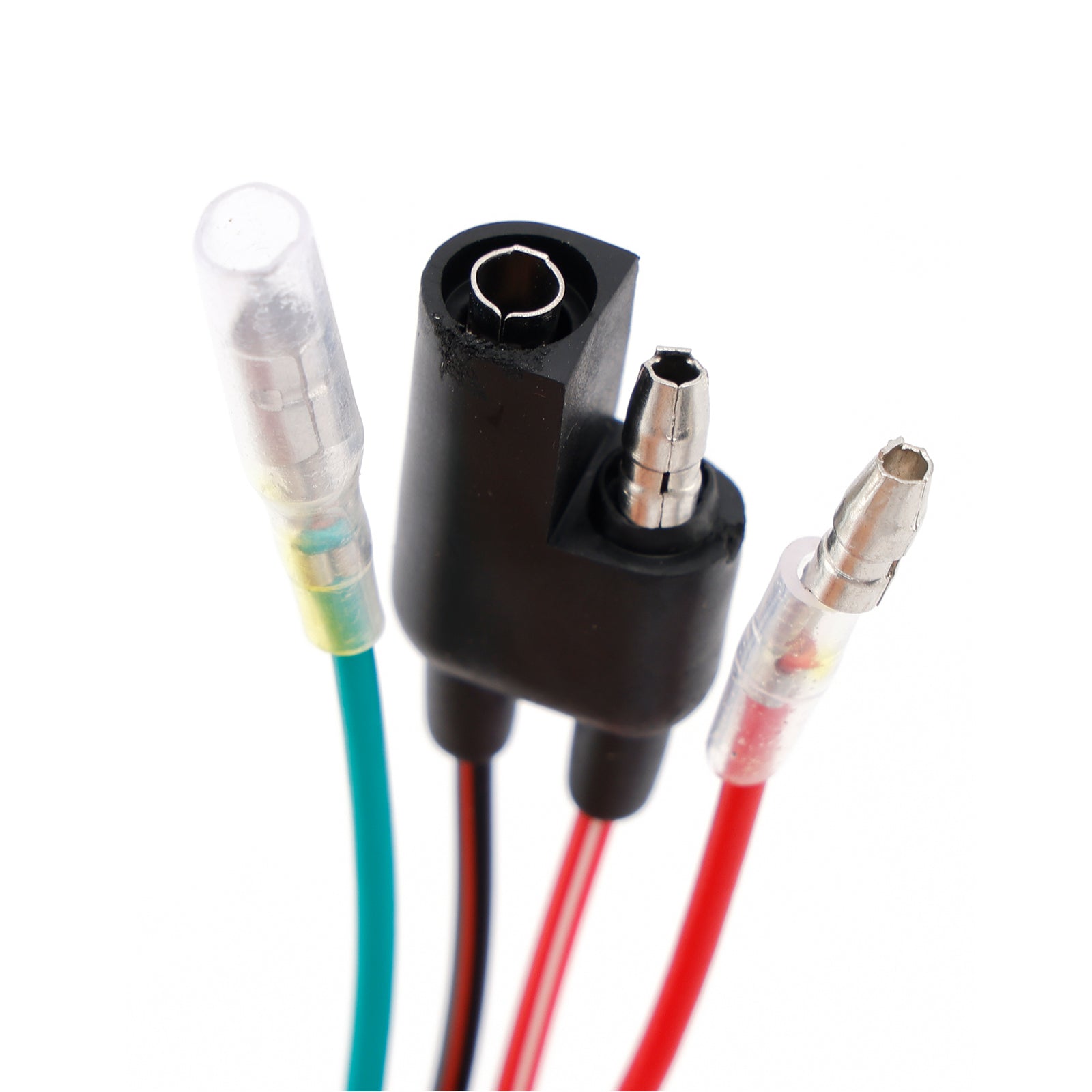

Number of pins: 1 + 1 + 2 + 2
Number of poles: 6

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
15230.02

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Model/Year:
Only fits X-Gen Kokusan End 2-Stroke Models.
Fit for TM Racing 80 2-Stroke Junior 2013-2019
Fit for TM Racing 80 2-Stroke MX/EN 2014-2019
Fit for TM Racing 85 2-Stroke Junior 2013-2020
Fit for TM Racing 85 2-Stroke MX/EN 2013-2019
Fit for TM Racing 85 2-Stroke MX Junior 2021
Fit for TM Racing 100 2-Stroke MX/EN 2013-2019
Fit for TM Racing 125 2-Stroke MX/EN 2011-2019
Fit for TM Racing 125 2-Stroke MX 2020-2021
Fit for TM Racing 144 2-Stroke MX/EN 2010-2019
Fit for TM Racing 144 2-Stroke MX 2020-2021
Fit for TM Racing 250 2-Stroke MX/EN 2011-2018
Fit for TM Racing 300 2-Stroke MX/EN 2011-2018
Fit for TM Racing MX 85 Junior 2022-2024
Fit for TM Racing MX 100 Junior 2022/2024
Fit for TM Racing MX 125 2-Stroke 2022-2024
Fit for TM Racing MX 144 2-Stroke 2022-2024
Fit for TM Racing SMX 85 Junior 2022-2024
Fit for TM Racing SMX 100 Junior 2022

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 6-Wire Ignition Stator Base Assy

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
