Generator Stator Regulator Rectifier Gasket Set For Arctic Cat ATV 700 H1 Powler XT GT TRV MudPro 08-12

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

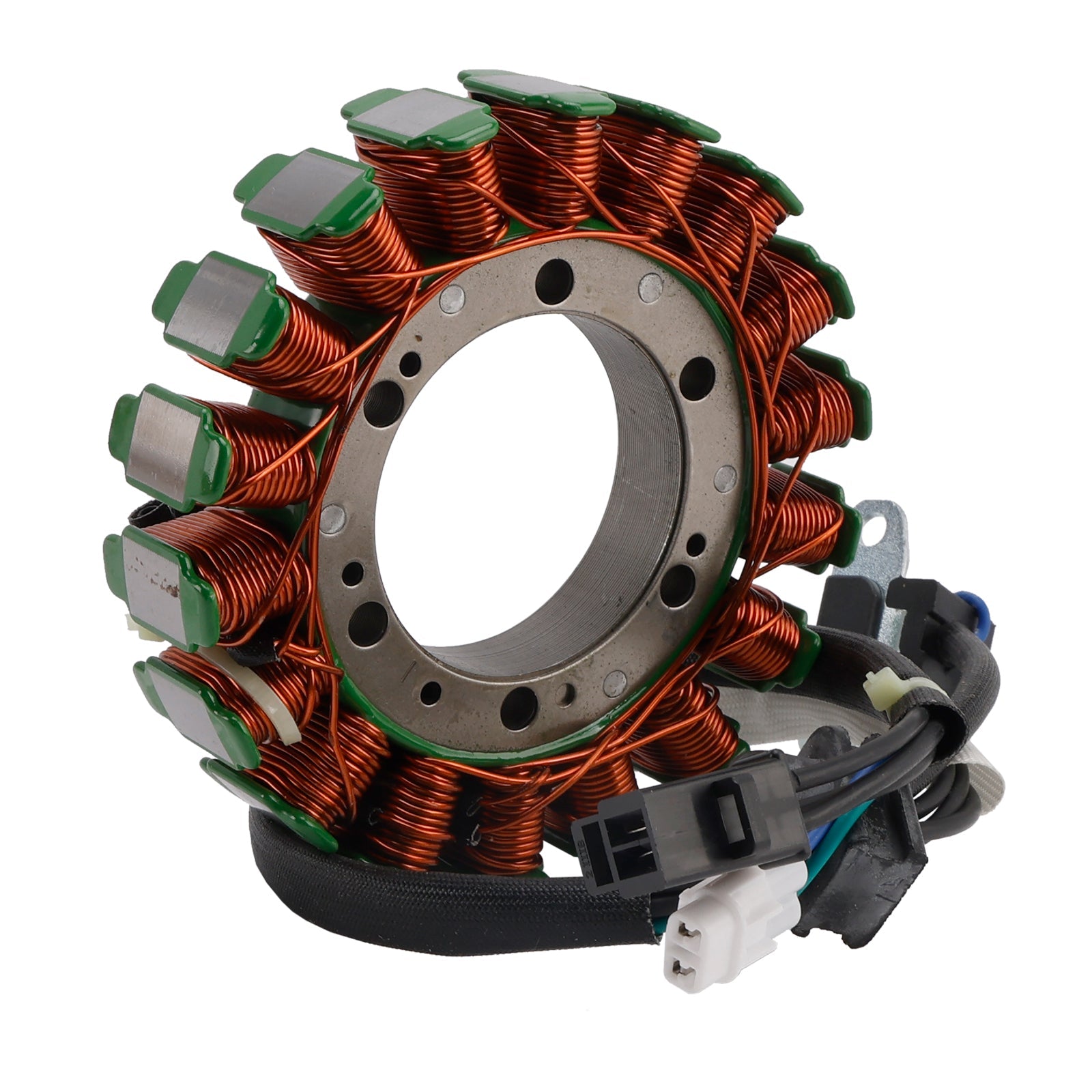

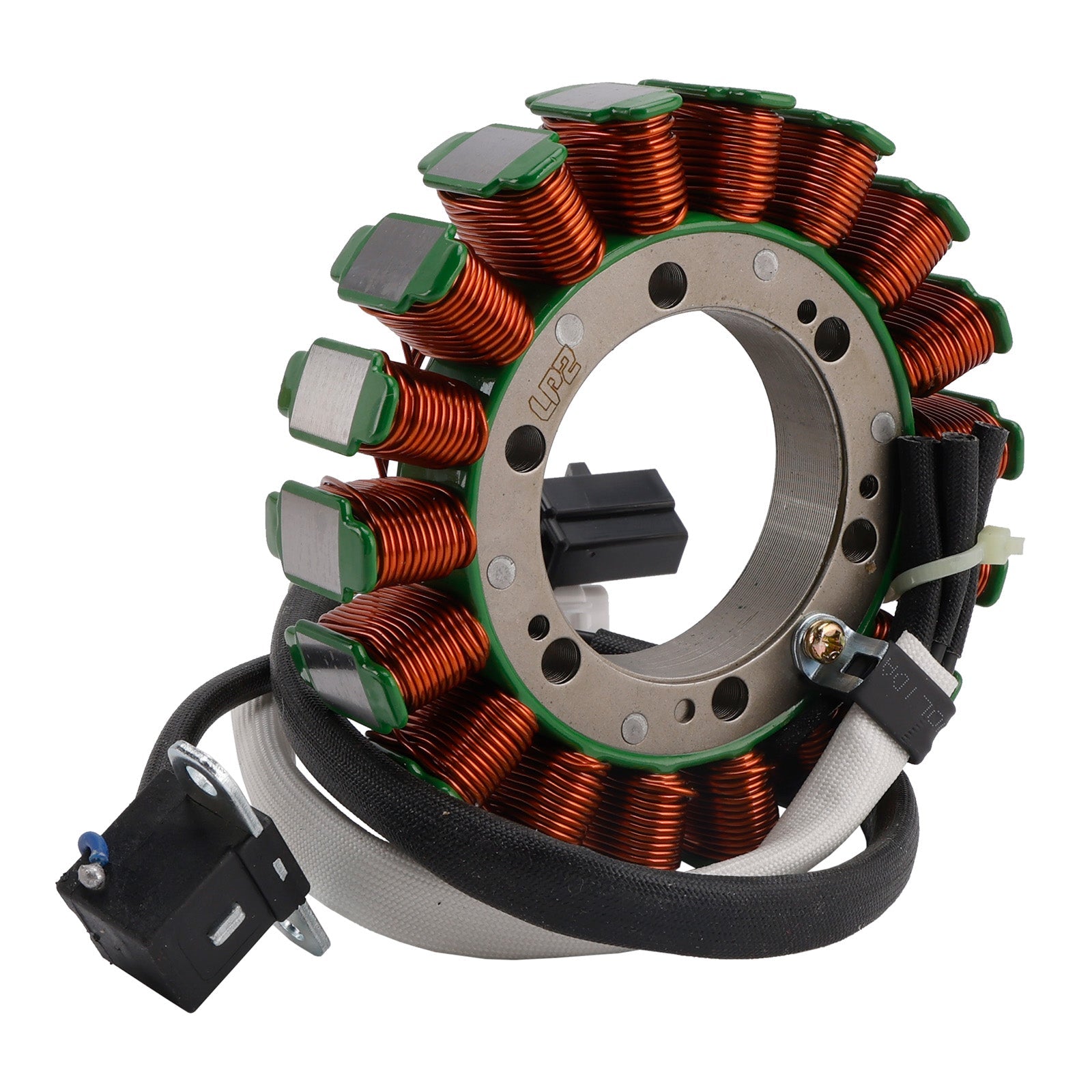

Stator
Number of wires: 5

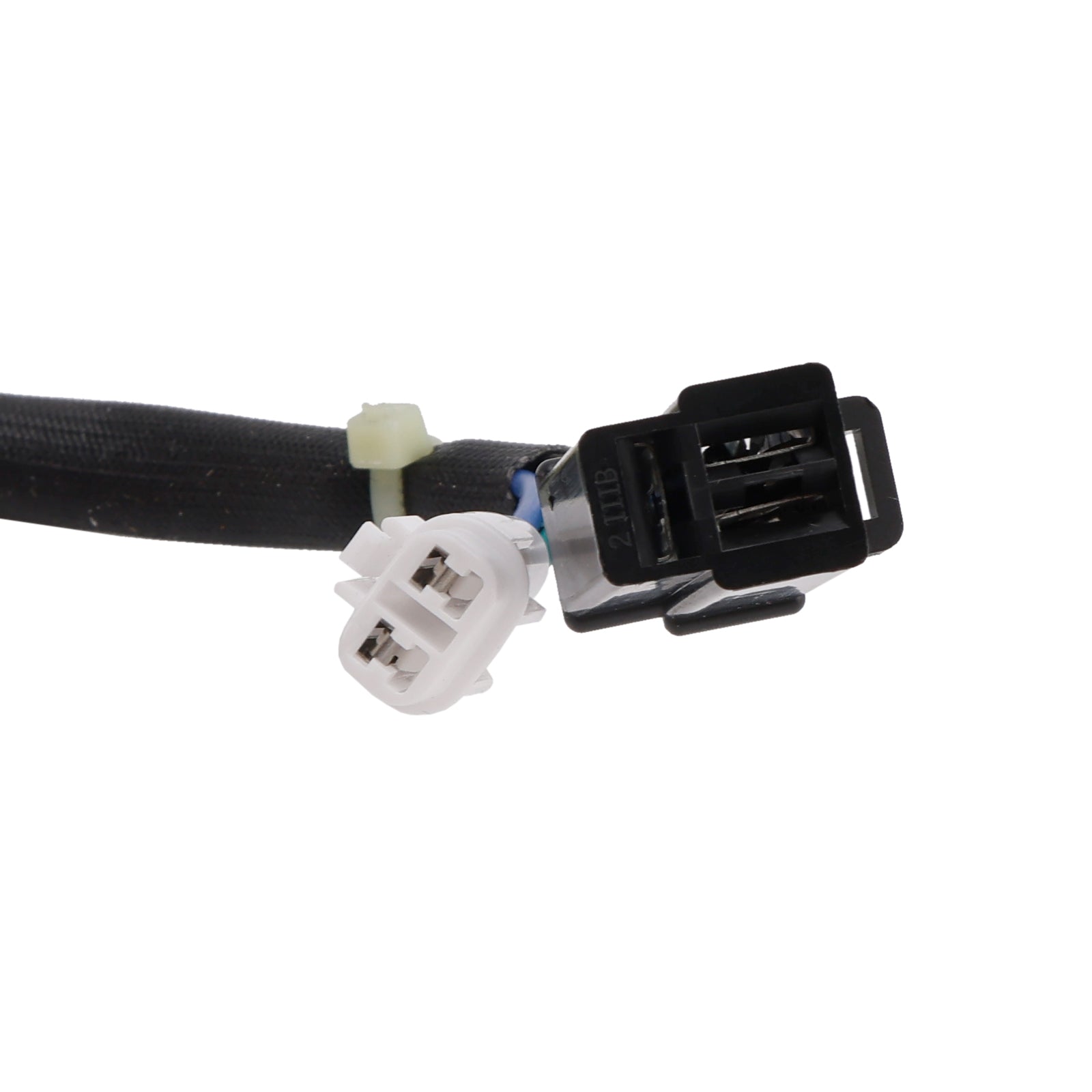

Number of plugs: 2
Number of pins: 3 + 2
Number of fixation holes: 6
Number of poles: 18
Interior diameter: 54 mm
Exterior diameter: 119 mm

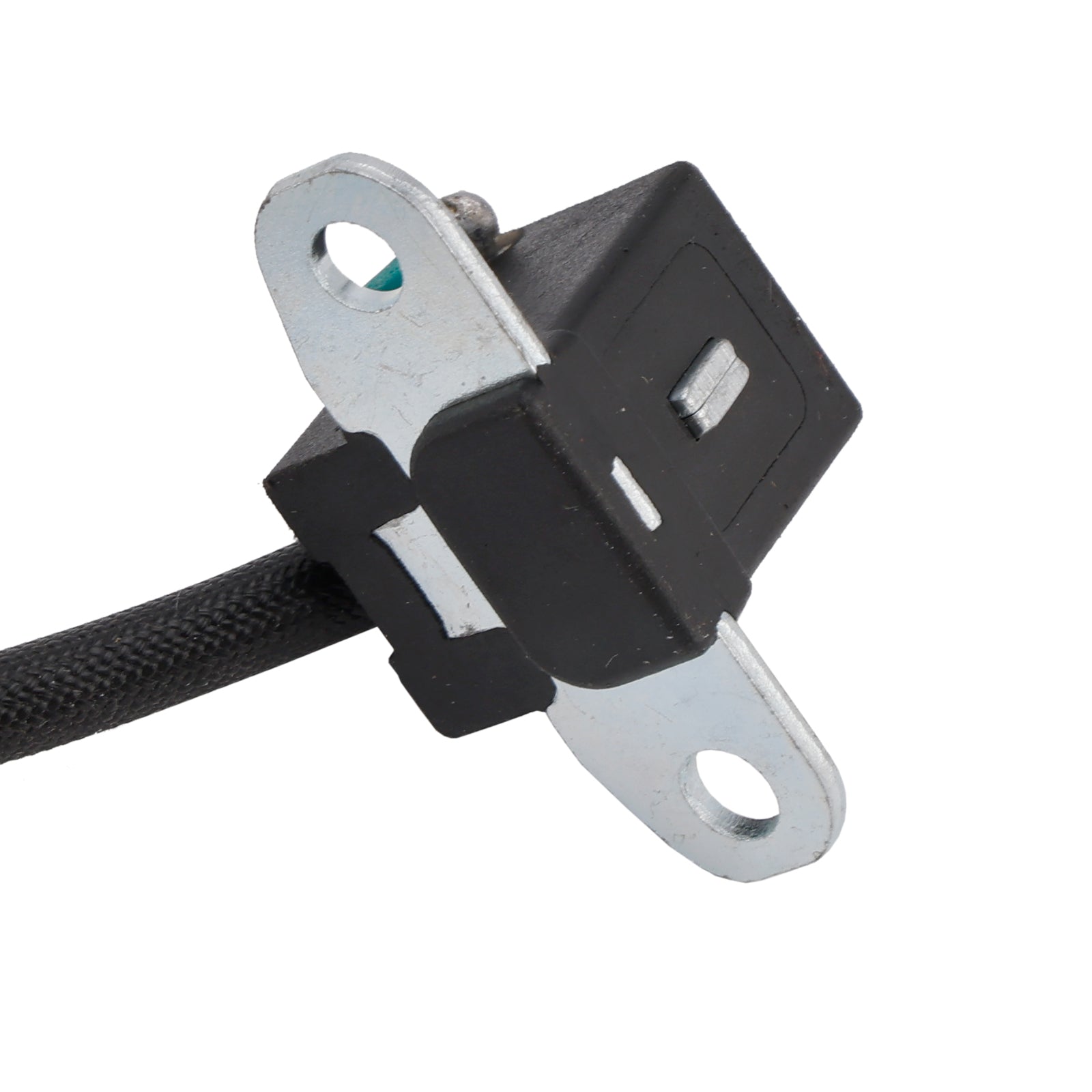

Pick up pulsar coil included.

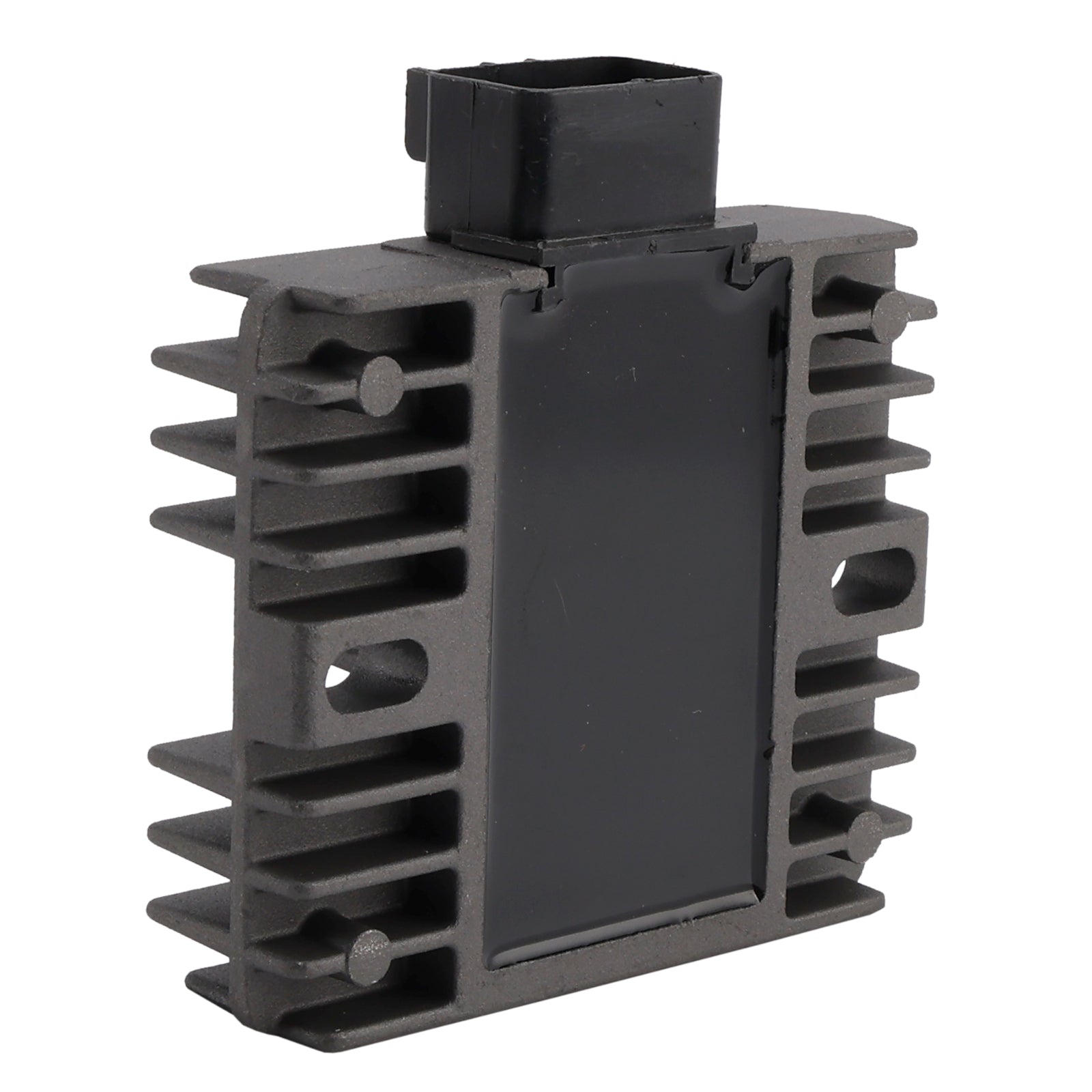

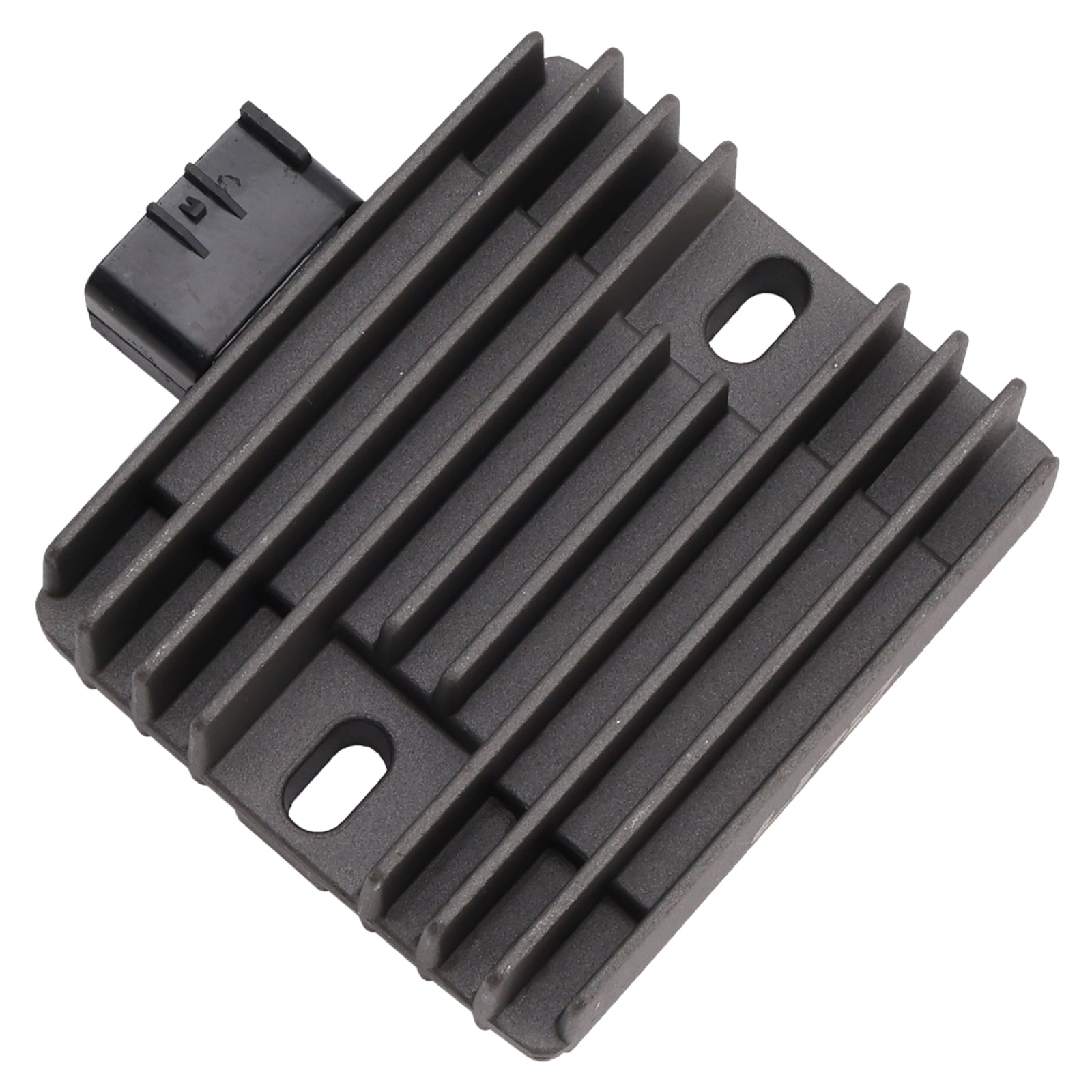

Regulator
Number of plugs: 1

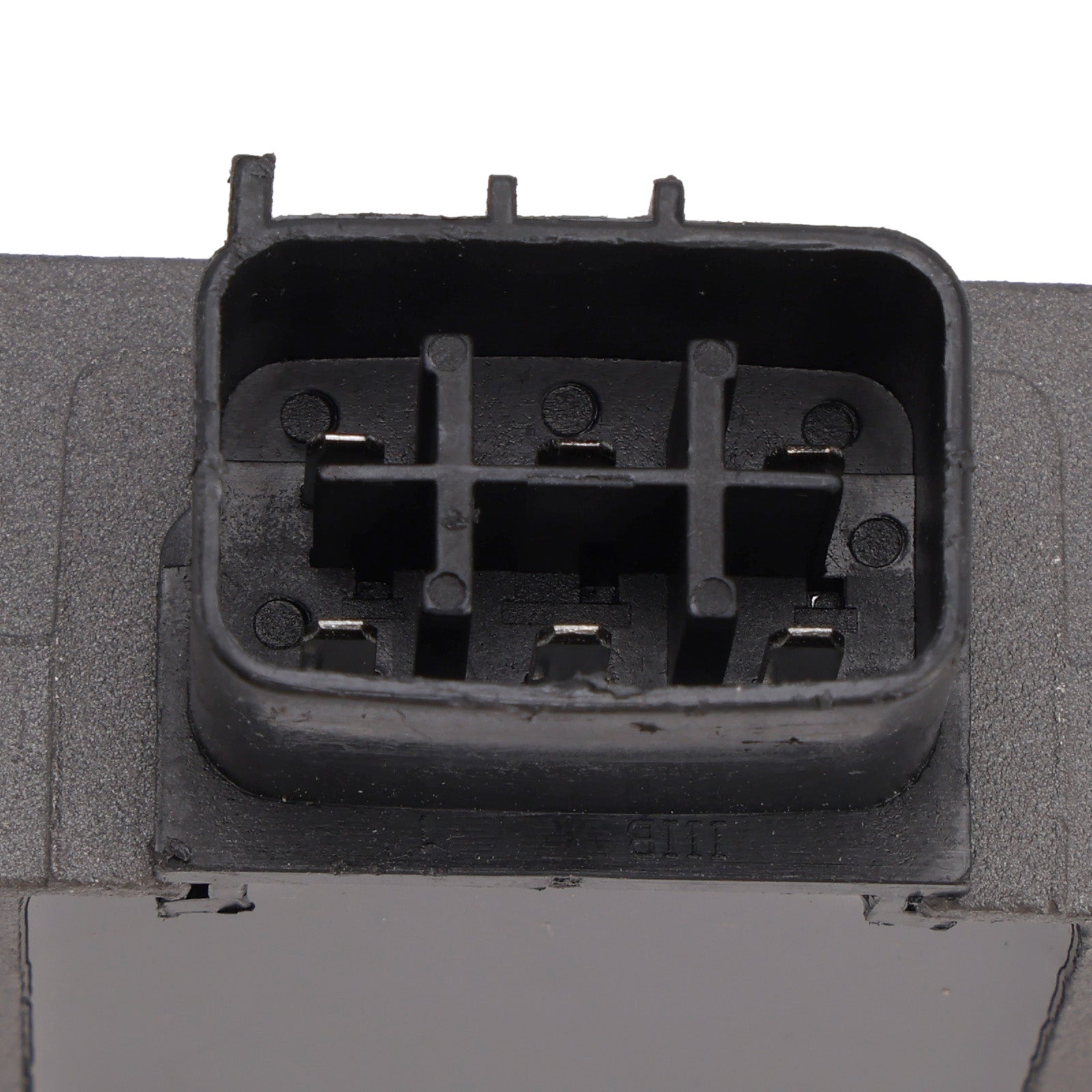

Number of pins: 6

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: 0802-041
Rectifier, regulator: 0824-037, 0824-020

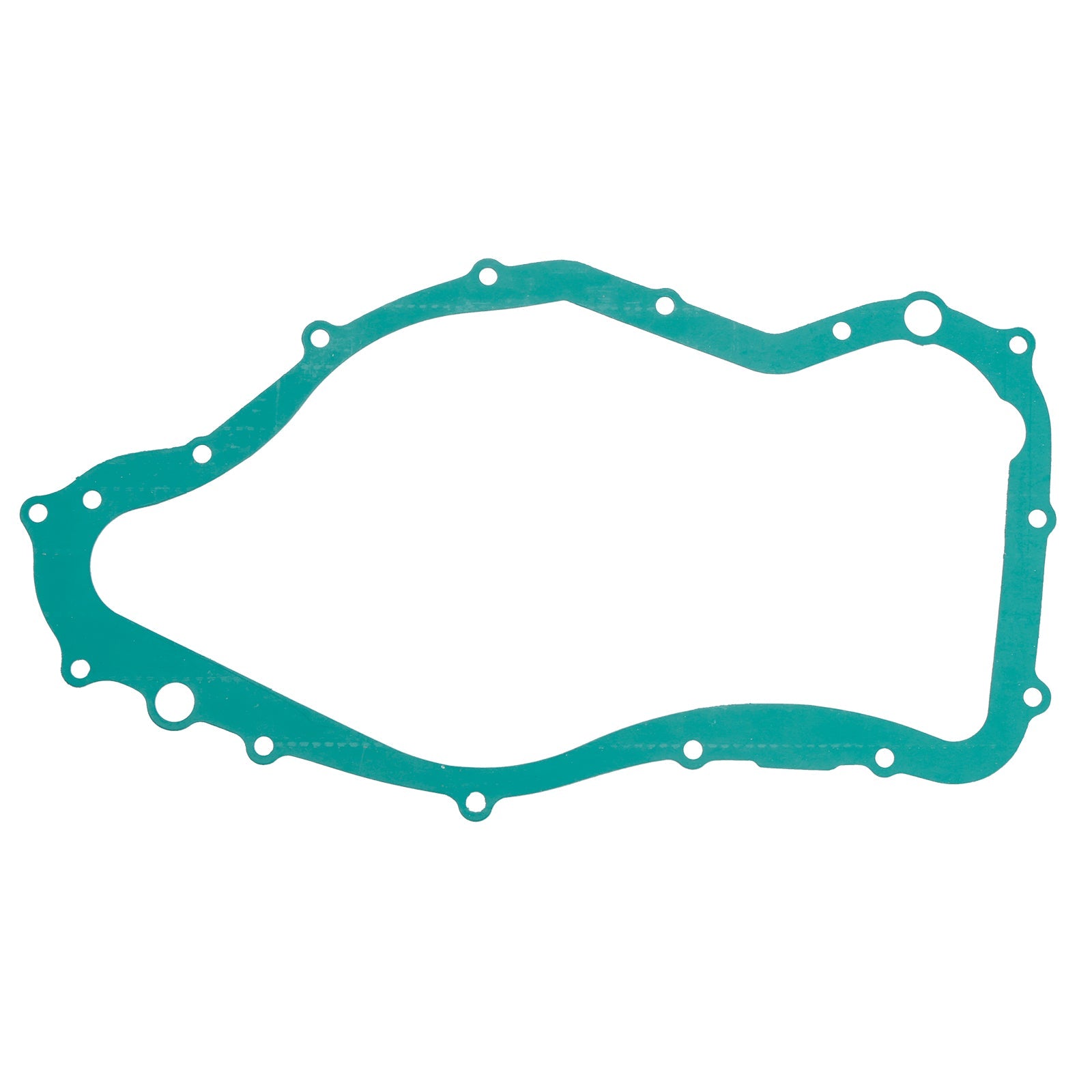

Gasket, generator cover: 0830-128

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Arctic Cat ATV 550 GT 2012
Fit for Arctic Cat ATV 550 H1 2009-2012
Fit for Arctic Cat ATV 550 H1 Limited Edition 2009-2012
Fit for Arctic Cat ATV 550 Limited Edition 2012-2013
Fit for Arctic Cat ATV 550 XT 2013
Fit for Arctic Cat ATV 550 XT International 2013
Fit for Arctic Cat ATV 700 GT 2012
Fit for Arctic Cat ATV 700 GT International 2012
Fit for Arctic Cat ATV 700 H1 EFI 2009-2012
Fit for Arctic Cat ATV 700 H1 EFI Limited Edition 2009-2012
Fit for Arctic Cat ATV 700 H1 EFI Special Edition 2008
Fit for Arctic Cat ATV 700 Limited 2012
Fit for Arctic Cat ATV 700 Limited International 2012
Fit for Arctic Cat ATV 700S H1 EFI 2010-2011
Fit for Arctic Cat ATV 700S H1 EFI Limited Edition 2010-2011
Fit for Arctic Cat MudPro 700 H1 2009-2012
Fit for Arctic Cat MudPro 700 H1 International 2009-2012
Fit for Arctic Cat MudPro 700 Limited 2012
Fit for Arctic Cat MudPro 700 Limited International 2012
Fit for Arctic Cat Prowler 550 2009
Fit for Arctic Cat Prowler 550 International 2009
Fit for Arctic Cat Prowler 550 XT 2010-2012
Fit for Arctic Cat Prowler 550 XT International 2010-2012
Fit for Arctic Cat Prowler 700 HDX 2011-2012
Fit for Arctic Cat Prowler 700 HDX International 2011-2012
Fit for Arctic Cat Prowler 700 XT 2009
Fit for Arctic Cat Prowler 700 XTX 2008-2010
Fit for Arctic Cat Prowler 700 XTX EPS 2011-2012
Fit for Arctic Cat Prowler 700 XTX EPS International 2011-2012
Fit for Arctic Cat Prowler 700 XTX Limited Edition 2009-2010
Fit for Arctic Cat Prowler 700 XTX M4 2009
Fit for Arctic Cat Prowler 700s XTX EPS 2011
Fit for Arctic Cat Prowler 700s XTX EPS International 2011
Fit for Arctic Cat TRV 550 Cruiser 2012
Fit for Arctic Cat TRV 550 Cruiser International 2012
Fit for Arctic Cat TRV 550 GT 2012
Fit for Arctic Cat TRV 550 GT International 2012
Fit for Arctic Cat TRV 550 H1 2009-2011
Fit for Arctic Cat TRV 550 H1 International 2010-2011
Fit for Arctic Cat TRV 550 H1 Limited Edition 2009
Fit for Arctic Cat TRV 550 Limited 2013
Fit for Arctic Cat TRV 550 Limited International 2013
Fit for Arctic Cat TRV 550 XT 2013
Fit for Arctic Cat TRV 550 XT International 2013
Fit for Arctic Cat TRV 550S H1 Cruiser 2011
Fit for Arctic Cat TRV 550S H1 Cruiser International 2011
Fit for Arctic Cat TRV 550S H1 GT 2011
Fit for Arctic Cat TRV 550S H1 GT International 2011
Fit for Arctic Cat TRV 700 Cuiser 2009-2012
Fit for Arctic Cat TRV 700 Cuiser International 2009-2012
Fit for Arctic Cat TRV 700 GT 2012
Fit for Arctic Cat TRV 700 GT International 2012
Fit for Arctic Cat TRV 700 H1 2010-2011
Fit for Arctic Cat TRV 700 H1 International 2010-2011
Fit for Arctic Cat TRV 700S Cuiser 2011
Fit for Arctic Cat TRV 700S H1 2010-2011
Fit for Arctic Cat TRV 700S H1 International 2010-2011

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

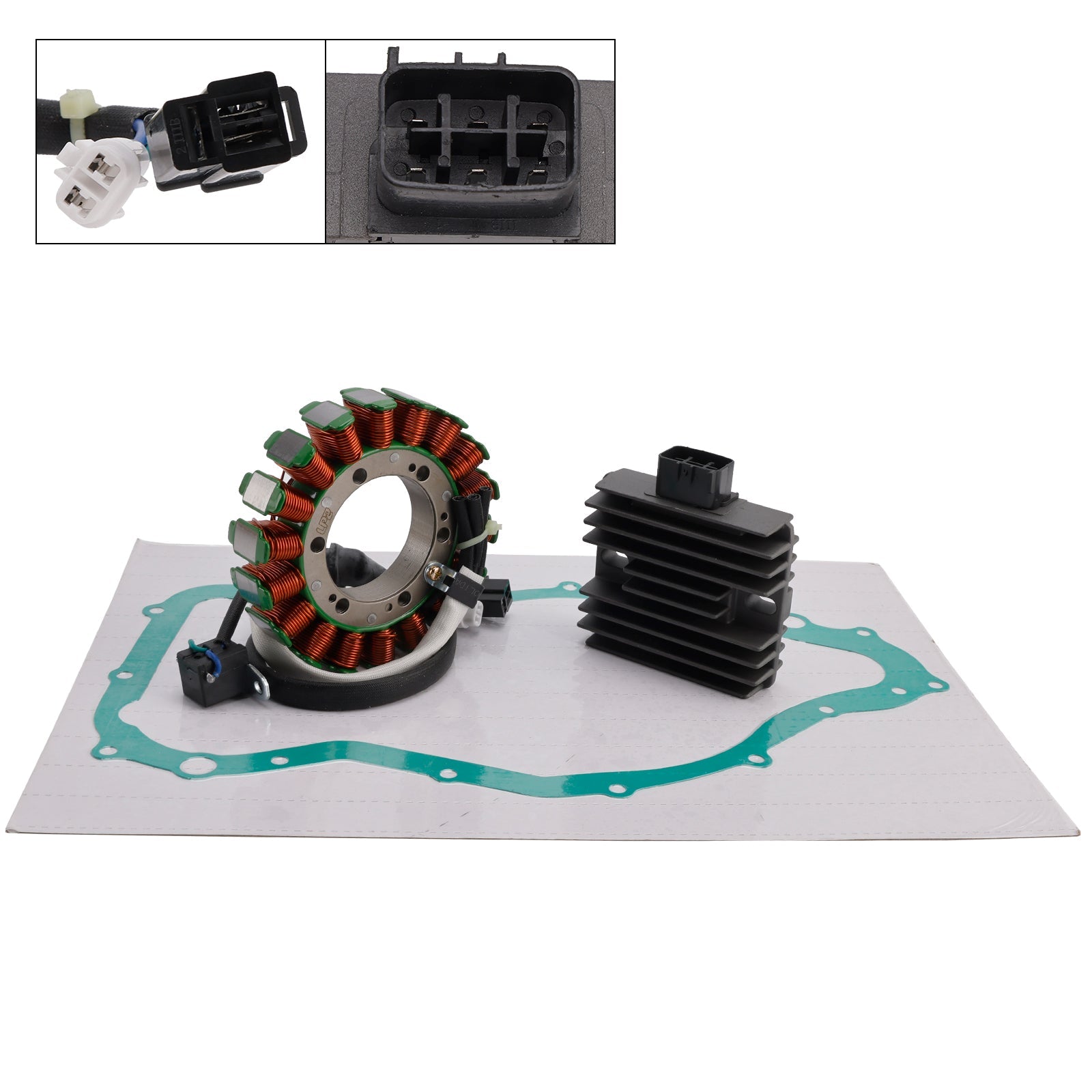

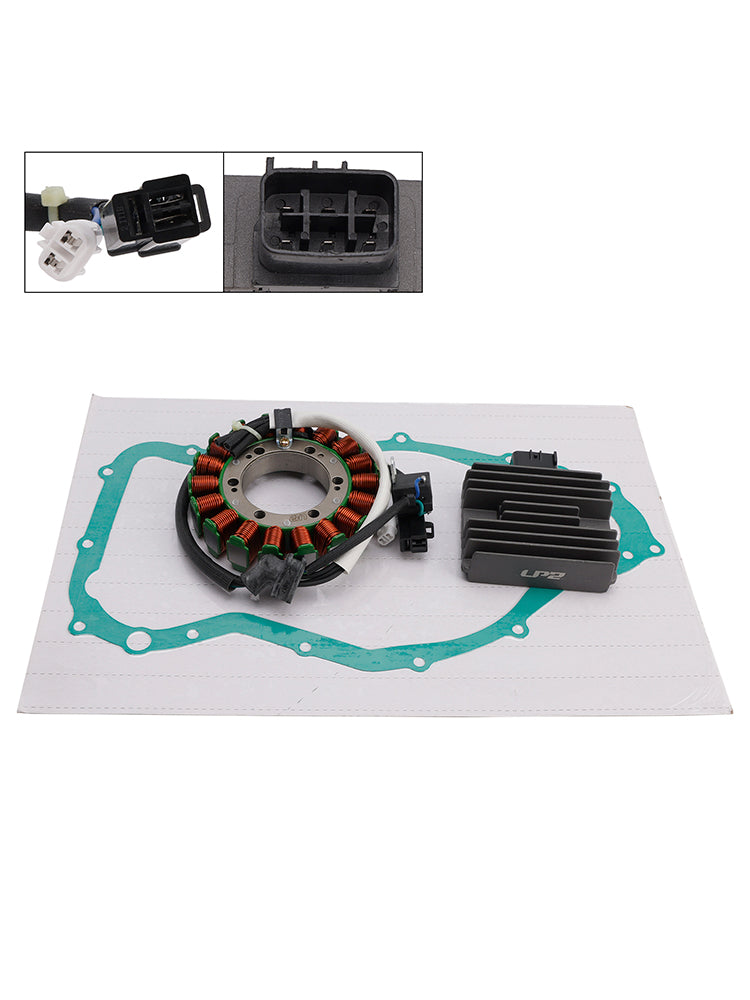

Package Includes:
1 x 5-Wire Generator Stator
1 x 6-Pin Regulator Rectifier

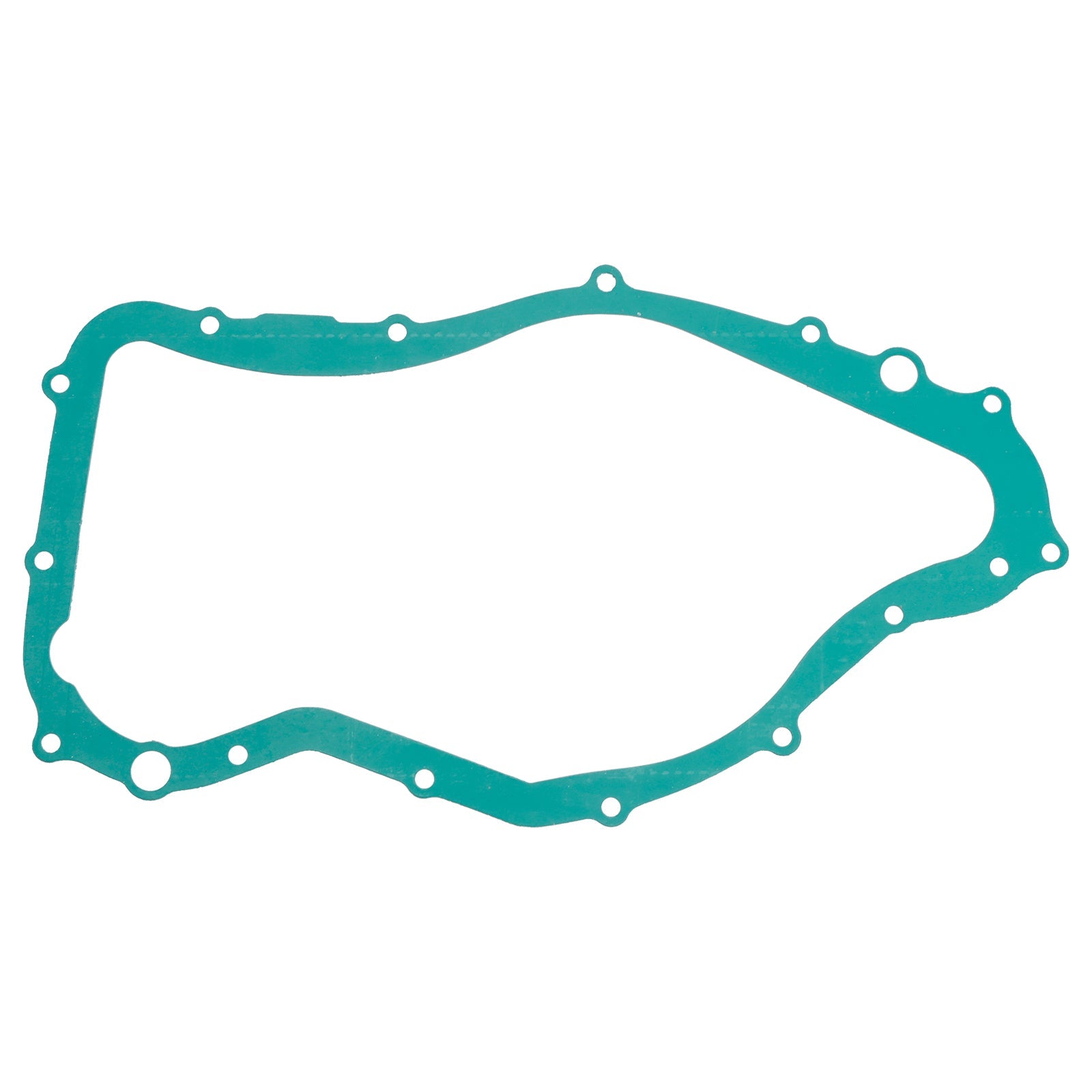

1 x Crankcase Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
