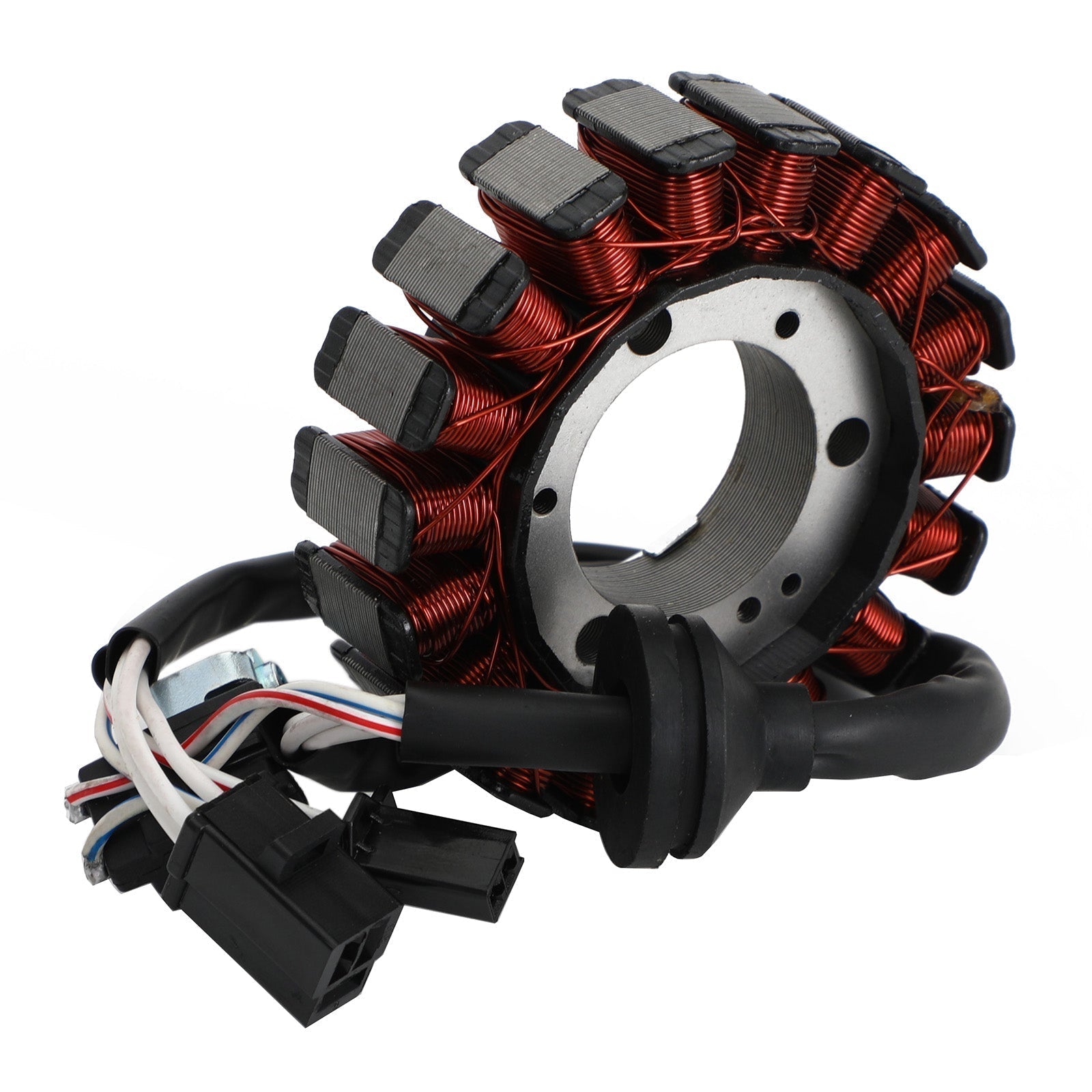

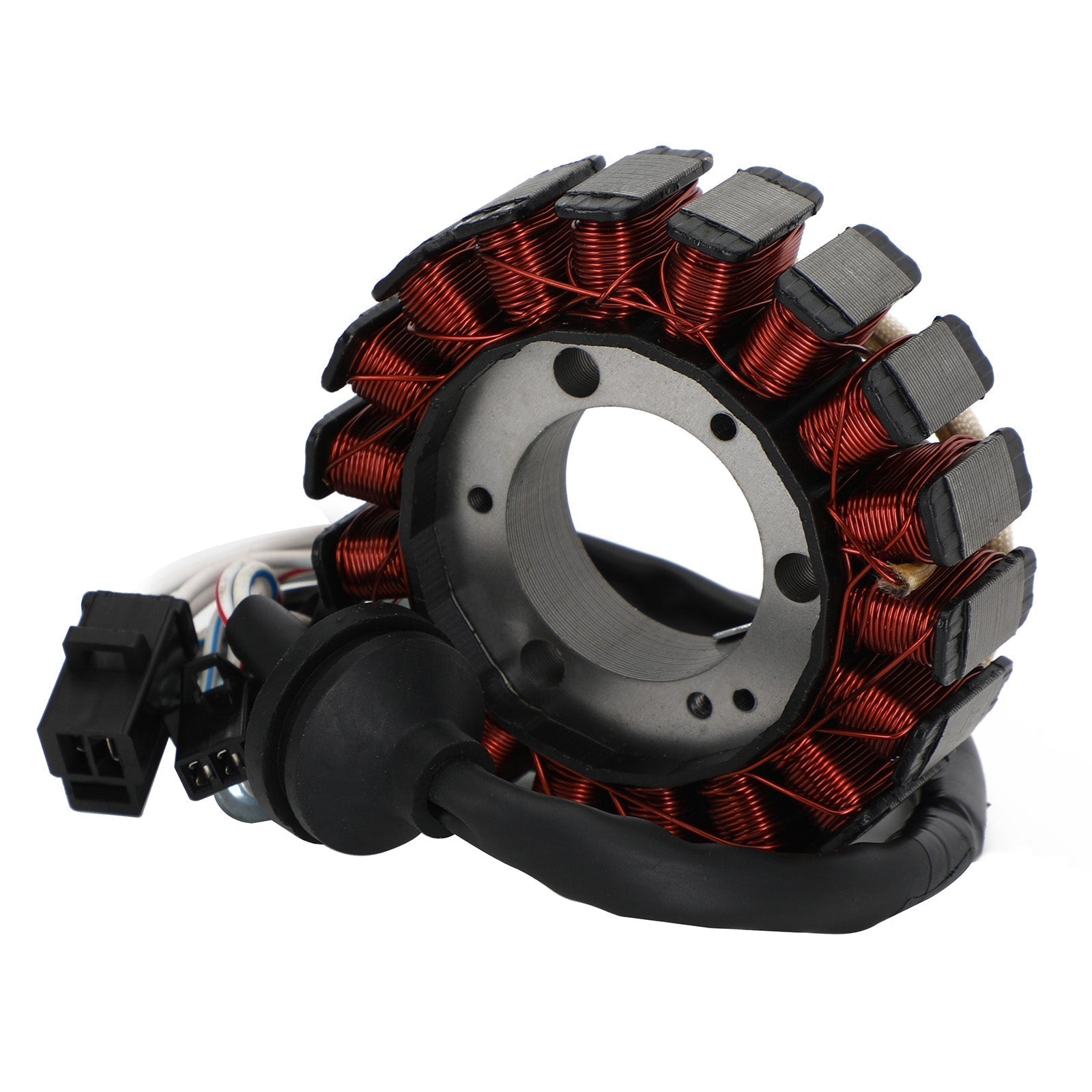

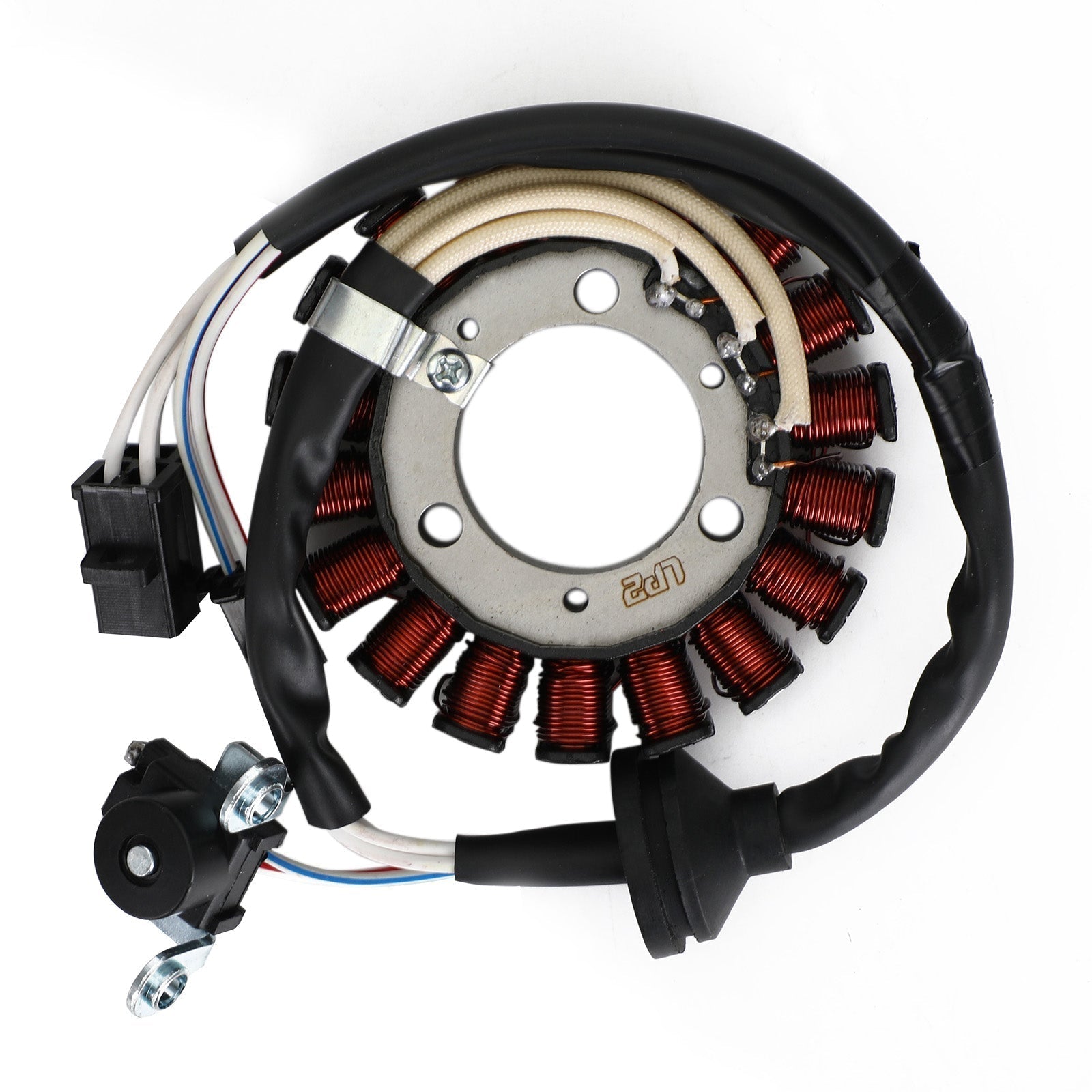

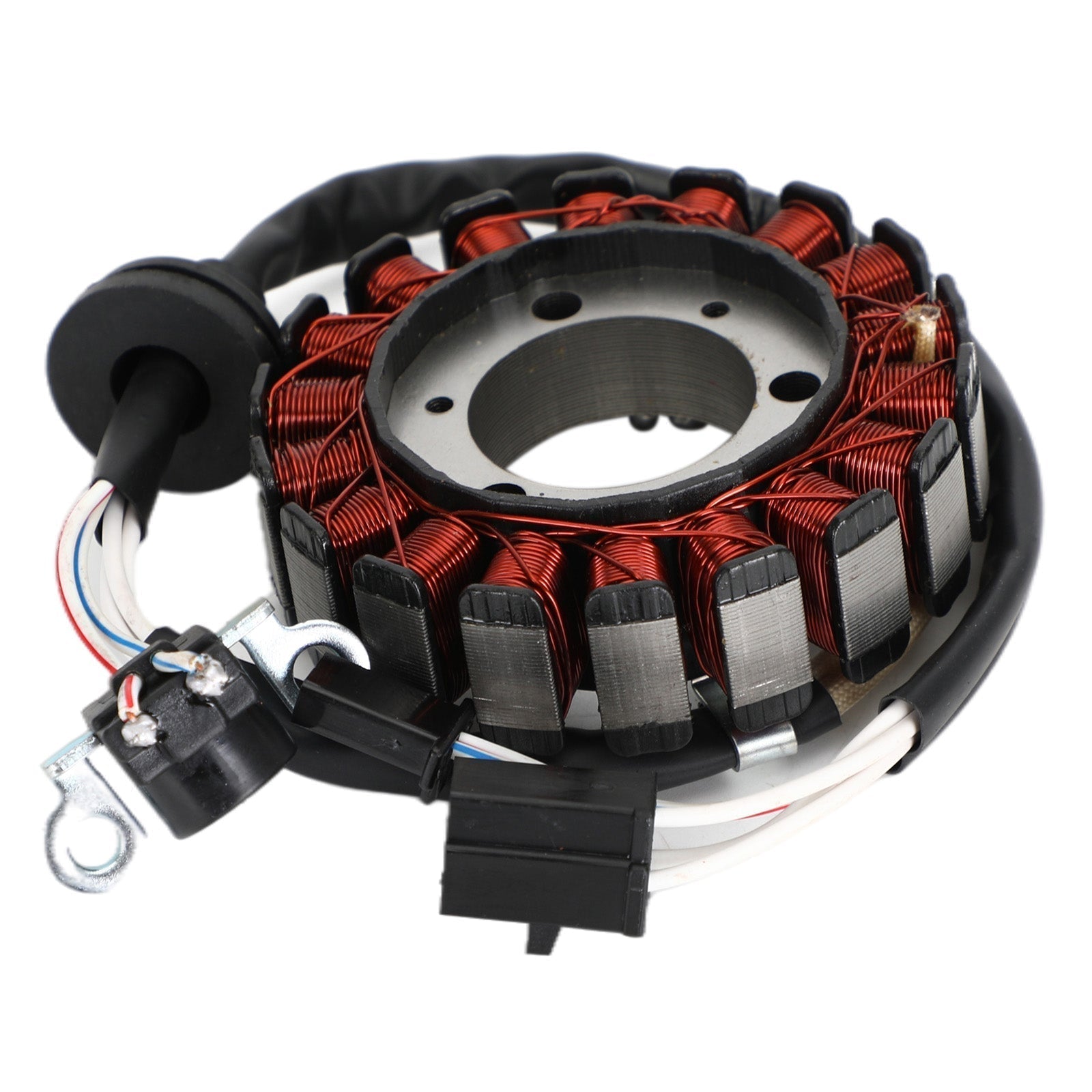

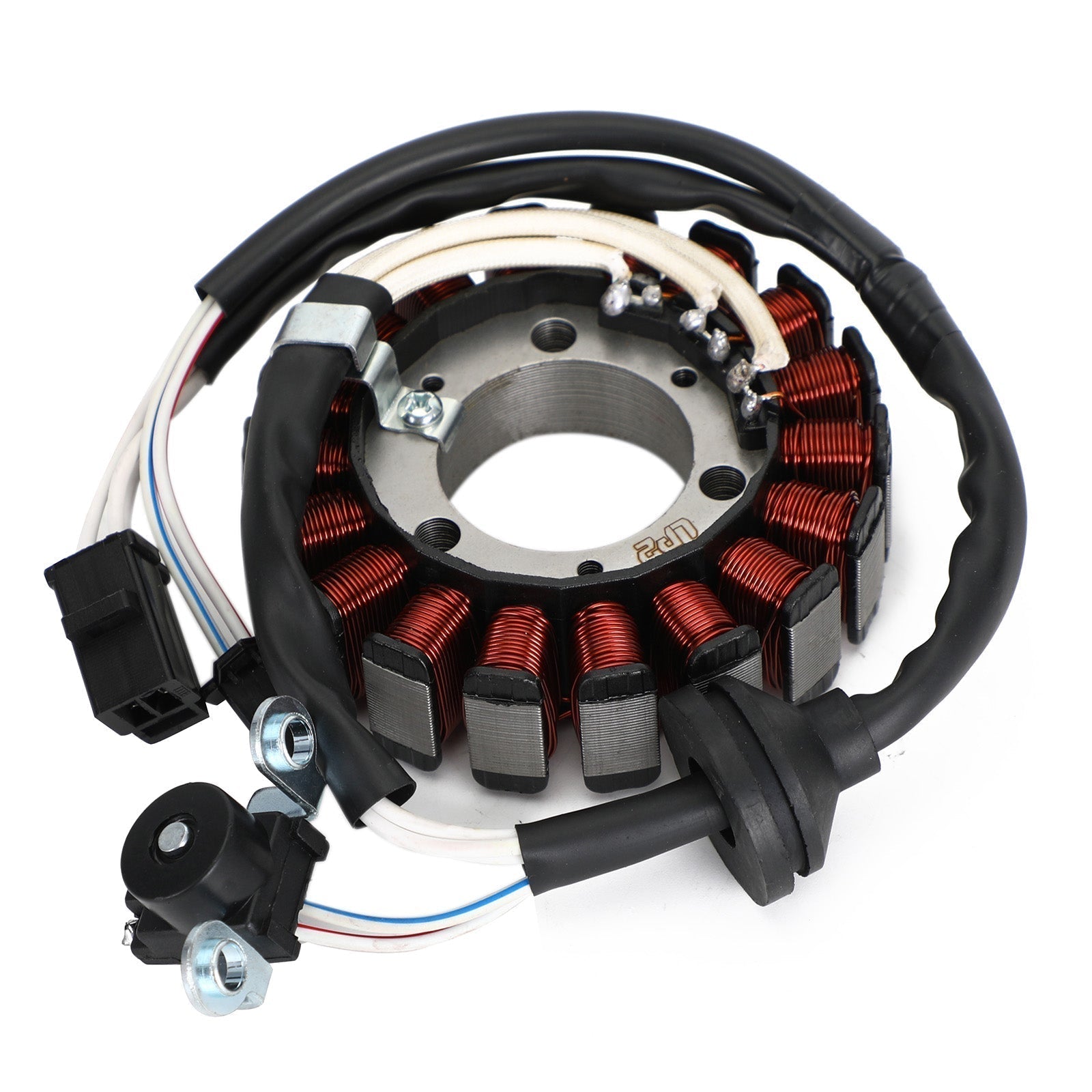

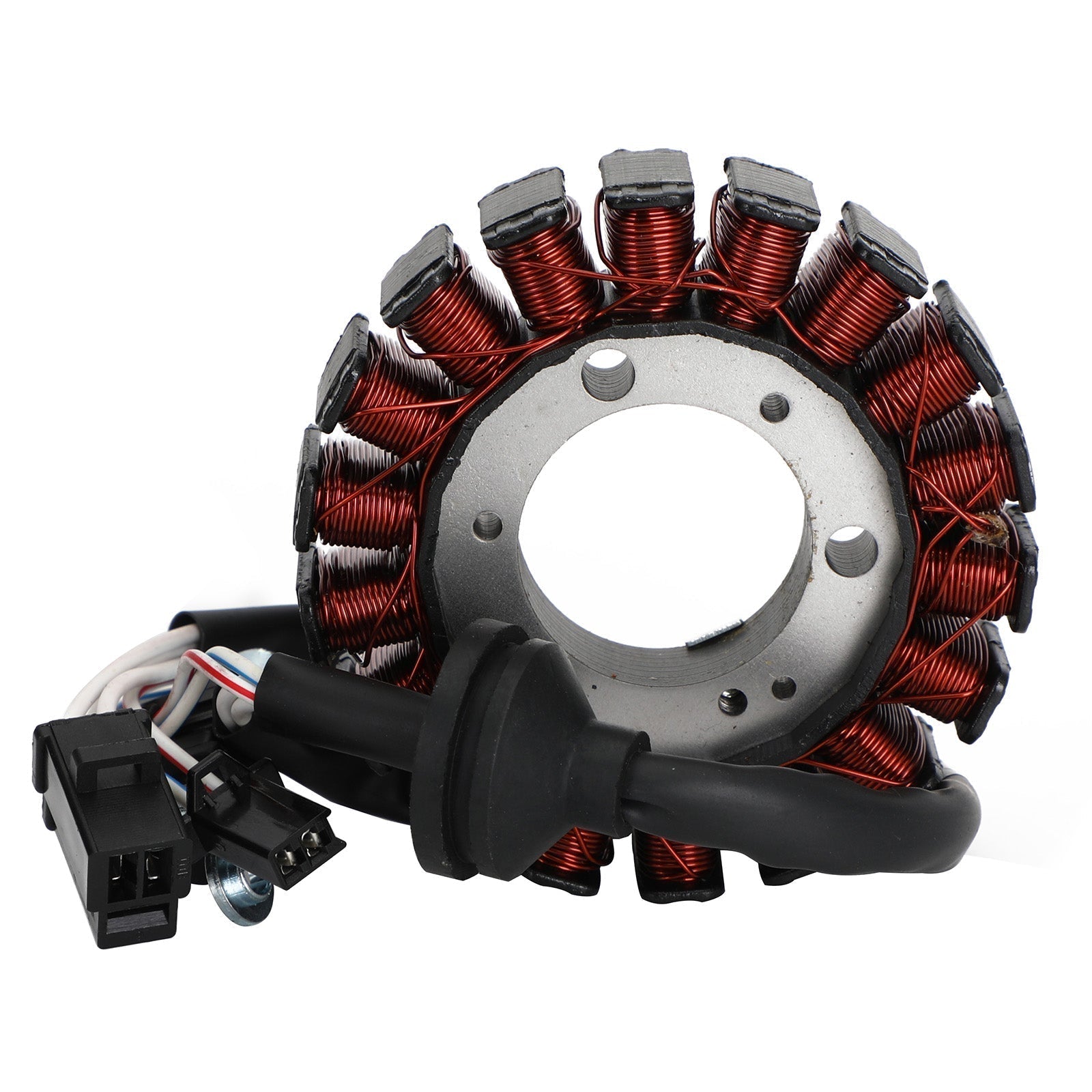

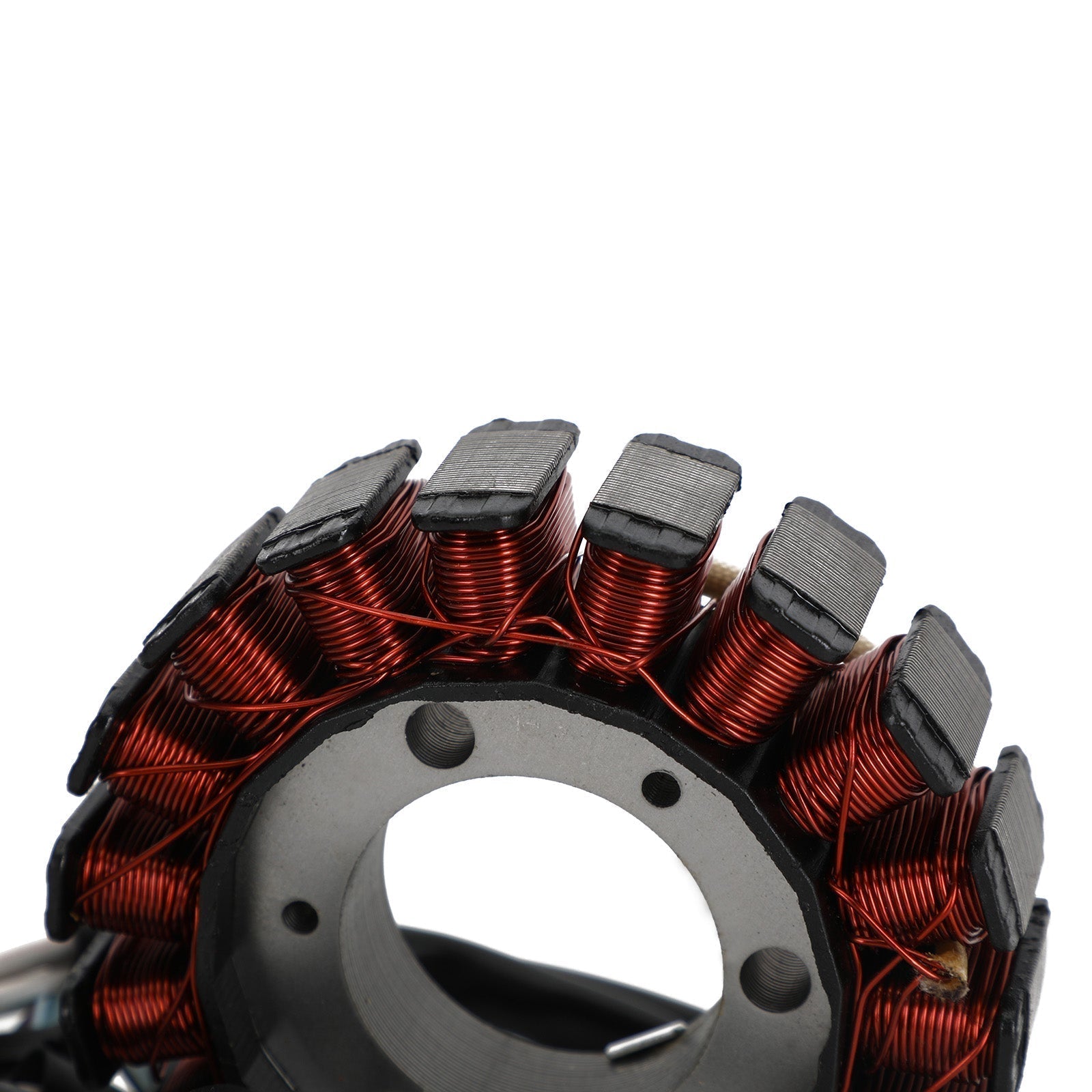

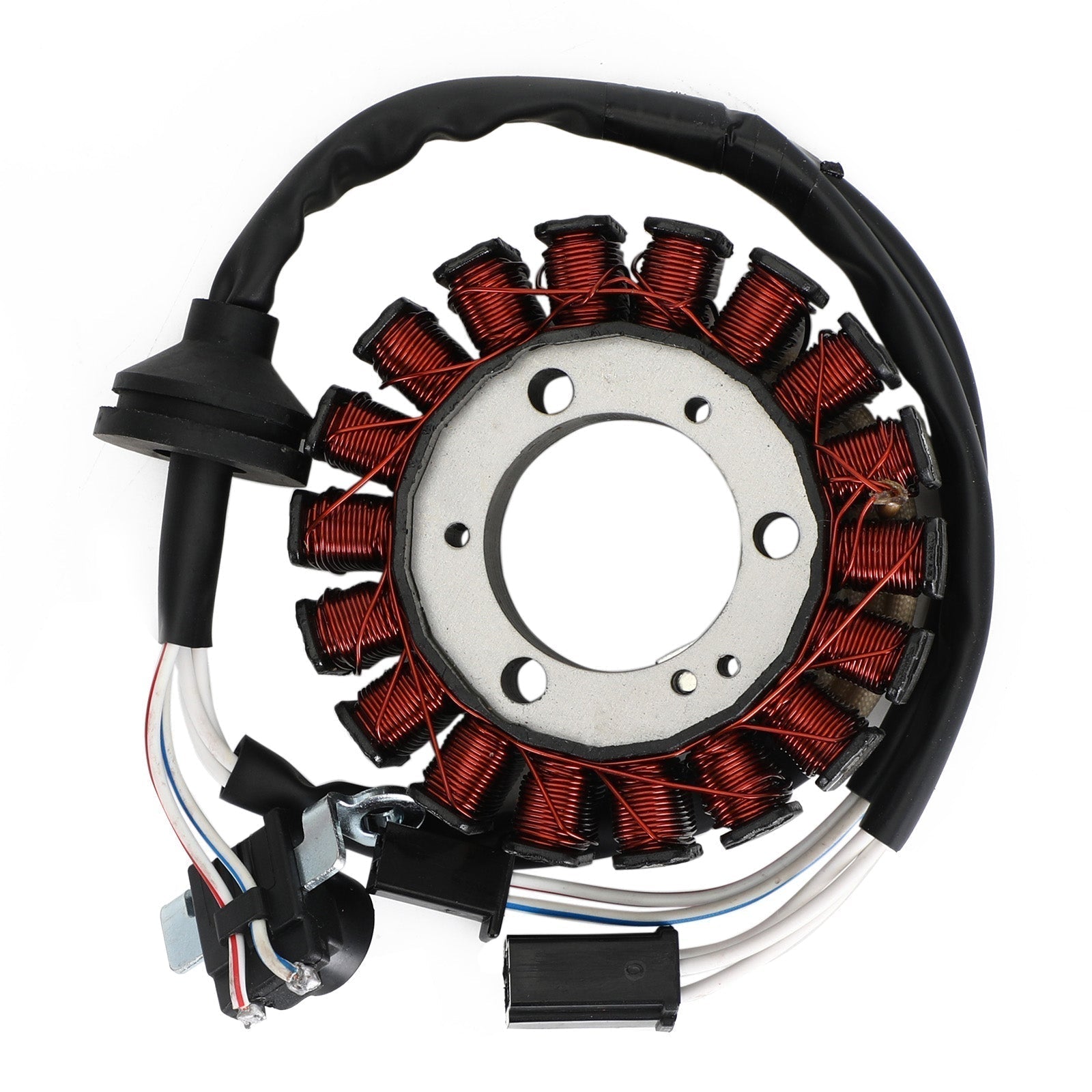

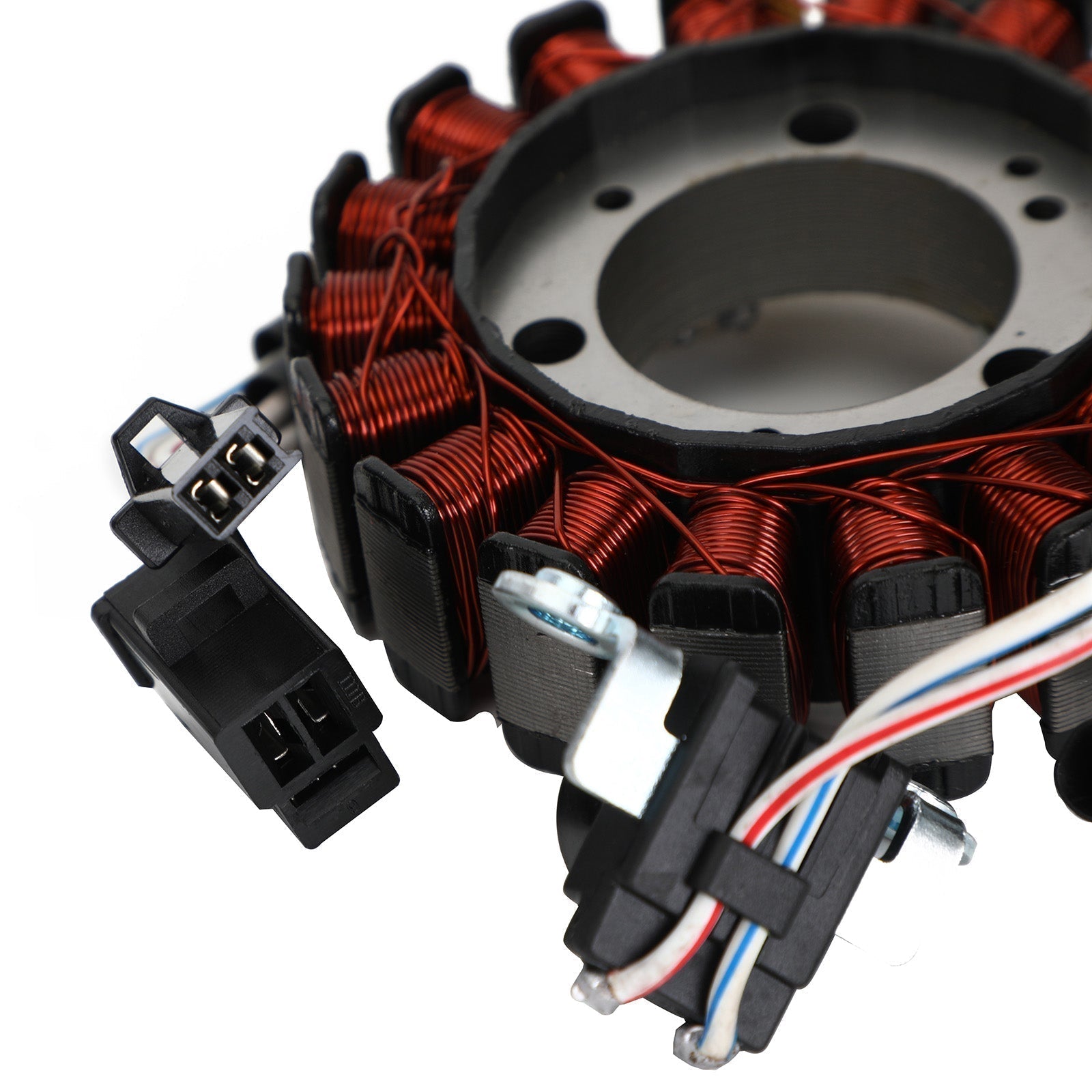

Magneto Generator Engine Stator Coil Fit for Yamaha YW 125 BWS Zuma XC 125 Cygnus X 04-15

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

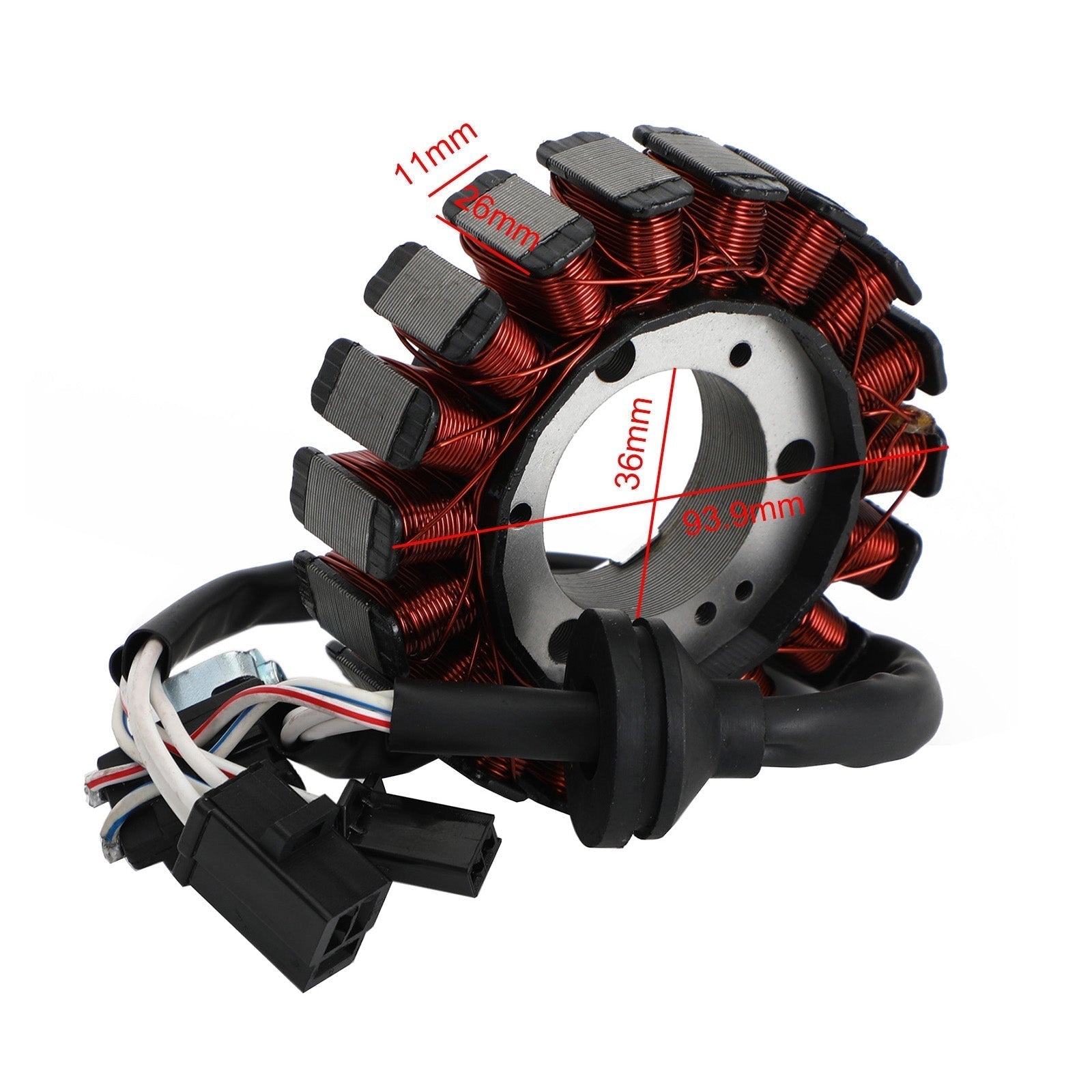

Dimensions :
Interior diameter : 36mm
Exterior diameter : 93.9mm
Pole's Thickness : 26mm
Pole's Width : 11mm

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+3)
Number of poles: 18

Replacement Part Number:
5S9-H1410-00-00
5ML-H1410-00-00
5ML-H1410-01-00
5ML-H1410-02-00
1CJ-H1410-00-00

Fitments:
Fit for Yamaha YW125 BWS 125 2009-2015
Fit for Yamaha YW125 Zuma 125 2009-2015
Fit for Yamaha NXC125 Cygnus 2004
Fit for Yamaha XC125 Cygnus 2004-2011
Fit for Yamaha XC125 Cygnus X 2003-2007/2010-2011
Fit for Yamaha XC125SR Cygnus X SR 2004-2007
Fit for Yamaha XC125SR Cygnus X SR FI 2008-2012
Fit for Yamaha XC125 Cygnus X 2013
Fit for Yamaha XC125SR Cygnus X 2013-2015

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
