Magneto Coil Stator + Voltage Regulator + Gasket Assy Fit For Suzuki DL650 V-Strom (Model K8/K9/L0) 2007-2011

Features:

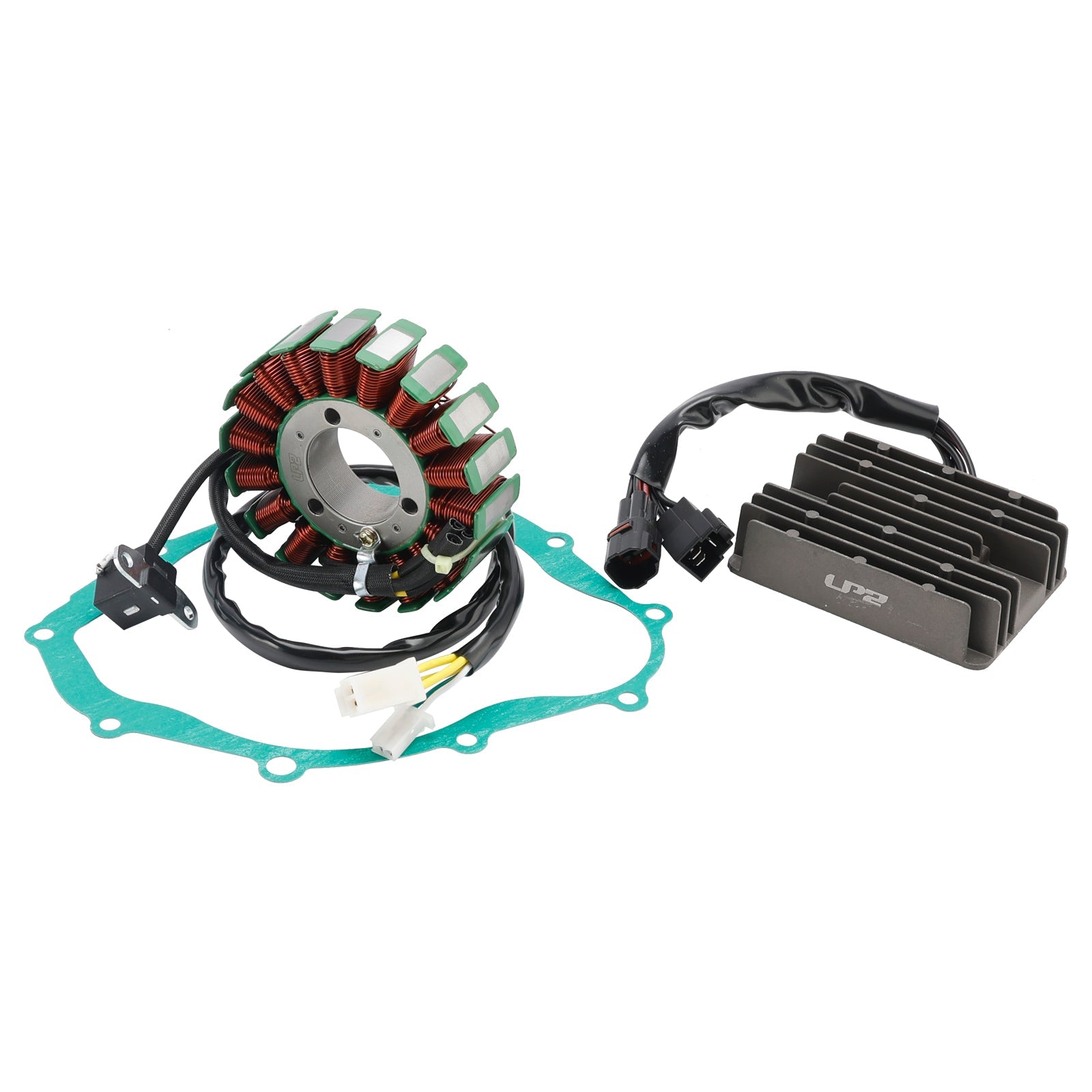

Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

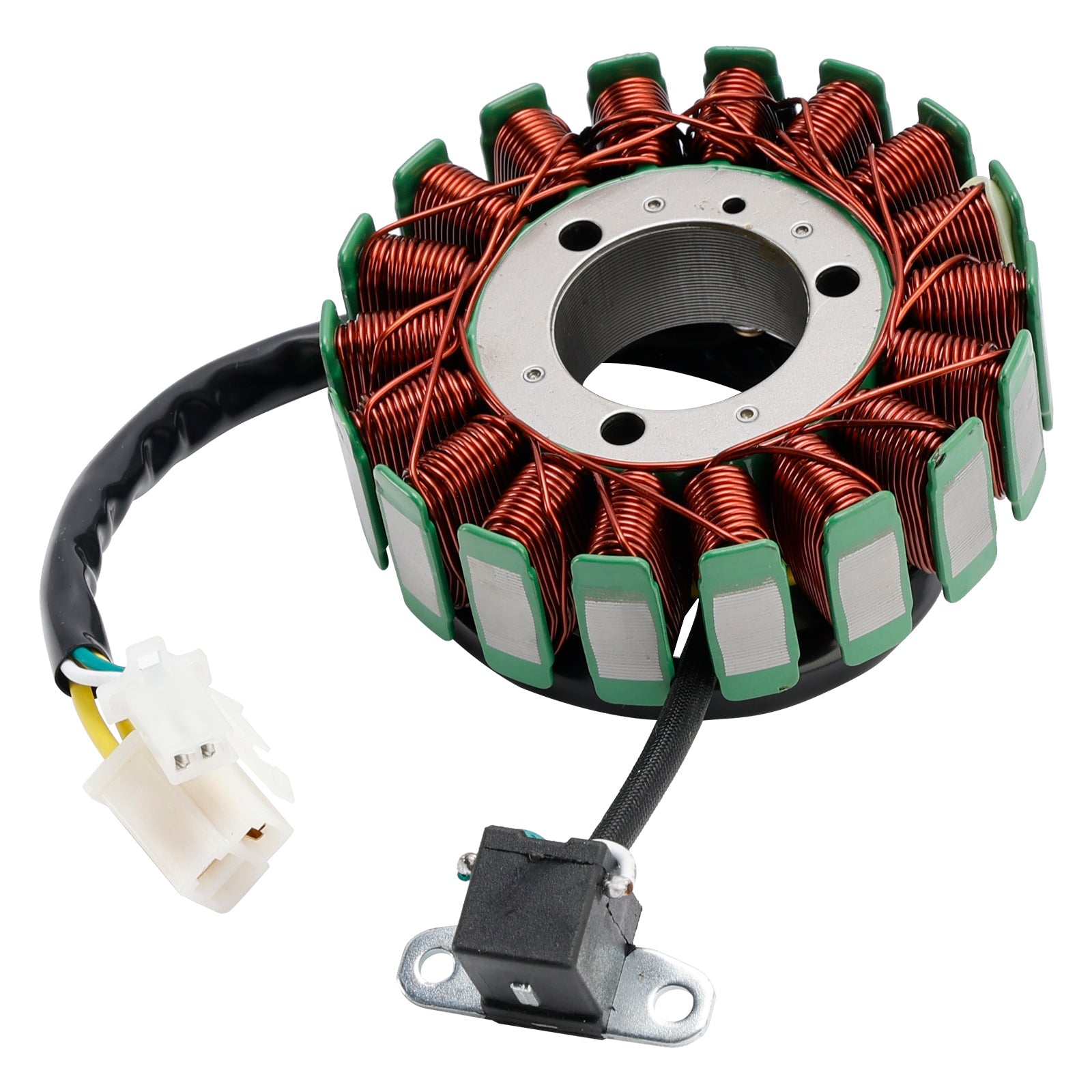

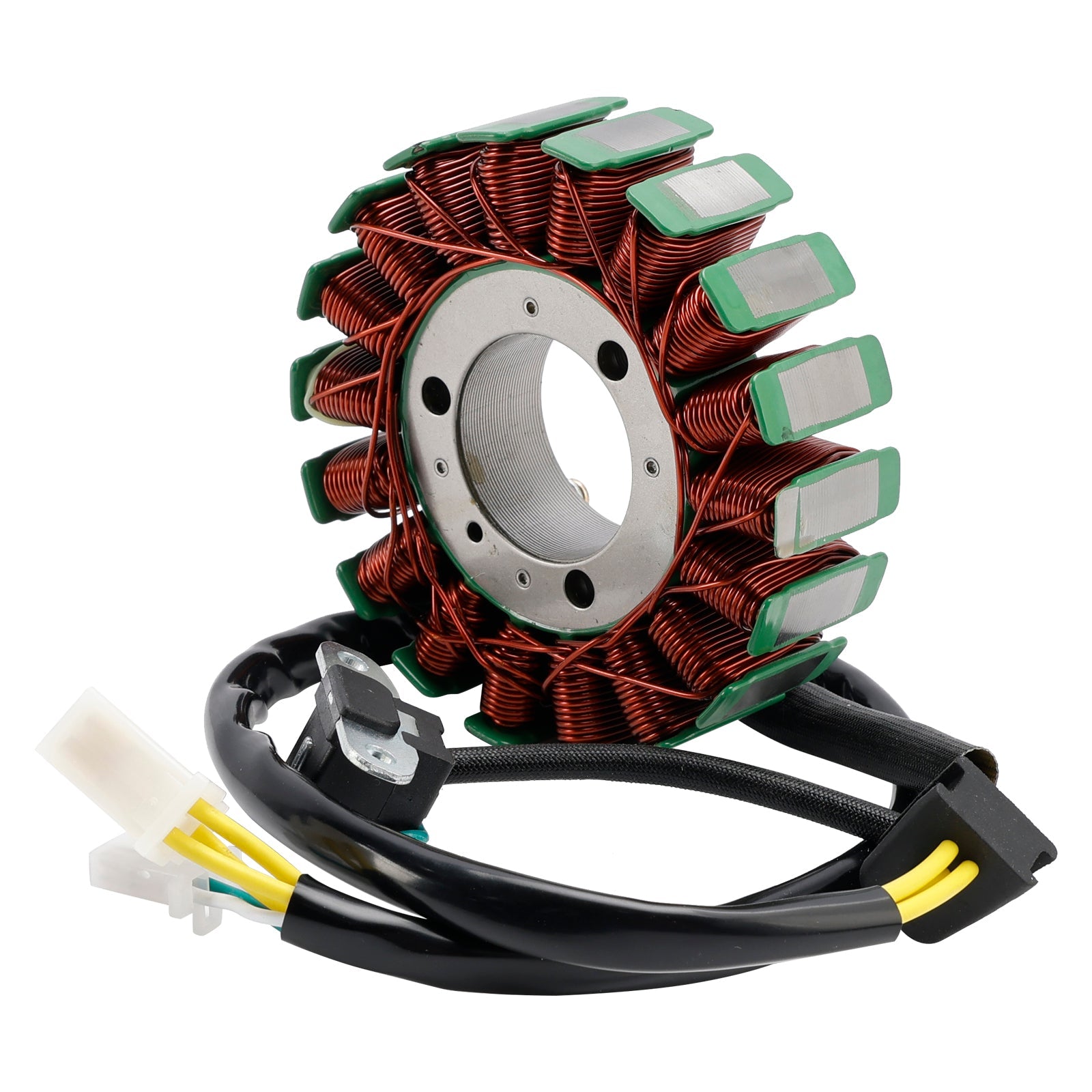

Stator
Number of plugs: 2
Number of wires: 5

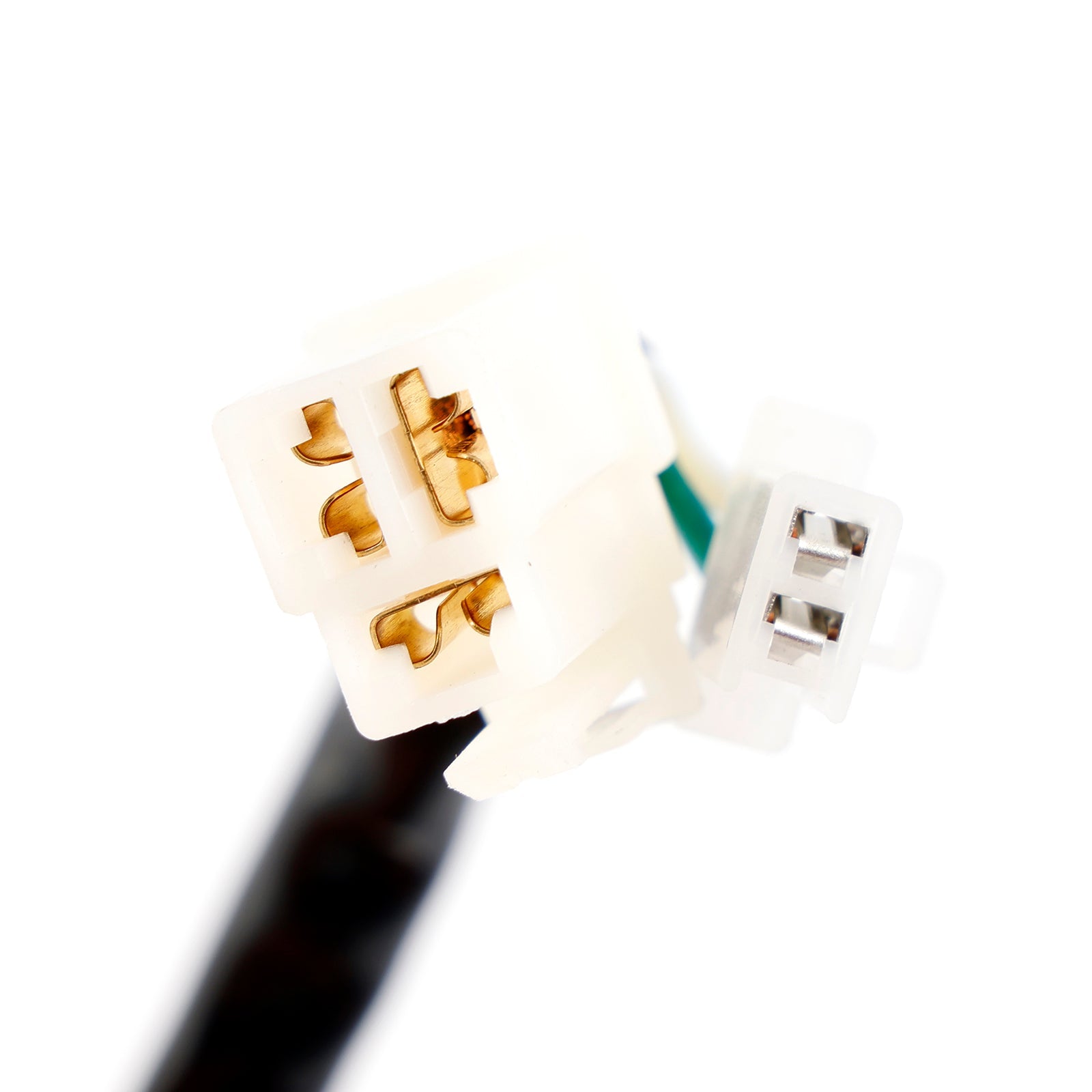

Number of pins: 2 + 5
Number of poles: 18
Number of mounting hole: 3

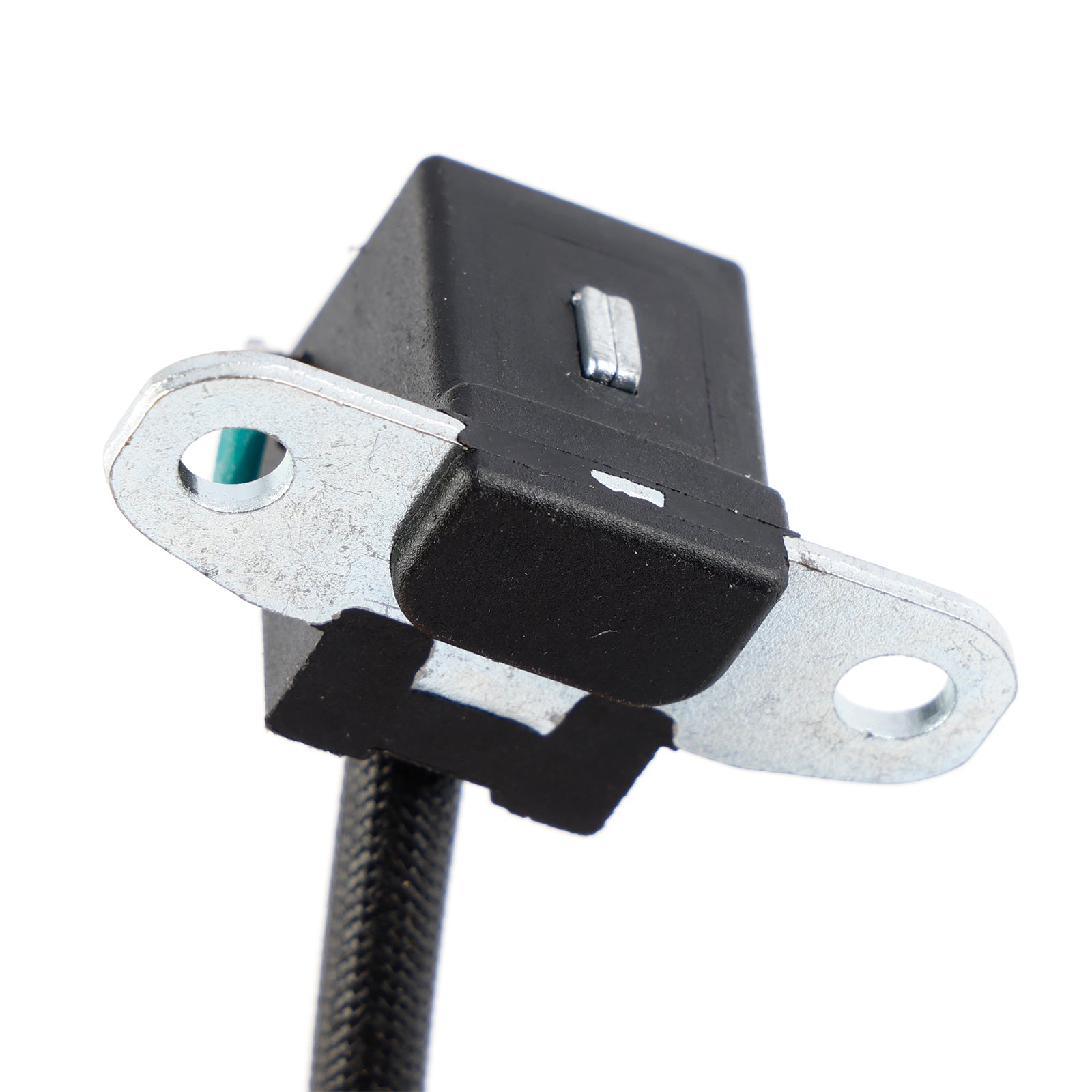

Pick up pulsar coil included.

Two different versions, please compare the number of pins and plugs with the old part before purchasing.

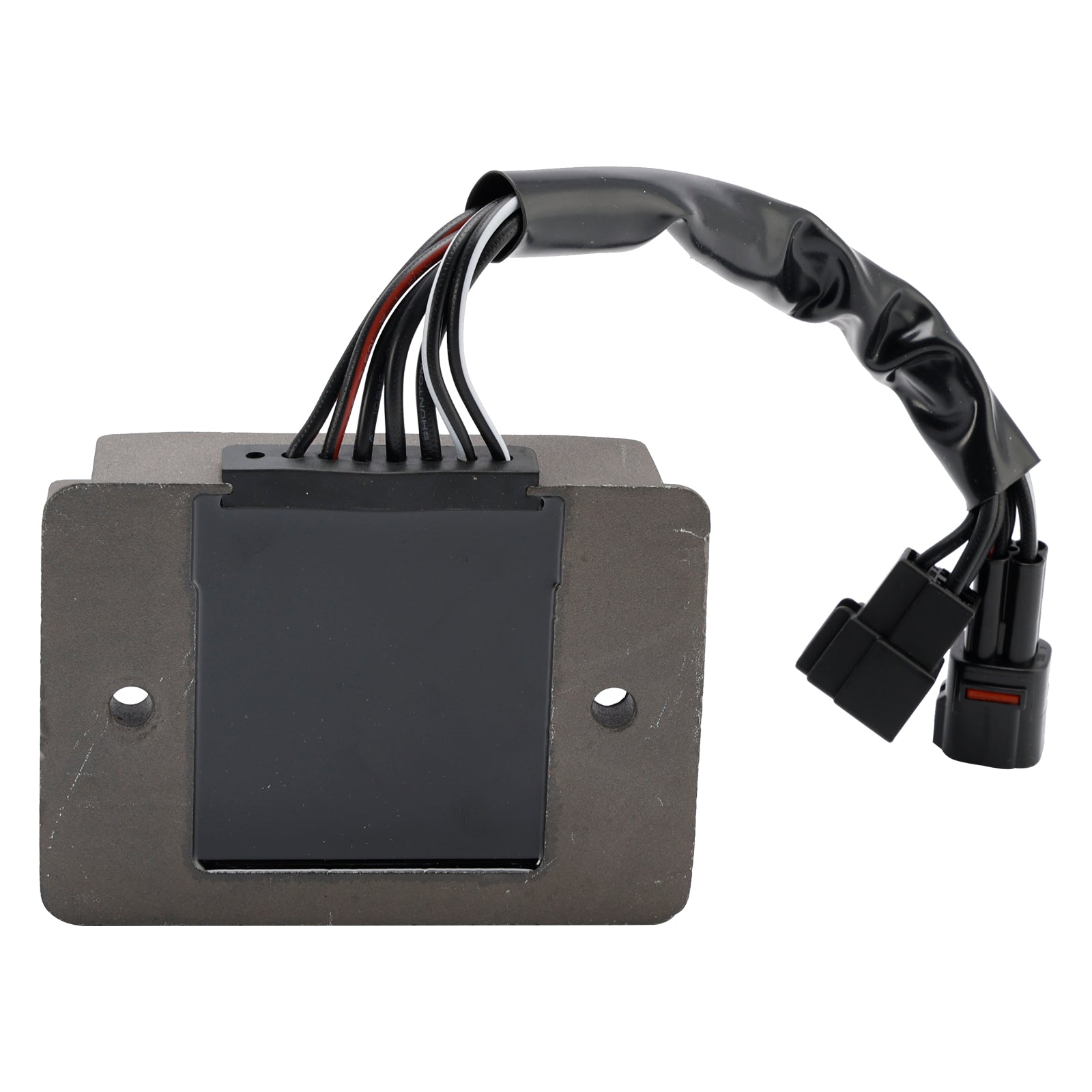

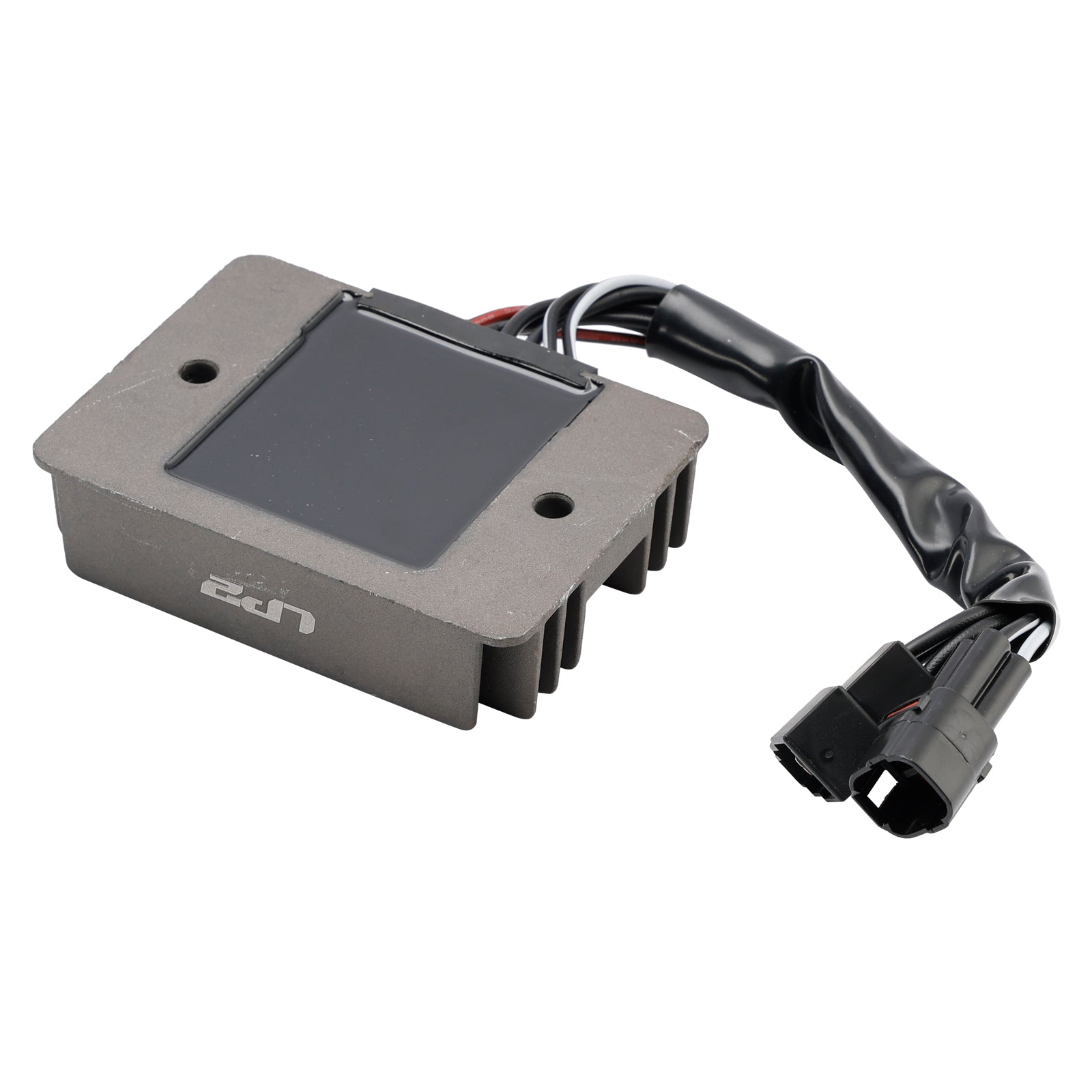

Regulator
Number of plugs: 2
Number of wires: 7

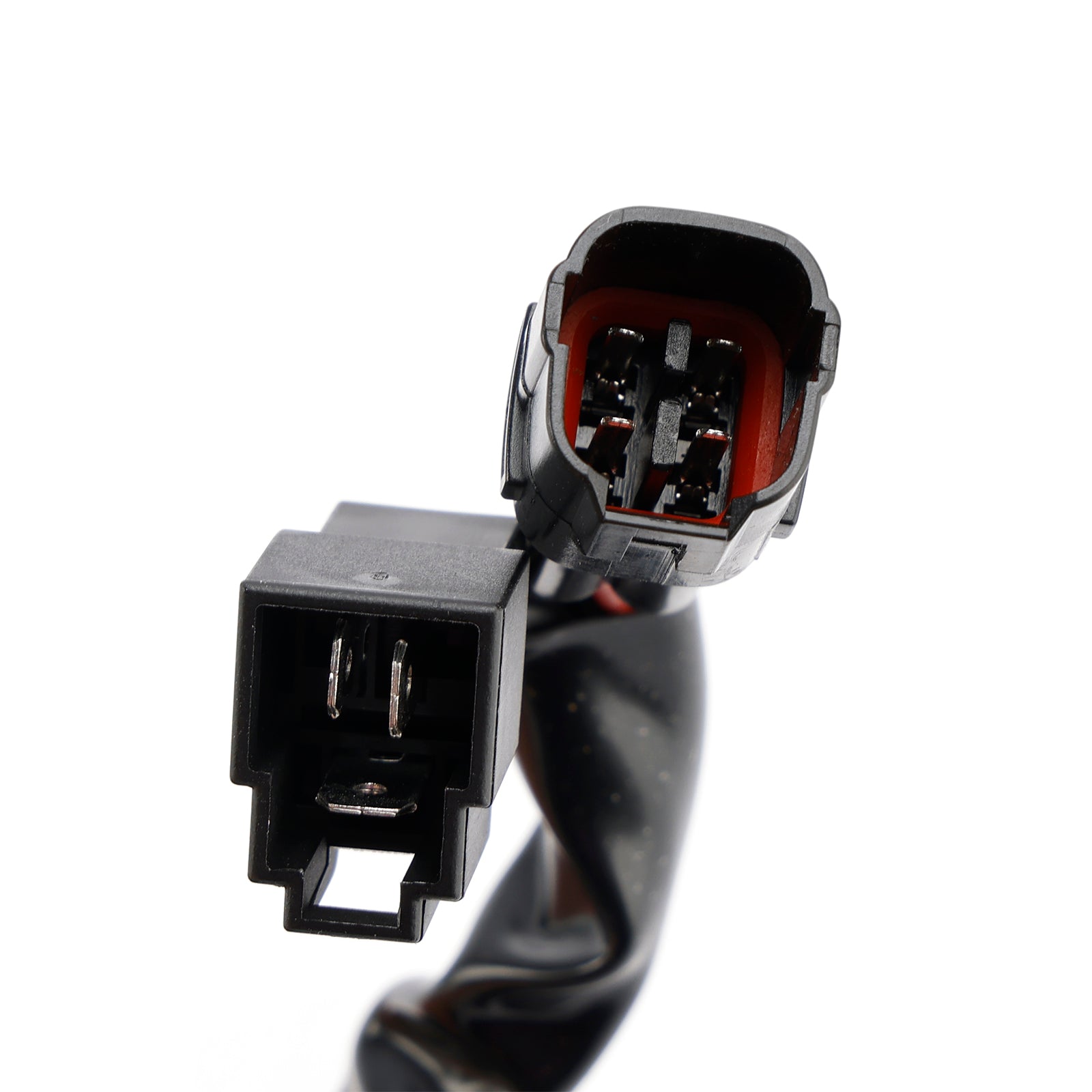

Number of pins: 3 + 4
Center Hole to Hole Mount Spacing: 80mm / 3-1/8 inch

Two different versions, please compare the number of pins and plugs with the old part before purchasing.
That will NOT fit if your original regulator mount spacing is 66mm / 2-5/6 inch.

Replacement Part Number:
Stator Assy: 32101-17G10, 32101-17G12, 32101-17G13
Rectifier, regulator: 32800-41G10, 32800-47H00

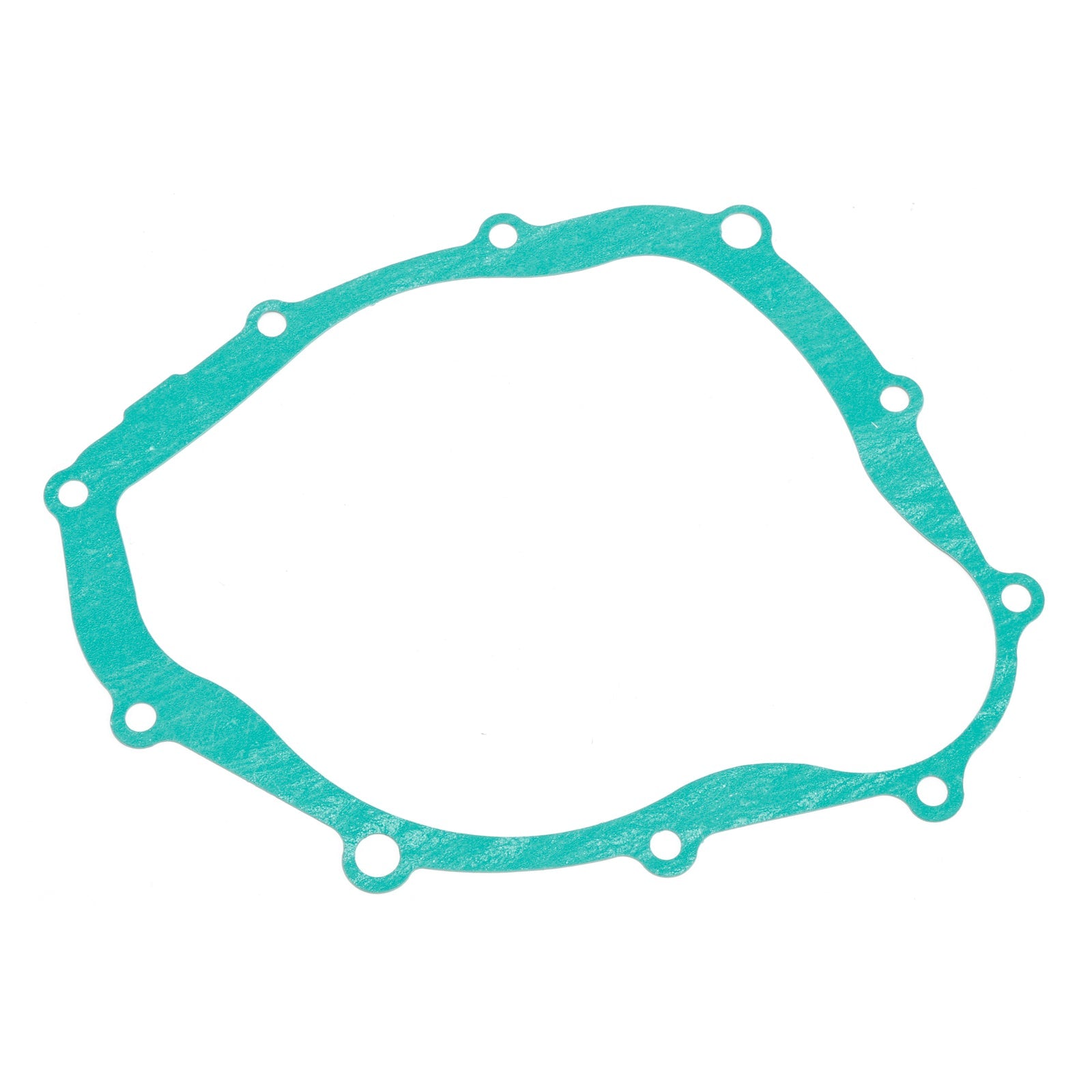

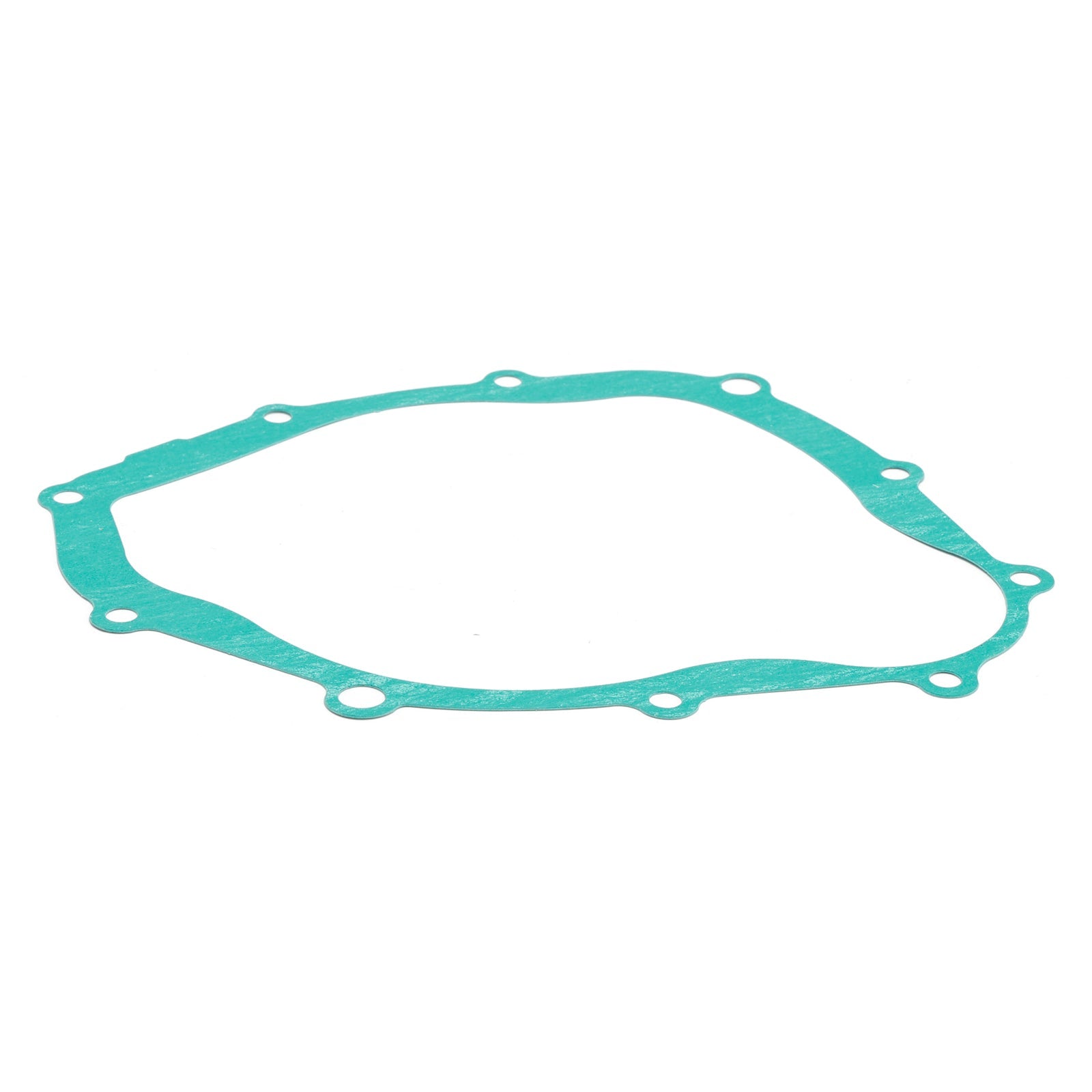

Gasket, generator cover: 11483-19F00

Fits Make/Model/Year:
Fit for Suzuki DL650 V-Strom (Model K8/K9/L0) 2007-2011
Fit for Suzuki DL650 (ABS) V-Strom (Model K8/K9/L0) 2007-2016

There are two version regulators/stators of V-Strom 650, fits Model K8/K9/L0 Only, does NOT fit Model K7.
Please check and see the part number first and compare the kit with your original part to make sure this is what you want.

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1 x Generator Stator
1 x Voltage Regulator (Model K8/K9/L0)
1 x Crankcase Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
