Generator Stator Regulator Rectifier Gasket Set For Arctic Cat 650 H1 4X4 2006-2011

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:
Stator
Number of wires: 7

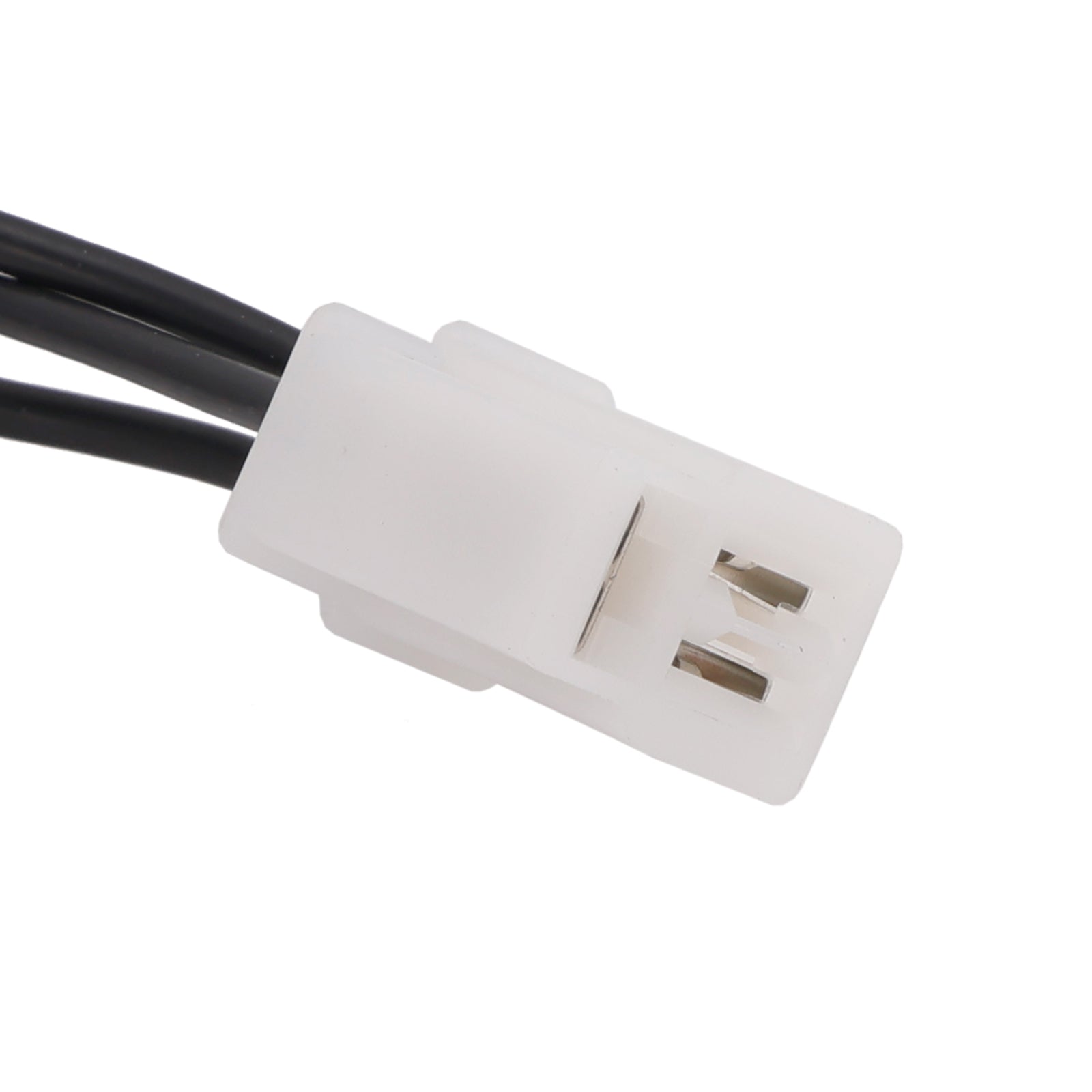

Number of plugs: 2
Number of pins: 3 + 4
Number of fixation holes: 6
Number of poles: 18
Interior diameter: 54 mm
Exterior diameter: 118 mm

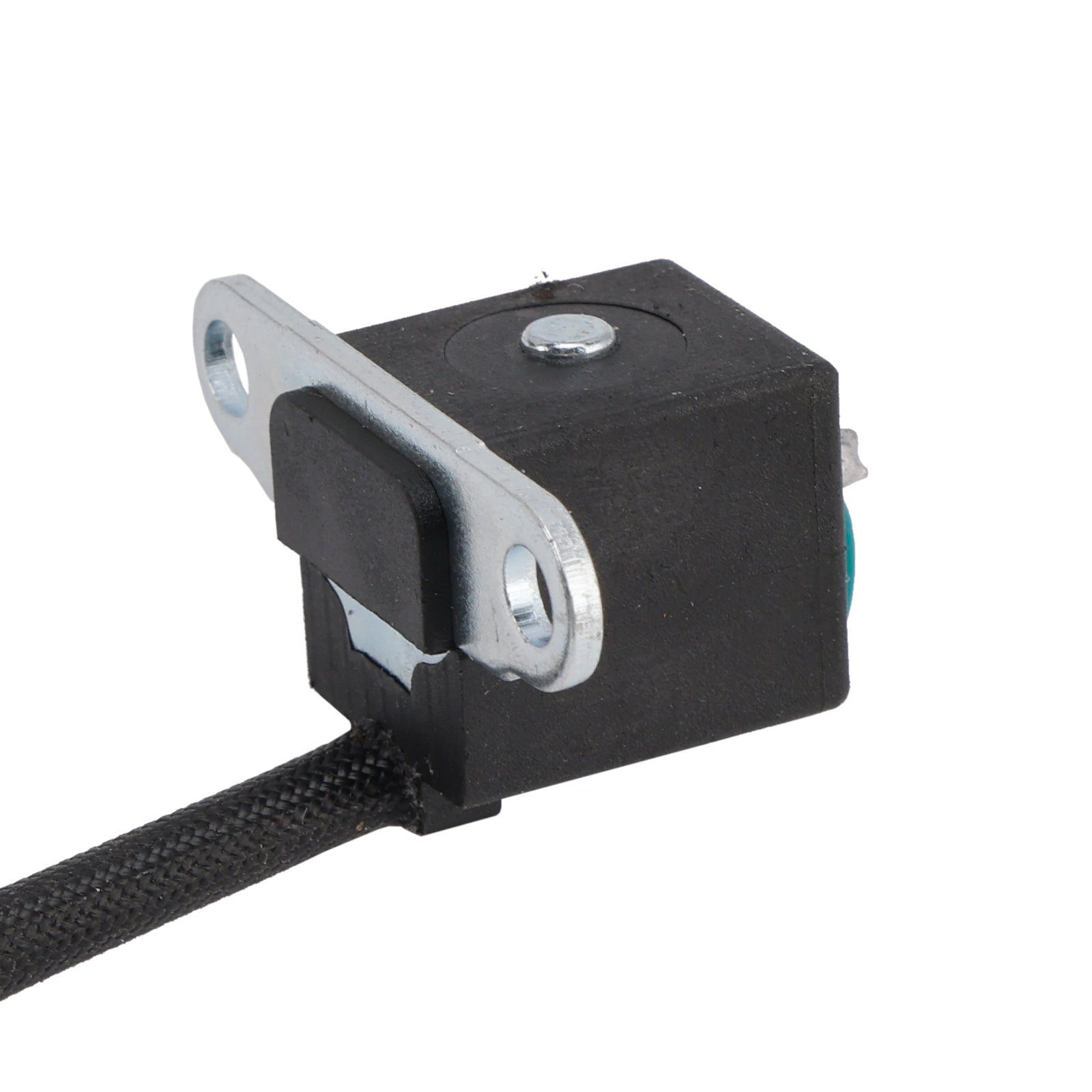

Pick up pulsar coil included.

Regulator
Number of plugs: 1

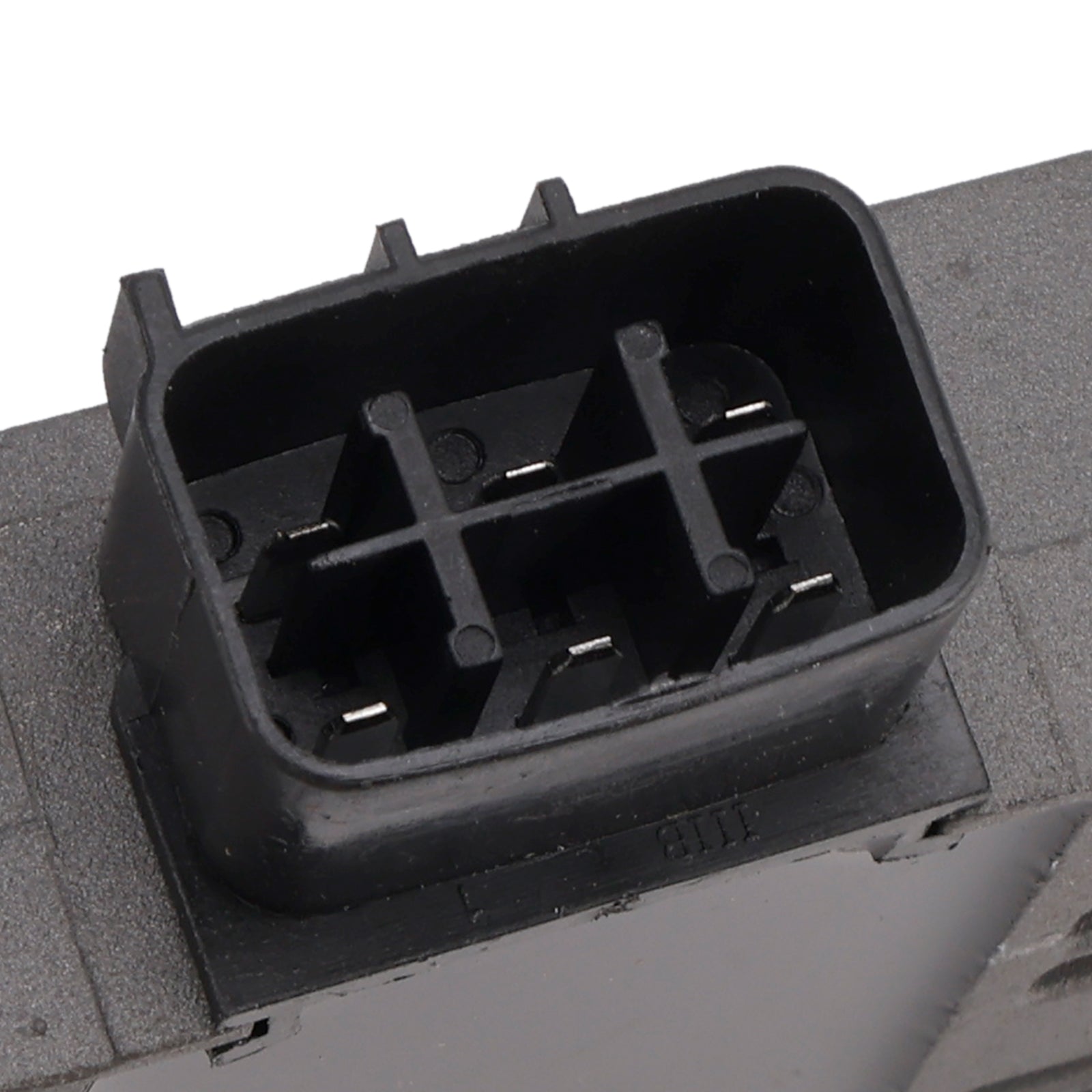

Number of pins: 6

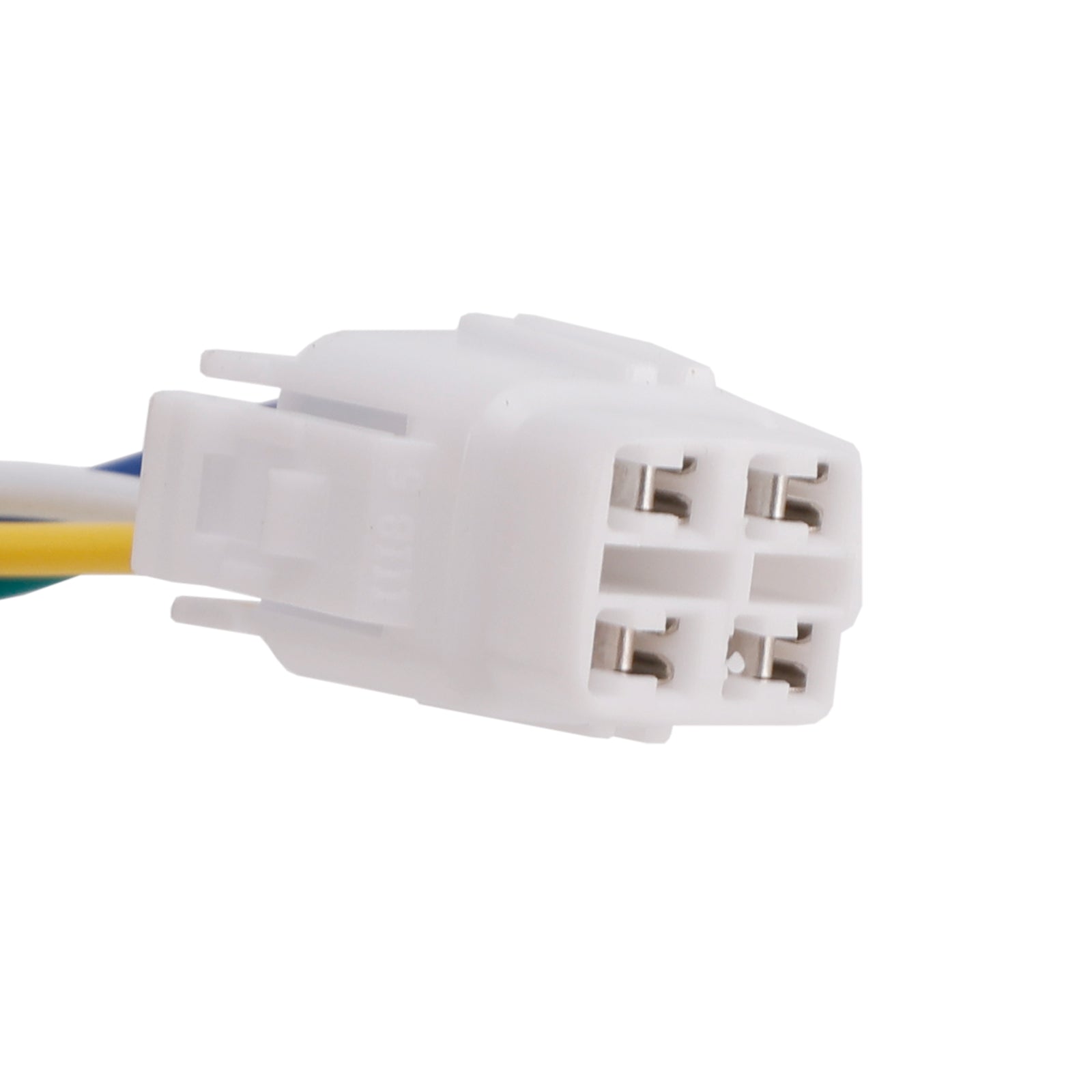

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: 0802-037
Rectifier, regulator: 0824-037, 0824-020
Gasket, generator cover: 0830-128

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Arctic Cat ATV 650 H1 2010-2012
Fit for Arctic Cat ATV 650 H1 FIS 2005-2008
Fit for Arctic Cat ATV 650 H1 FIS Limited Edition 2005
Fit for Arctic Cat ATV 650 H1 FIS Special Edition 2006
Fit for Arctic Cat ATV 650 H1 International 2010-2012
Fit for Arctic Cat MudPro 650 H1 2010-2011
Fit for Arctic Cat MudPro 650 H1 International 2010-2011
Fit for Arctic Cat Prowler 650 H1 XT 2006-2009
Fit for Arctic Cat TBX 650 H1 4X4 2007-2009
Fit for Arctic Cat TRV 650 H1 4X4 Automatic Transmission 2007-2008
Fit for Arctic Cat TRV 650 H1 4X4 Automatic Transmission Limited Edition 2007
Fit for Arctic Cat ATV 650 TRV CAT 2009

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

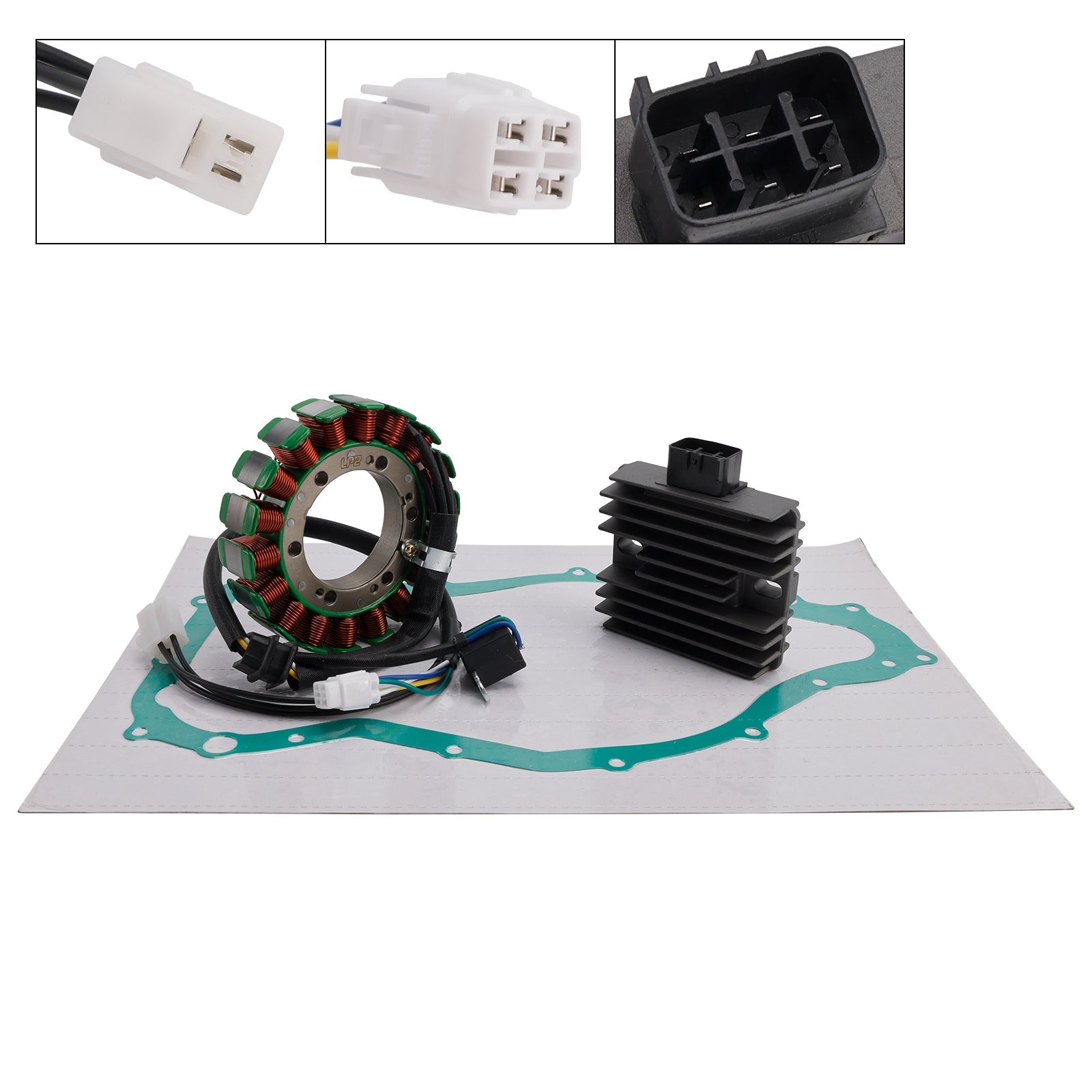

Package Includes:

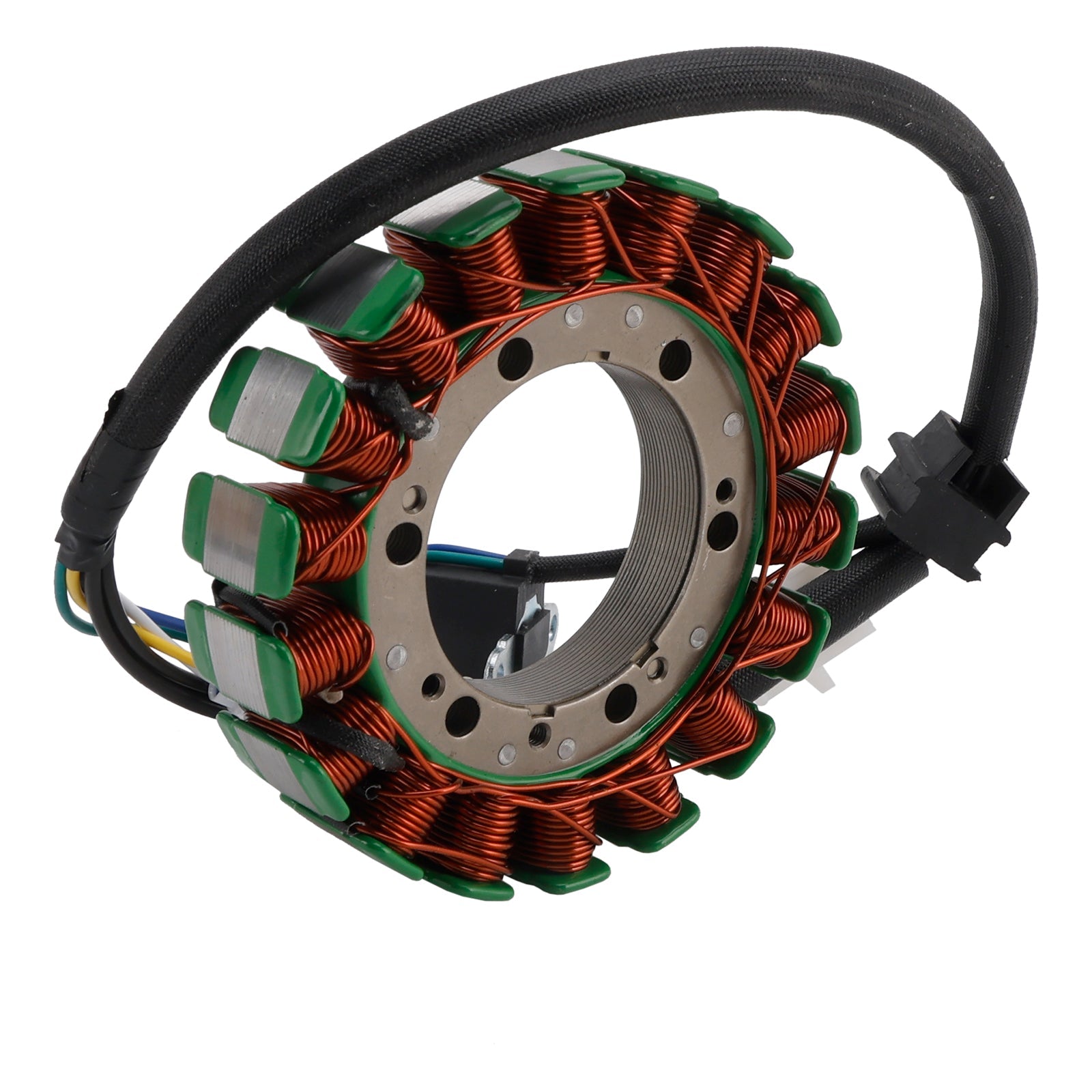

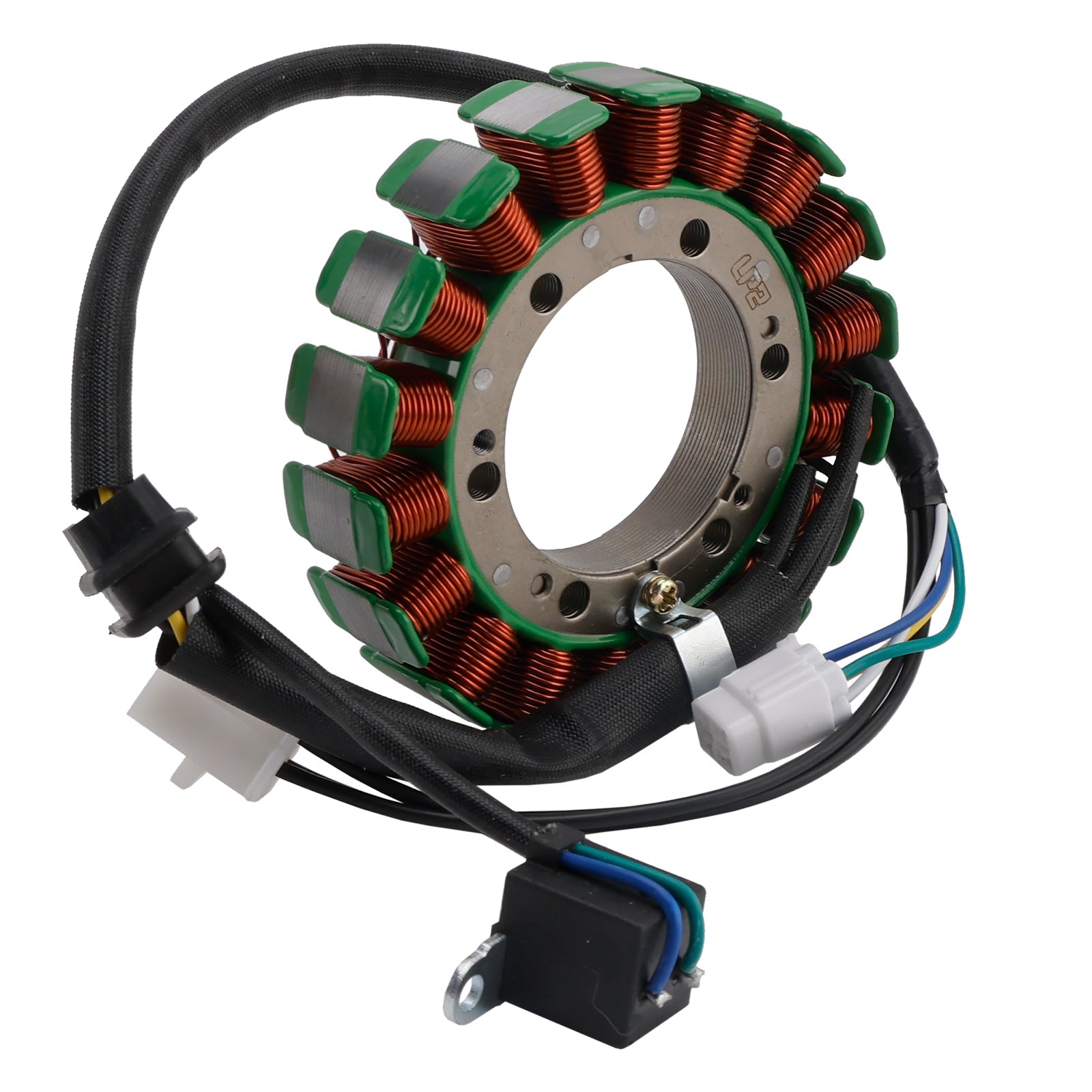

1 x 7-Wire Generator Stator

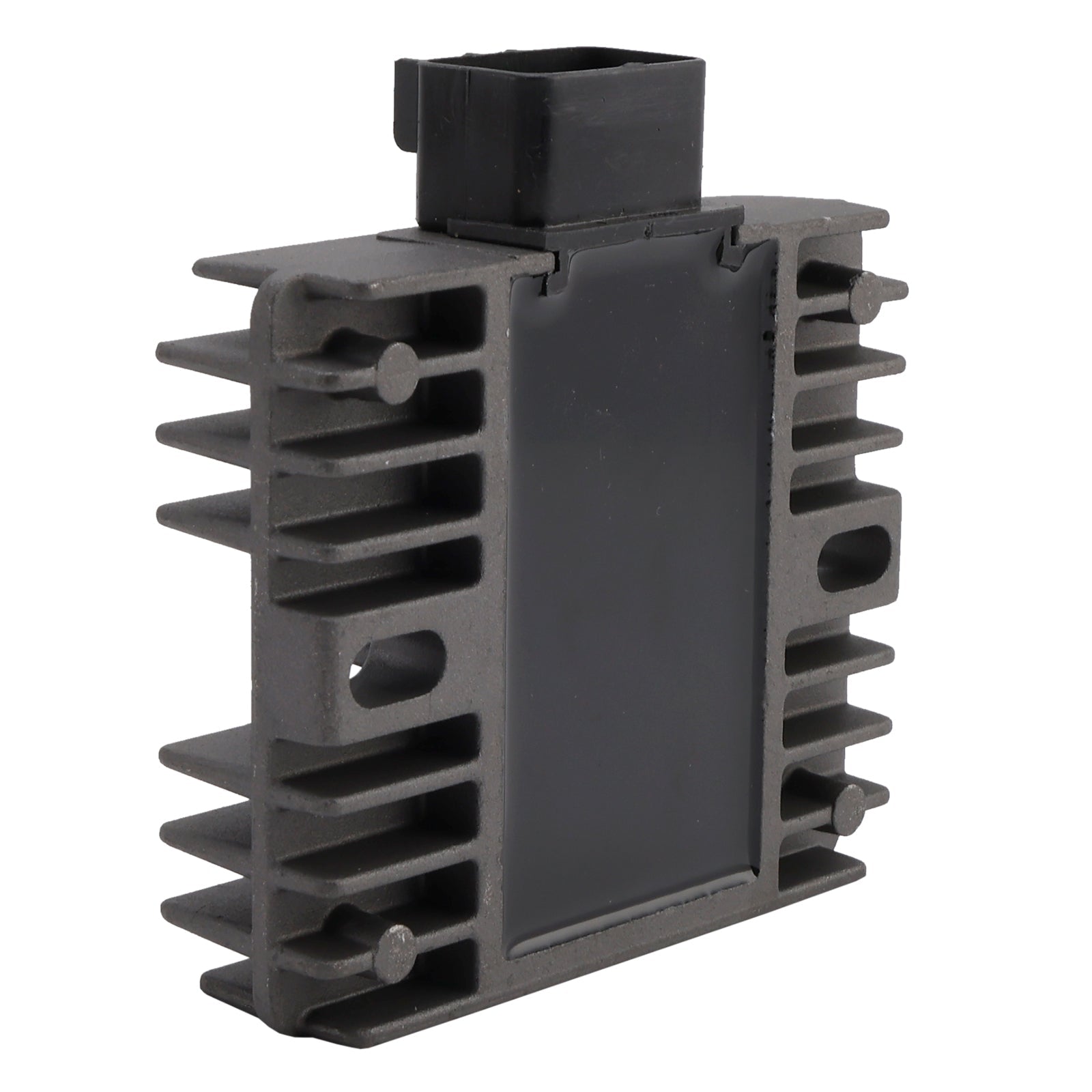

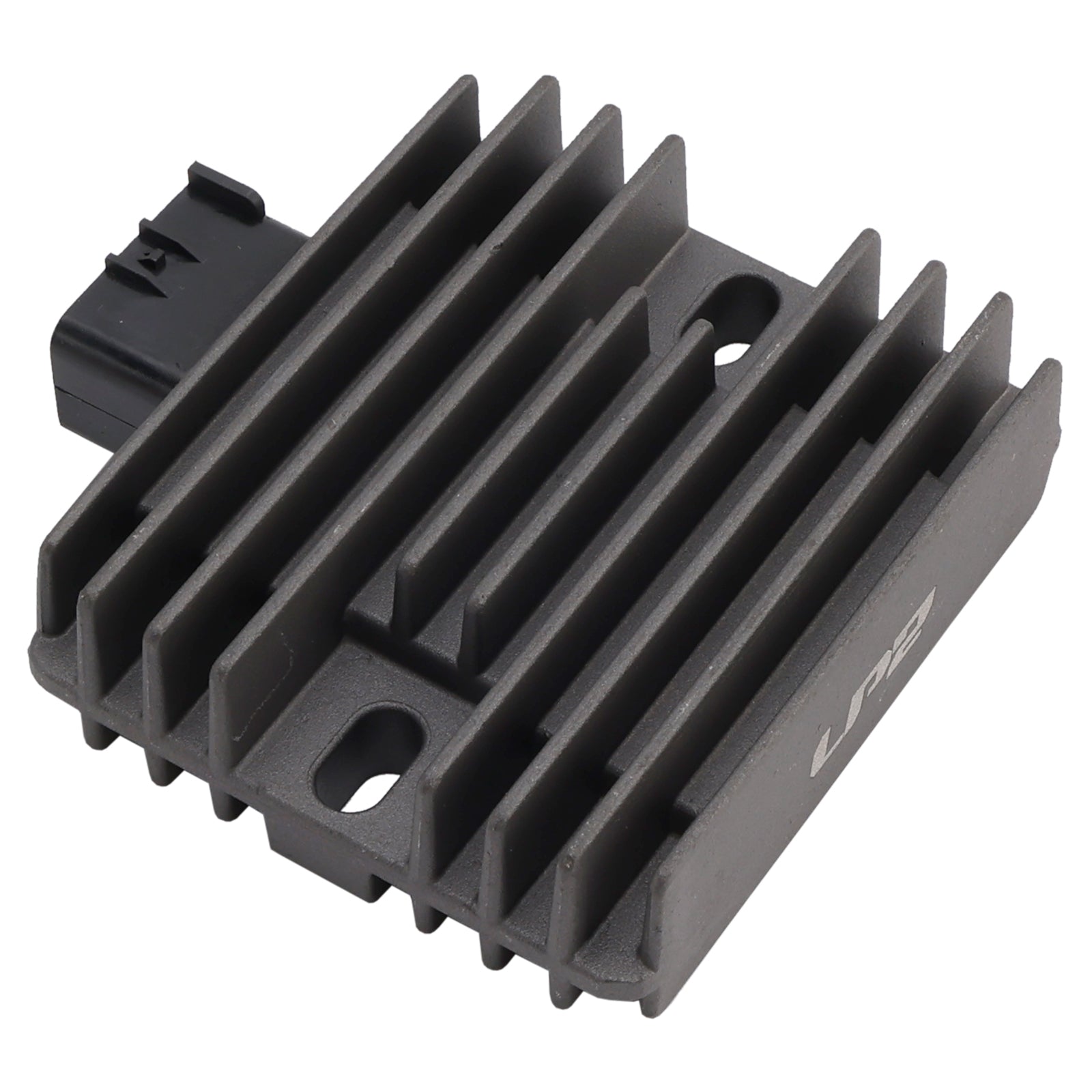

1 x 6-Pin Regulator Rectifier

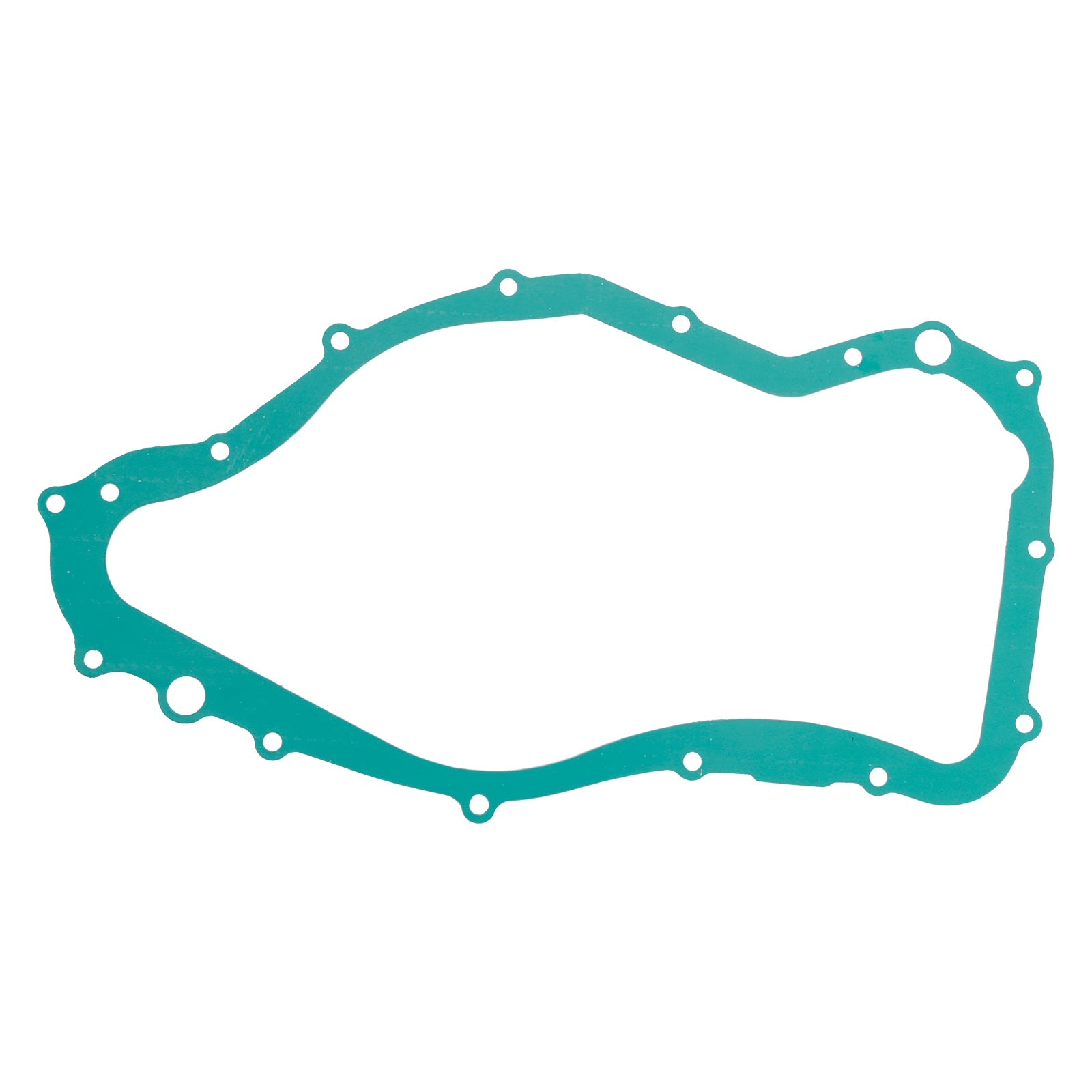

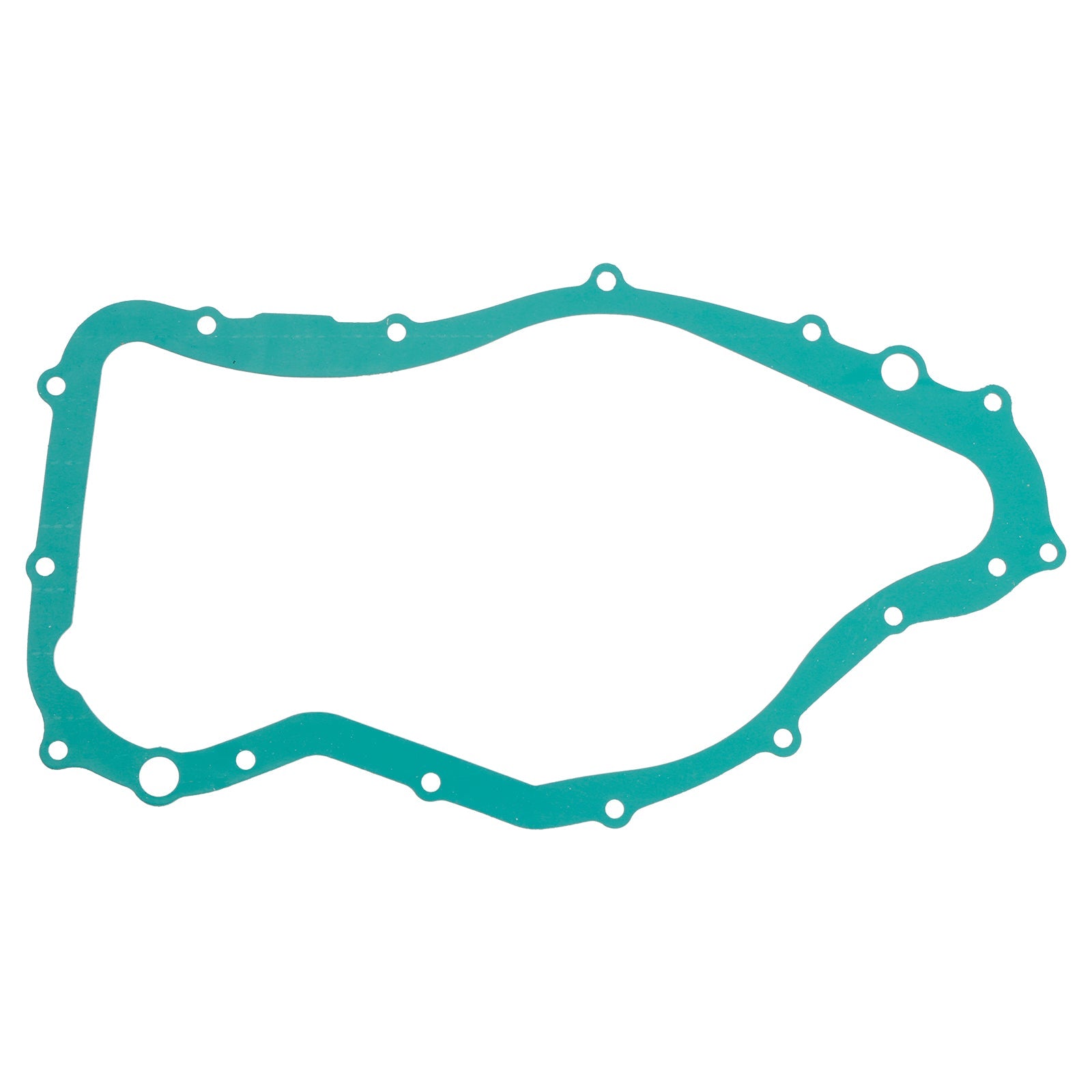

1 x Crankcase Gasket

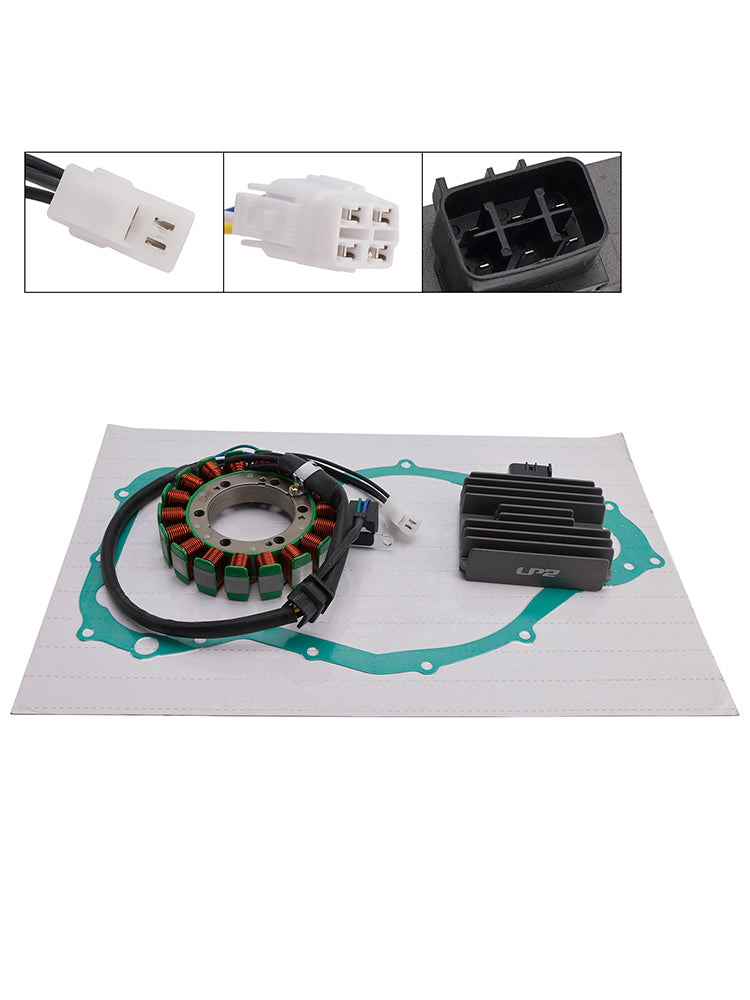

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
