Generator Stator and Gasket Kit For Kawasaki KLX125 KLX125L 2003-2006 / Suzuki DR-Z 125 DRZ125L 2003-2024

Features:
Kit include Stator and gasket.
OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Ignition only.
Instruction is NOT included.

ATTENTION:
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Gasket Kit

other specification:

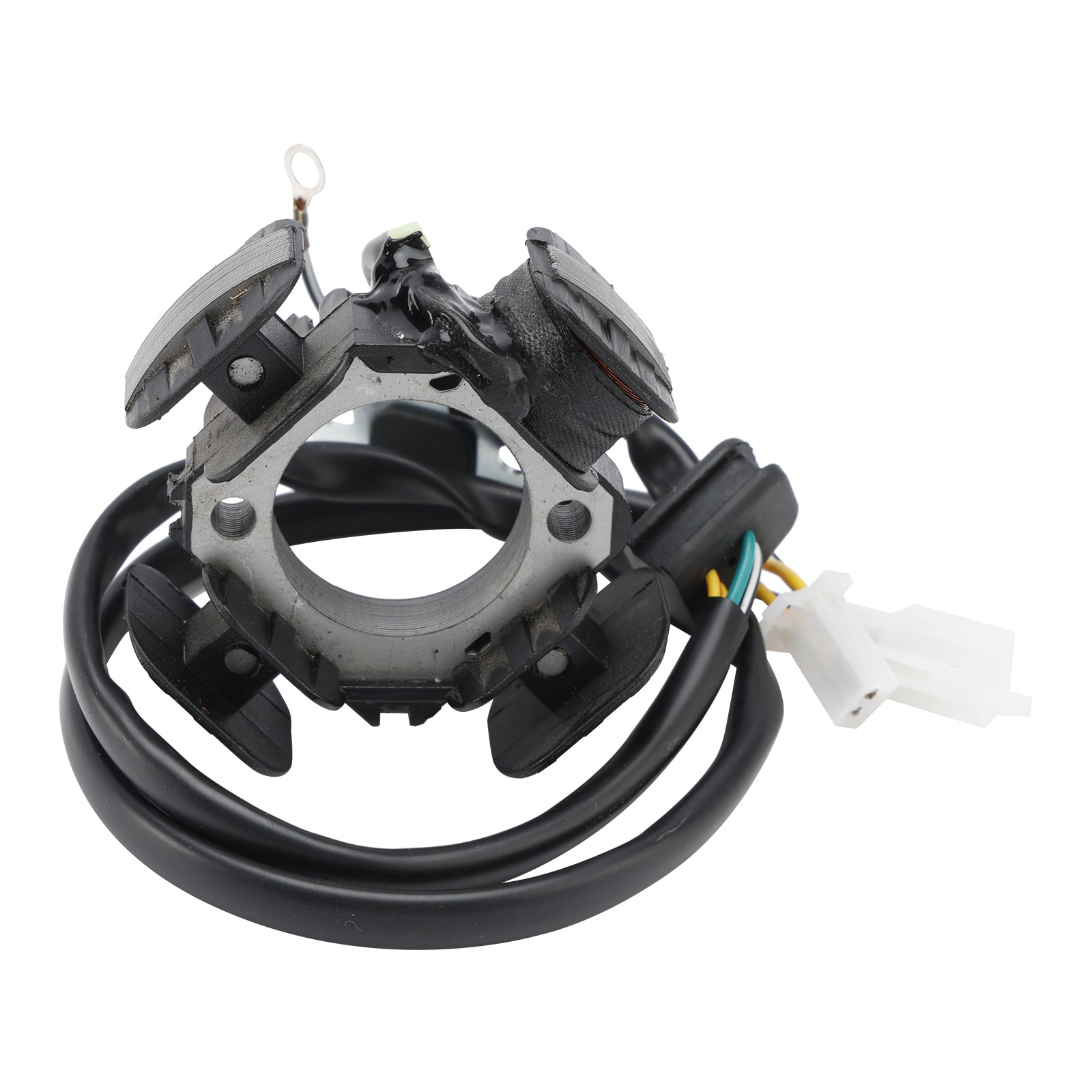

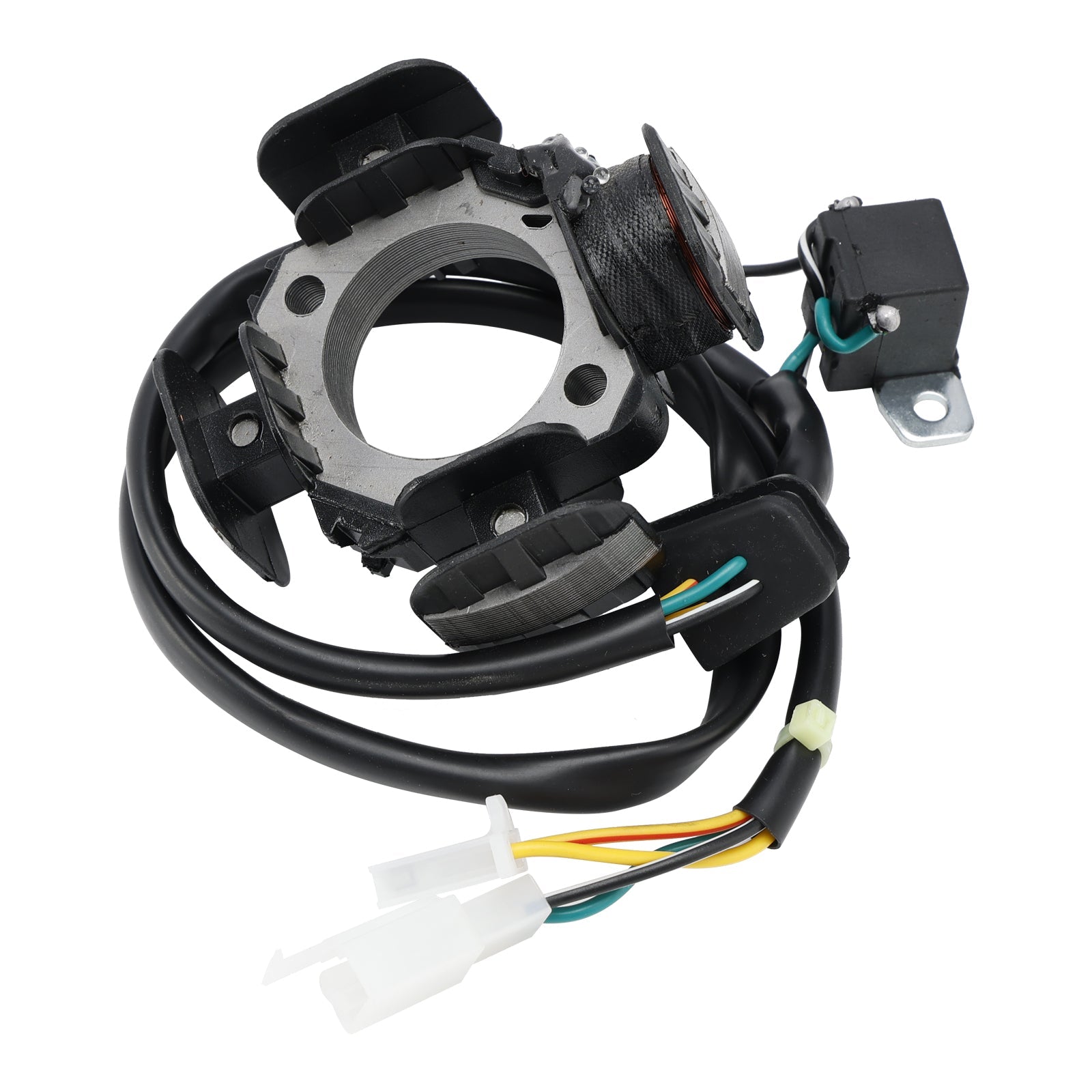

Stator

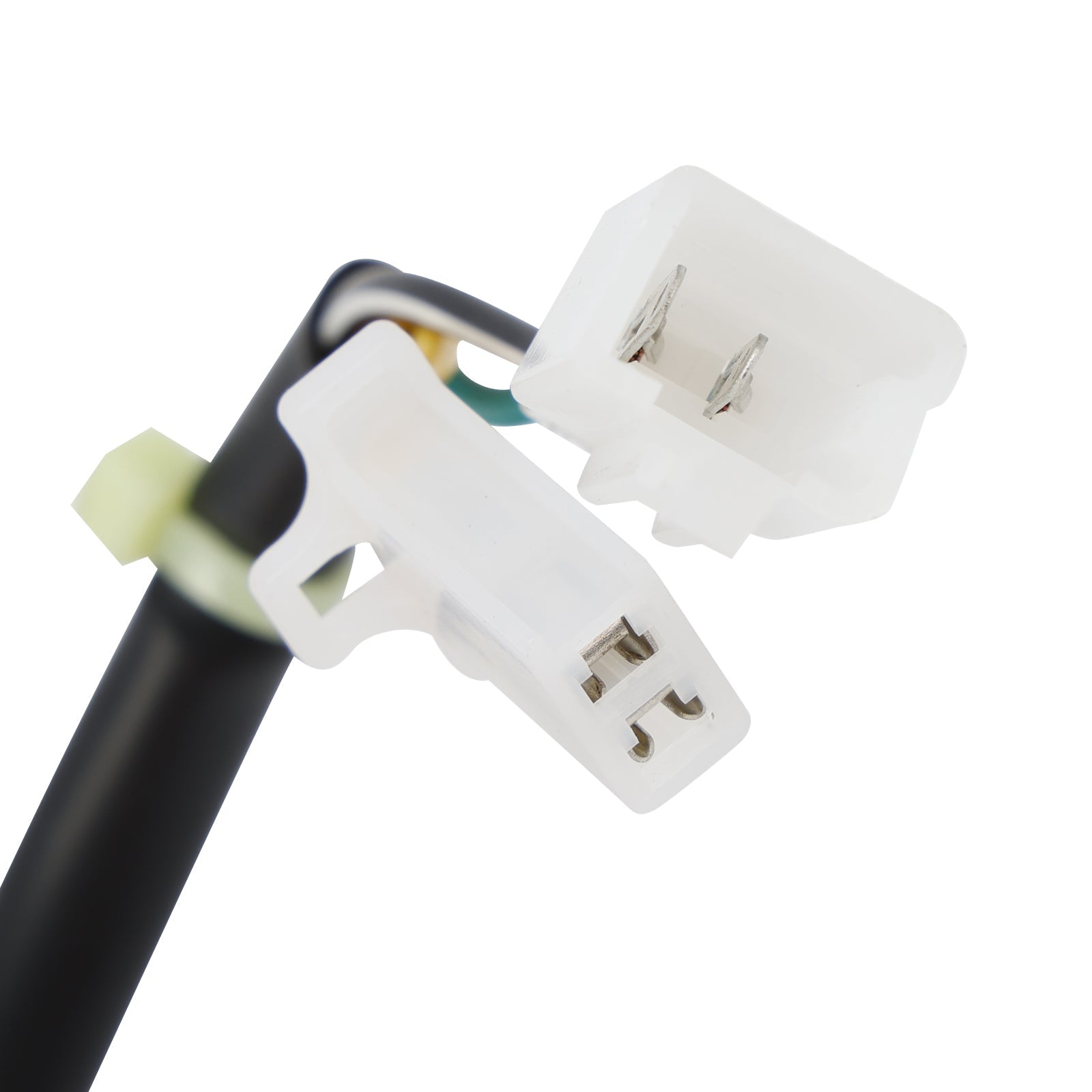

Number of plugs: 2
Number of wires: 4
Number of pins: 2 + 2
Number of poles: 4

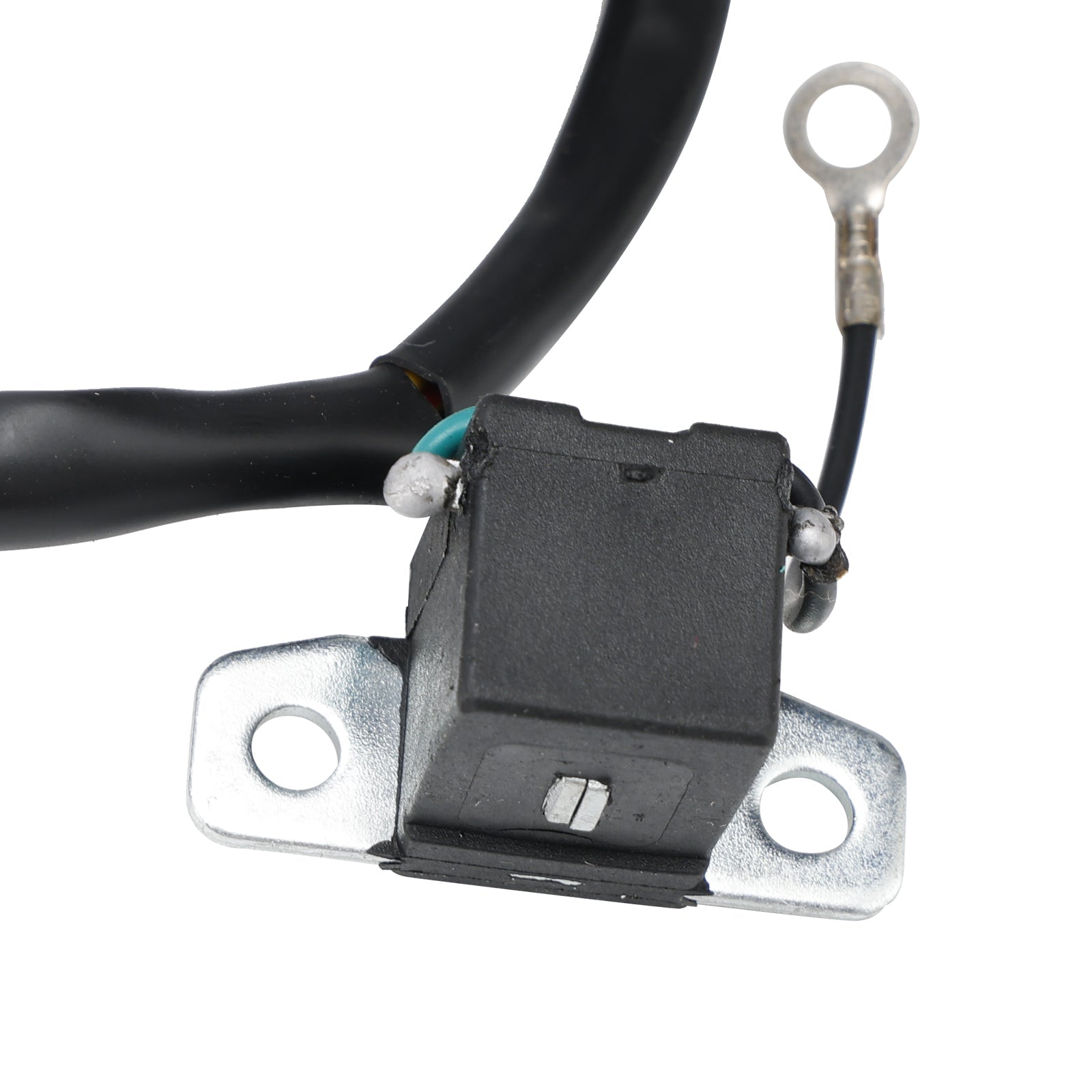

Pick up pulsar coil included.

Replacement Part Number:
Stator Assy: 21003-S003, 32101-08G00
Gasket, generator cover: 11061-S037, 11483-05200, 11483-05210

Fits Make/Model/Year:
Fit for Kawasaki KLX125 KLX125-A1 2003
Fit for Kawasaki KLX125 KLX125-A2 2004
Fit for Kawasaki KLX125 KLX125-A3 2005
Fit for Kawasaki KLX125 KLX125A6F 2006
Fit for Kawasaki KLX125L KLX125-B1 2003
Fit for Kawasaki KLX125L KLX125-B2 2004
Fit for Kawasaki KLX125L KLX125-B3 2005
Fit for Kawasaki KLX125L KLX125B6F 2006

Fit for Suzuki DRZ125 DR-Z125 2003-2024
Fit for Suzuki DRZ125 DR-Z125L 2003-2024

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

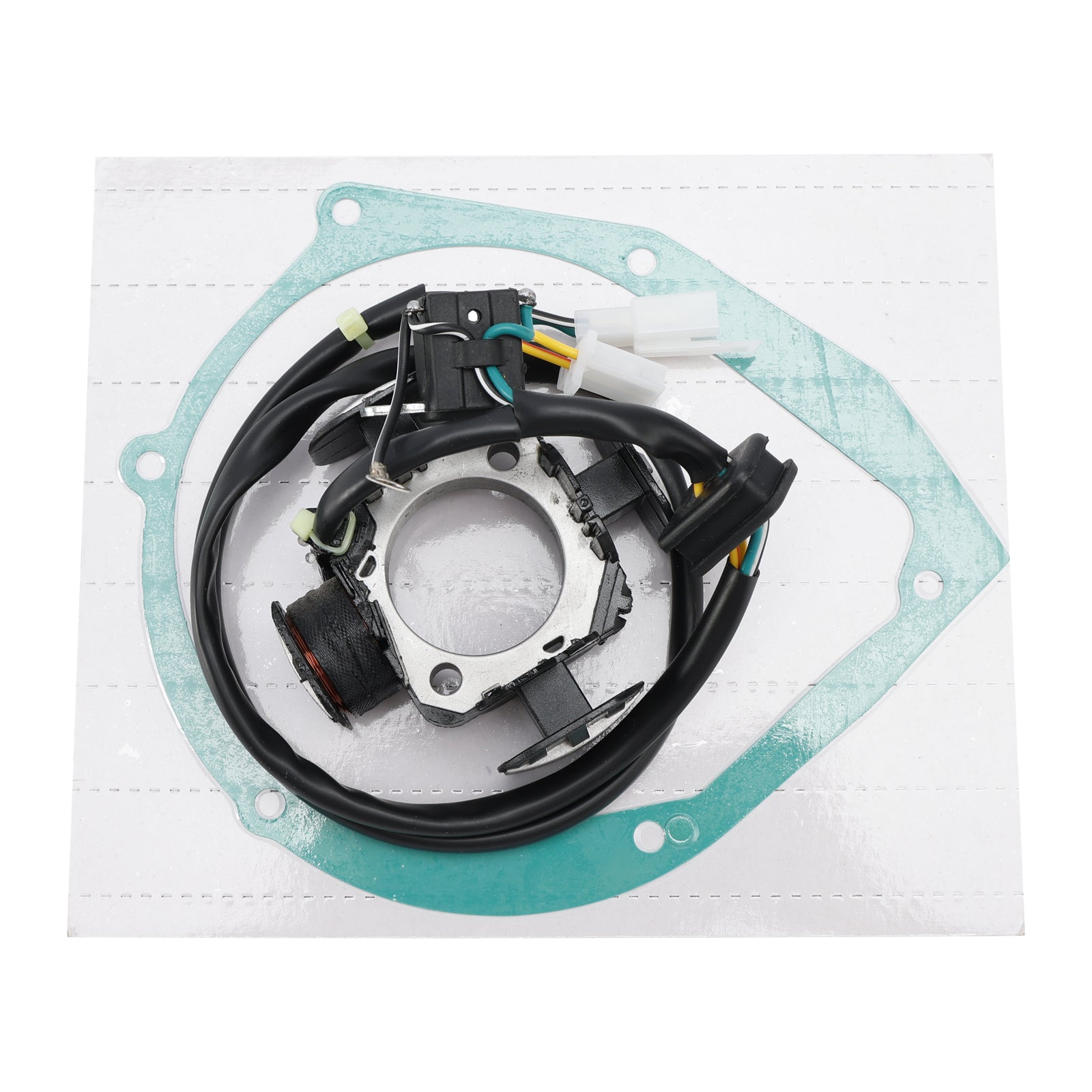

Package Includes:
1 x Generator Stator

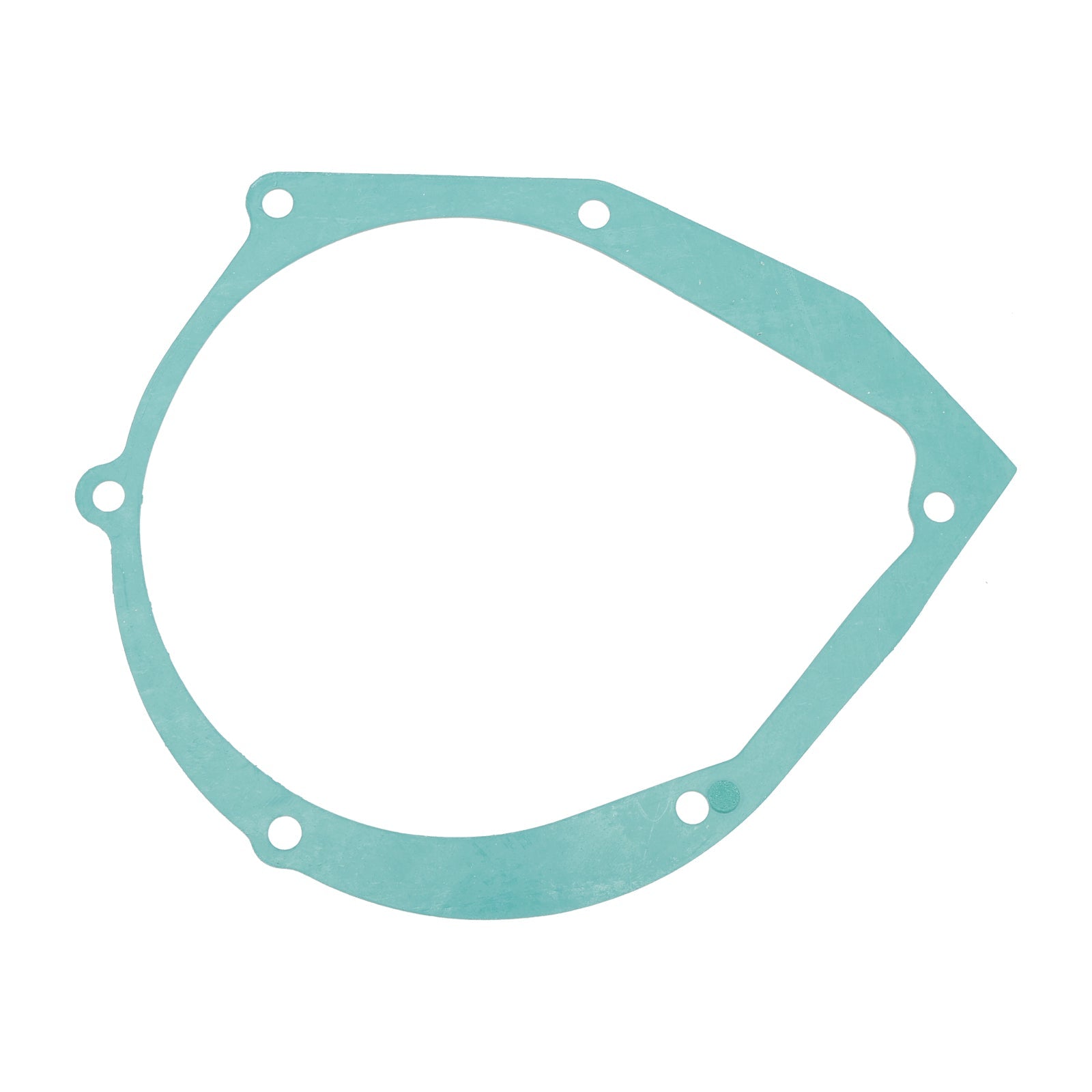

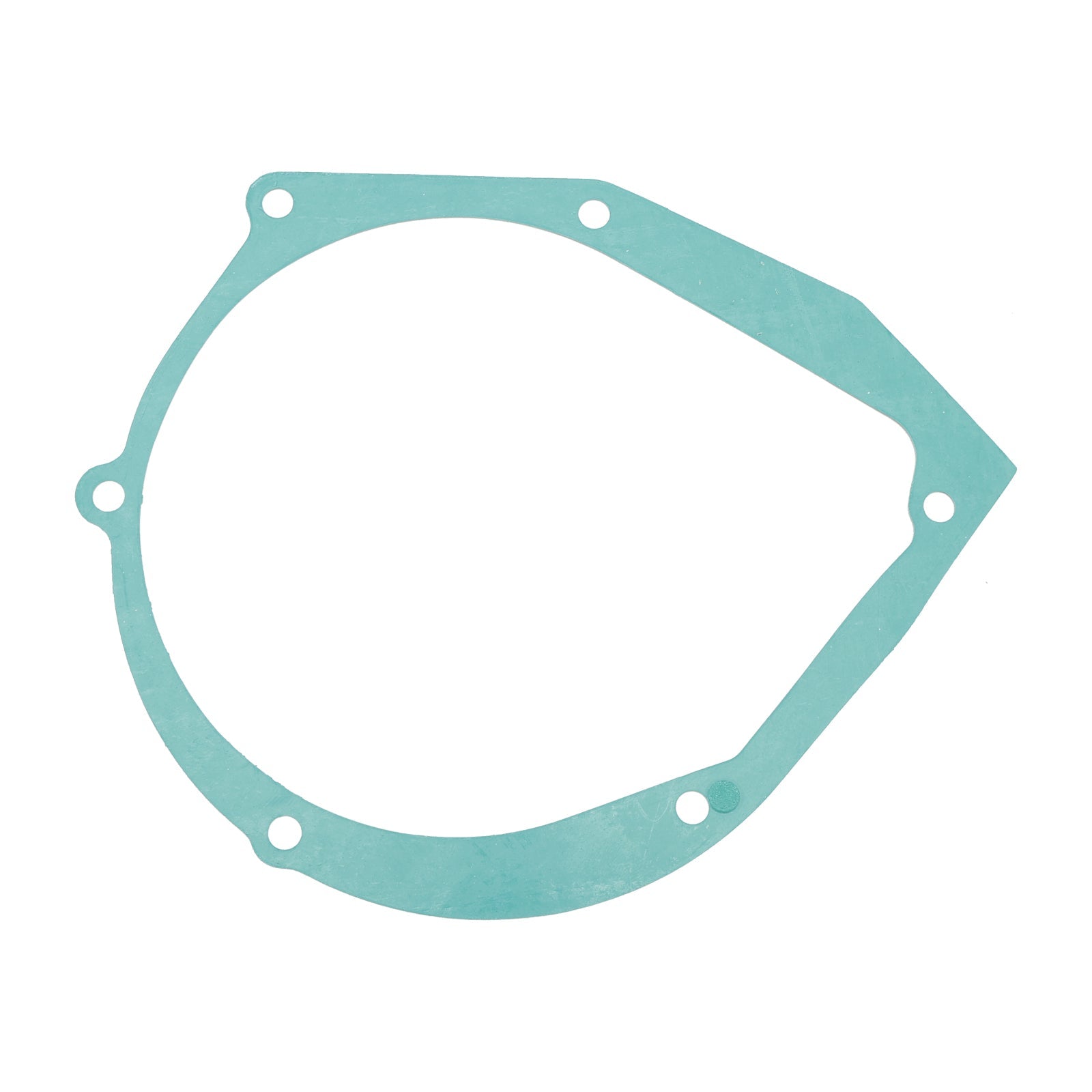

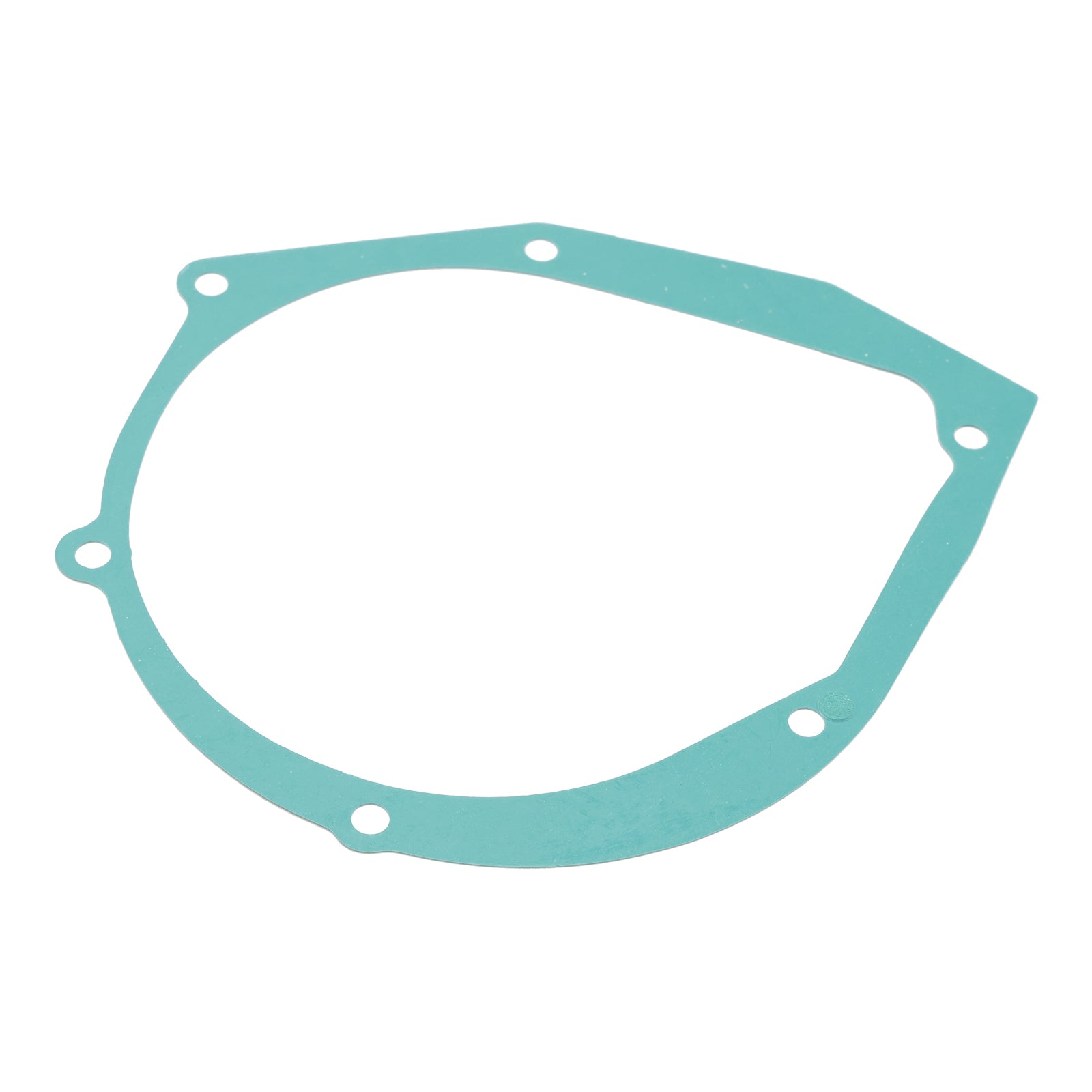

1 x Crankcase Cover Gasket

(Comes exactly as pictured.)

Note:
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
