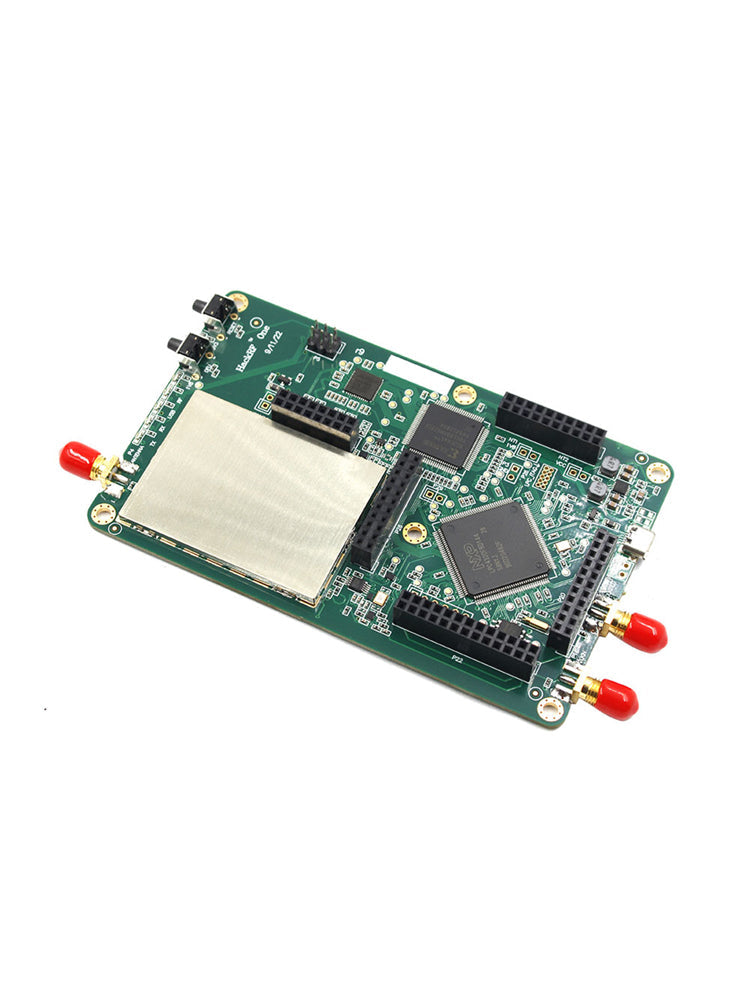

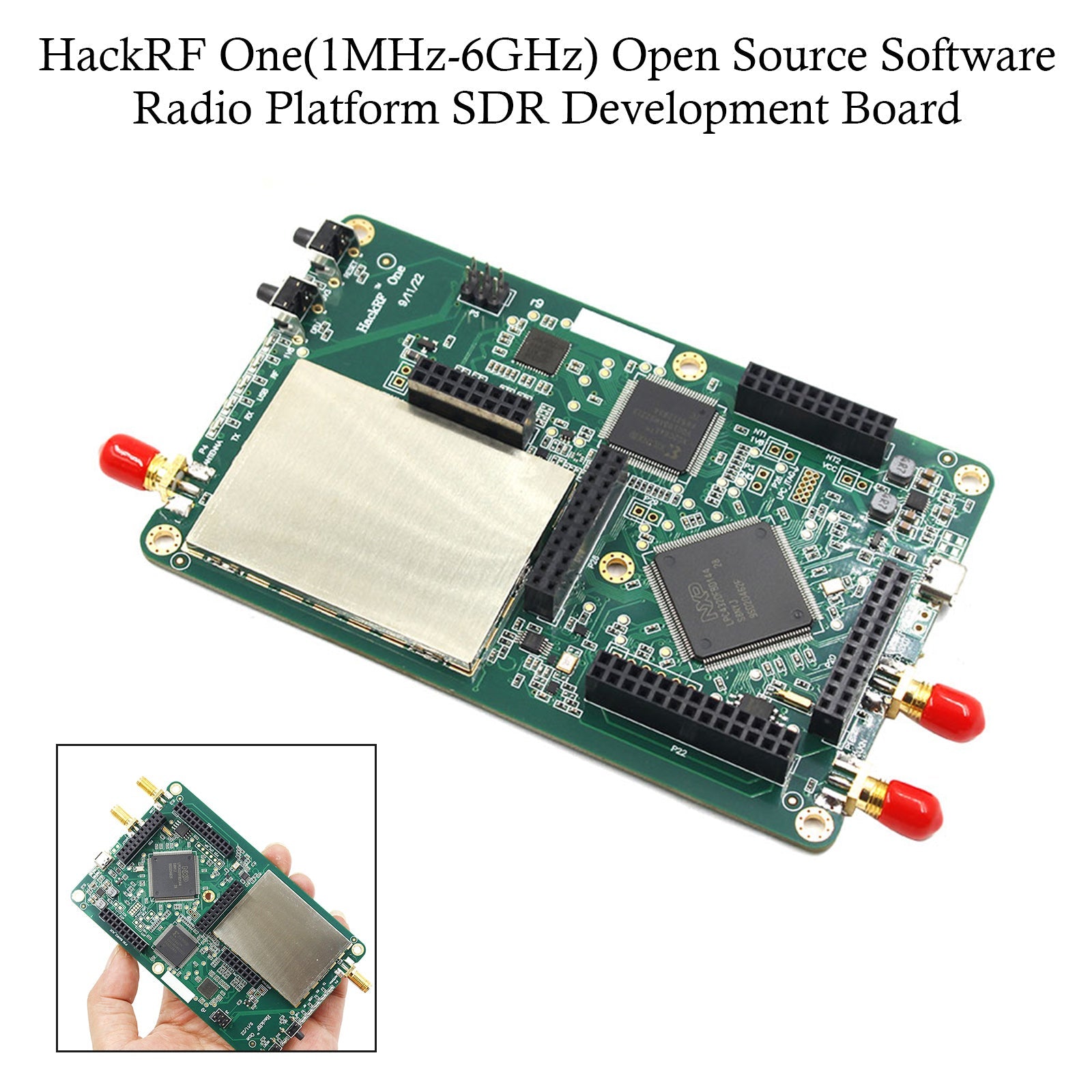

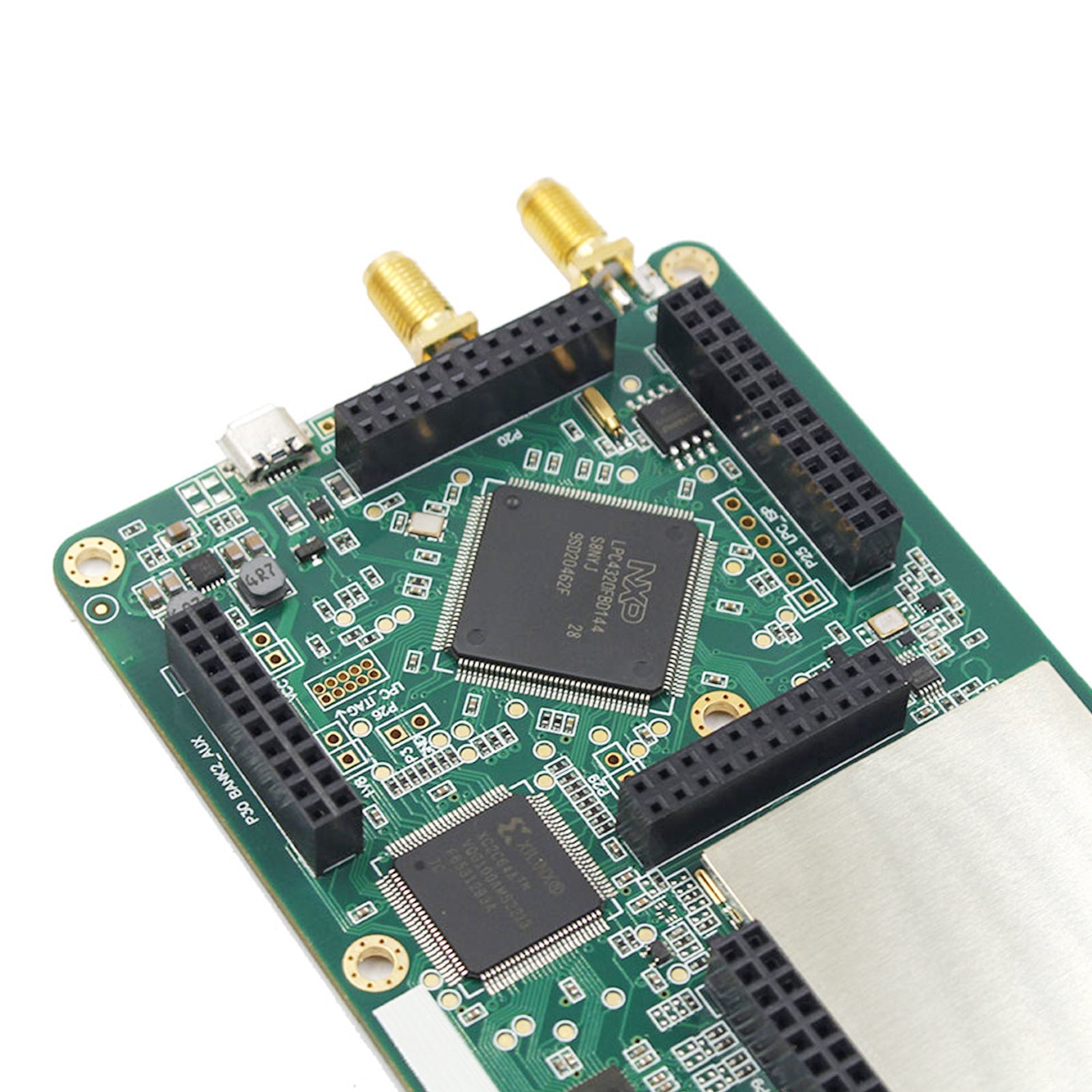

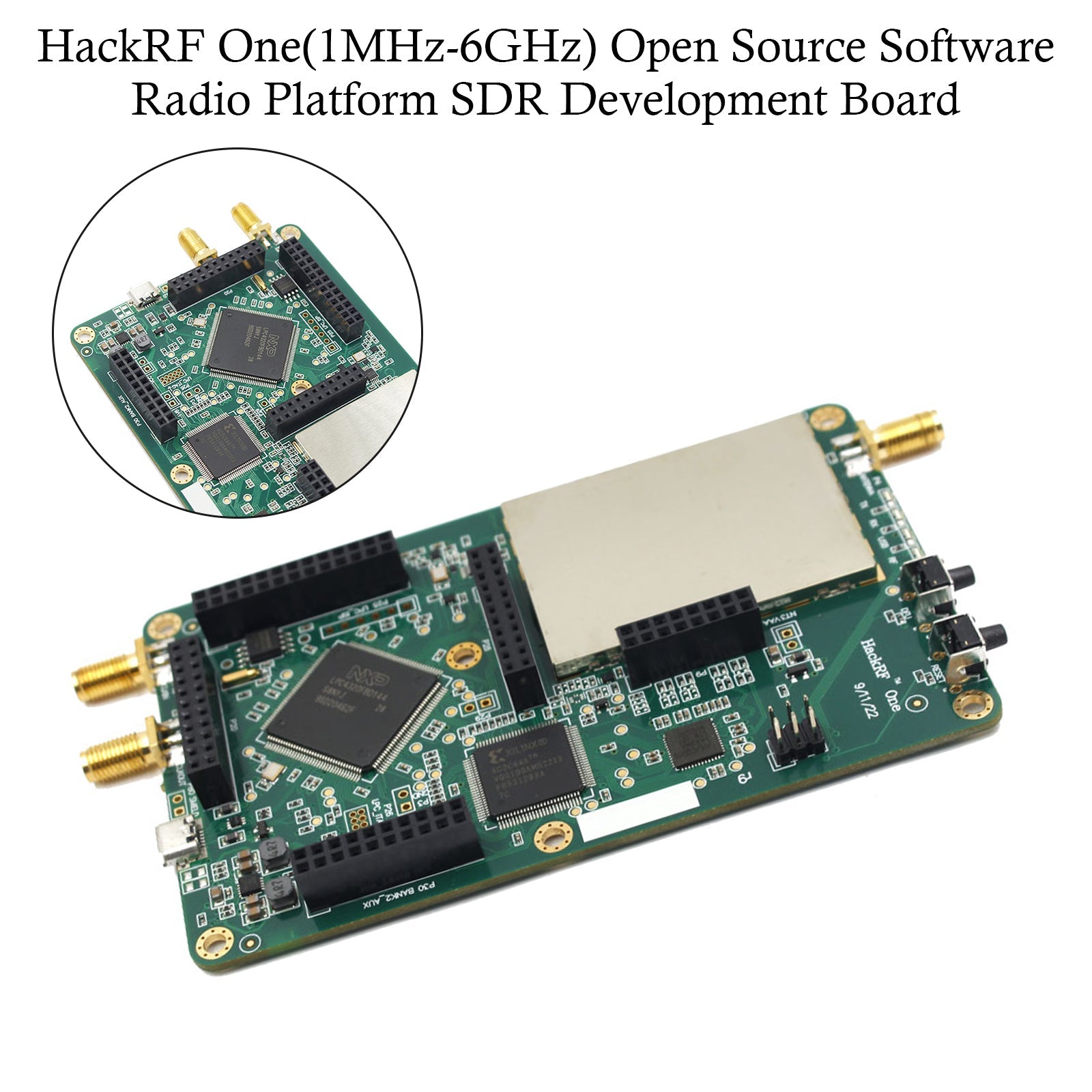

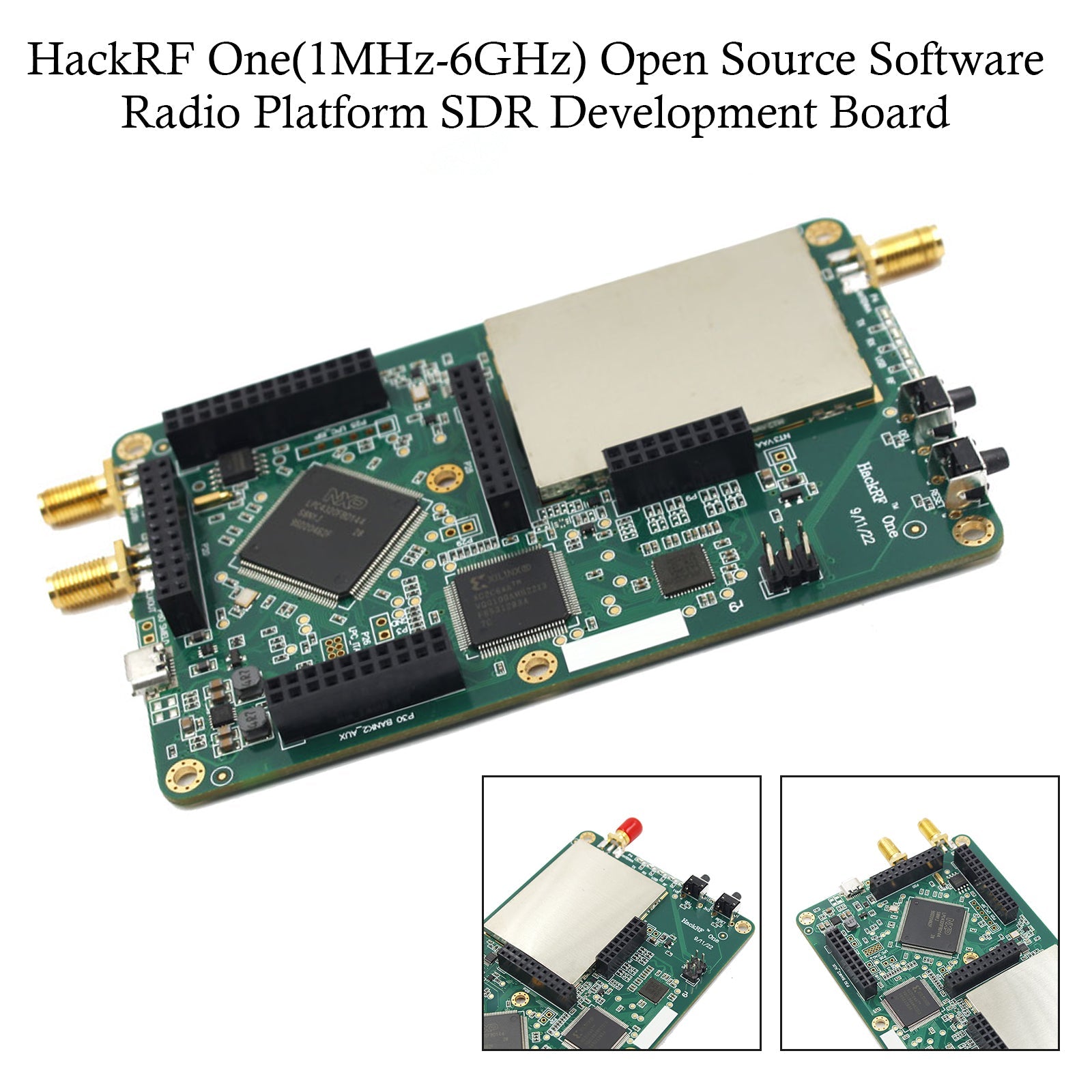

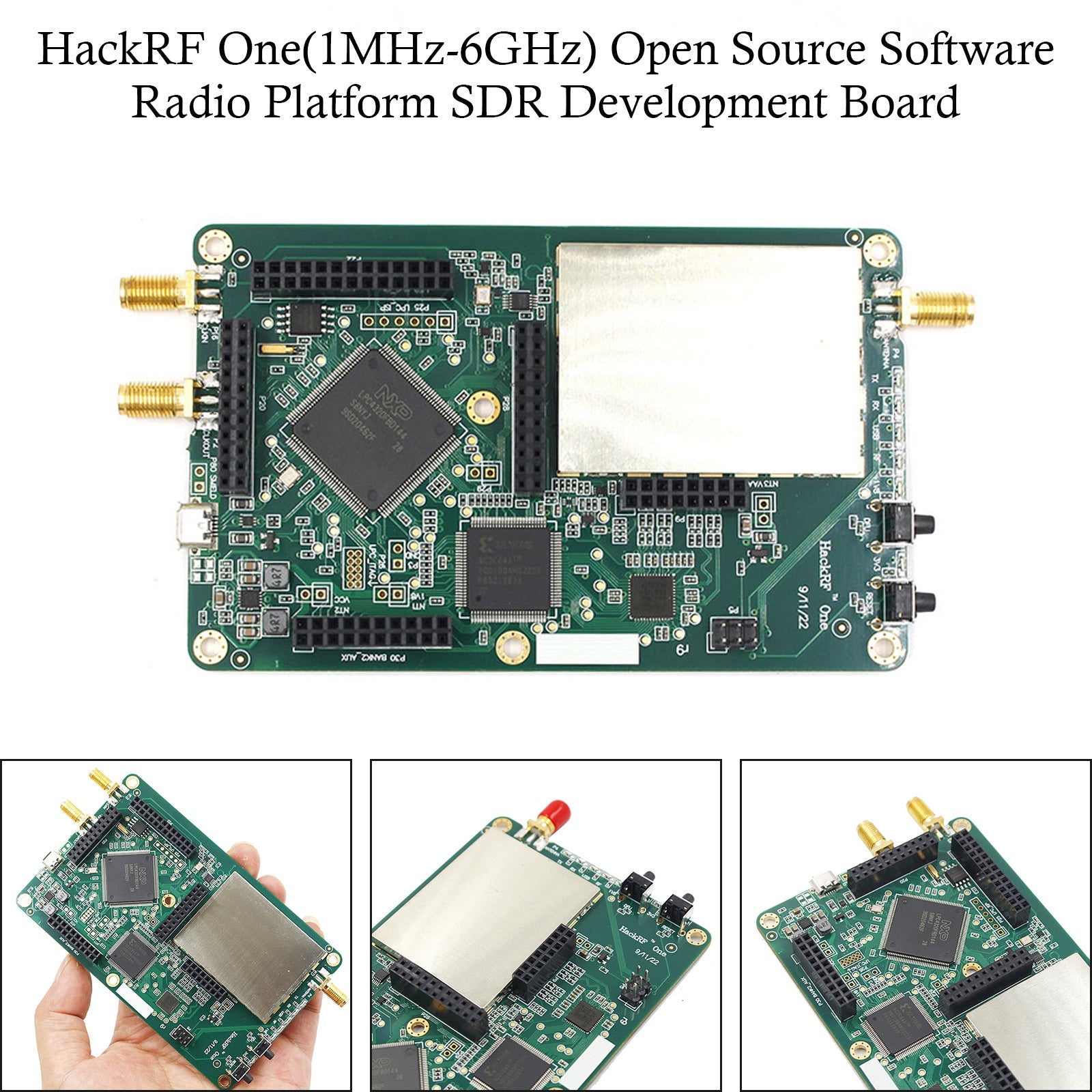

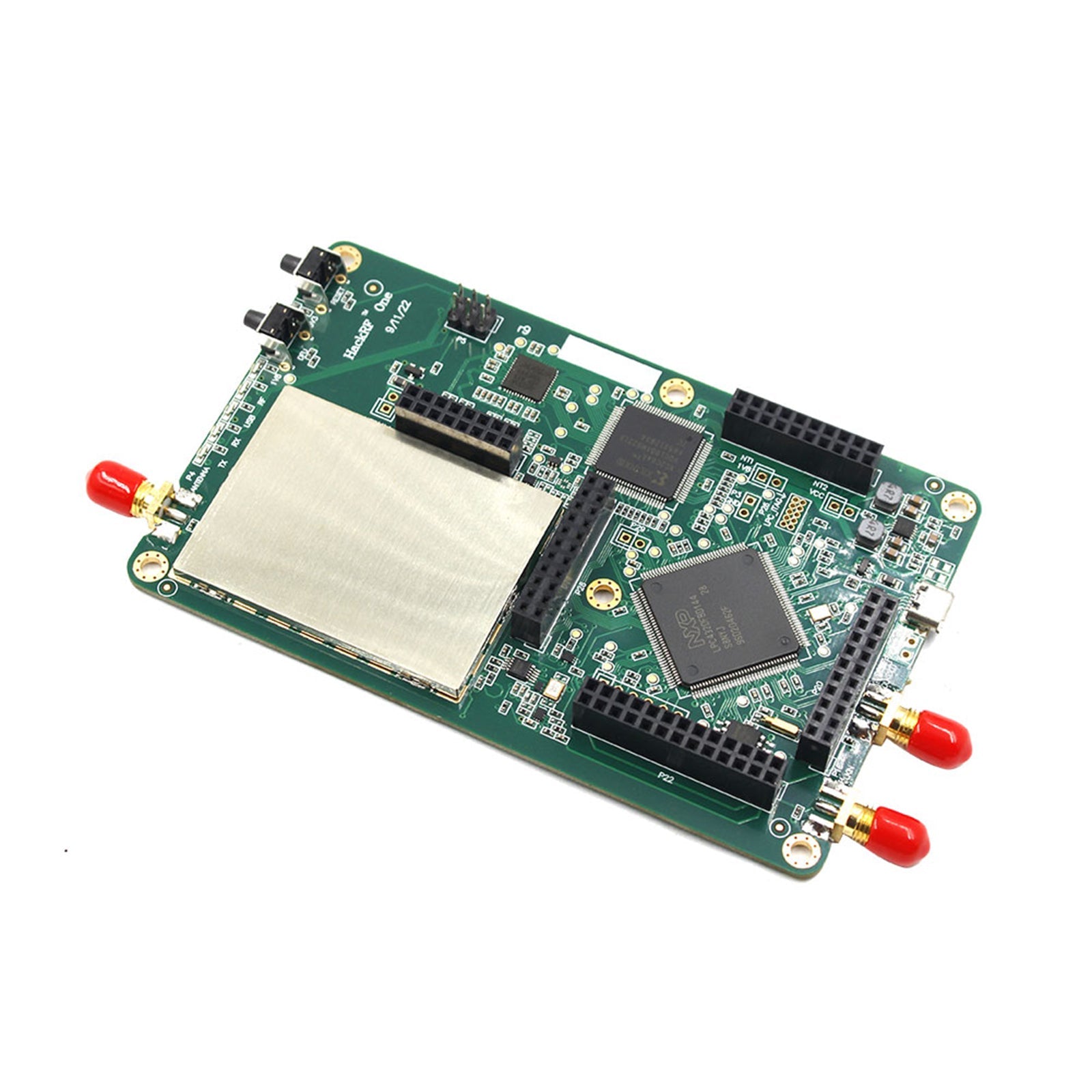

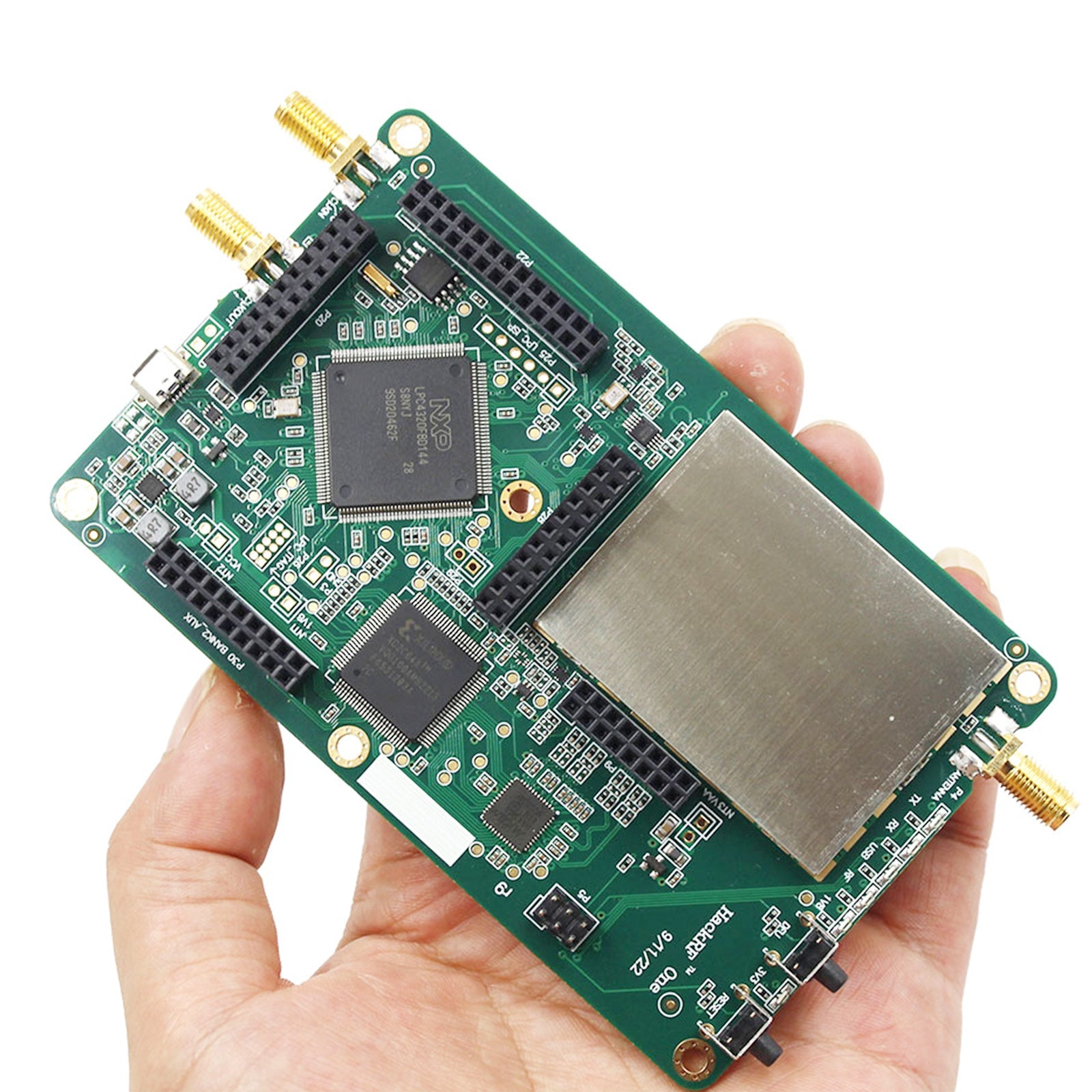

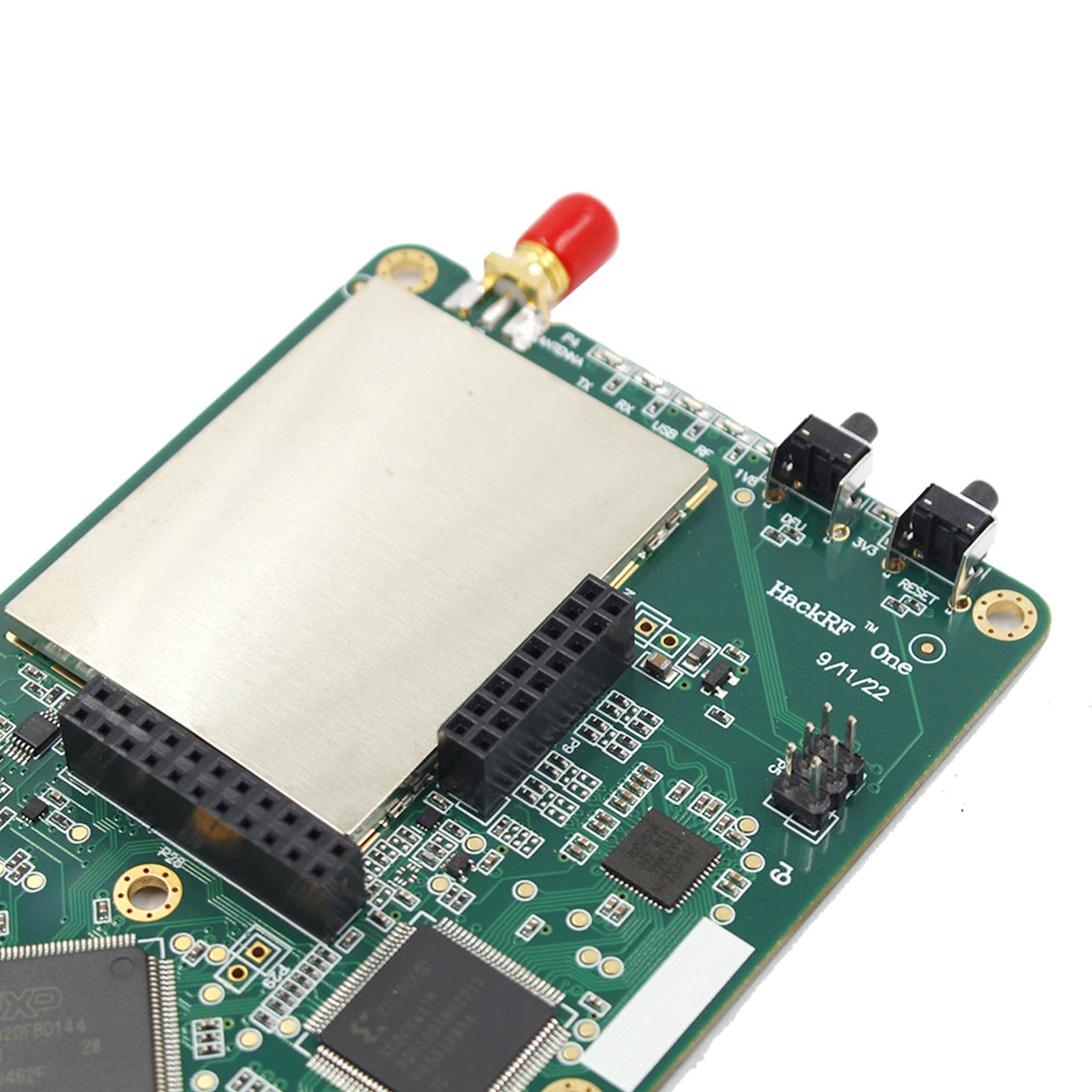

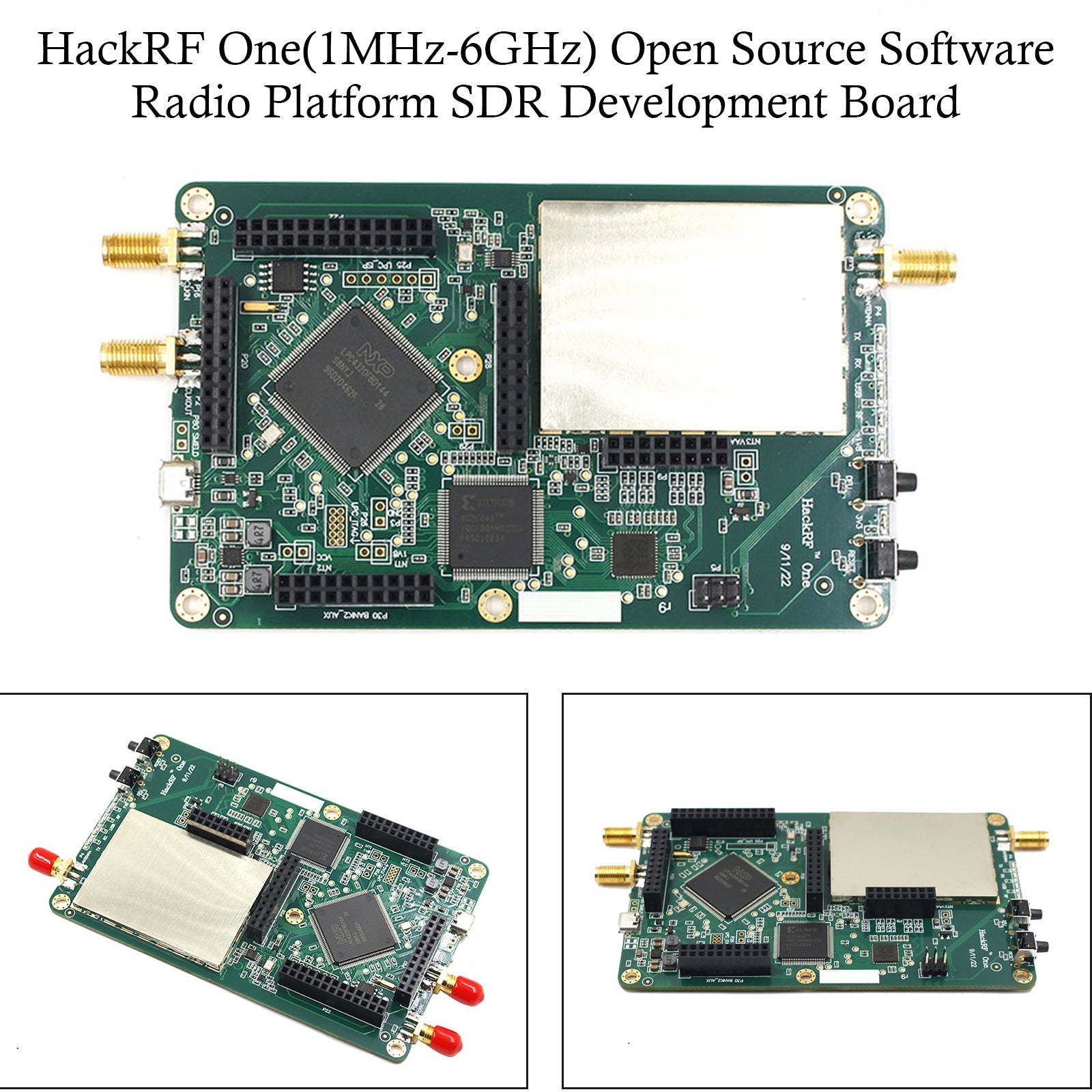

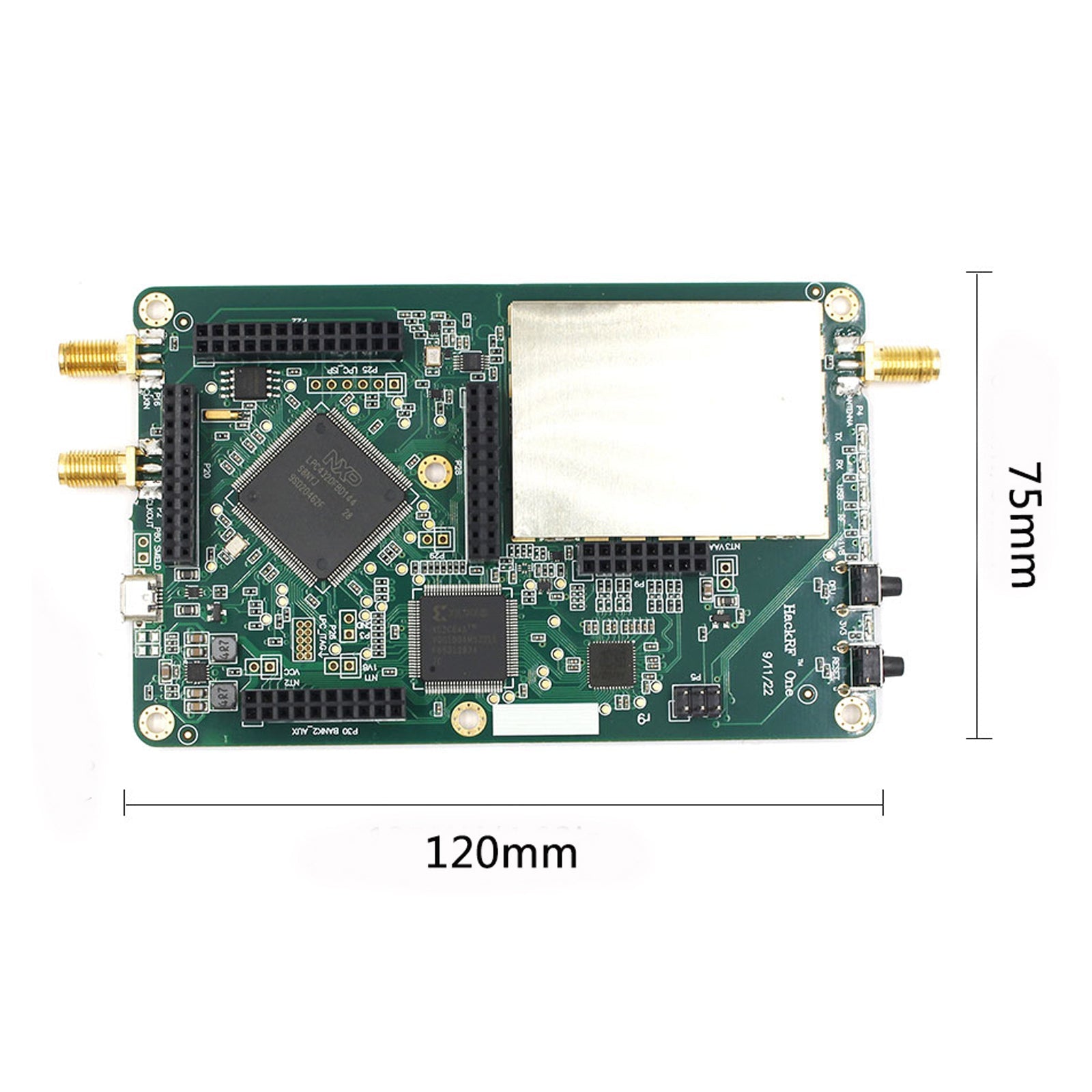

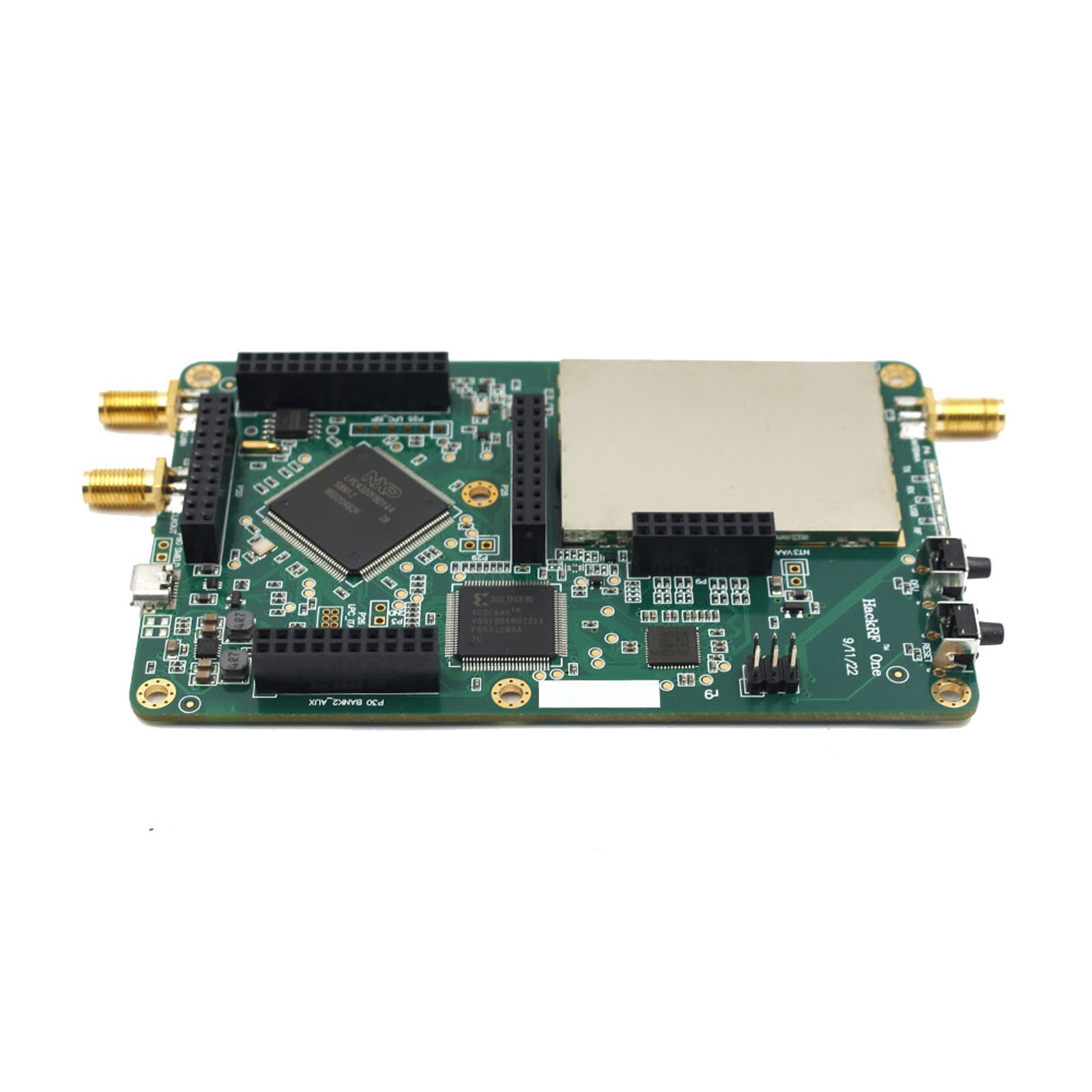

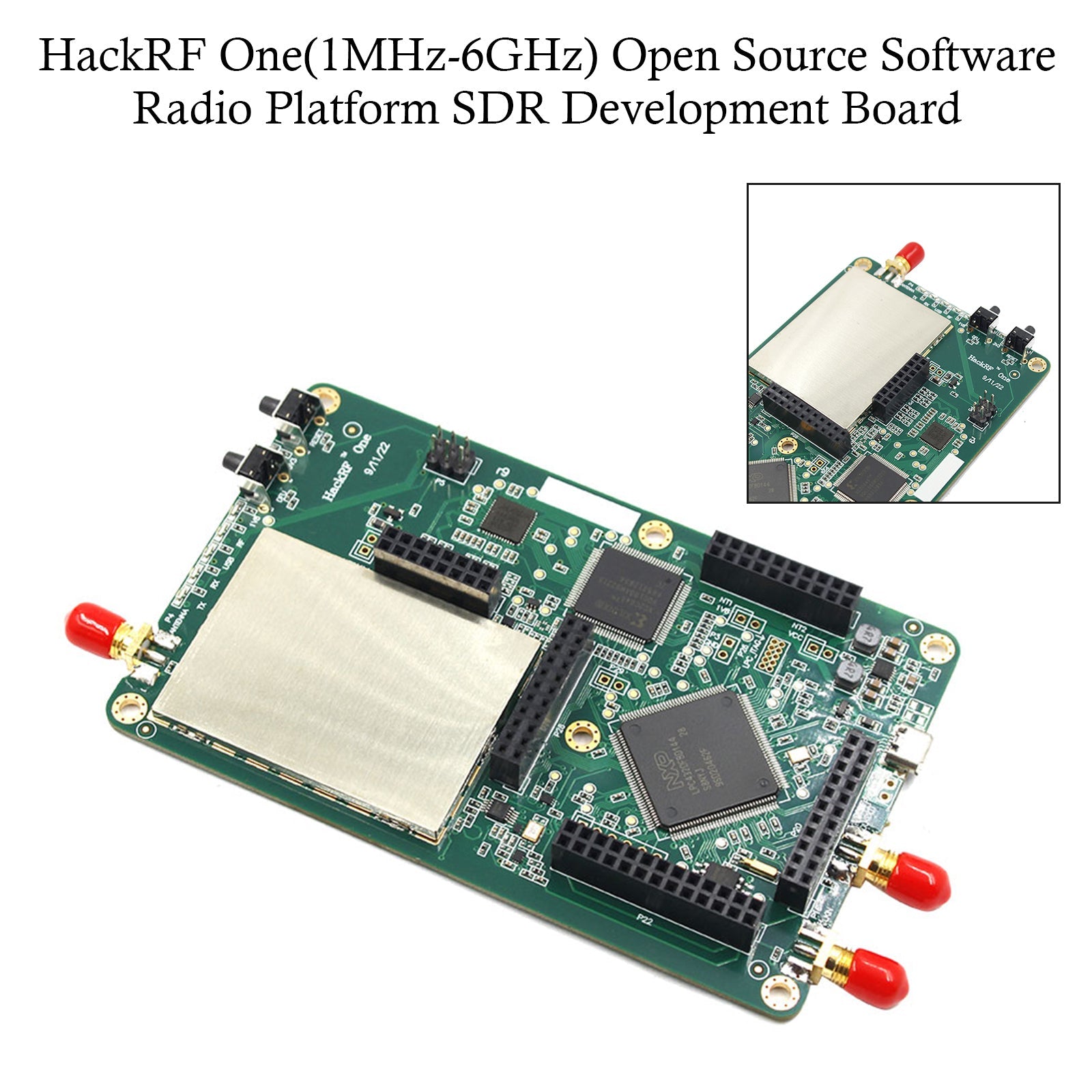

HackRF One(1MHz-6GHz) Open Source Software Radio Platform SDR Development Board

Product description:
SDR Platform Software Defined Radio Development Board 1MHz to 6GHz RF System

HackRF One from Great Scott Gadgets is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, It is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

It is test equipment for RF systems. It has not been tested for compliance with regulations governing transmission of radio signals. You are responsible for using your HackRF One legally.

HackRF One Specifications:
- 1 MHz to 6 GHz operating frequency
- half-duplex transceiver
- up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- compatible with GNU Radio, SDR#, and more
- software-configurable RX and TX gain and baseband filter
- software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- convenient buttons for programming
- internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- open source hardware

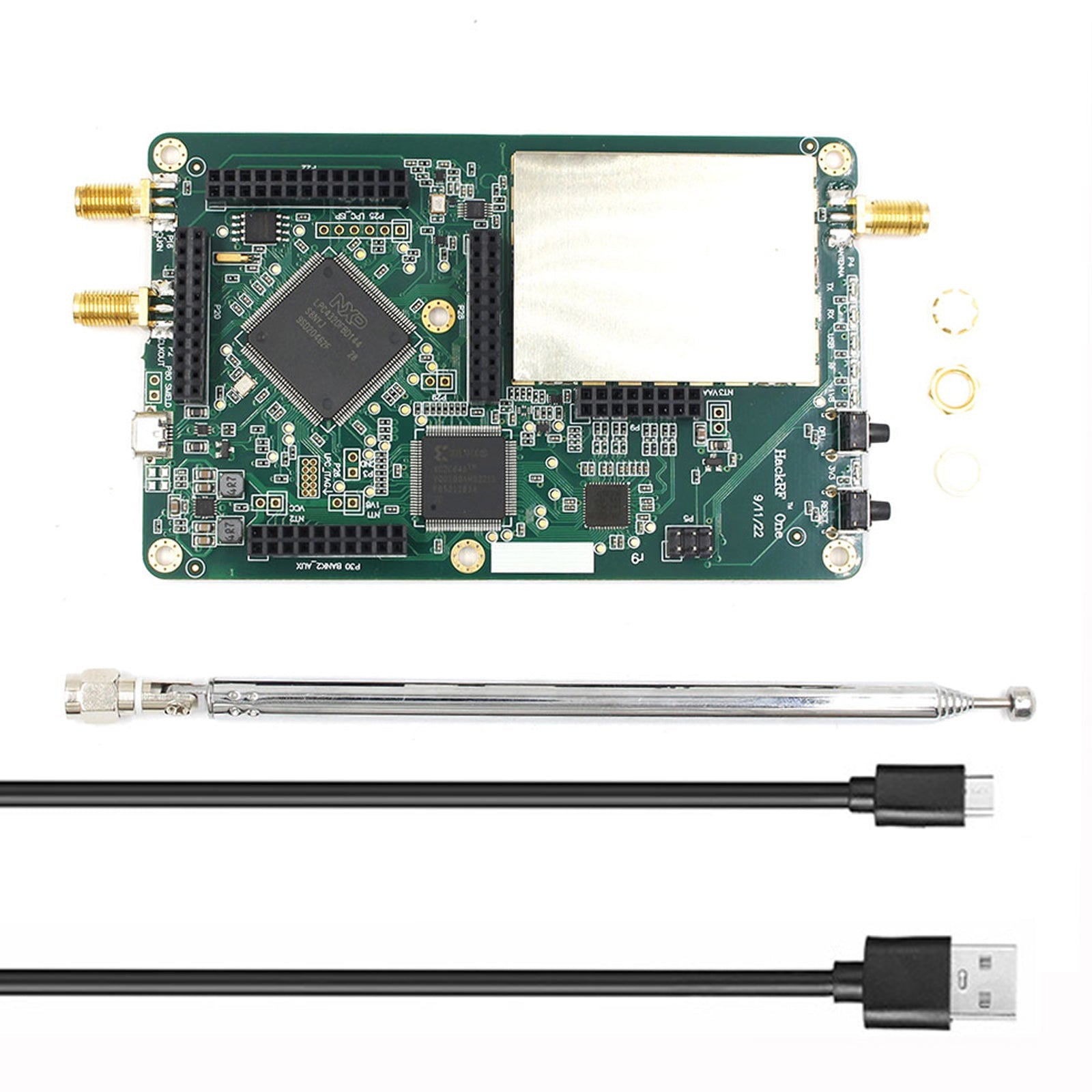

Package Included:
1 X HackRF One (has an injection molded plastic enclosure)
1 X Micro USB cable (100CM / 39 INCH)
1 X SMA Antenna
