Specifications
Specifications
-Brand new starter, not a remanufactured or refurbished one with wear and tear.
-High-quality magnets or field coils deliver more torque for fast starts,good working condition.
-Inside and out starter motors improve reliability over longer periods of time.
-Designed for individual vehicle power consumption, and are ready to be installed quickly and easily.
-New Armatures are precision-manufactured and tested for long service life.
-Replaces existing starter motor, Just replace and ride again.
-Professional installation will be highly recommanded,installation instruction NOT included.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Fitment Type: Direct Replacement
Surface Finish: Heavy Duty
Unit Type: Starter
Number of Teeth: 10 Tooth
Rotation: CCW / Counterclocke

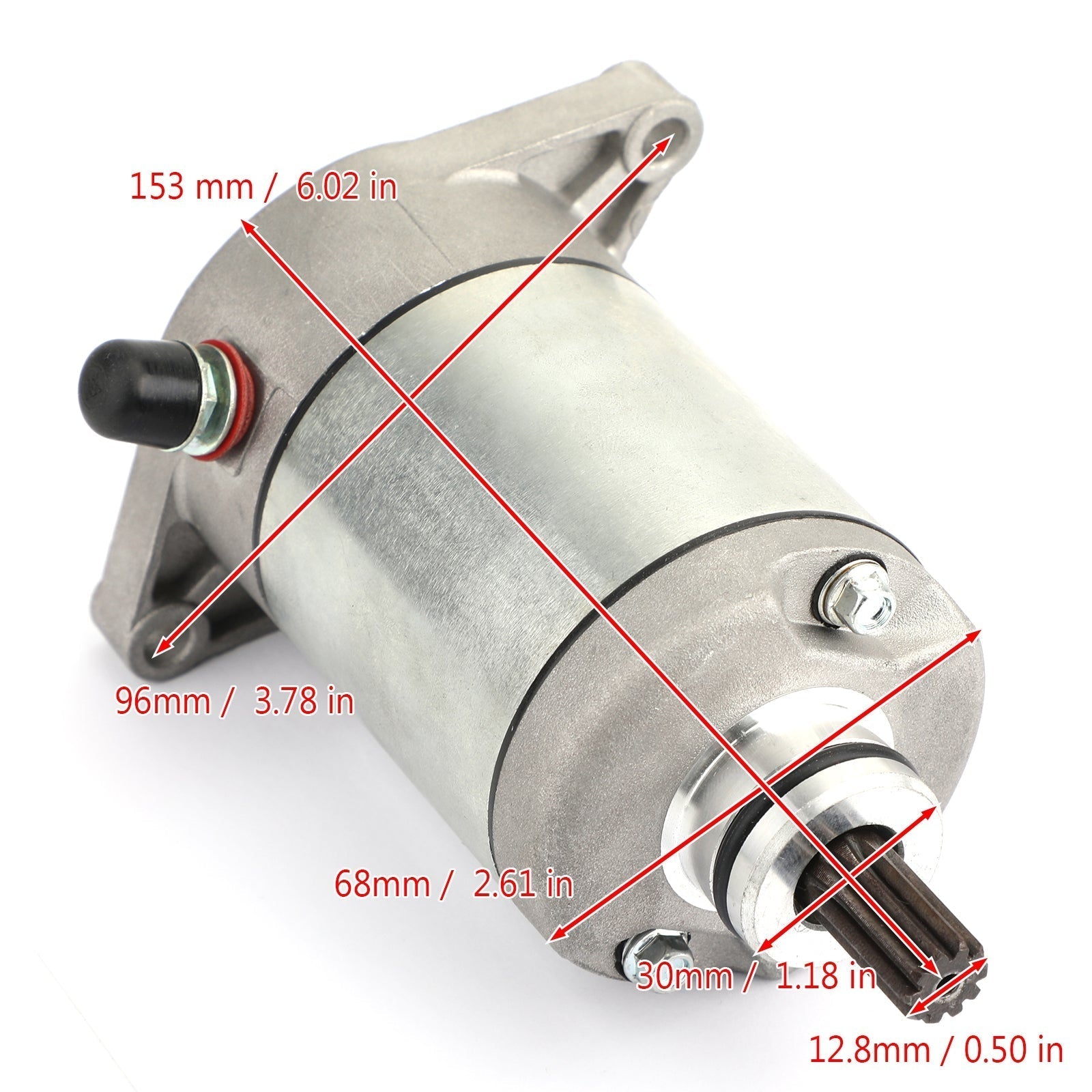

Size(Approx):
Gear length: 18.8 mm
Fitting diameter: 31 mm
Body diameter: 68 mm
Hole spacing: 98.5 mm
Overall length: 153 mm
Replacement Part Number:
31100-19B00
31100-19B11
31100-19B12
31100-19B20
3545-003
3545-017
(Use the part number to verify fitment to your application. )
Fits Make/Model/Year:
31100-19B00
31100-19B11
31100-19B12
31100-19B20
Fit for Suzuki LT-4WD (H) Quadrunner 250cc Engine 1987
Fit for Suzuki LT-4WD (J,K) Quadrunner 250cc Engine 1988-1989
Fit for Suzuki LT-4WD (L,M) Quadrunner 250cc Engine 1990-1991
Fit for Suzuki LT-4WD (N,P,R,S) Quadrunner 250cc Engine 1992-1995
Fit for Suzuki LT-4WD (T) Quadrunner 250cc Engine 1996
Fit for Suzuki LT-4WD (V) Quadrunner 250cc Engine 1997
Fit for Suzuki LT-4WD (W) Quadrunner 250cc Engine 1998
Fit for Suzuki LT-F250 (J,K) Quadrunner 250cc Engine 1988-1989
Fit for Suzuki LT-F250 (L,M) Quadrunner 250cc Engine 1990-1991
Fit for Suzuki LT-F250 (N,P,R,S,T,V) Quadrunner 250cc Engine 1992-1997
Fit for Suzuki LT-F250, F (W,X) Quadrunner 250cc Engine 1998-1999
Fit for Suzuki LT-F250, F (Y) Quadrunner 250cc Engine 2000
Fit for Suzuki LT-F250, F (K1,K2) Quadrunner 250cc Engine 2001-2002
Fit for Suzuki LT-F300F (X) King Quad 300cc Engine 1999
Fit for Suzuki LT-F300F (Y) King Quad 300cc Engine 2000
Fit for Suzuki LT-F300F (K1,K2) King Quad 300cc Engine 2001-2002
Fit for Suzuki LT-F4WDX (M) 250cc Engine 1991
Fit for Suzuki LT-F4WDX (N,P,R,S) King Quad 250cc Engine 1992-1995
Fit for Suzuki LT-F4WDX (T,V) King Quad 250cc Engine 1996-1997
Fit for Suzuki LT-F4WDX (W) King Quad 250cc Engine 1998
3545-003
3545-017
Fit for Arctic Cat 250 2X4 249cc 1999-2005
Fit for Arctic Cat 250 4X4 249cc 2001-2005
Fit for Arctic Cat 300 2X4 280cc 1998-2003
Fit for Arctic Cat 300 4X4 280cc 1998-2005
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package includes:
1x Starter Motor
Note:
All electrical components must be fitted by a qualified technician.
Before fitting electrical components ensure the root cause of the original failure has been addressed.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
