Magneto Coil Stator + Voltage Regulator + Gasket Assy For Suzuki SV 400 650 SV650S 1999-2002

Features:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket

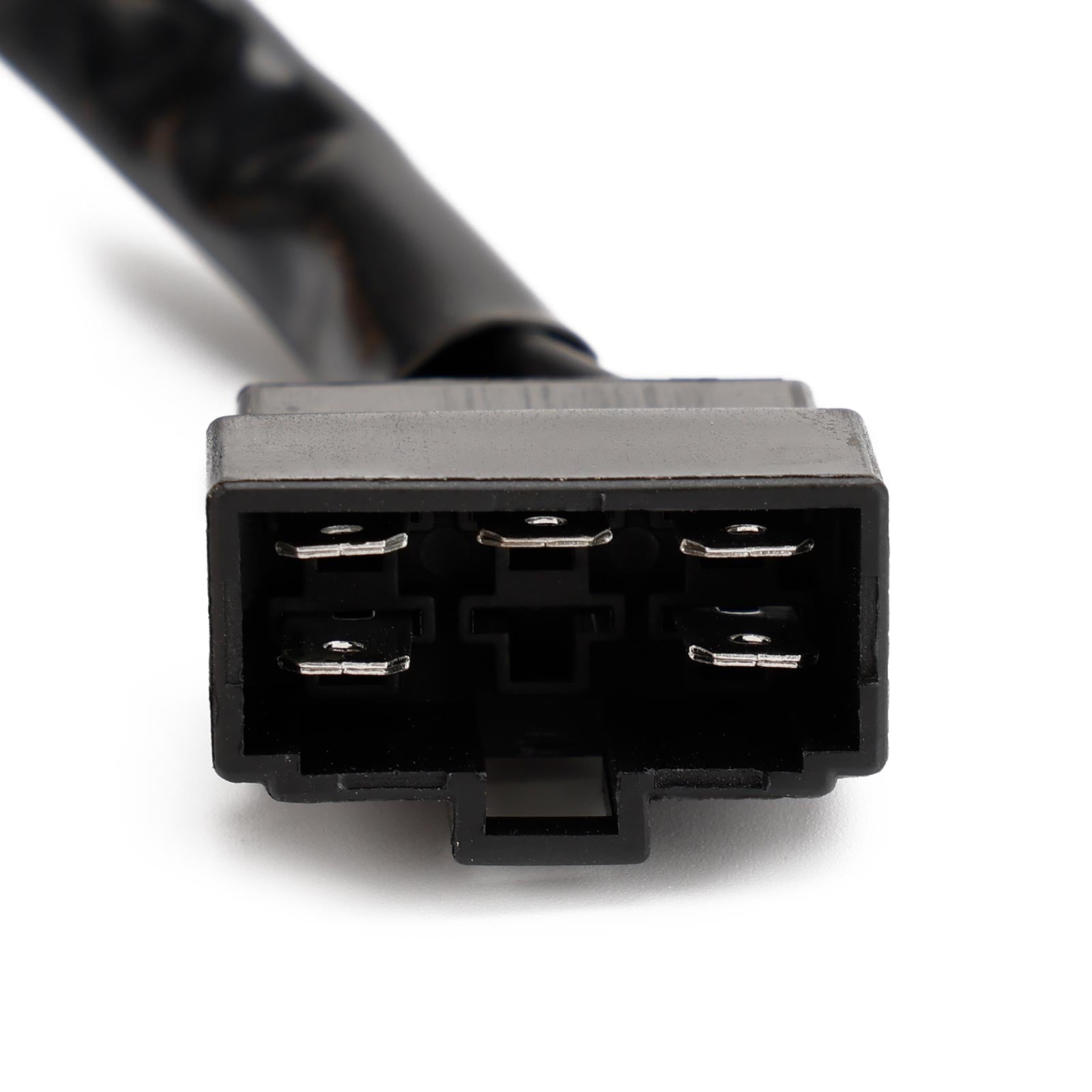

Regulator: 5 wires / 1 plug (Single plug version)
Please check the picture carefully, they used two different types of regulator during this time period!

Replacement Part Number:
Stator Assy: 32101-19F00, 32101-19F10
Rectifier, regulator: 32800-14F00, 32800-14F01
Gasket, generator cover: 11483-19F00

Fits Models:
(for bikes fitted with the single plug regulator)

Fit for Suzuki SV 400 (VK53A) - 1998 - N
Fit for Suzuki SV 400 - 1999 - X
Fit for Suzuki SV 400 - 2000 - Y
Fit for Suzuki SV 400 - 2001 - K1
Fit for Suzuki SV 400 - 2002 - K2
Fit for Suzuki SV 400 S (VK53A) - 1998 - N
Fit for Suzuki SV 400 S - 1999 - X
Fit for Suzuki SV 400 S - 2000 - Y
Fit for Suzuki SV 400 S - 2001 - K1
Fit for Suzuki SV 400 S - 2002 - K2
Fit for Suzuki SV 650 - 1999 - X
Fit for Suzuki SV 650 - 2000 - Y
Fit for Suzuki SV 650 - 2001 - K1
Fit for Suzuki SV 650 - 2002 - K2
Fit for Suzuki SV 650 S - 1999 - X
Fit for Suzuki SV 650 S - 2000 - Y
Fit for Suzuki SV 650 S - 2001 - K1
Fit for Suzuki SV 650 S - 2002 - K2

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

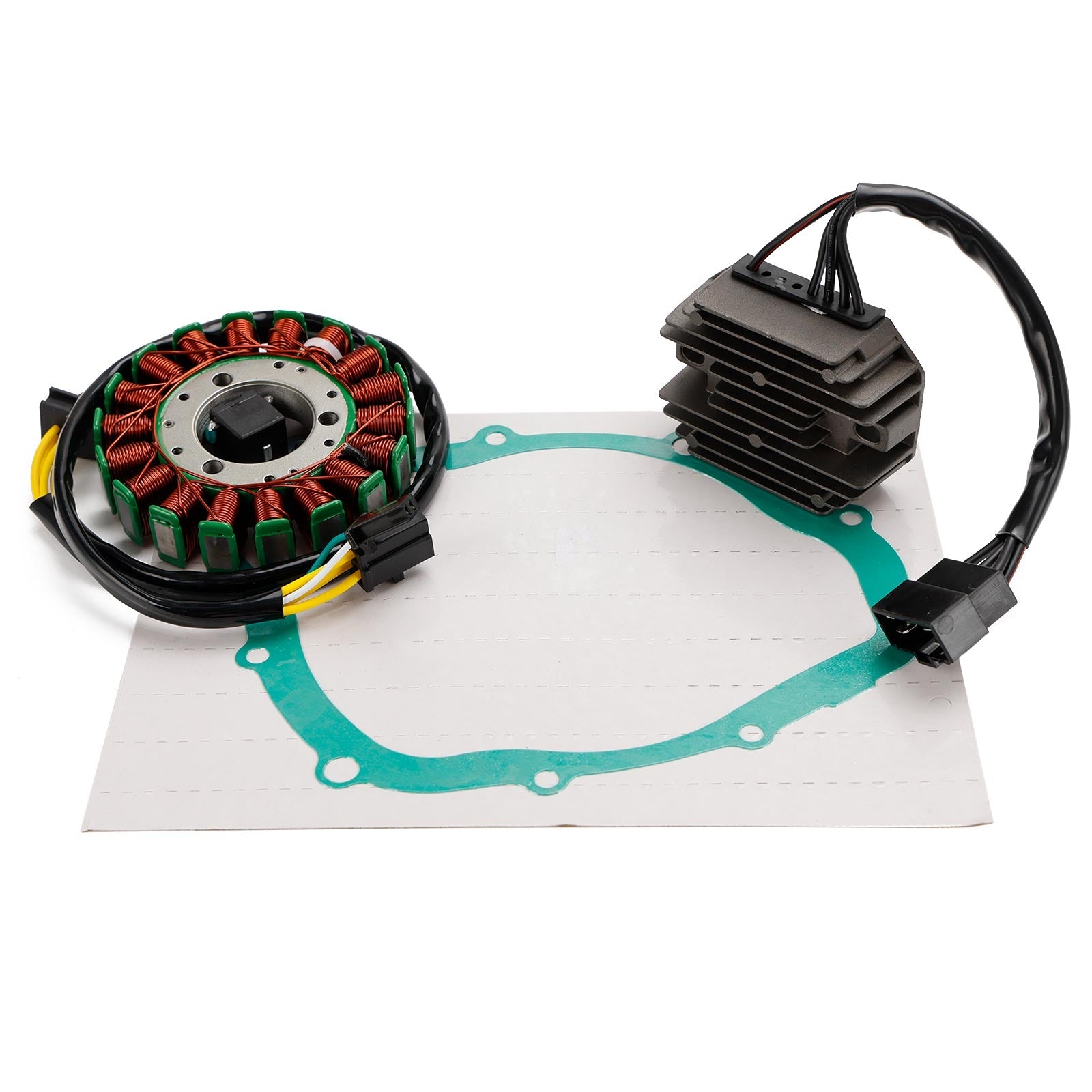

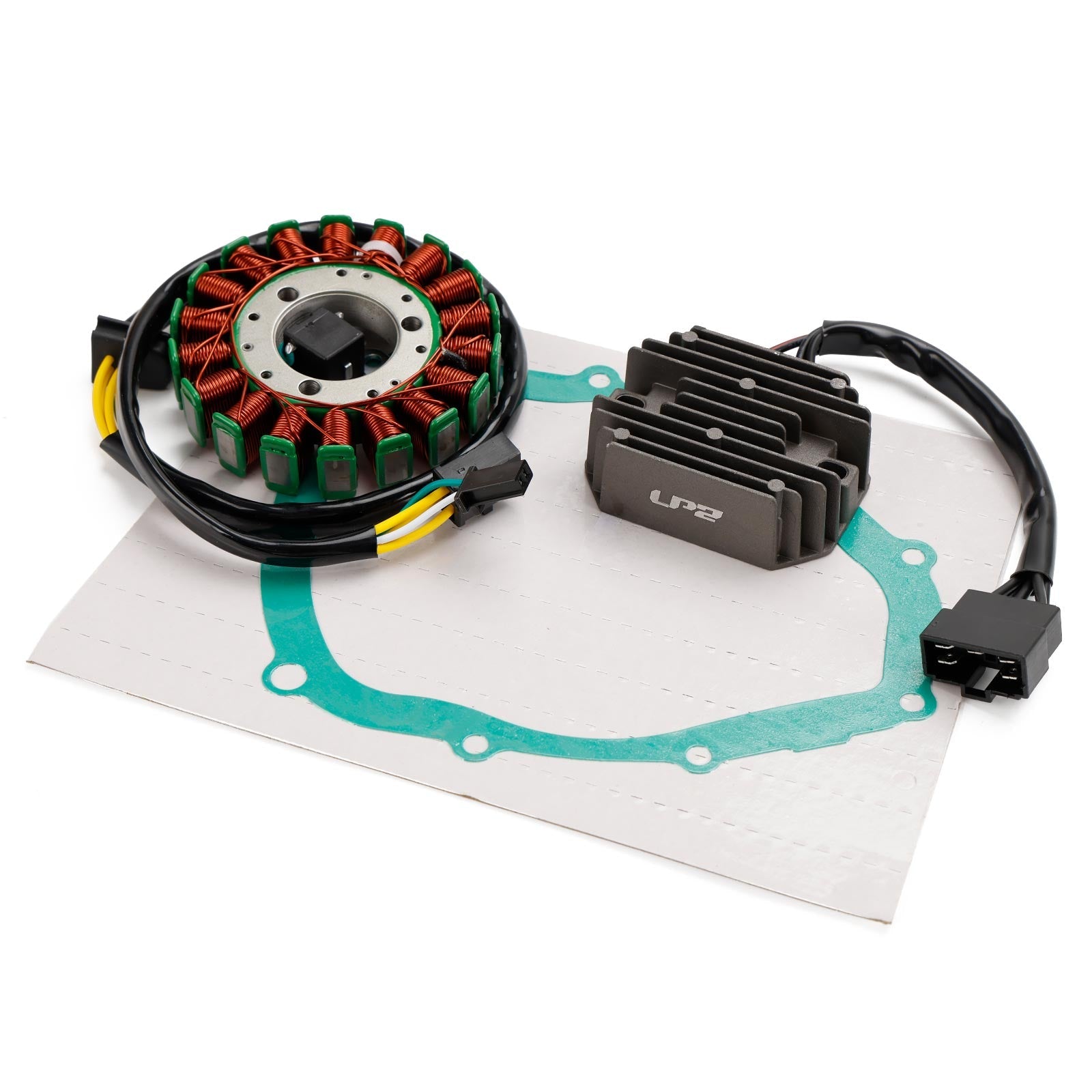

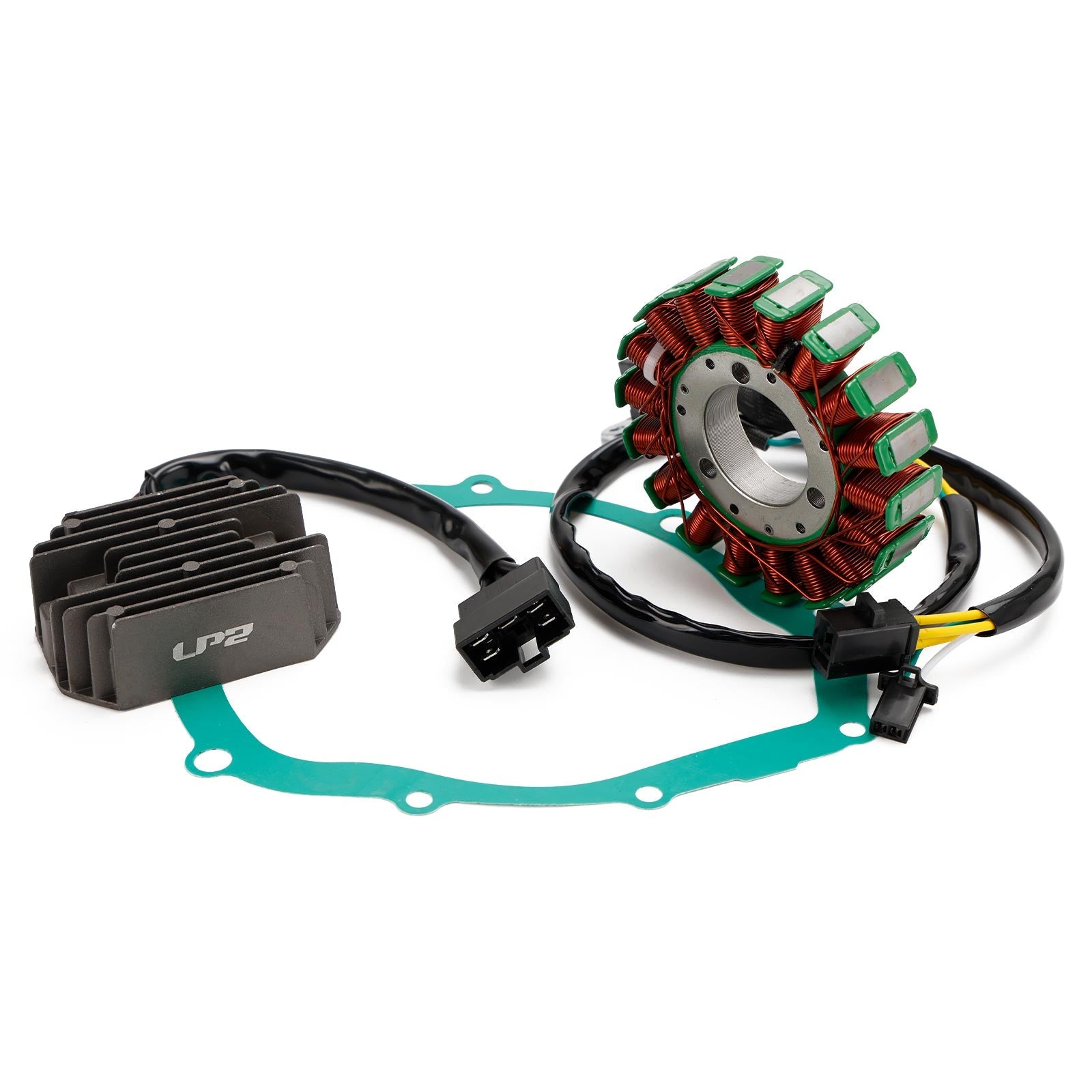

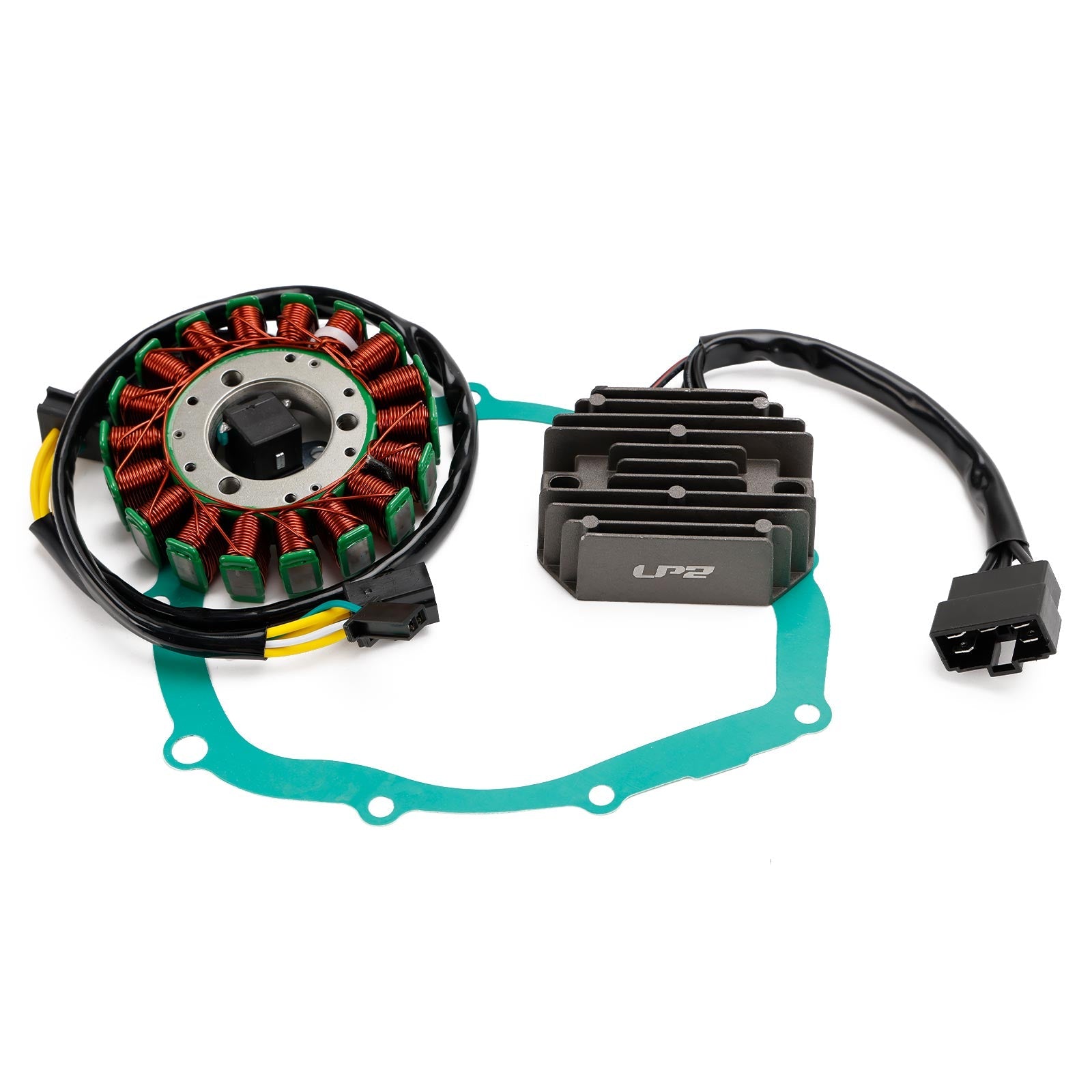

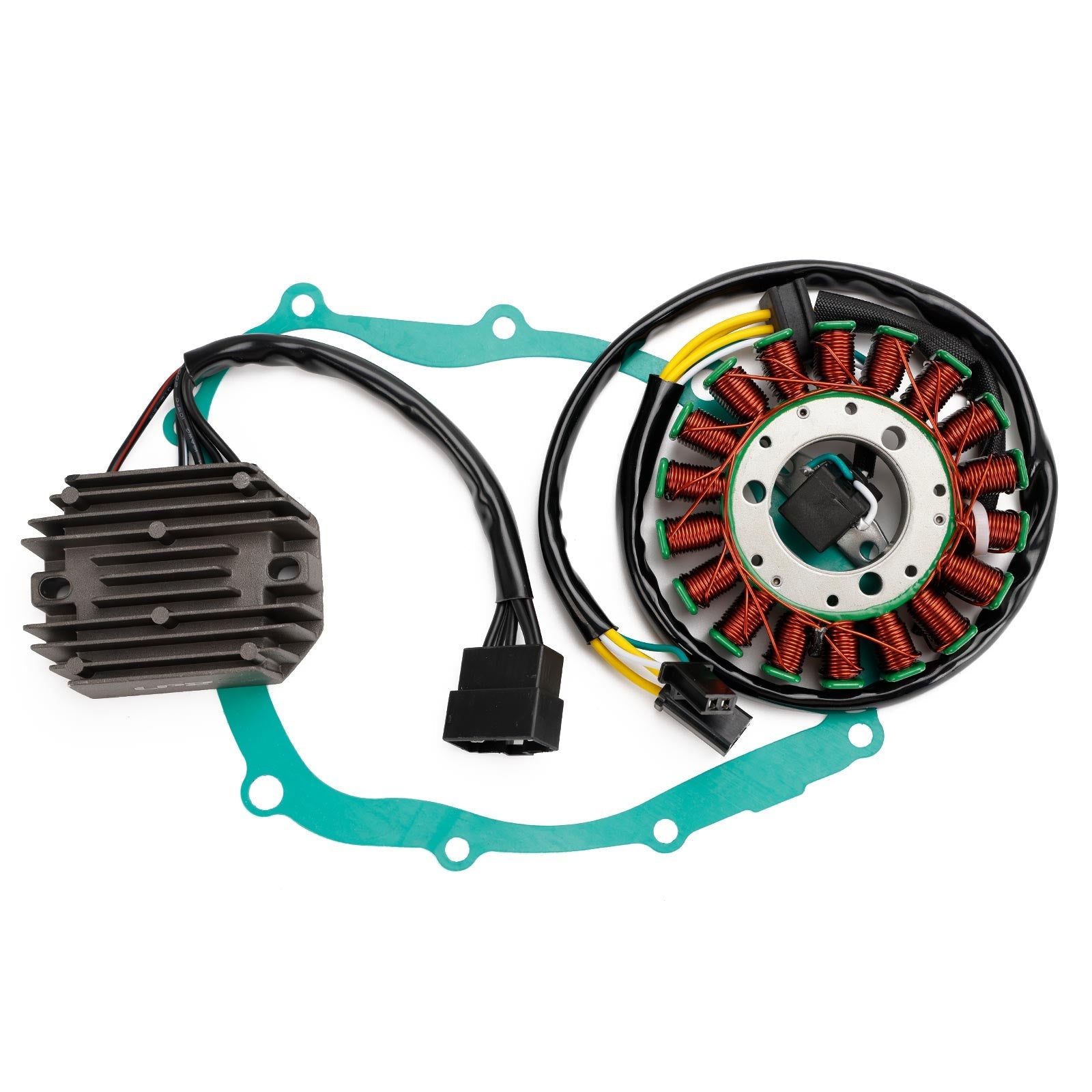

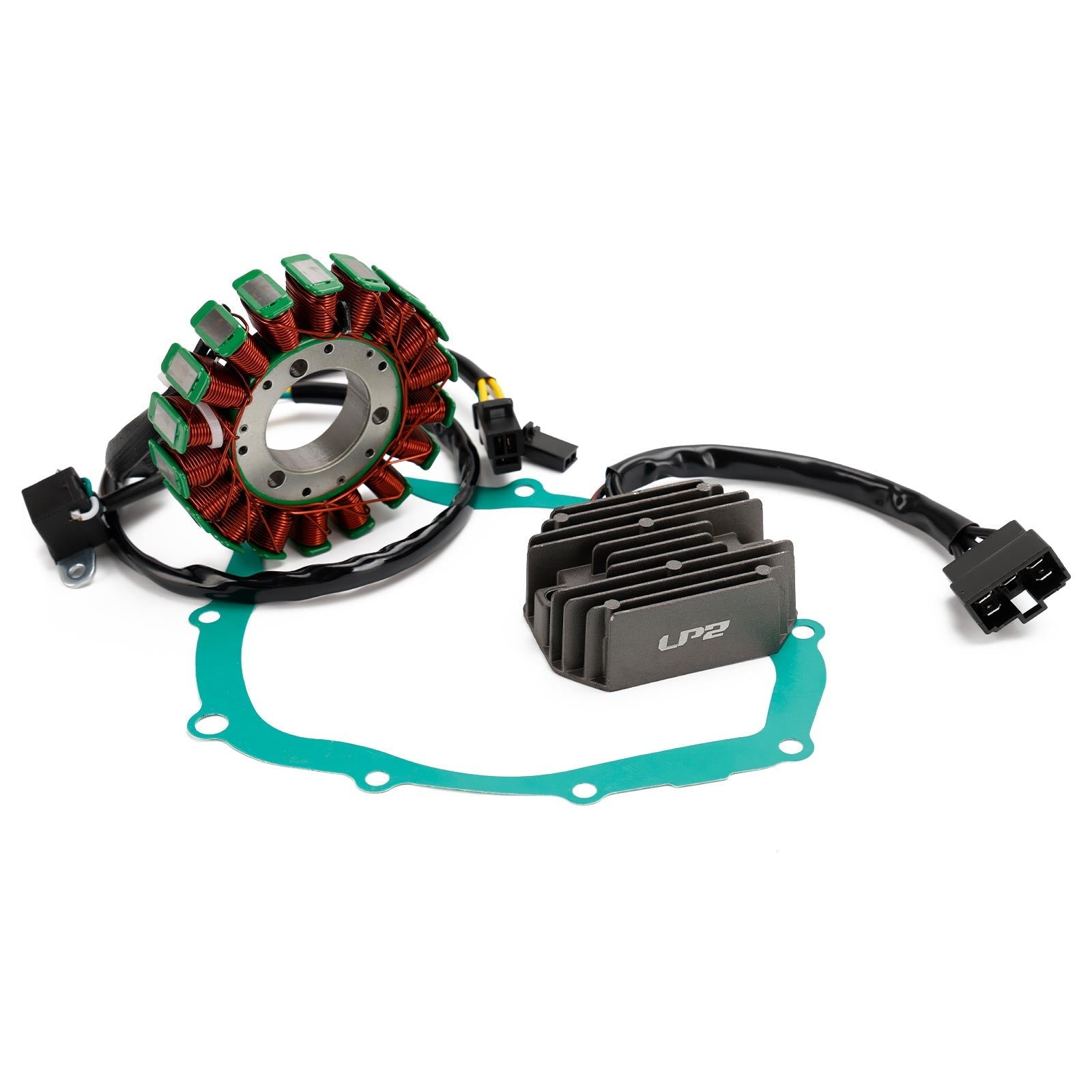

Package Includes:

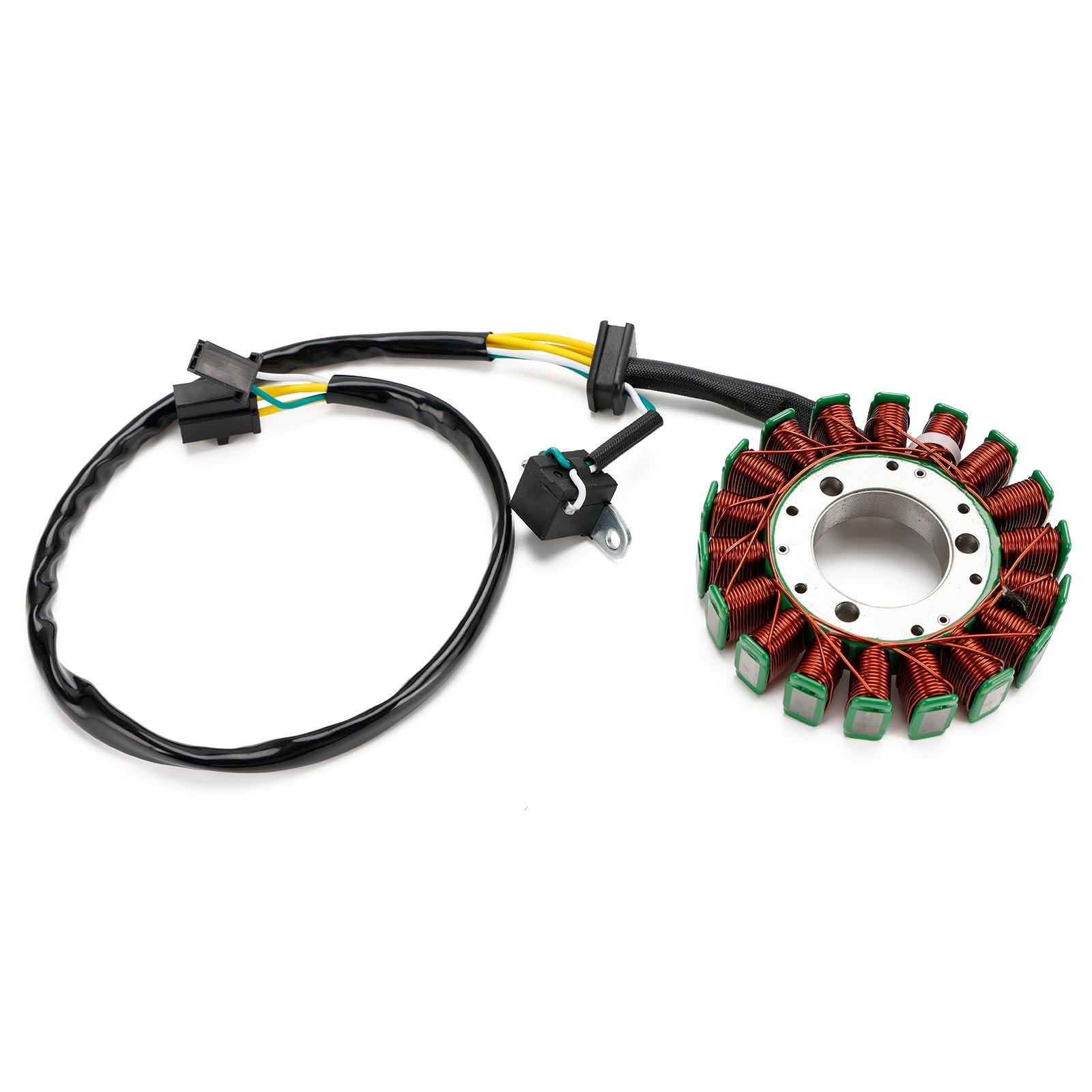

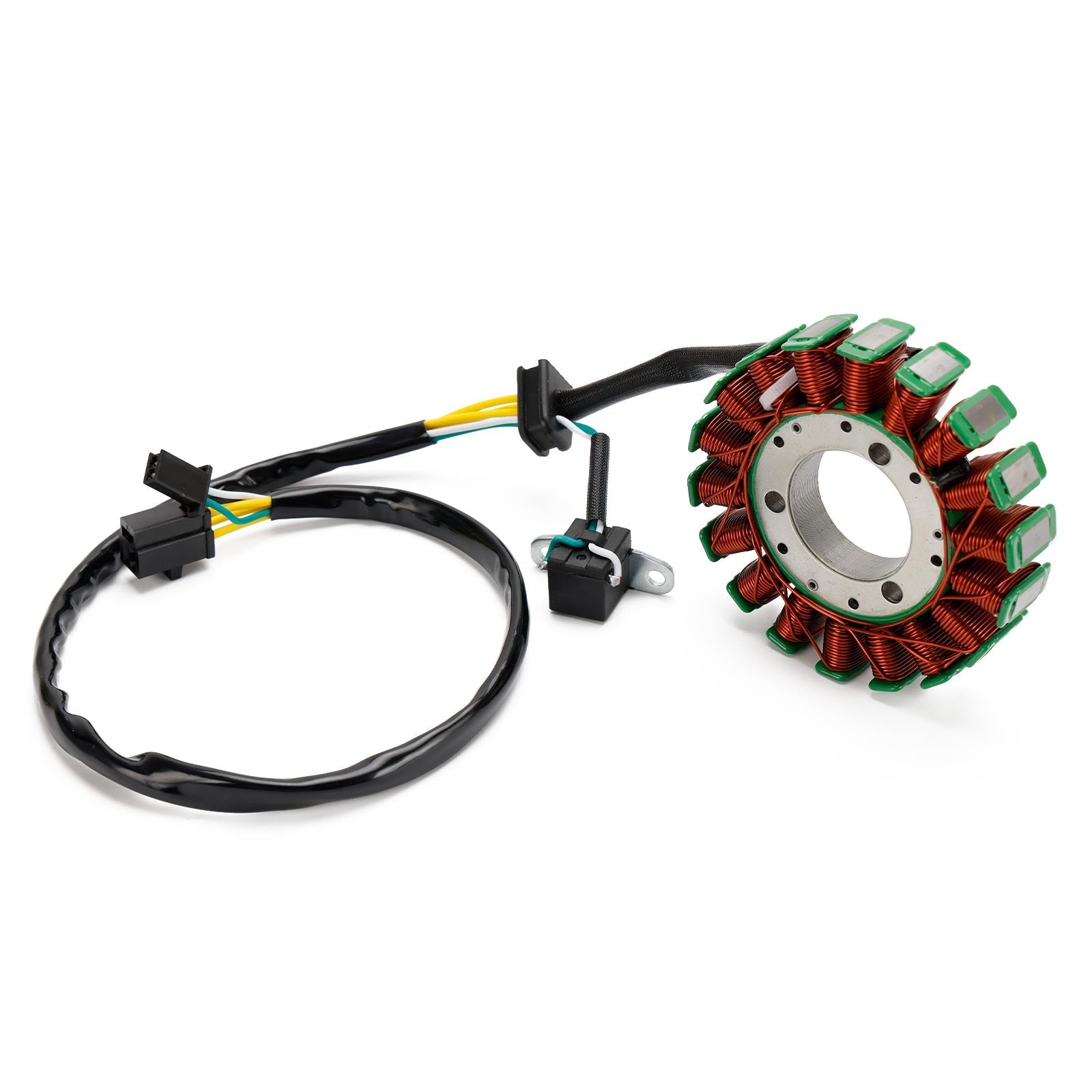

1 x Stator Coil

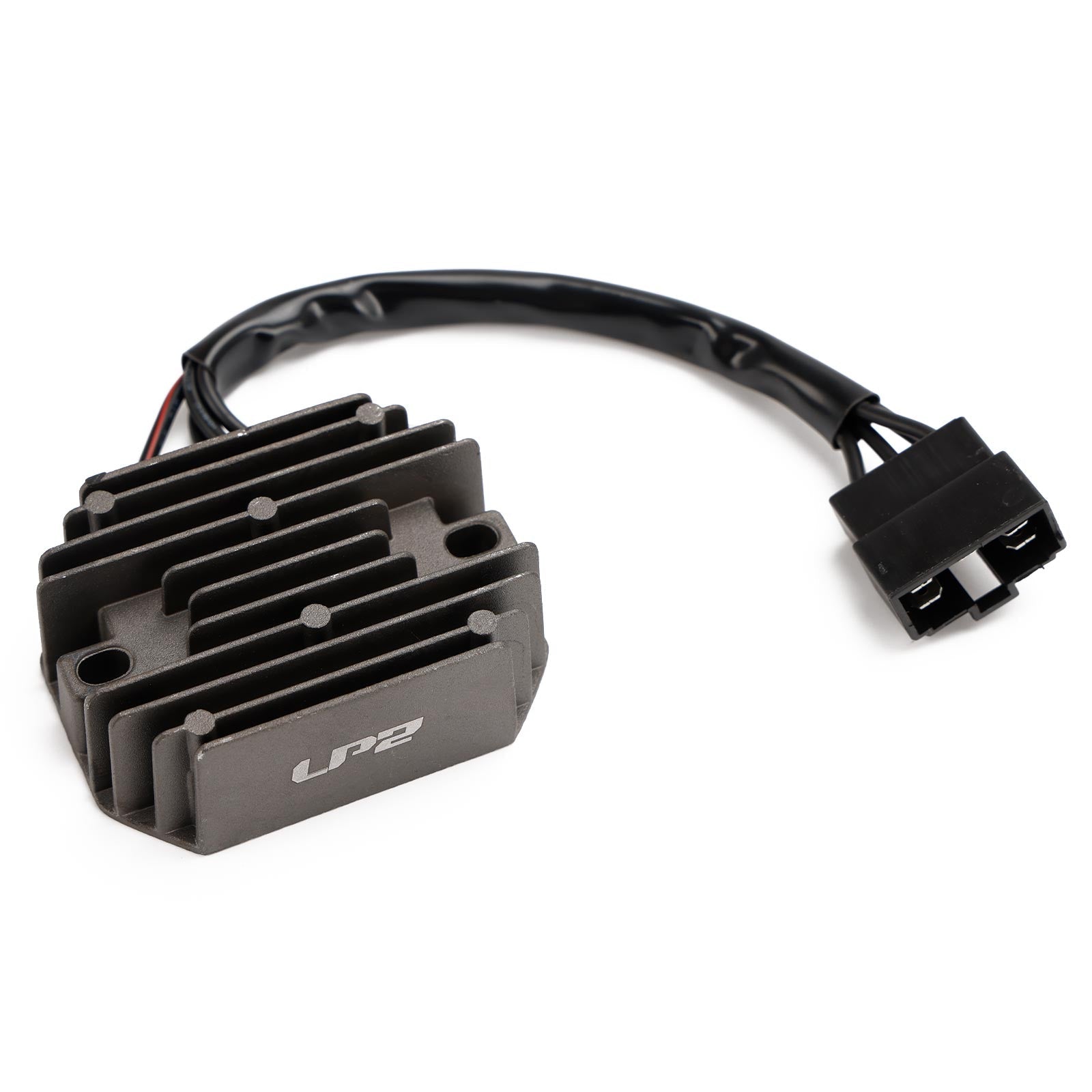

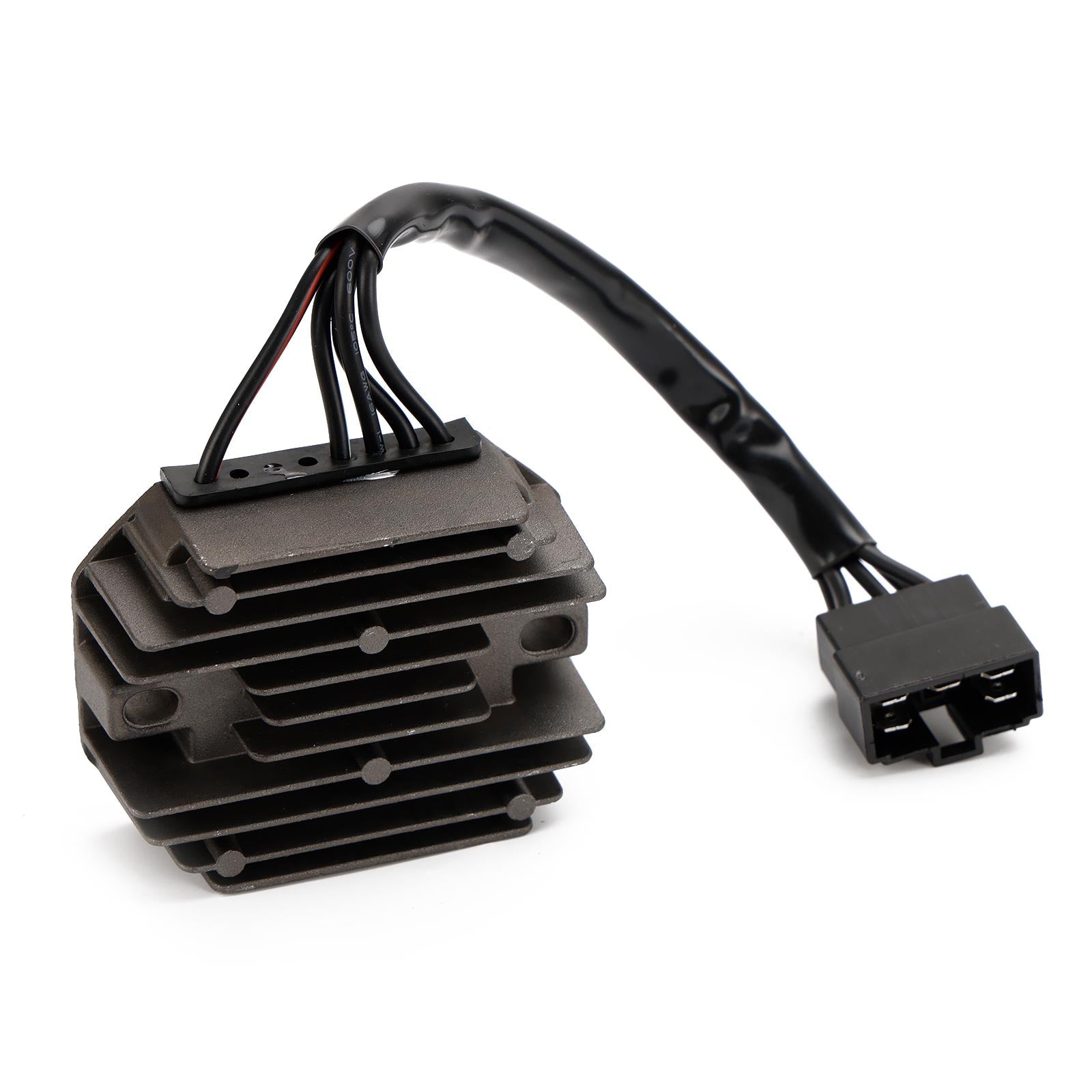

1 x 1-plug Regulator Rectifier

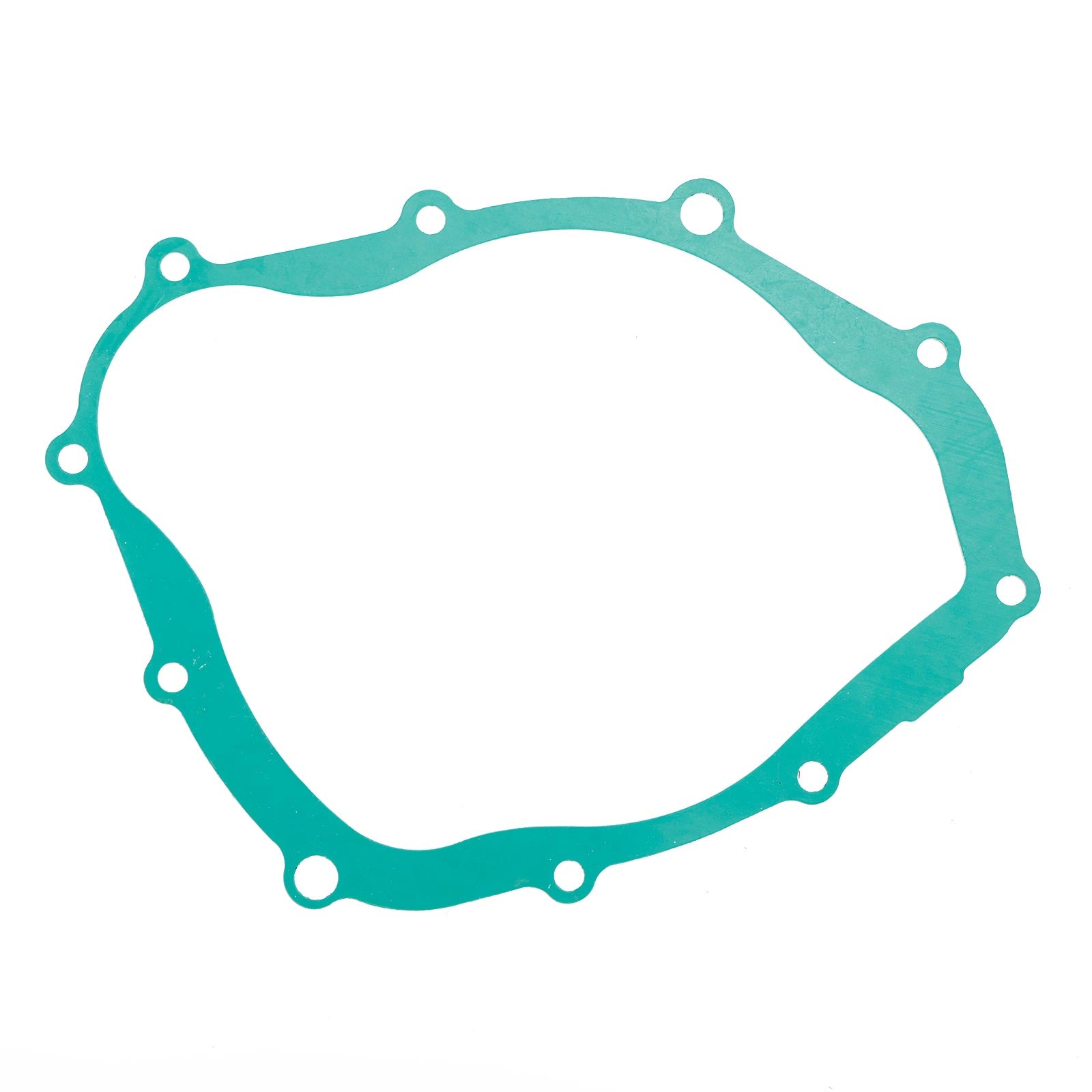

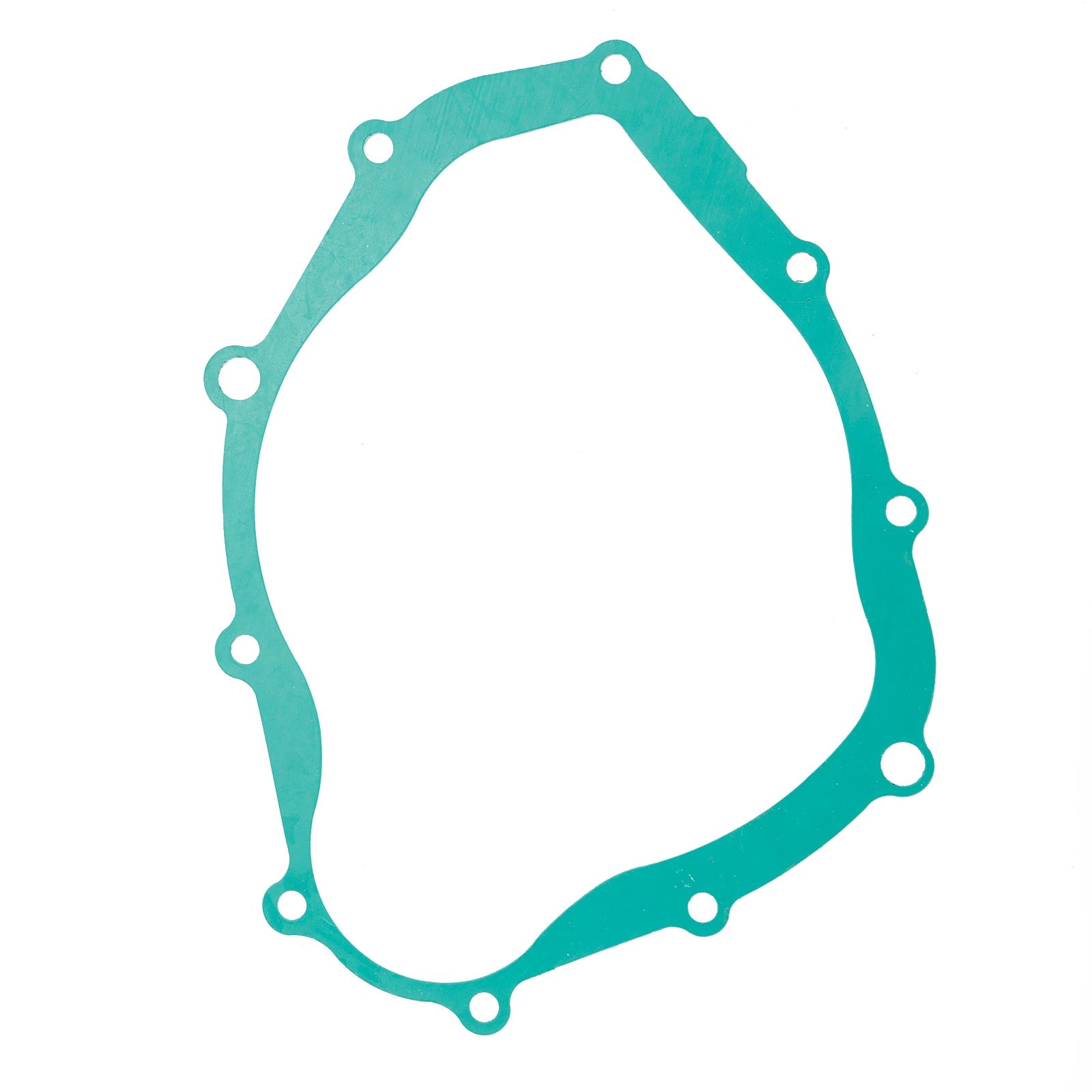

1 x Generator Gasket

(Comes exactly as pictured.)

Note:

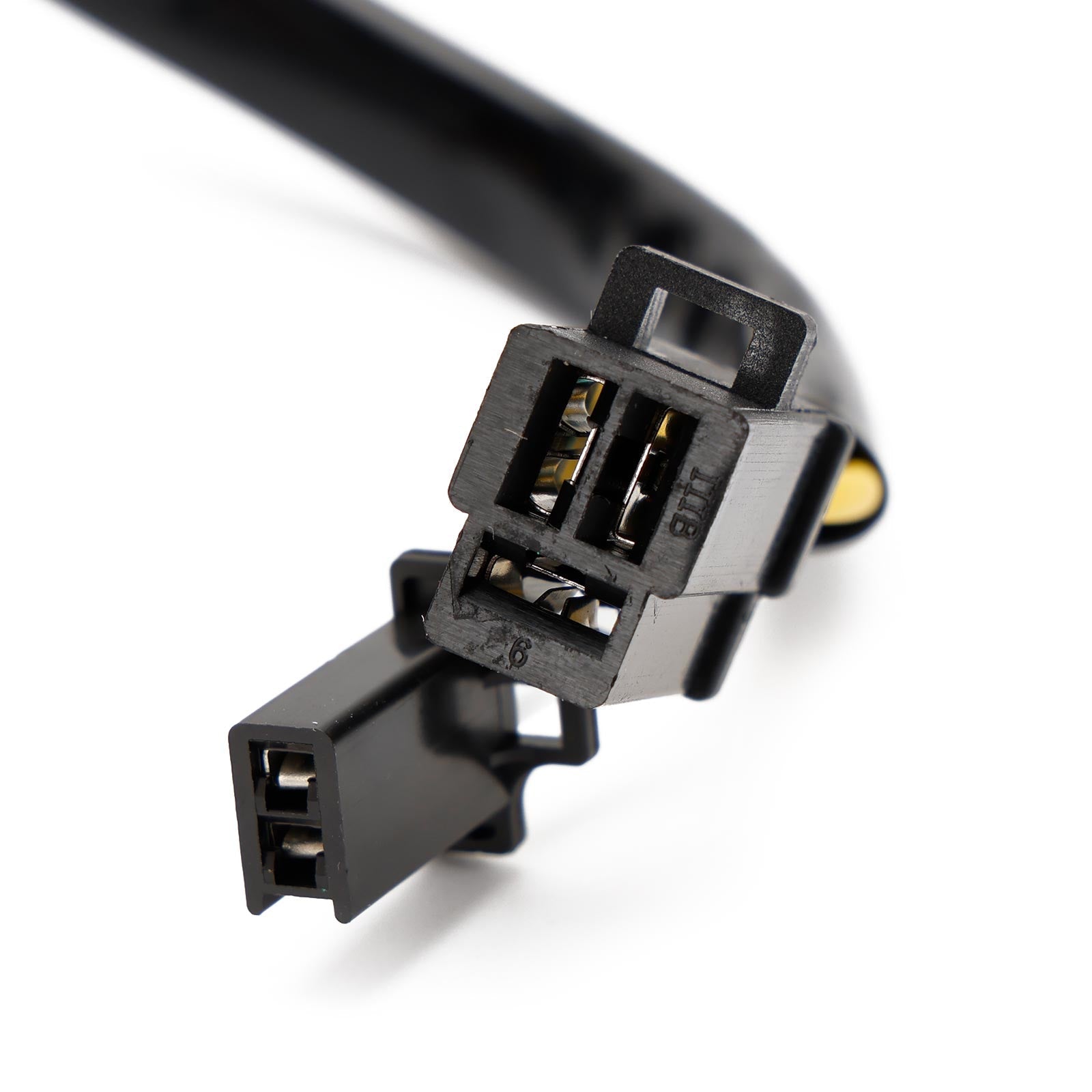

Please check the images and specifications carefully before ordering paying close attention to the plug layout.
There are 2 variations of this regulator.

Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.

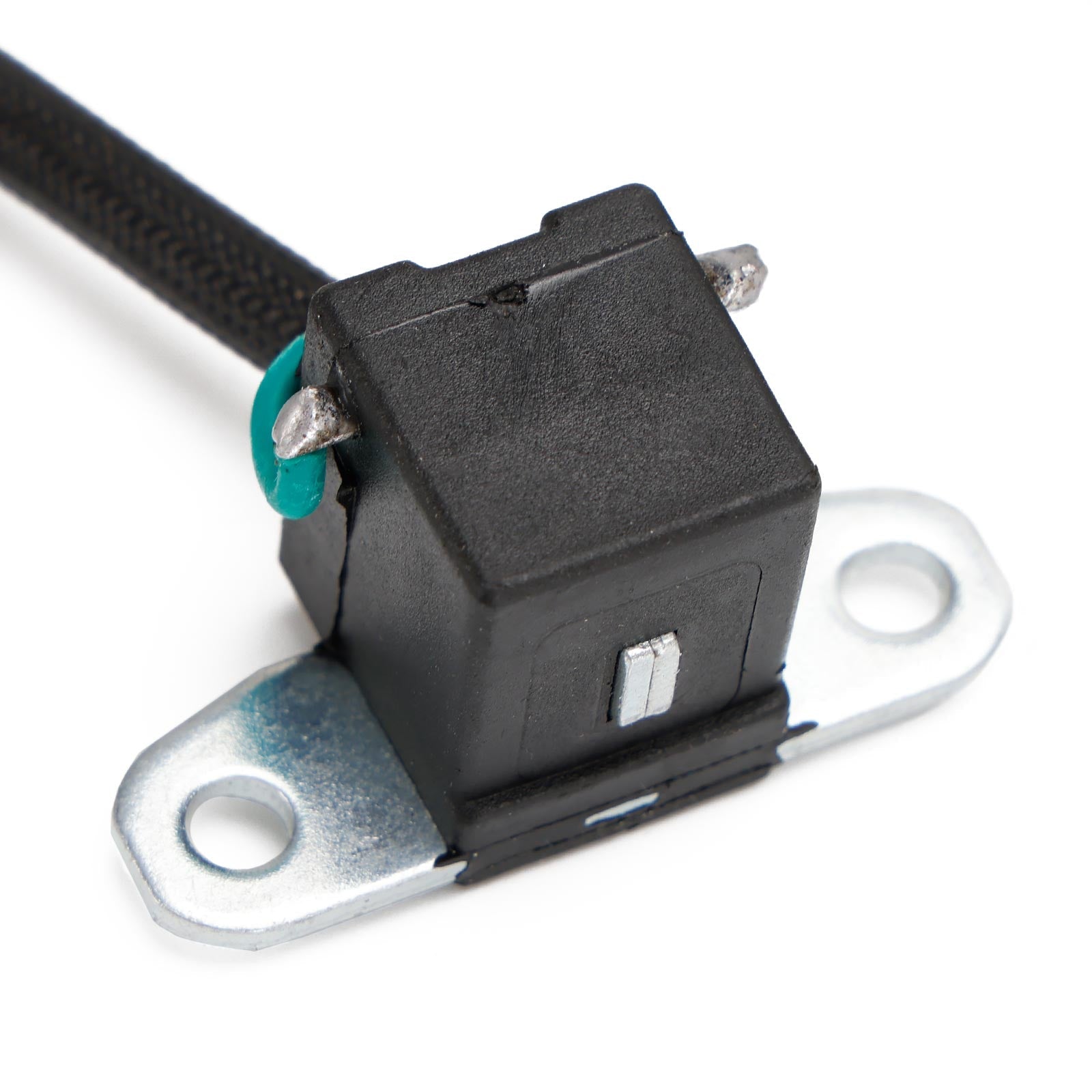

If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
