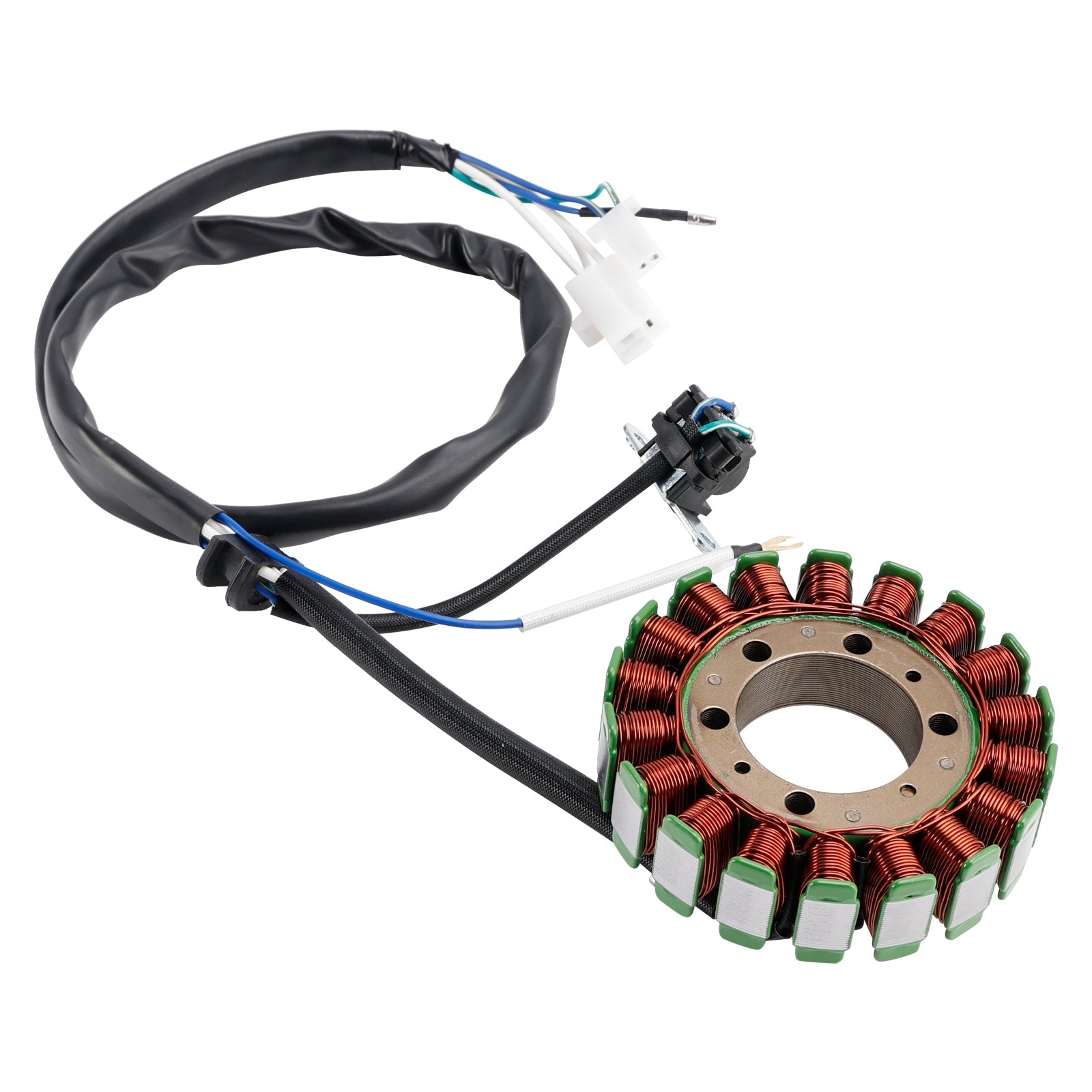

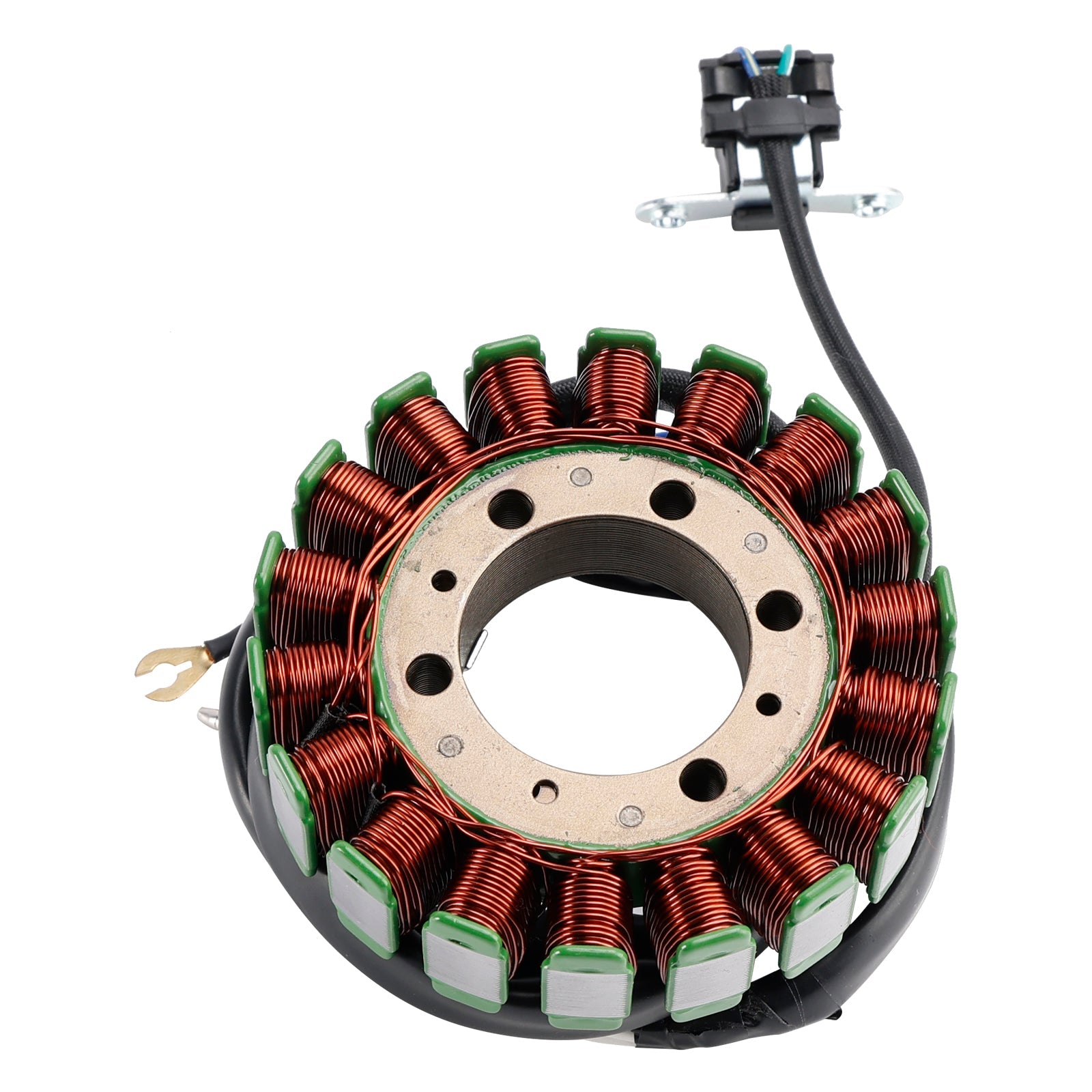

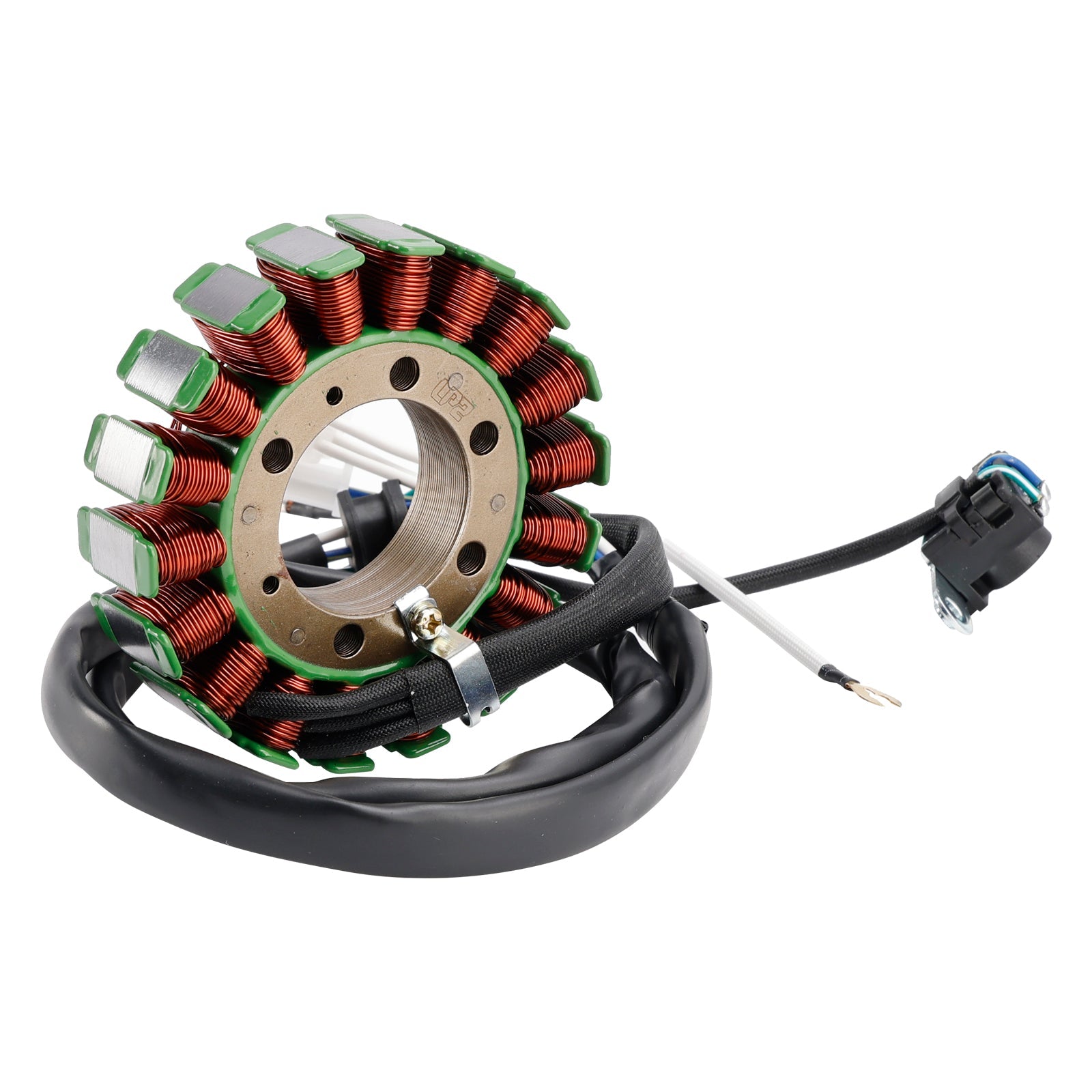

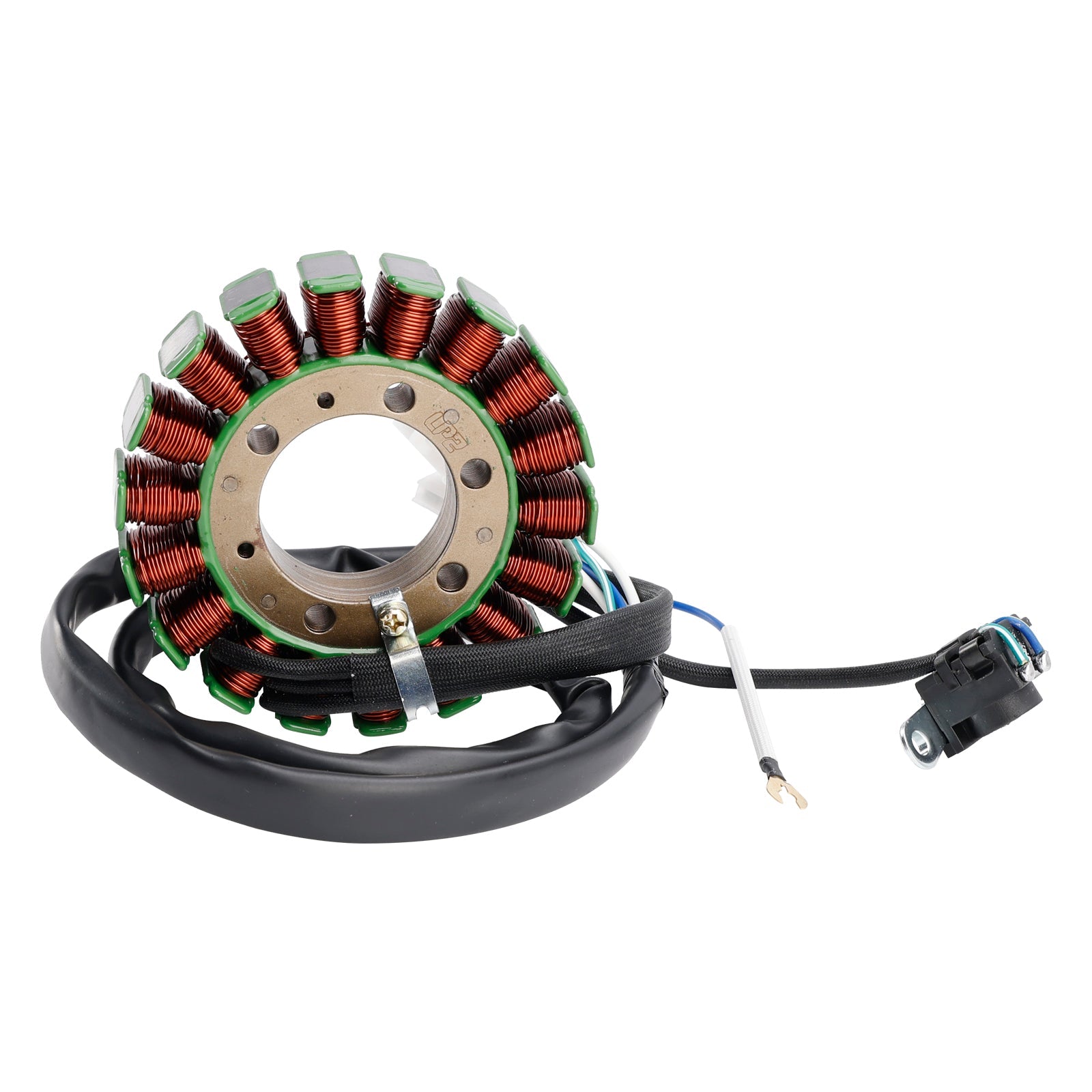

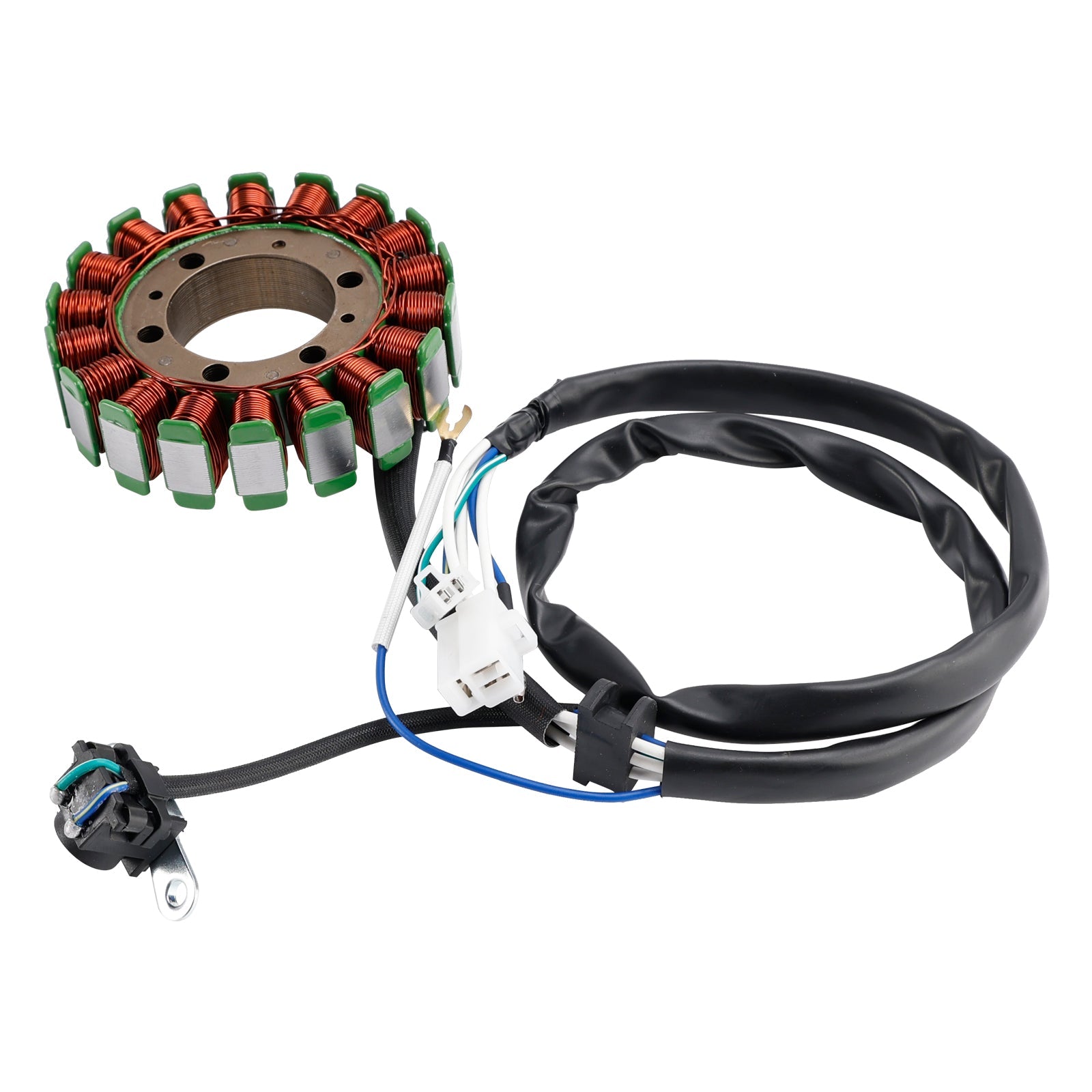

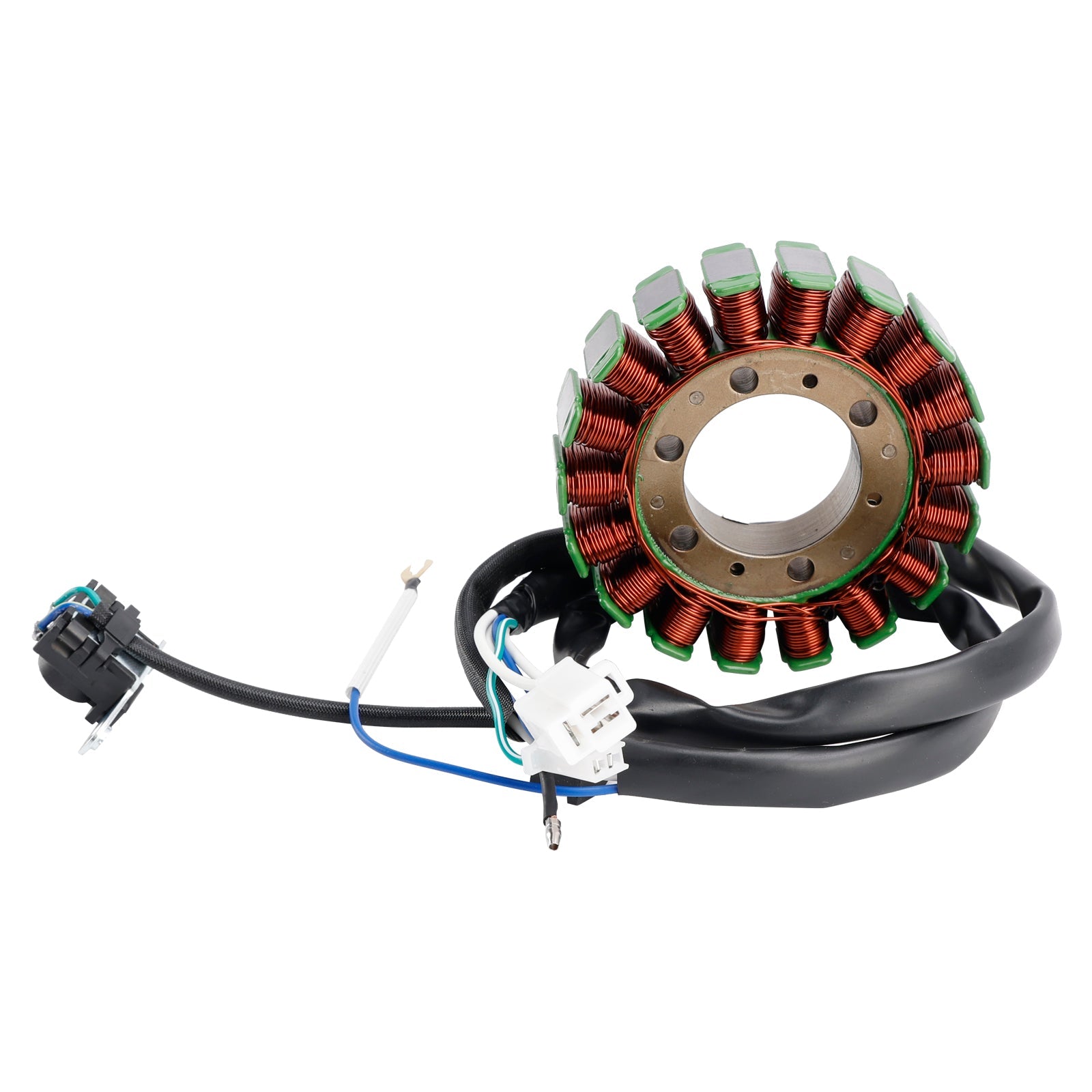

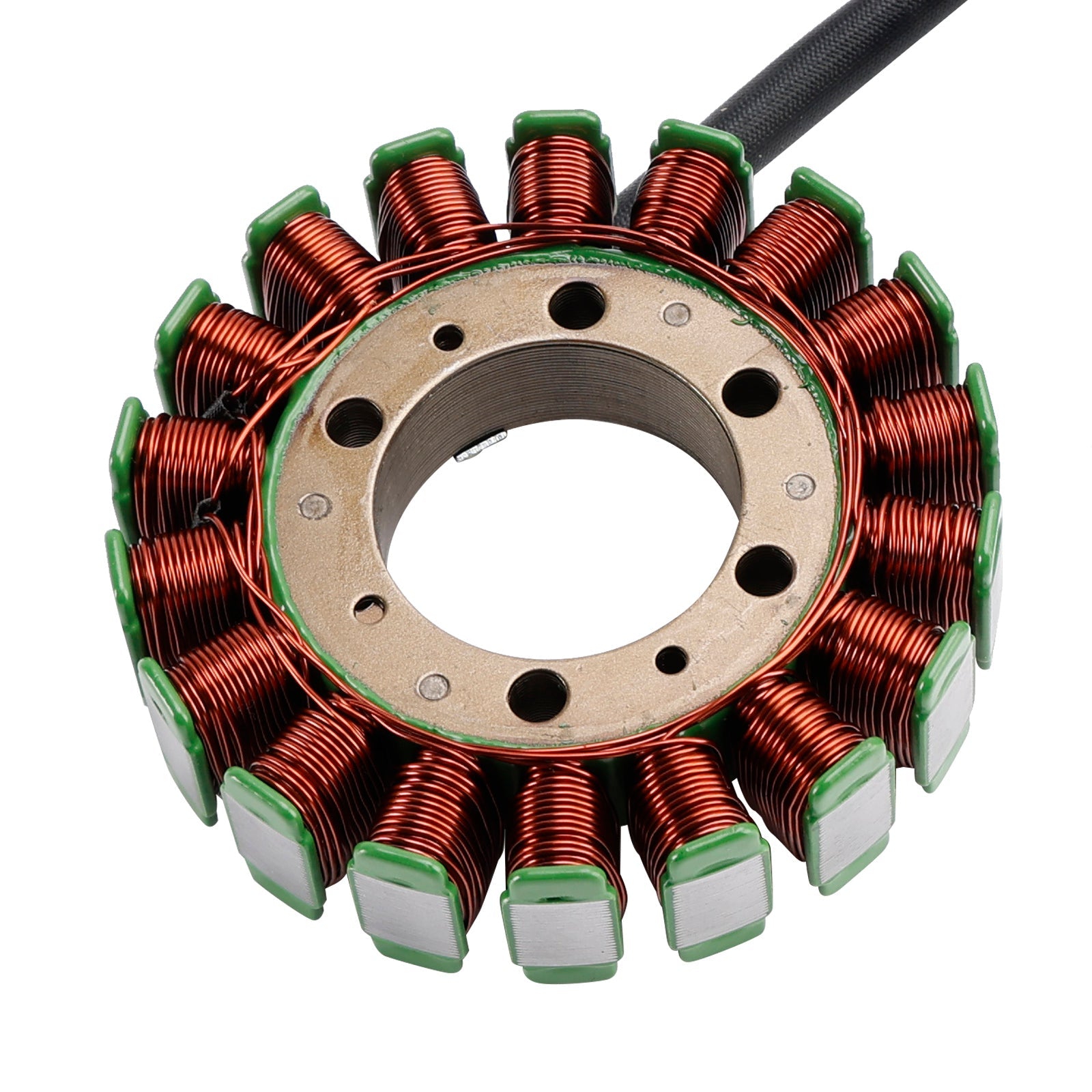

18-Pole Magneto Generator Stator Fit for Yamaha TT / XT 600 E / SZR 660 / XT-Z 660

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

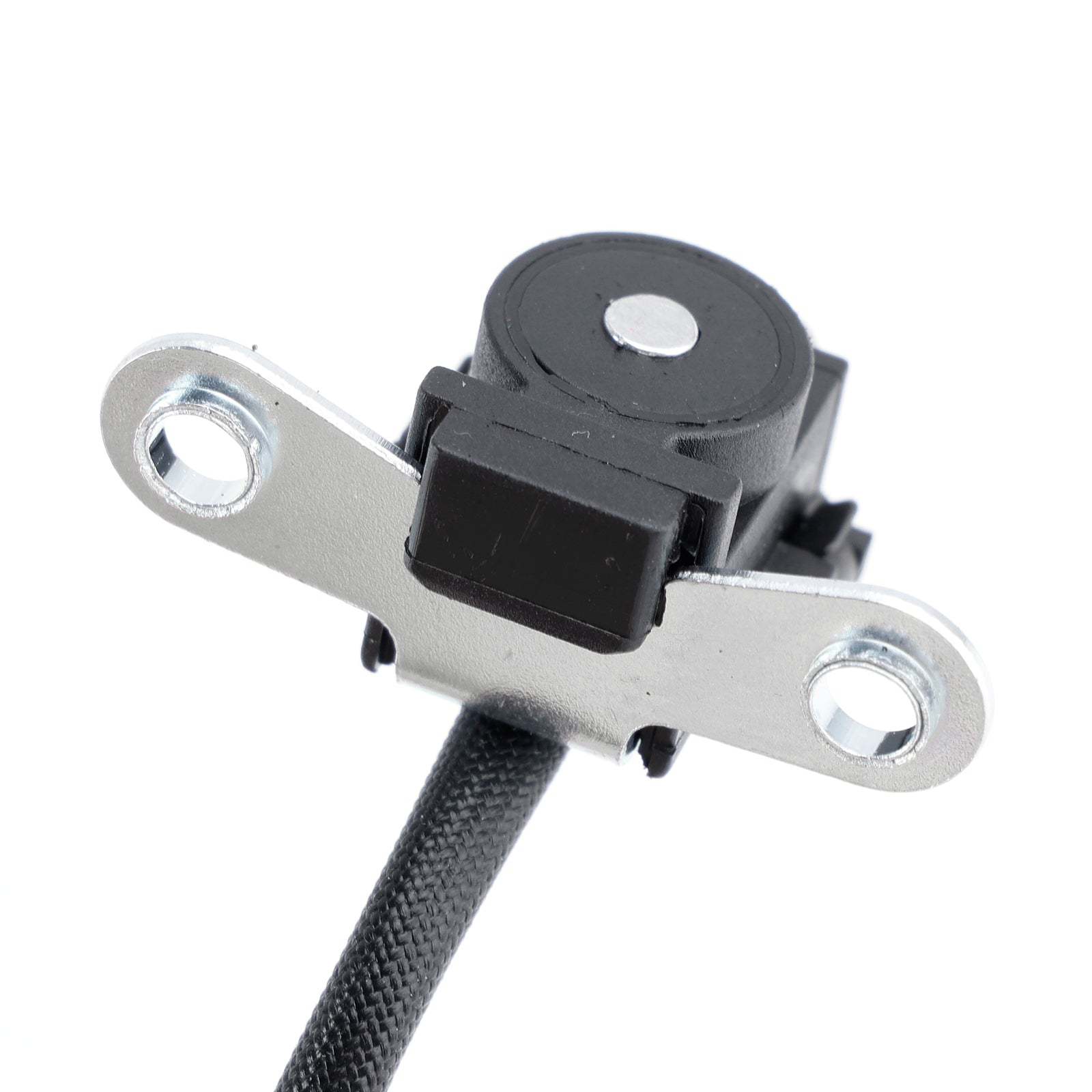

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 6
Number of plugs: 2 (+2)
Number of pins: 3 + 2 + 1 + 1
Number of fixation holes: 5
Number of poles: 18

Please compare the number of pins and plugs with the old part before purchasing.

Size:
Inner diameter: 42mm
Outer diameter: 104mm

Replacement Part Number:
3YF-81410-00
3YF-81410-01
3TB-81410-00
3TB-81410-01

(Always compare part numbers to your parts schematics and cross reference appropriately.)

Fits Make/Model/Year:
3YF-81410-00
3YF-81410-01
Fit for Yamaha XTZ660 Tenere 1991-1996
Fit for Yamaha SZR660 1995/1997

3TB-81410-00
3TB-81410-01
Fit for Yamaha XT400E Artesia 1991-1992
Fit for Yamaha XT500E 1990/1992-1994
Fit for Yamaha XT600E 1990-1995
Fit for Yamaha XT600EA 1990
Fit for Yamaha XT600EAC 1990
Fit for Yamaha XT600EB 1991
Fit for Yamaha XT600EBC 1991
Fit for Yamaha XT600ED 1992
Fit for Yamaha XT600EDC 1992
Fit for Yamaha XT600EE 1993
Fit for Yamaha XT600EEC 1993
Fit for Yamaha XT600EF 1994
Fit for Yamaha XT600EFC 1994
Fit for Yamaha XT600EG 1995
Fit for Yamaha XT600EGC 1995
Fit for Yamaha XT600E XT600 1992-2000/2002
Fit for Yamaha TT600E 1994/1996-1998
Fit for Yamaha TT600RE 2004

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
