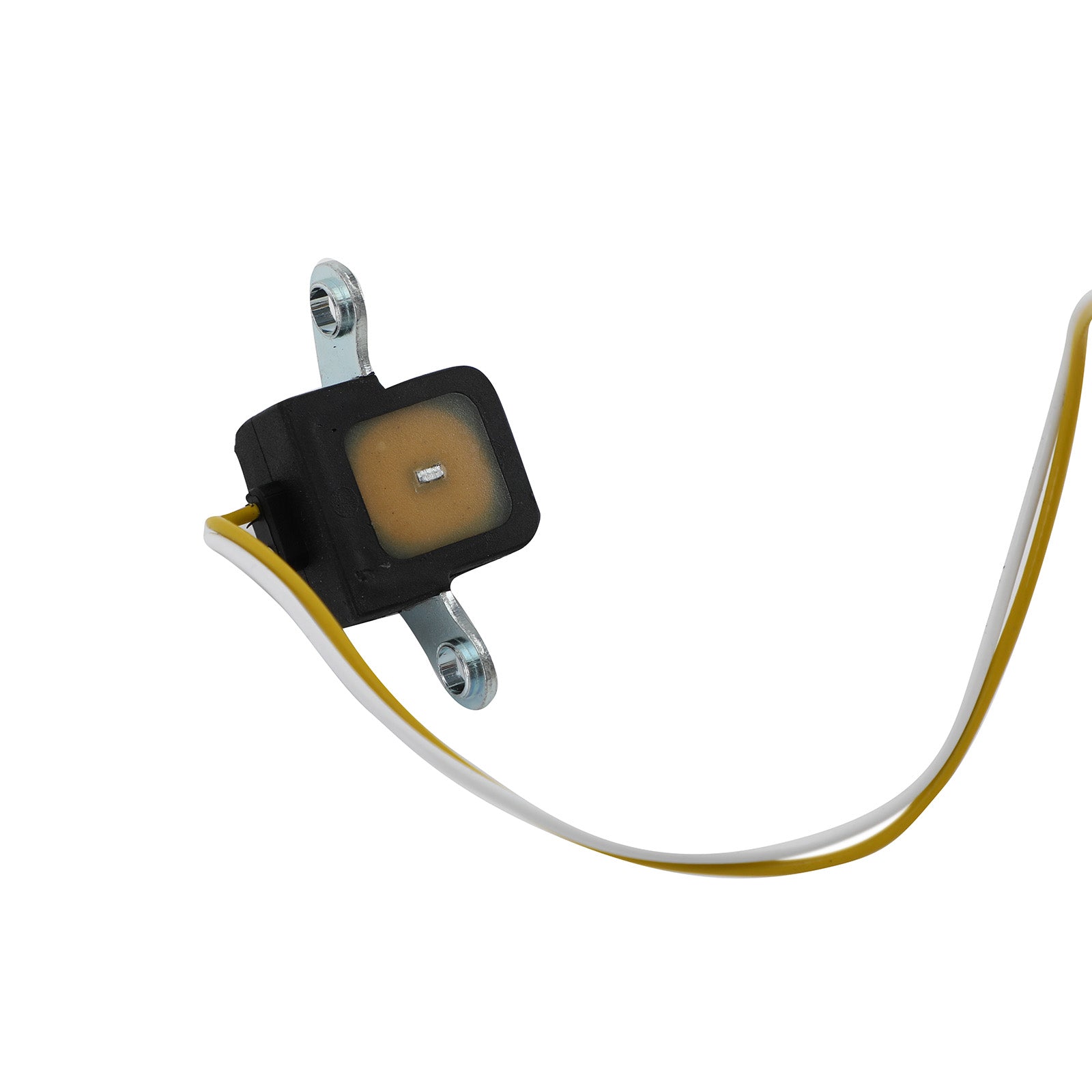

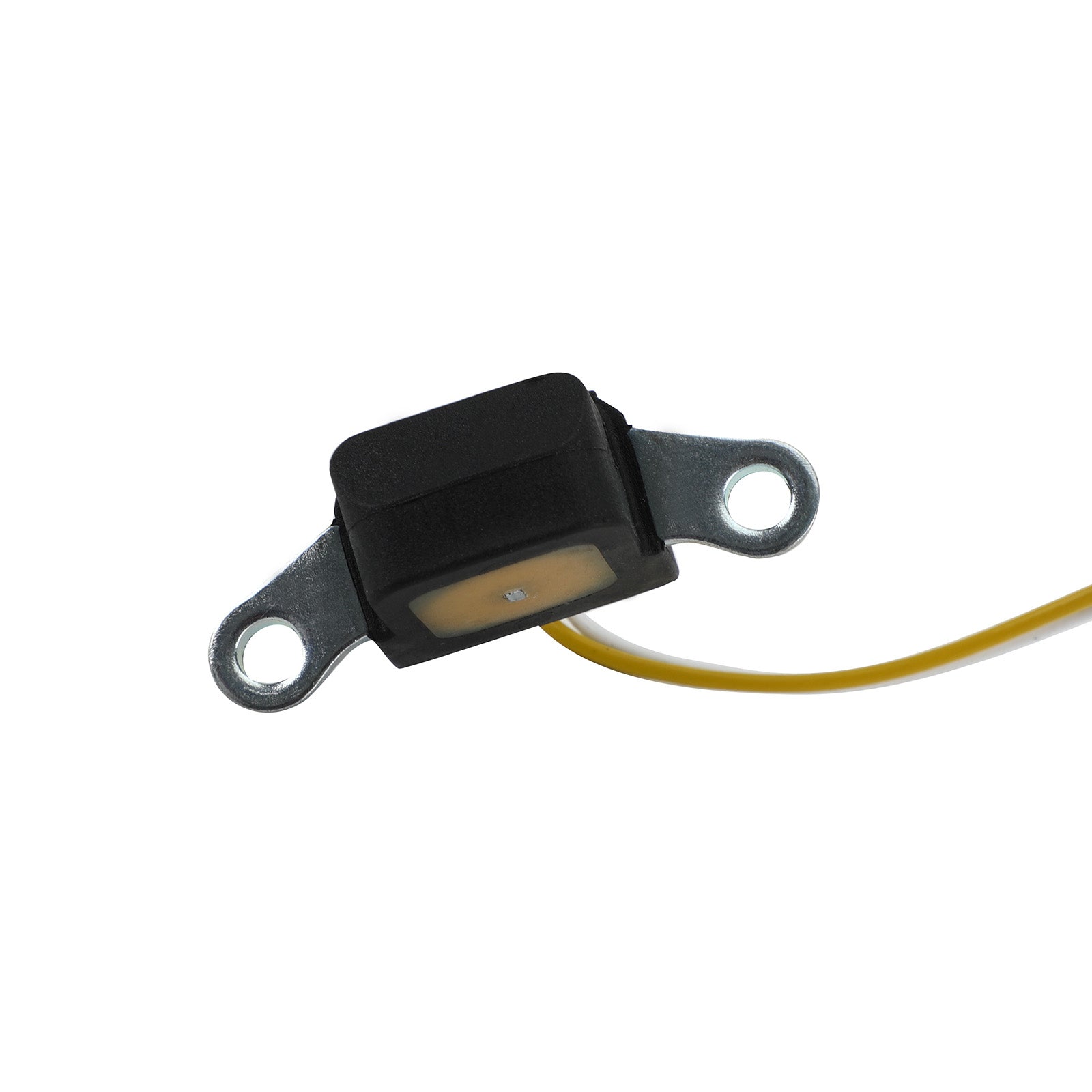

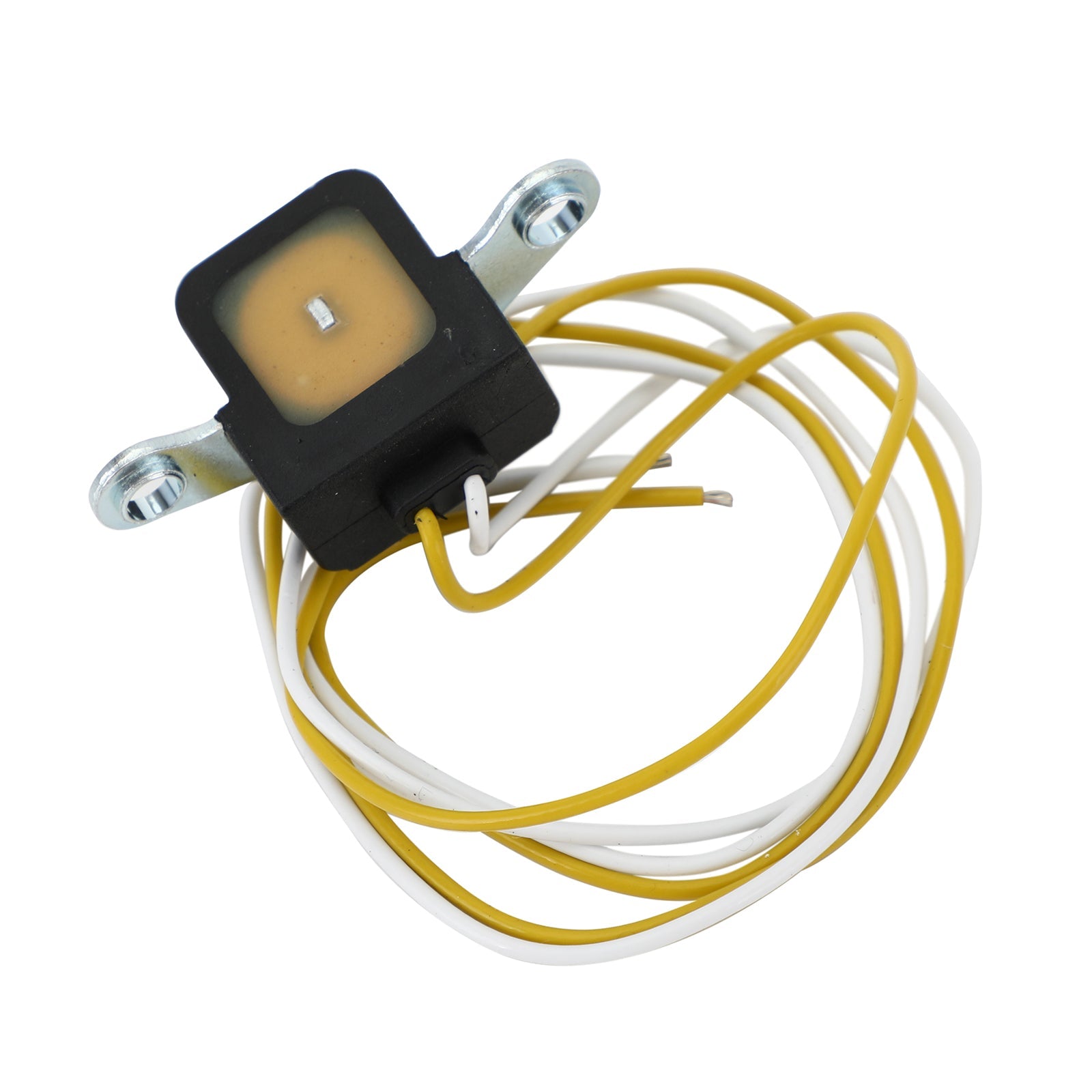

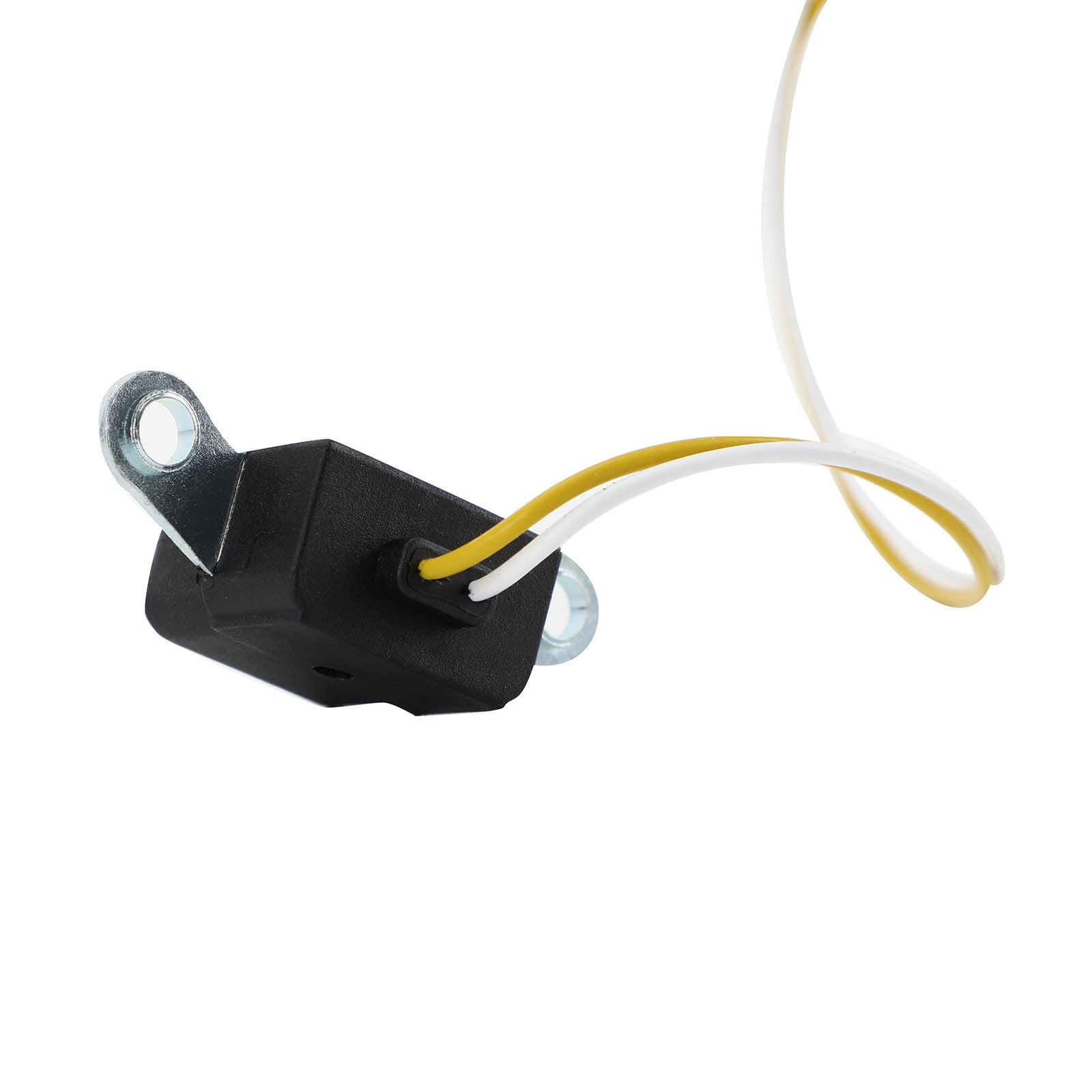

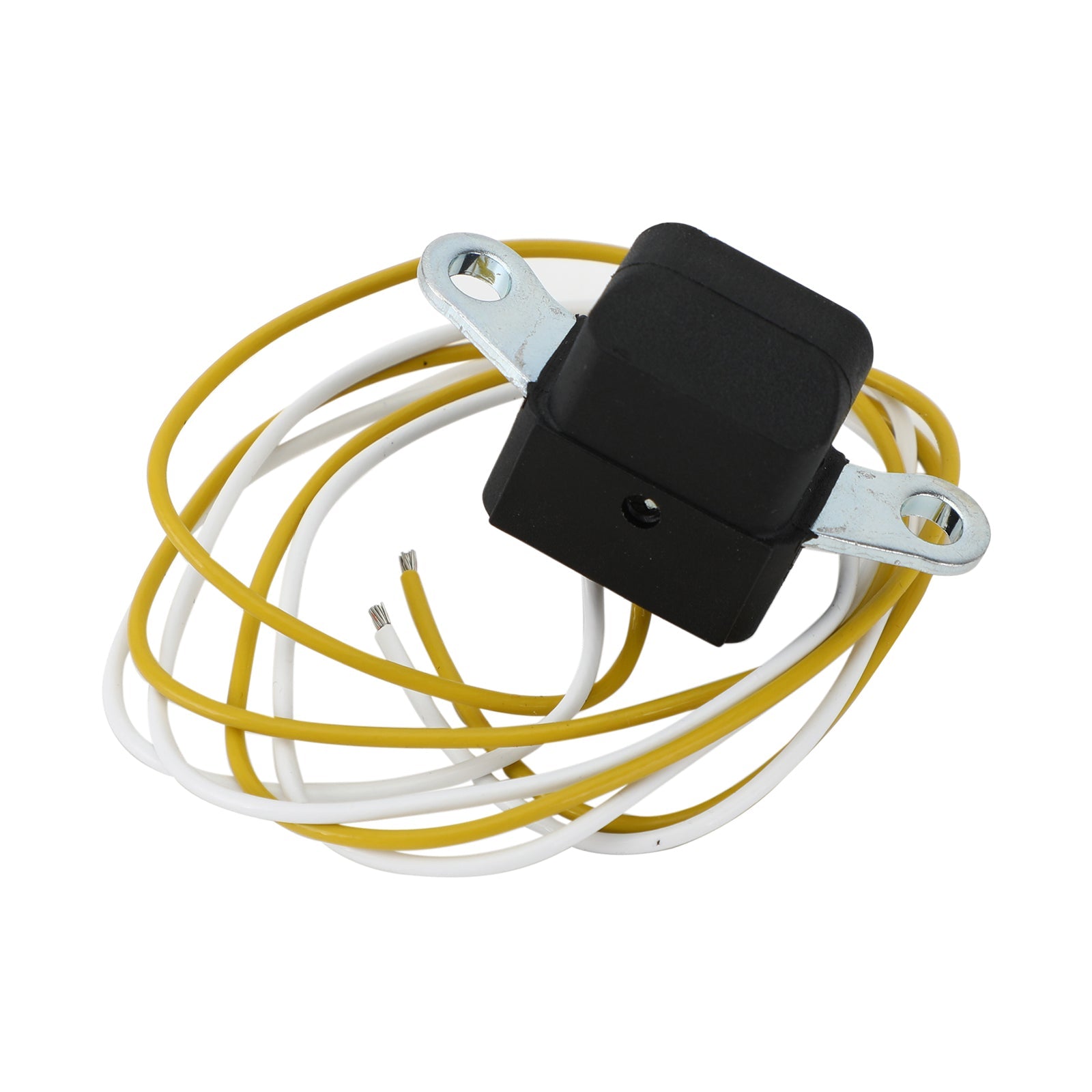

Pick-up Pulsar / Pulse Sensor Fit For Honda CBR 600 900 1000 RR CBR CBF 600 N/S

Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil

Dimensions:
Height: 17mm
Length: 31mm
Width: 30mm
Bracket center to center: 50mm

Other Specifications:
Number of wires: 2

Replacement Part Number:
30300-MBZ-610
30300-MBZ-611
30300-MFJ-D01
30300-MV9-671
30300-MW0-000
30300-MW0-003
30300-MBW-610
30300-MBW-J21
30300-MCJ-000
30300-MCJ-750

Fitments:
Fit for Honda CBF600N (Naked) PC38 2004-2006
Fit for Honda CBF600S PC38 2004-2006
Fit for Honda CB600F Hornet 600 1998
Fit for Honda CB600F Hornet 1999-2006
Fit for Honda CB600F21 Hornet S 2001
Fit for Honda CB600F22 Hornet S 2000-2002
Fit for Honda CBR600F2 1991-1994
Fit for Honda CBR600F3 1995-1998
Fit for Honda CBR600F Smokin' Joe's Edition 1996-1998
Fit for Honda CBR600F FS FT FW FV 1995-1998
Fit for Honda CBR600F FY FX 1999-2000
Fit for Honda CBR600 CBR600F4 1999-2000
Fit for Honda CBR600 CBR600F4I 2001-2006
Fit for Honda CBR600RR (ABS) 2009-2020
Fit for Honda CBR600RR 2007-2020

Fit for Honda CBR900RR CBR919RR Fireblade 1996-1999
Fit for Honda CBR900RR Fireblade 1992-1995
Fit for Honda CBR900RR CBR929RR Fireblade 2000-2001
Fit for Honda CBR900RR CBR954RR Fireblade 2002-2003

Fit for Honda CBR1000RR Fireblade CBR1000RR8 2008
Fit for Honda CBR1000RR Fireblade CBR1000RR9 2009
Fit for Honda CBR1000RR Fireblade 2010-2013
Fit for Honda CBR1000RR ABS Fireblade CBR1000RA9 2009
Fit for Honda CBR1000RR ABS Fireblade CBR1000RA 2010-2016
Fit for Honda CBR1000RR 2014-2019
Fit for Honda CBR1000RA 2017-2019
Fit for Honda CBR1000S 2014-2019

Package Included:
1x Pick up pulsar coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
