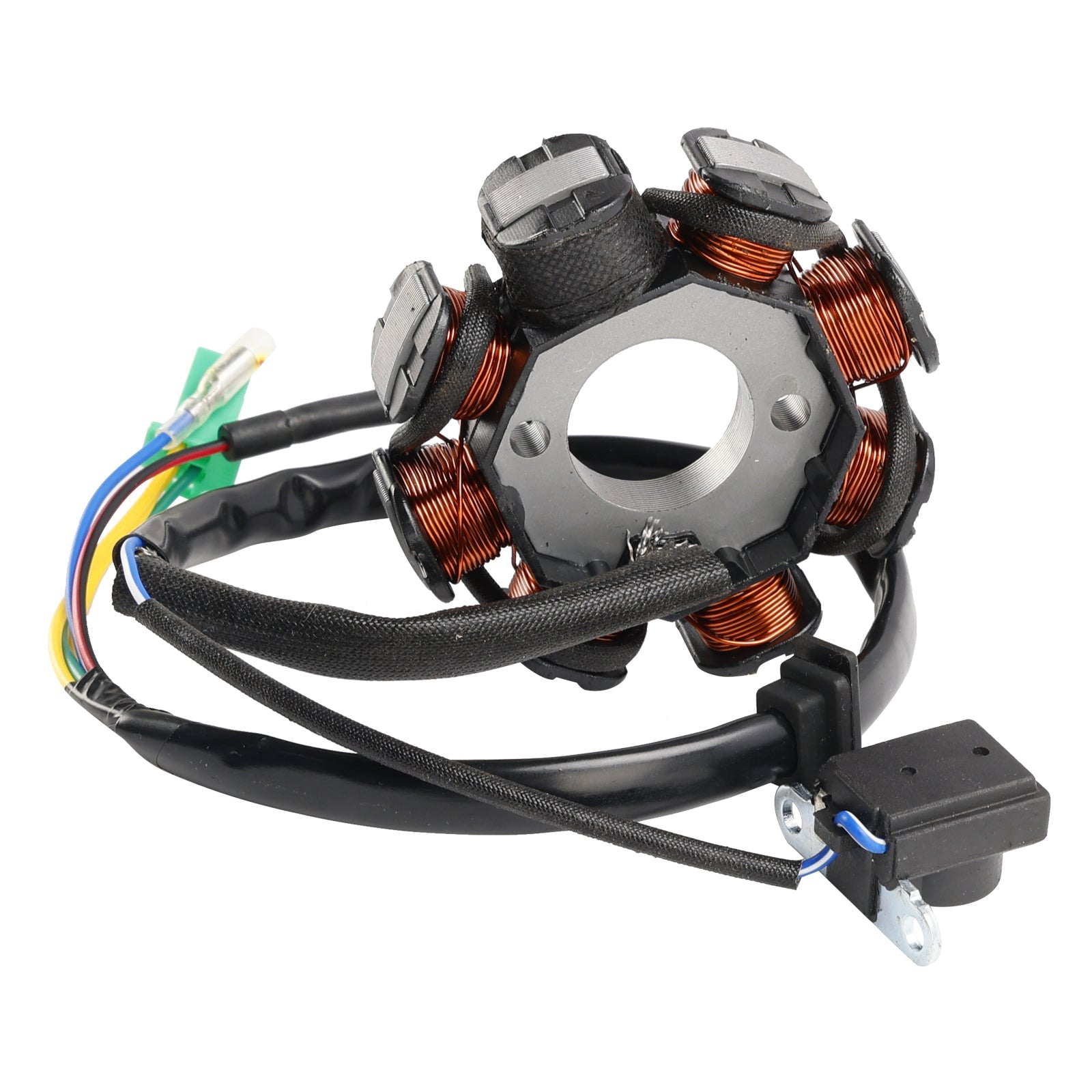

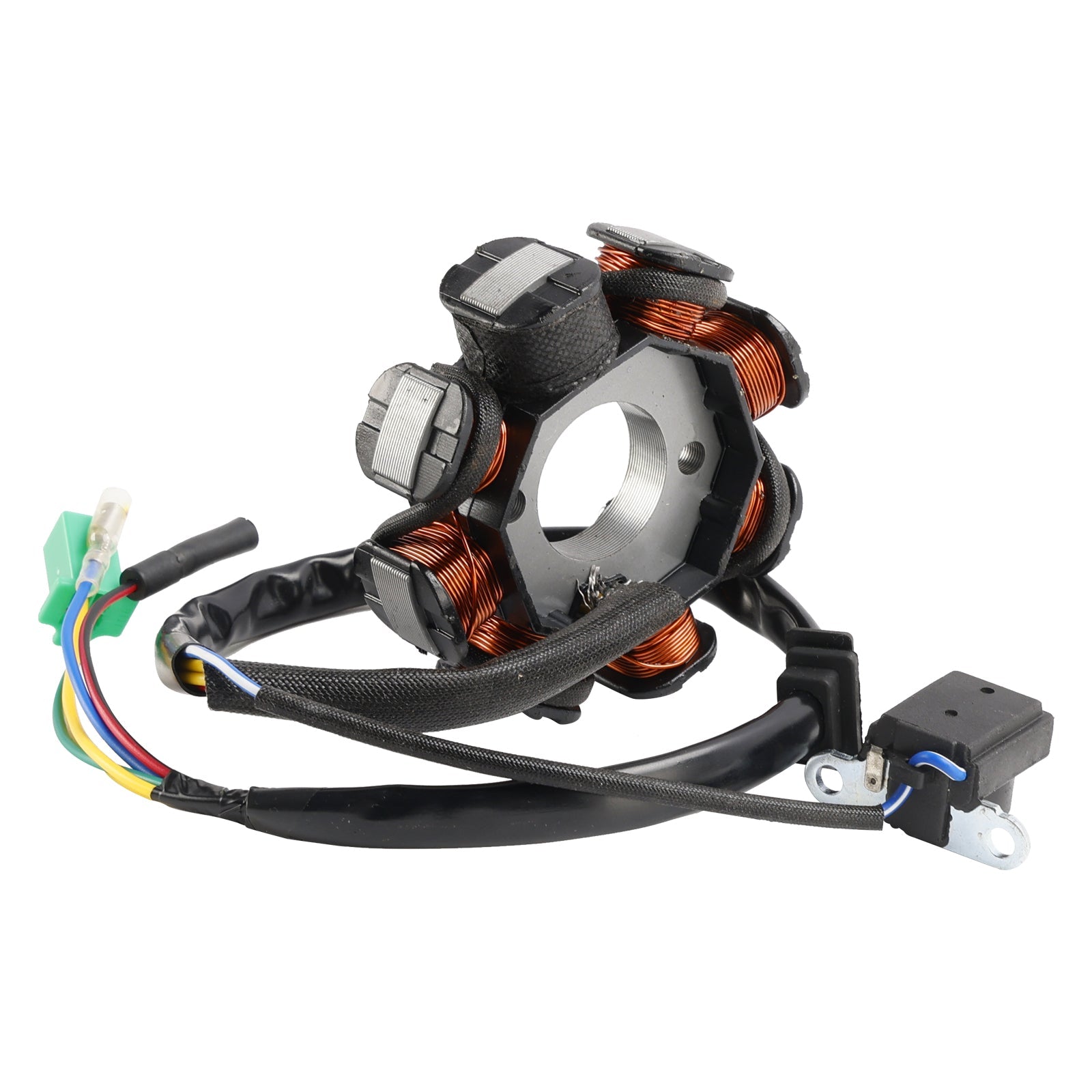

8 Coil 5-Wire Magneto Generator Stator Fit for GY6 125cc 150cc 4-Stroke Engine

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

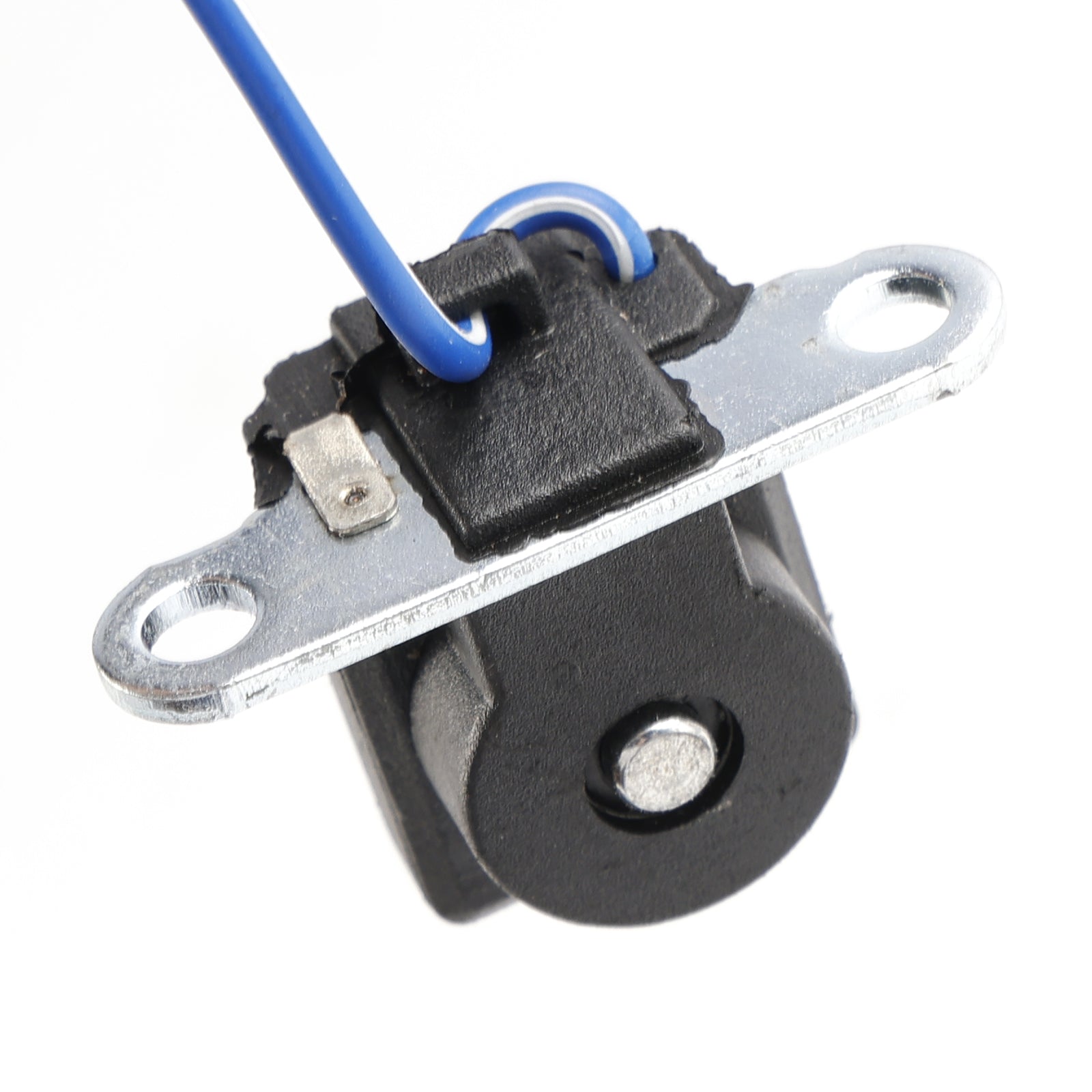

Pick up pulsar coil included.
Connector included.
Rubber grommet included.

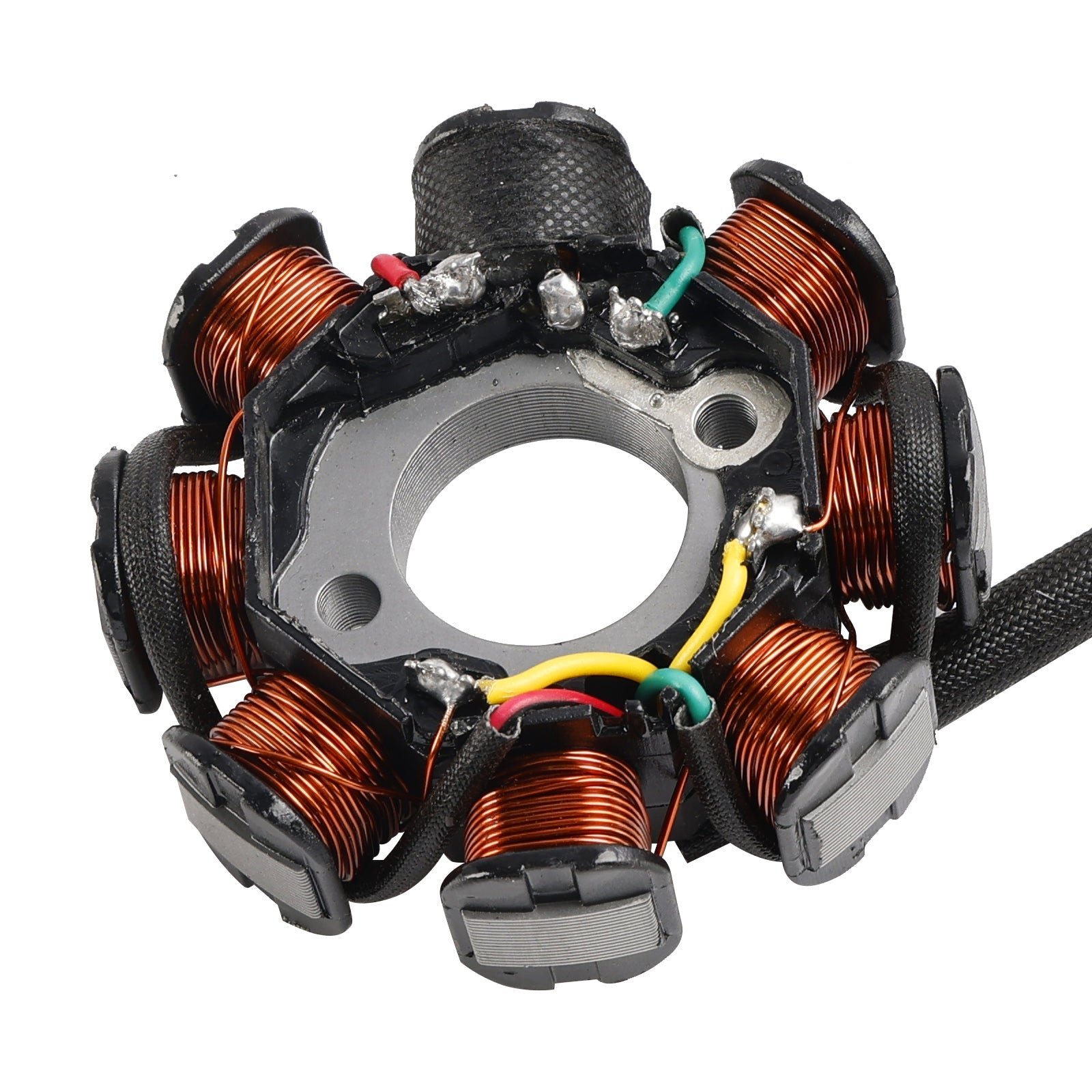

The stator has 8 coils, one of which is insulated.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 5

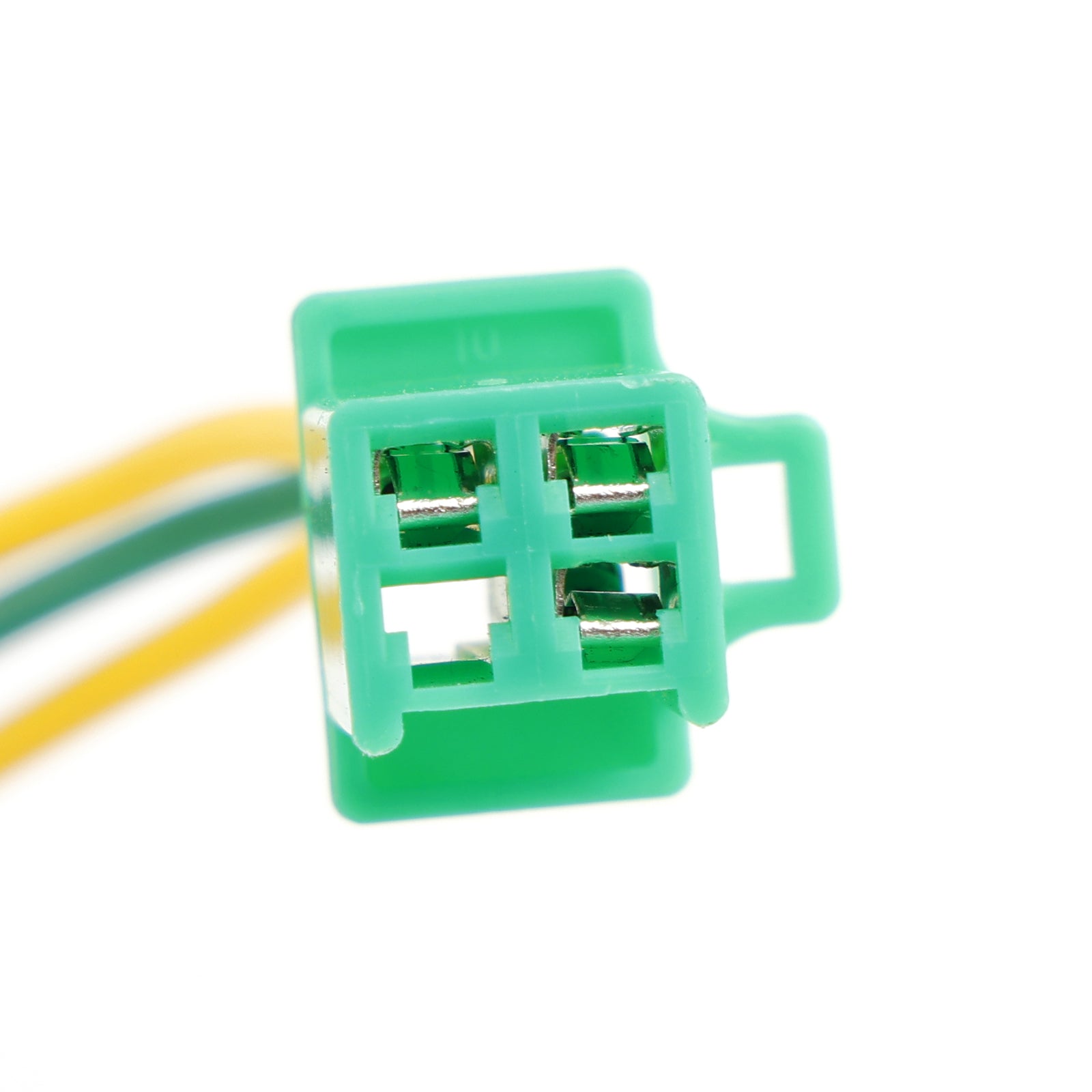

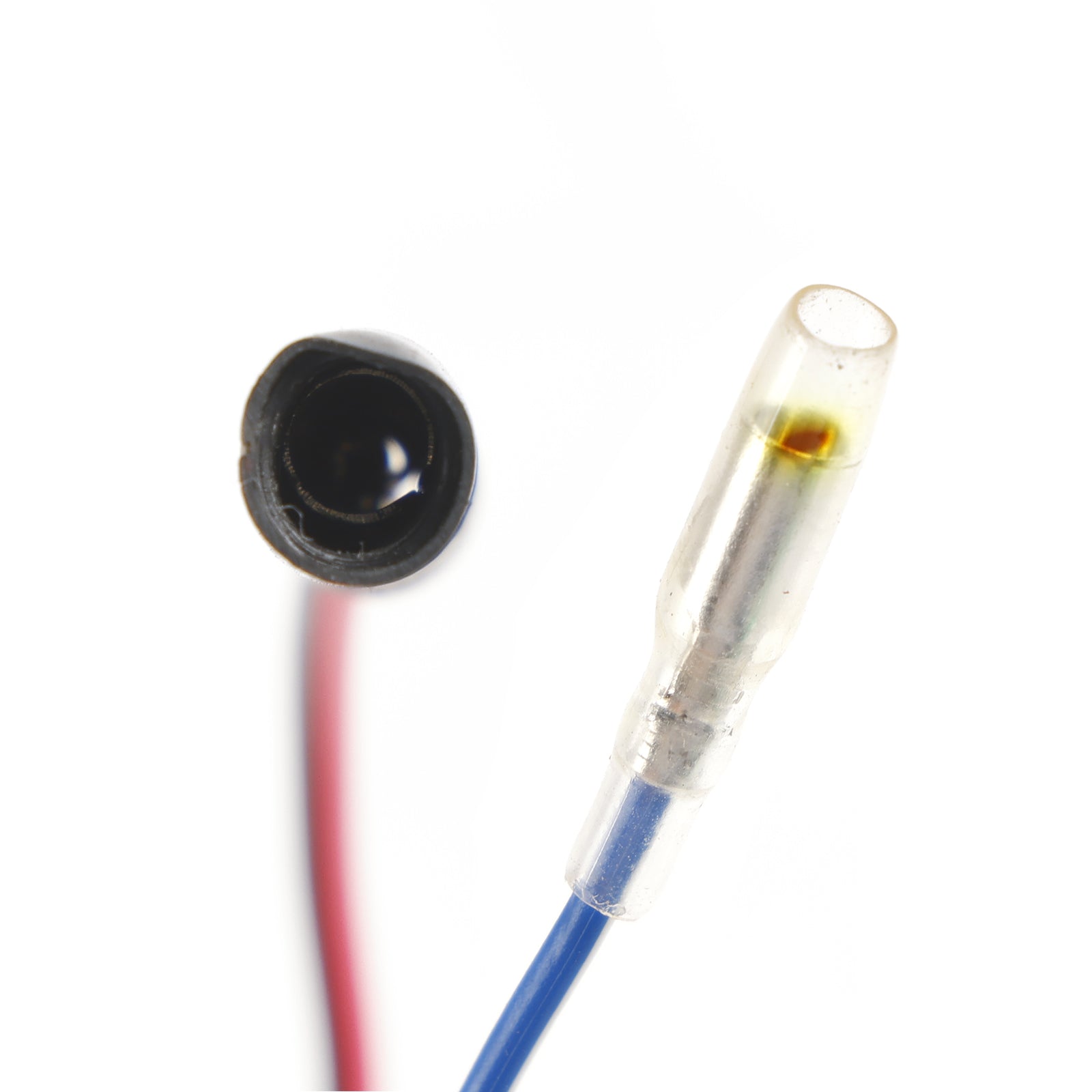

Number of plugs: 1x 3-Pin plug with 2 trailing wire connectors
Number of pins: 3 + 1 + 1
Number of fixation holes: 2
Number of poles: 8

Please compare the number of pins and plugs with the old part before purchasing.

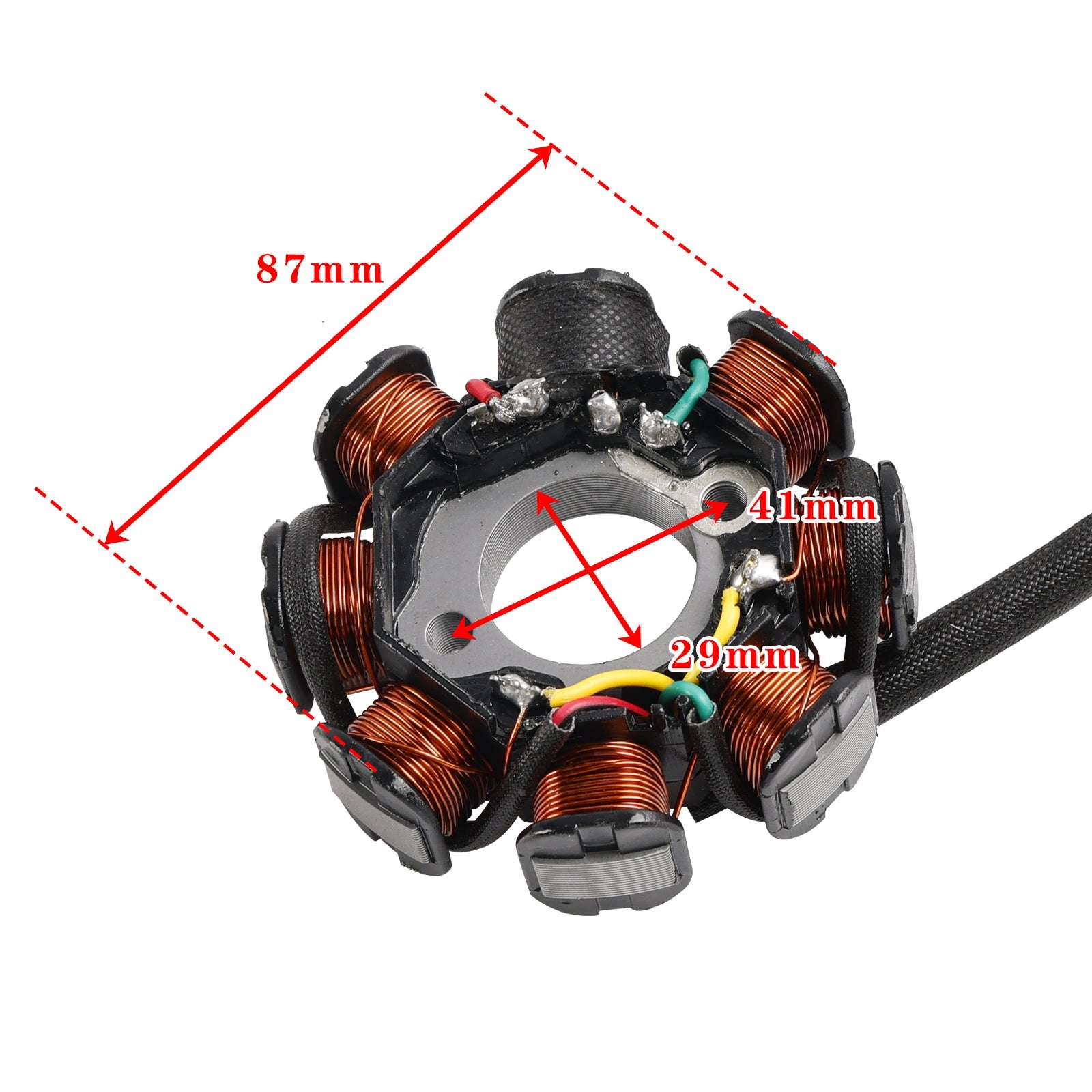

Size:
Diameter of Central Hole (Smallest): 29 mm
Outer Diameter Of Stator Poles (Greatest): 87 mm
Mount hole spacing center to center: 41 mm

Fits Model:
Suitable for 125cc and 150cc 4-stroke scooters with GY6 engine and corresponding on-board electrical system (please compare connections and coils with old part)

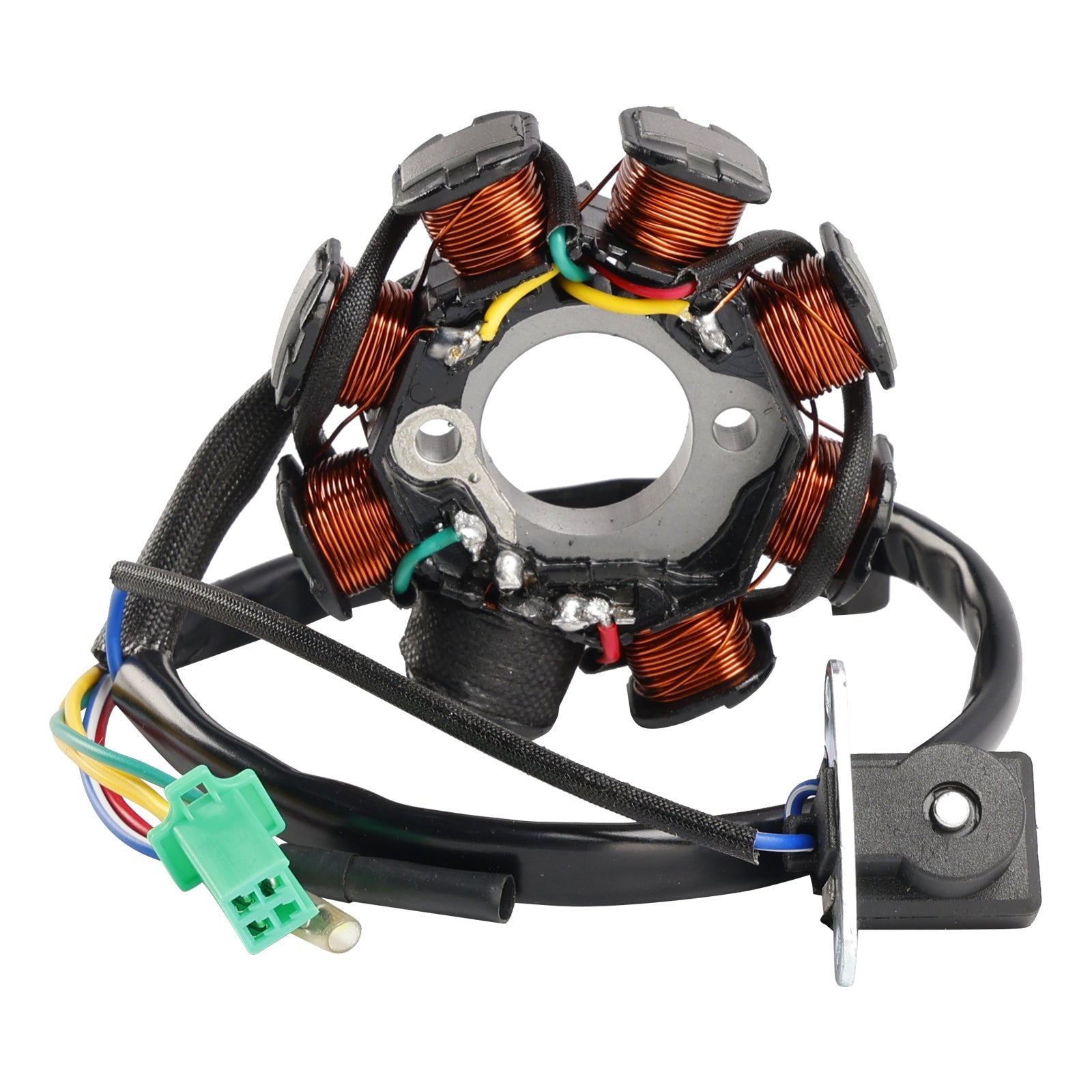

8-coil Stator With 5 Wires. 3 Pin Plug , 2 Loose Wires, 2 Bolt holes, 41mm bolt hole spacing.
There are multi version stator of GY6 engine, please check and compare the stator and plug with your original part to make sure this is what you want.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 8-Pole Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
