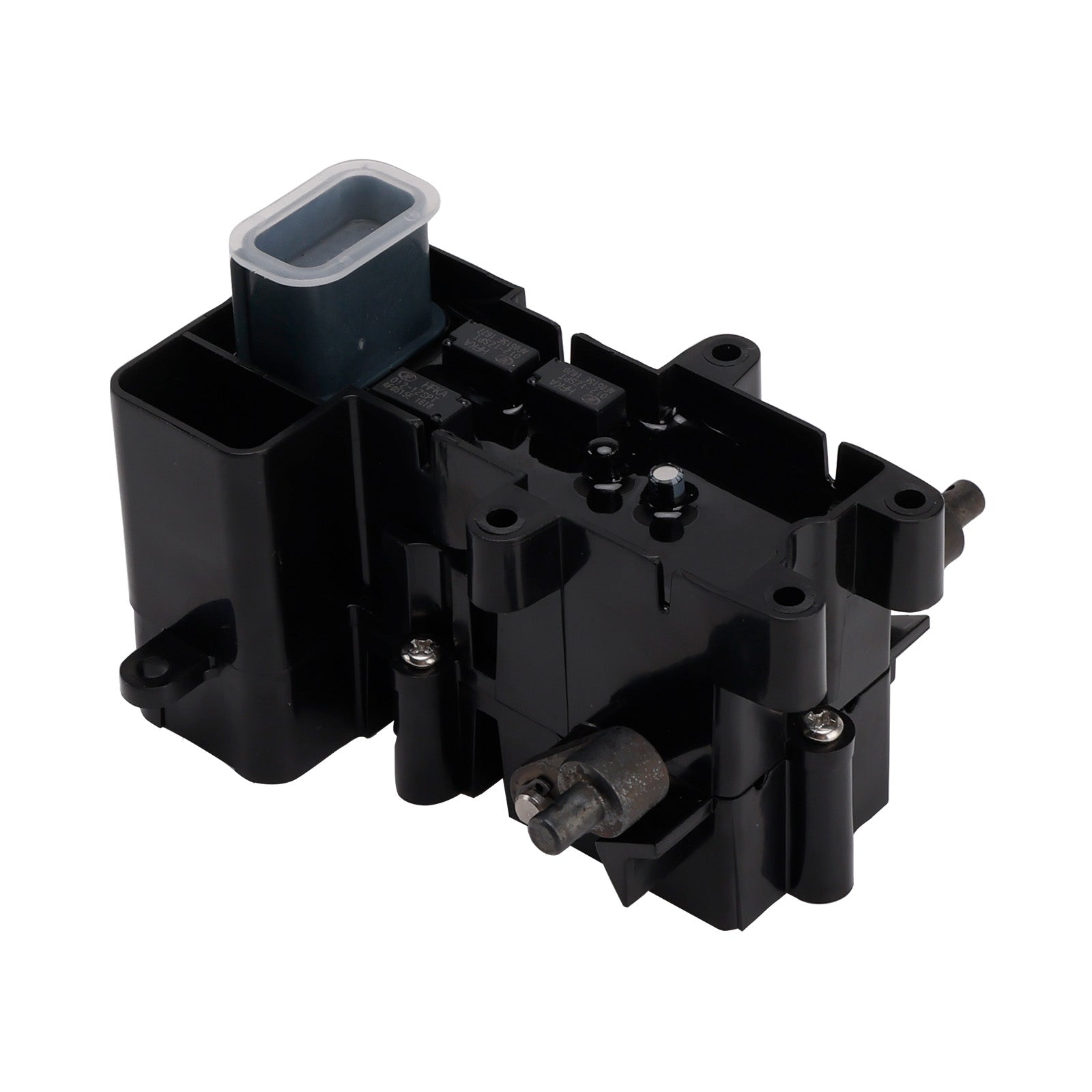

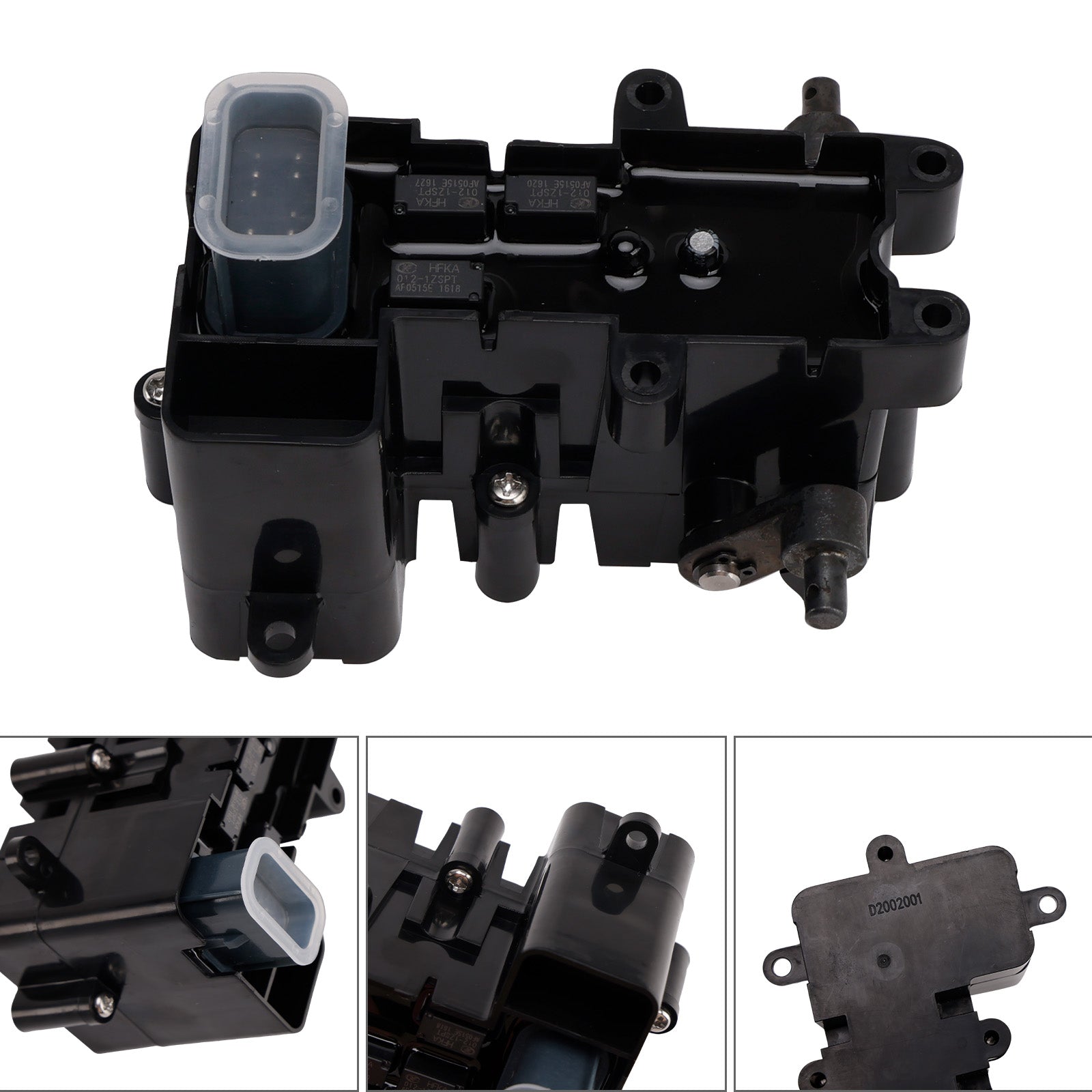

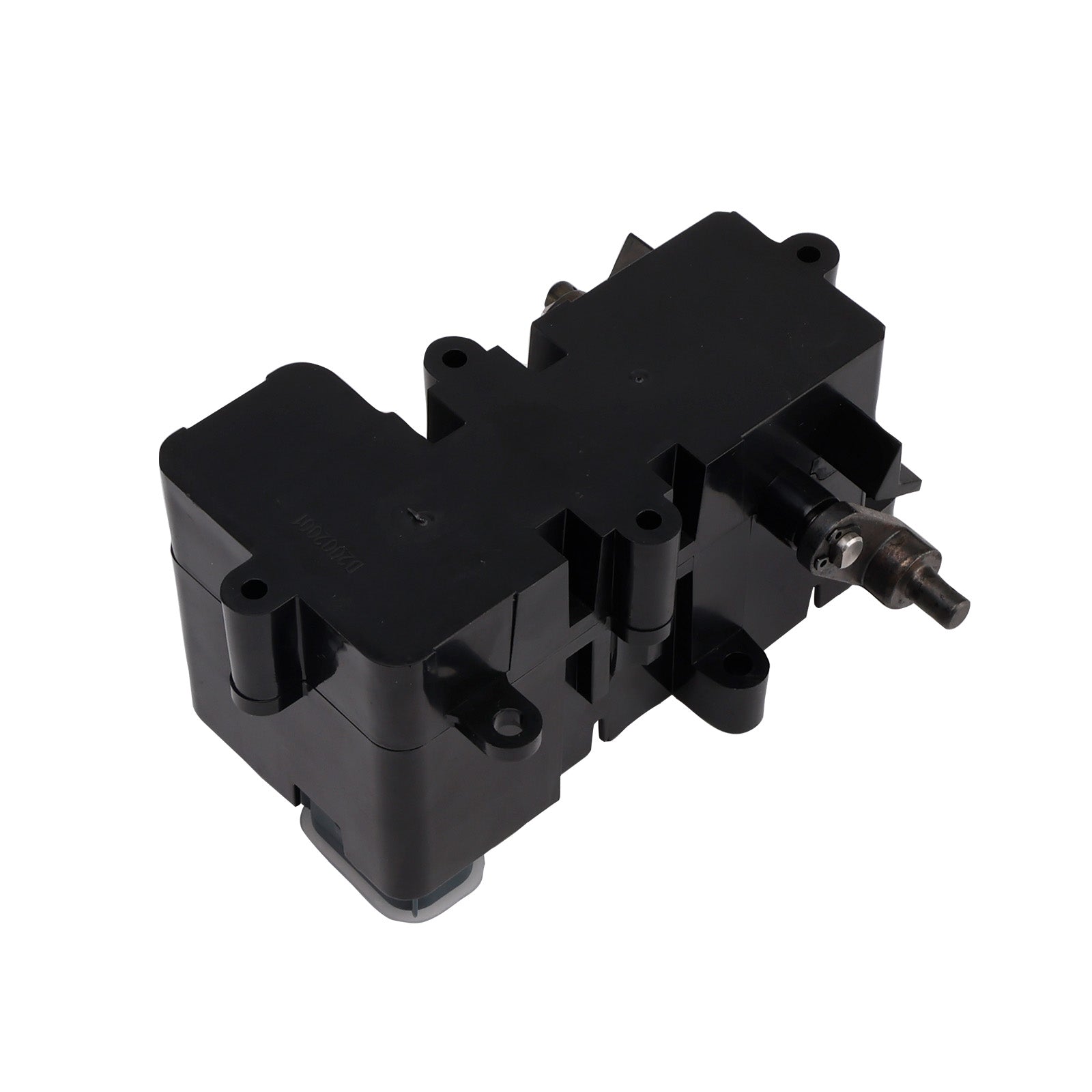

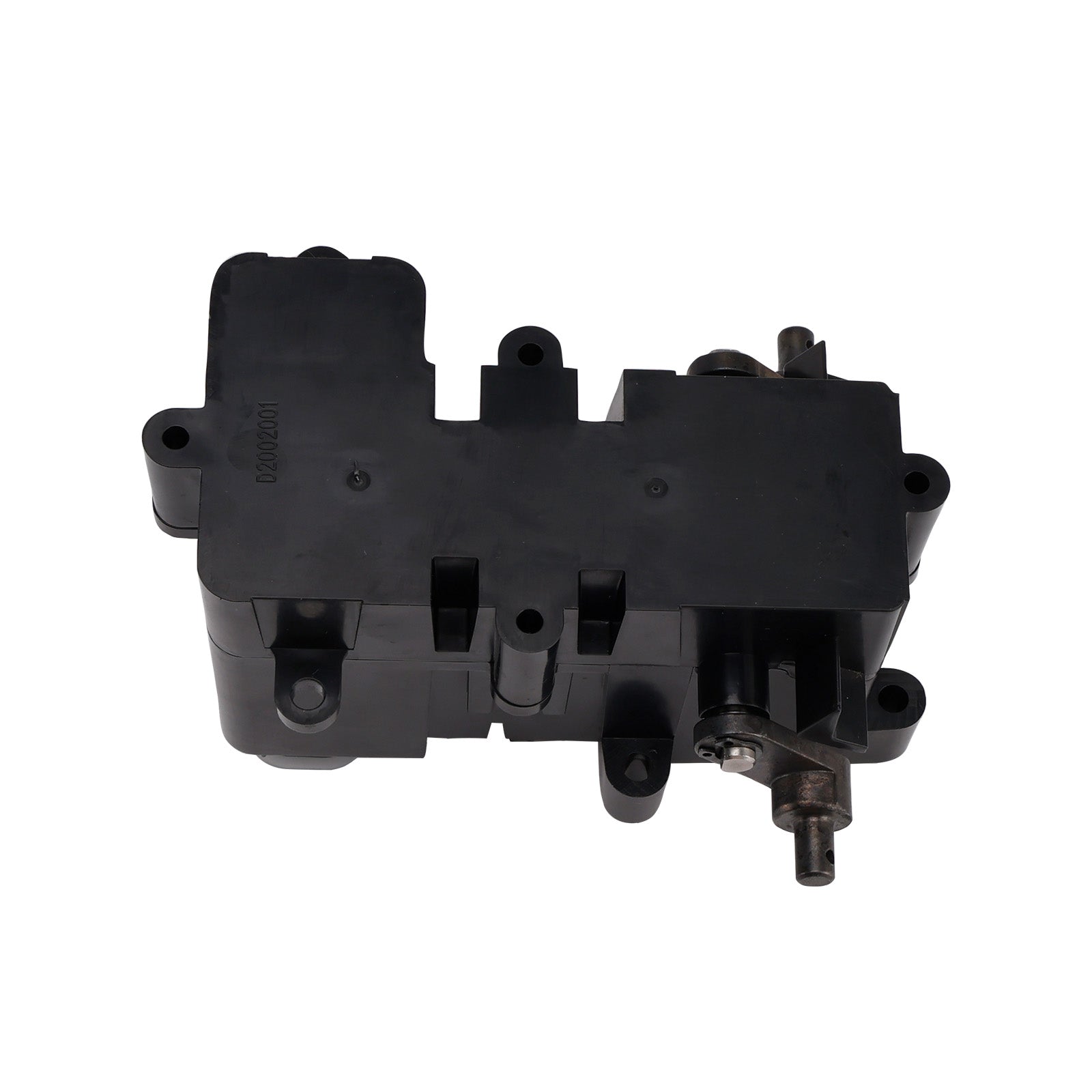

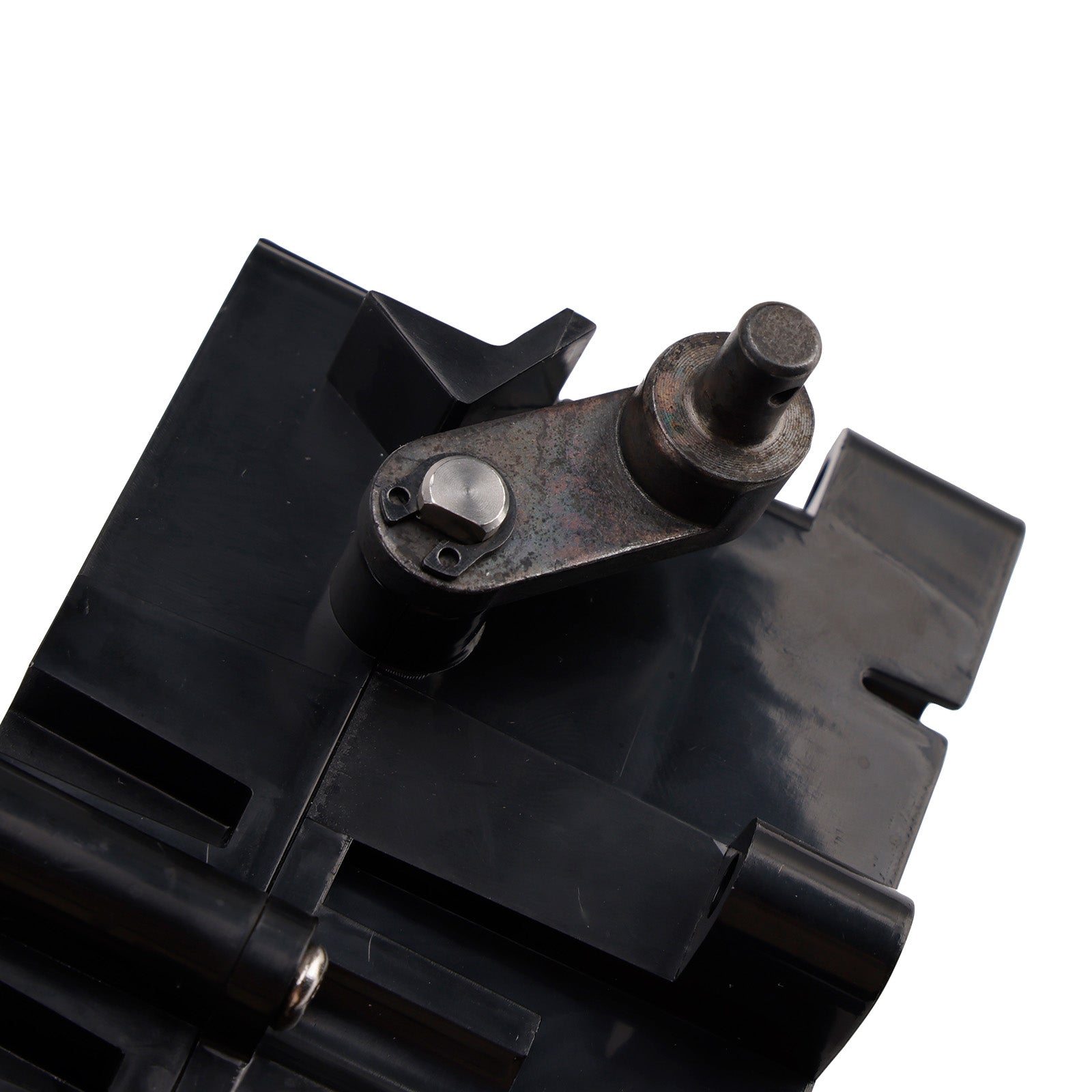

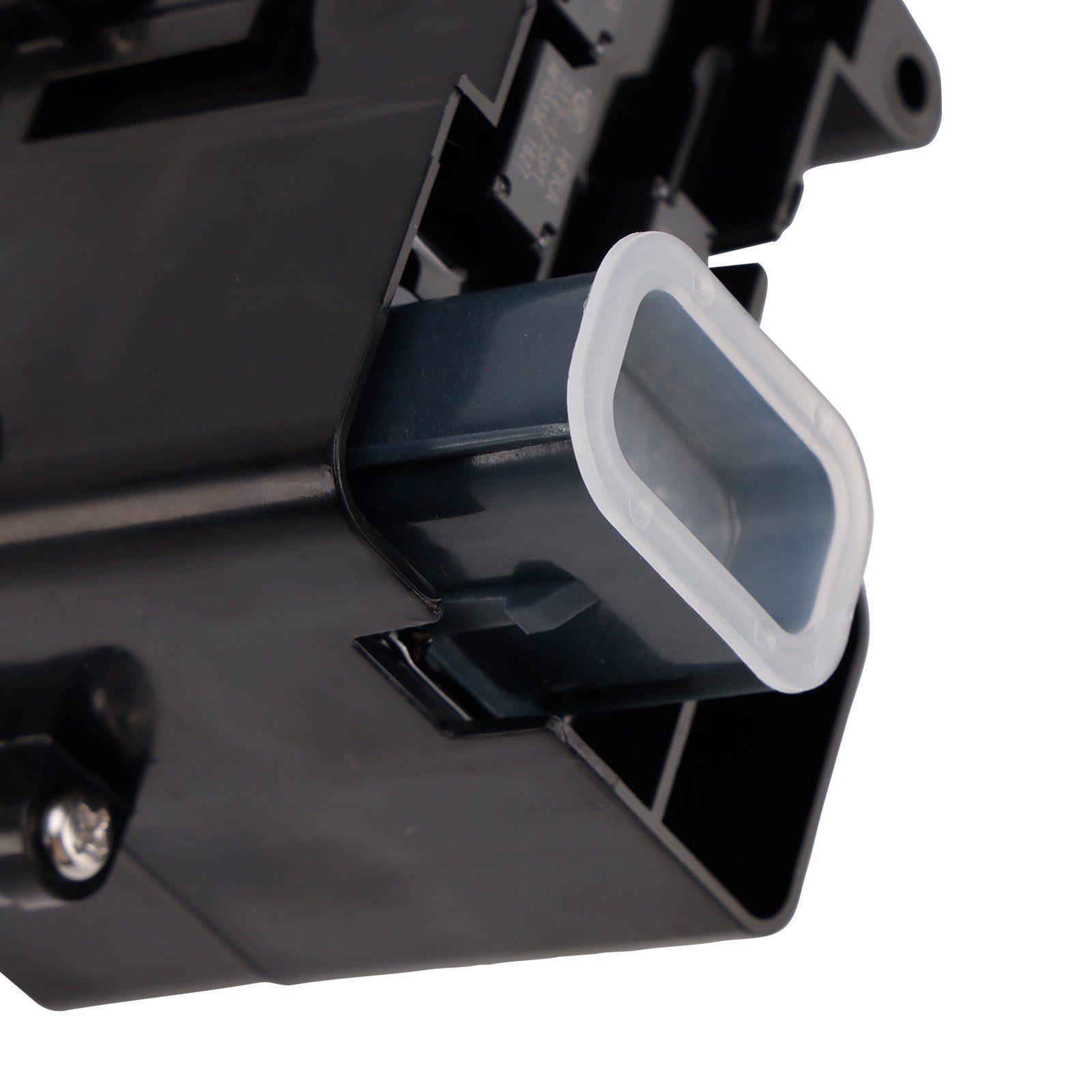

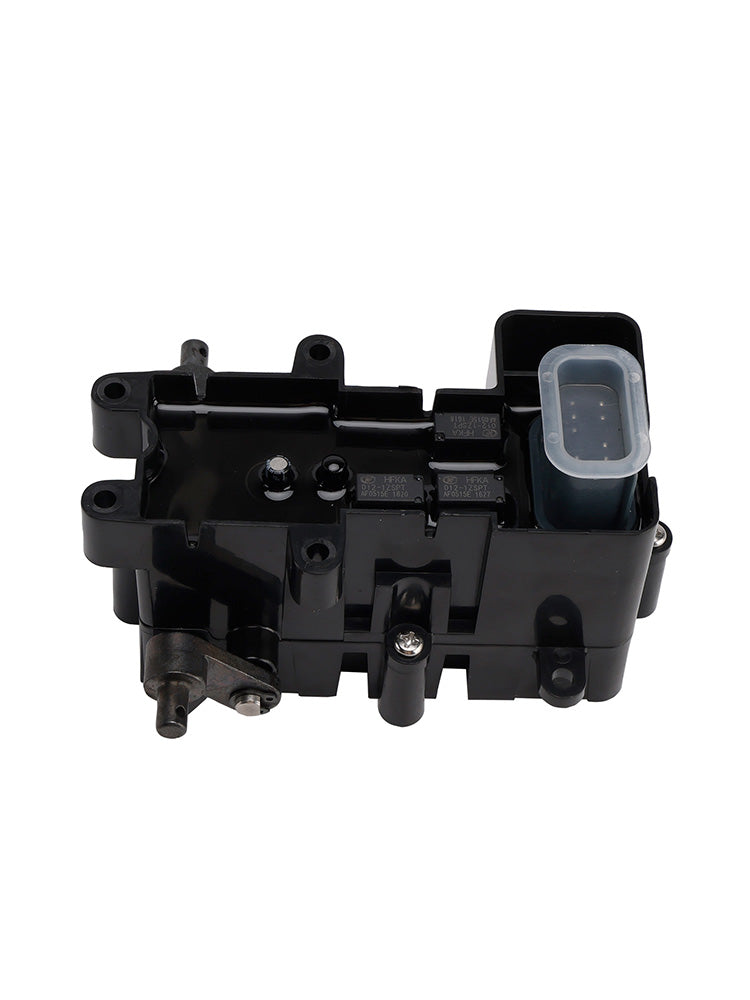

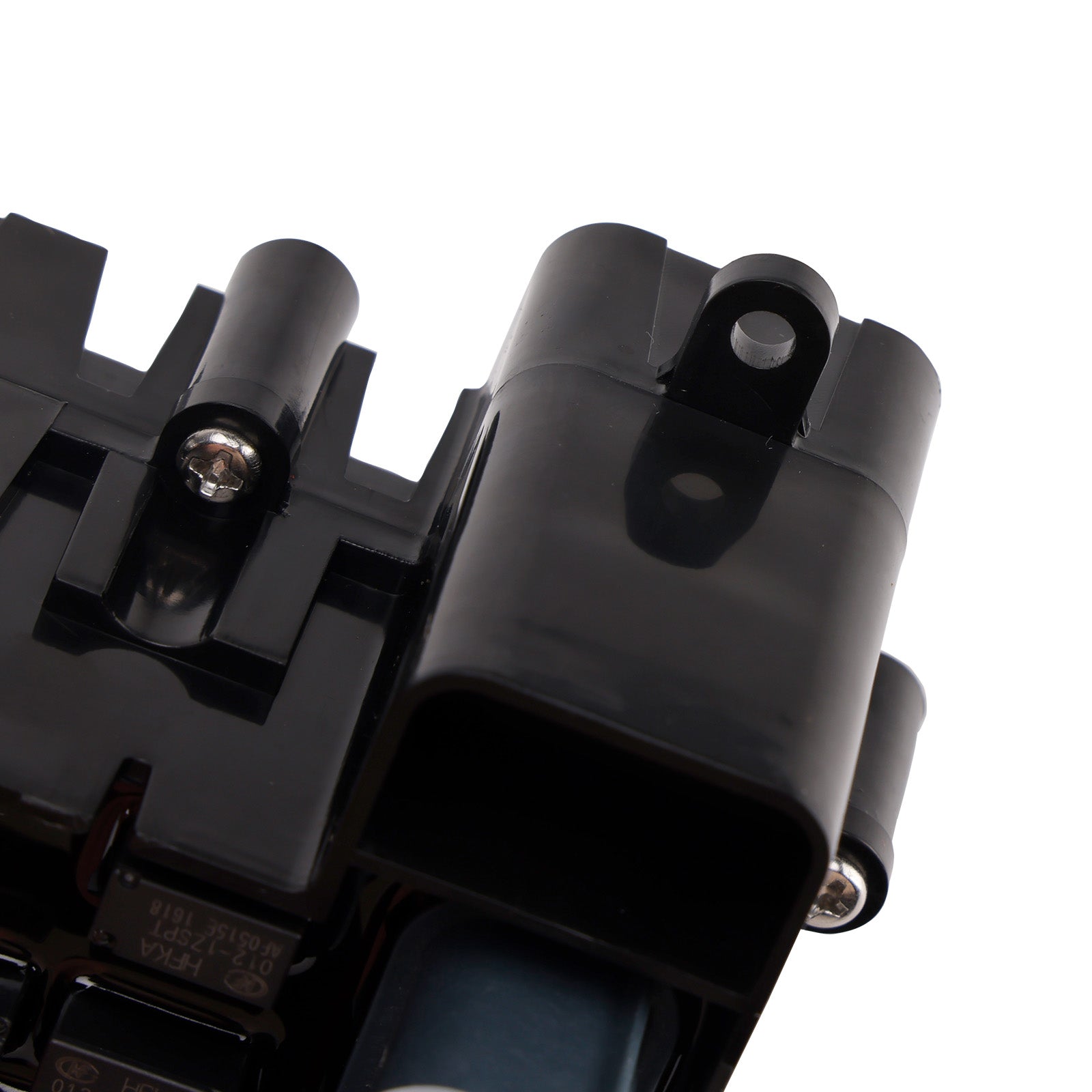

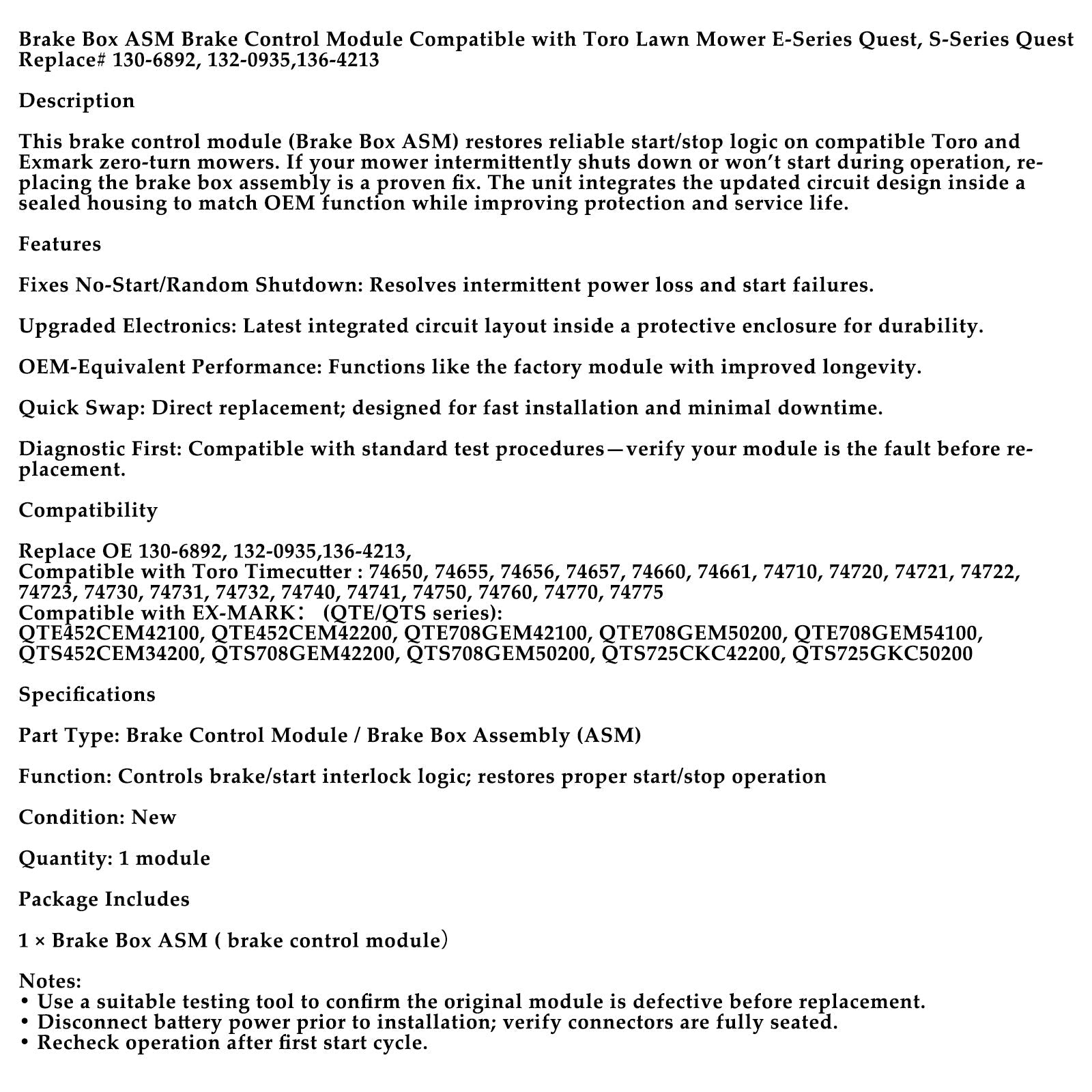

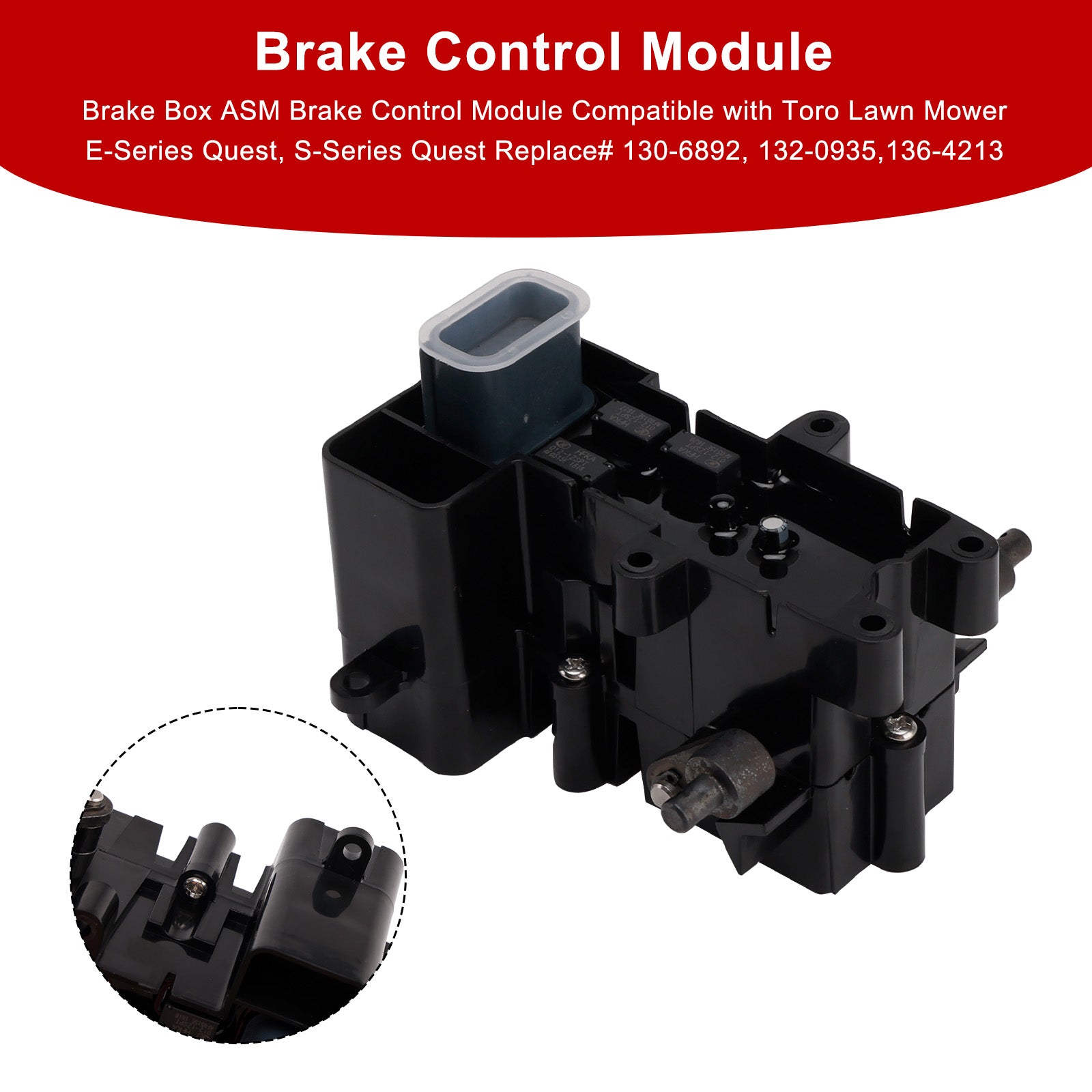

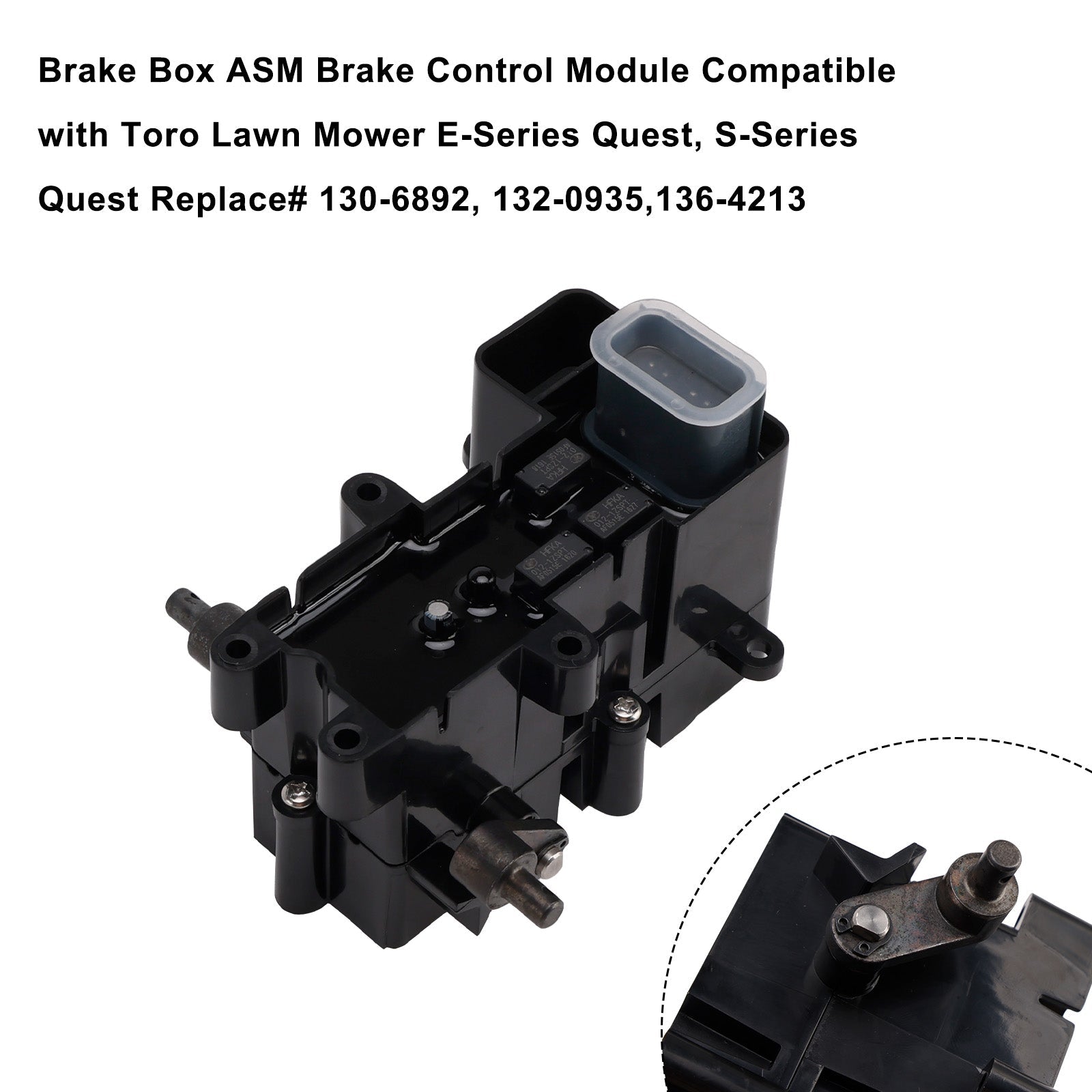

Brake Box ASM Brake Control Module Compatible with Toro Lawn Mower E-Series Quest, S-Series Quest Replace# 130-6892, 132-0935,136-4213

Description

This brake control module (Brake Box ASM) restores reliable start/stop logic on compatible Toro and Exmark zero-turn mowers. If your mower intermittently shuts down or won’t start during operation, replacing the brake box assembly is a proven fix. The unit integrates the updated circuit design inside a sealed housing to match OEM function while improving protection and service life.

Features

Fixes No-Start/Random Shutdown: Resolves intermittent power loss and start failures.

Upgraded Electronics: Latest integrated circuit layout inside a protective enclosure for durability.

OEM-Equivalent Performance: Functions like the factory module with improved longevity.

Quick Swap: Direct replacement; designed for fast installation and minimal downtime.

Diagnostic First: Compatible with standard test procedures—verify your module is the fault before replacement.

Compatibility

Replace OE 130-6892, 132-0935,136-4213,
Compatible with Toro Timecutter : 74650, 74655, 74656, 74657, 74660, 74661, 74710, 74720, 74721, 74722, 74723, 74730, 74731, 74732, 74740, 74741, 74750, 74760, 74770, 74775
Compatible with EX-MARK： (QTE/QTS series):
QTE452CEM42100, QTE452CEM42200, QTE708GEM42100, QTE708GEM50200, QTE708GEM54100,
QTS452CEM34200, QTS708GEM42200, QTS708GEM50200, QTS725CKC42200, QTS725GKC50200

Specifications

Part Type: Brake Control Module / Brake Box Assembly (ASM)

Function: Controls brake/start interlock logic; restores proper start/stop operation

Condition: New

Quantity: 1 module

Package Includes

1 × Brake Box ASM ( brake control module）

Notes:
• Use a suitable testing tool to confirm the original module is defective before replacement.
• Disconnect battery power prior to installation; verify connectors are fully seated.
• Recheck operation after first start cycle.
