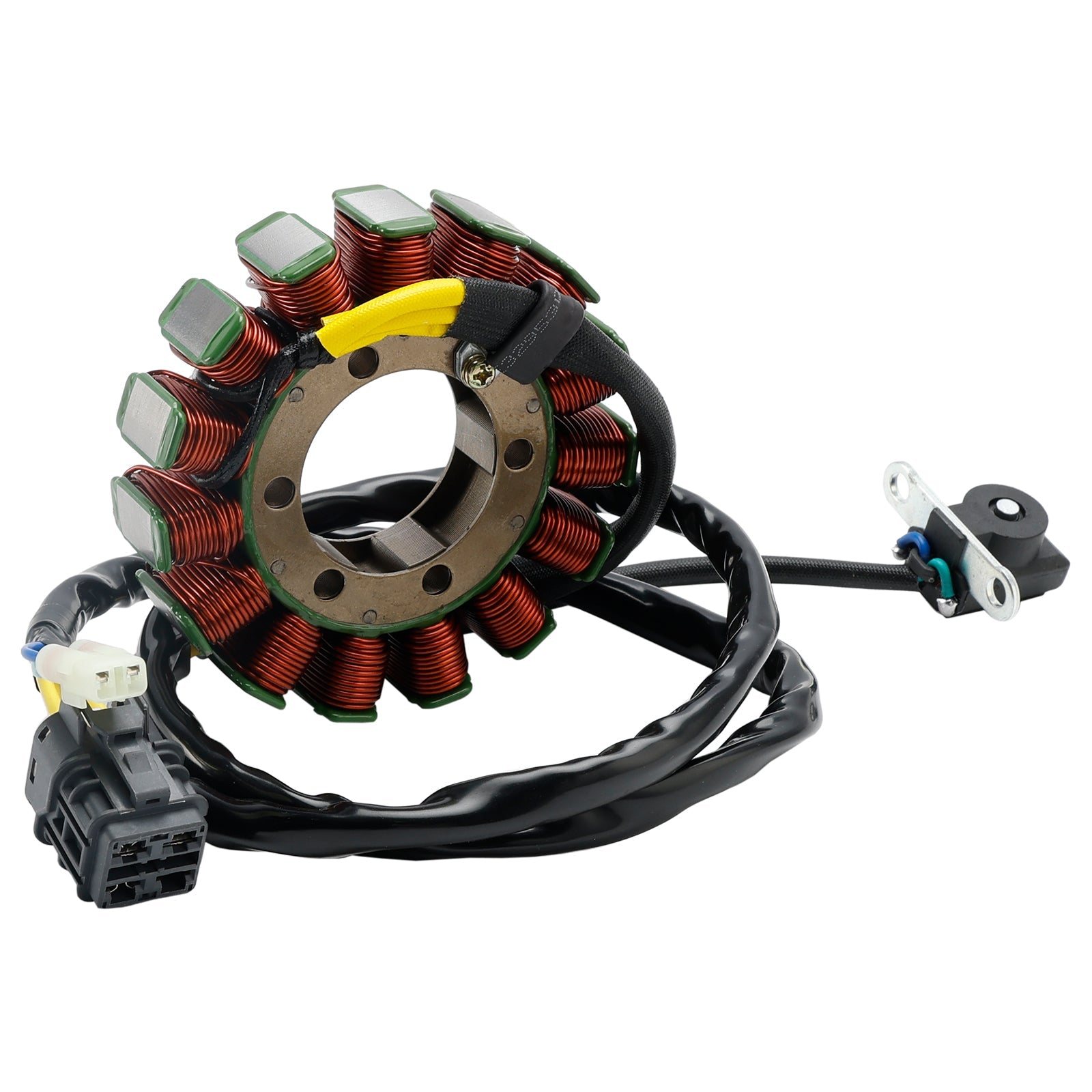

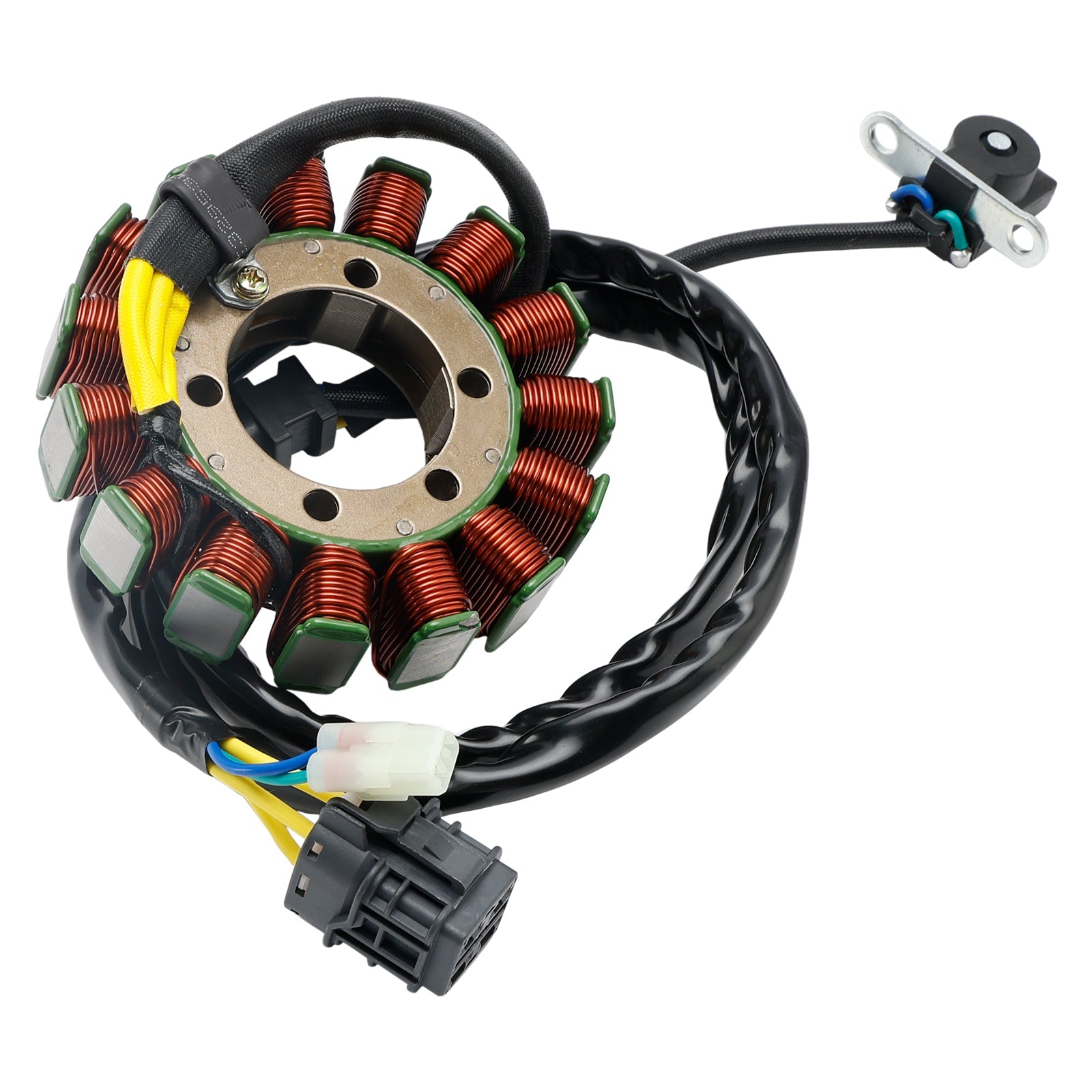

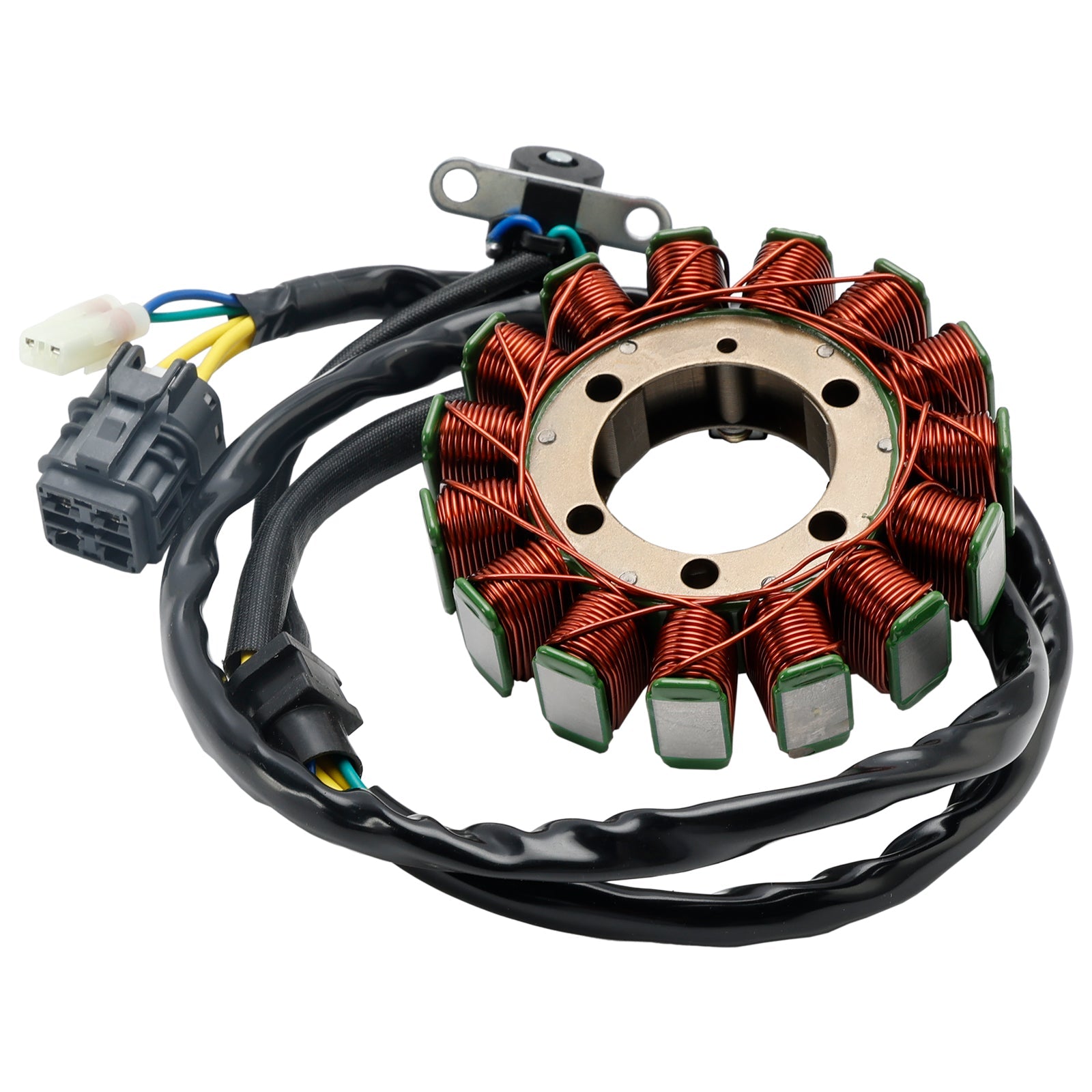

15 Poles Magneto Generator Stator 5-Wire Fit for Triton Outback Defcon 700 Access AMX 6.46 8.57 Shade 850

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

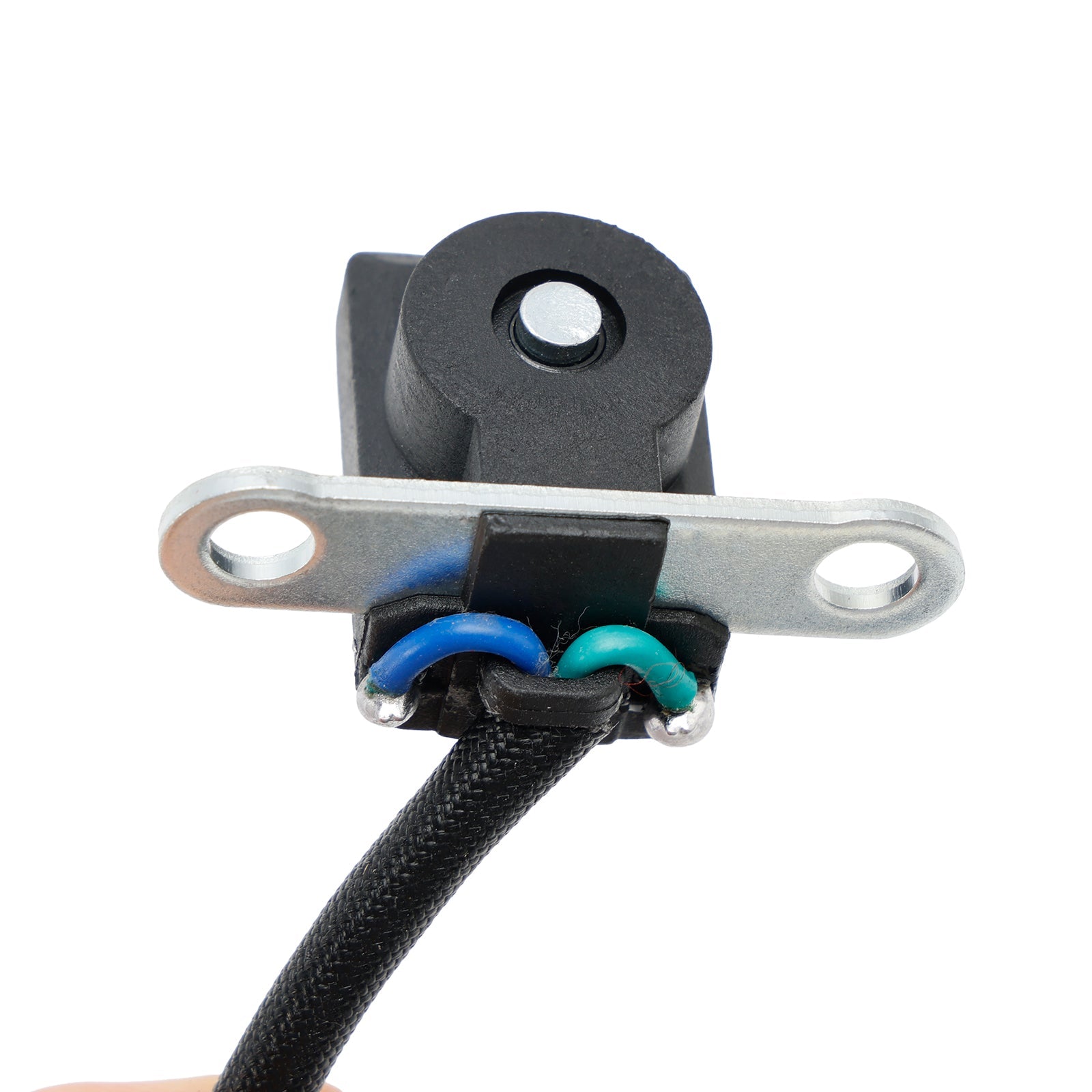

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 5

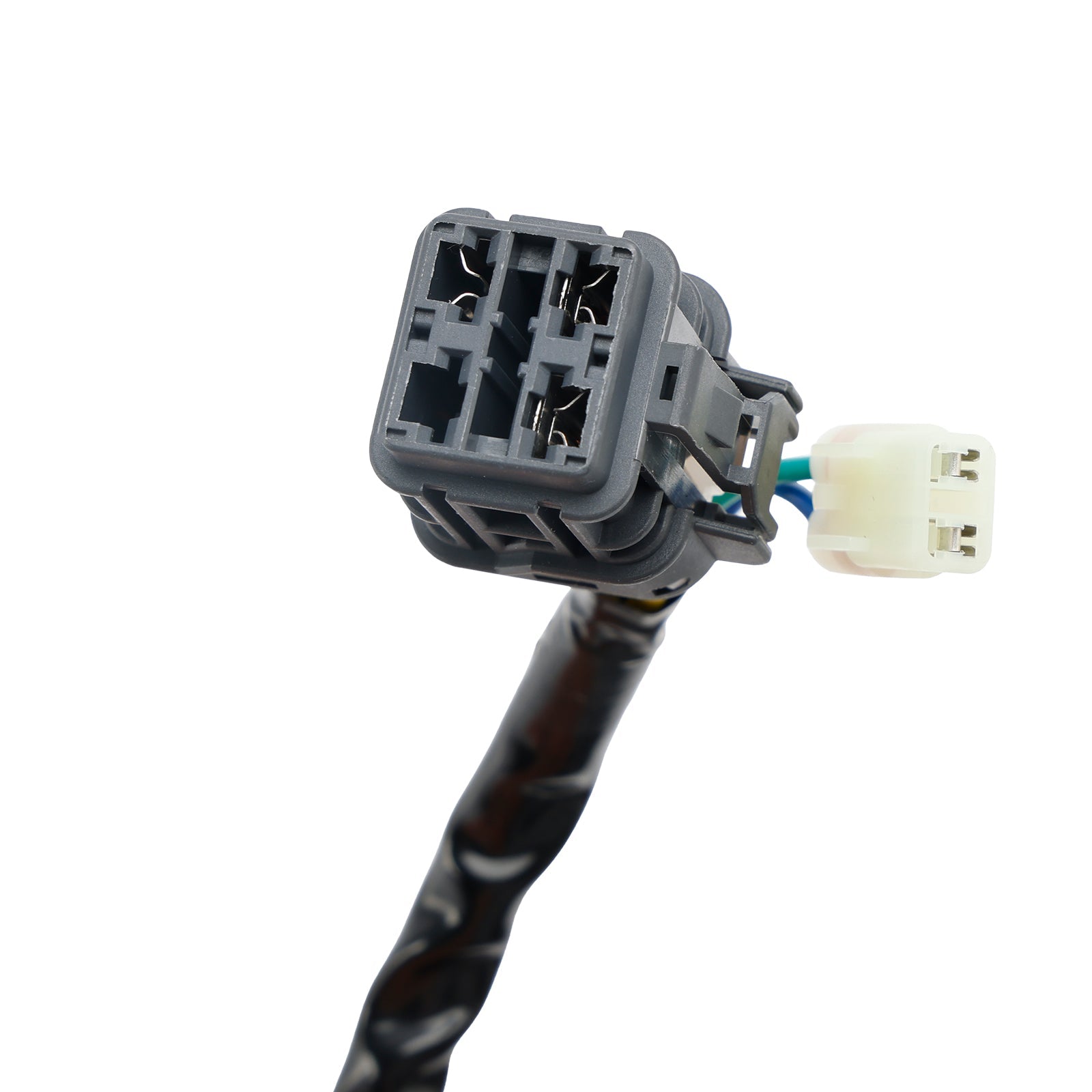

Number of plugs: 2
Number of pins: 2 + 3
Number of fixation holes: 5

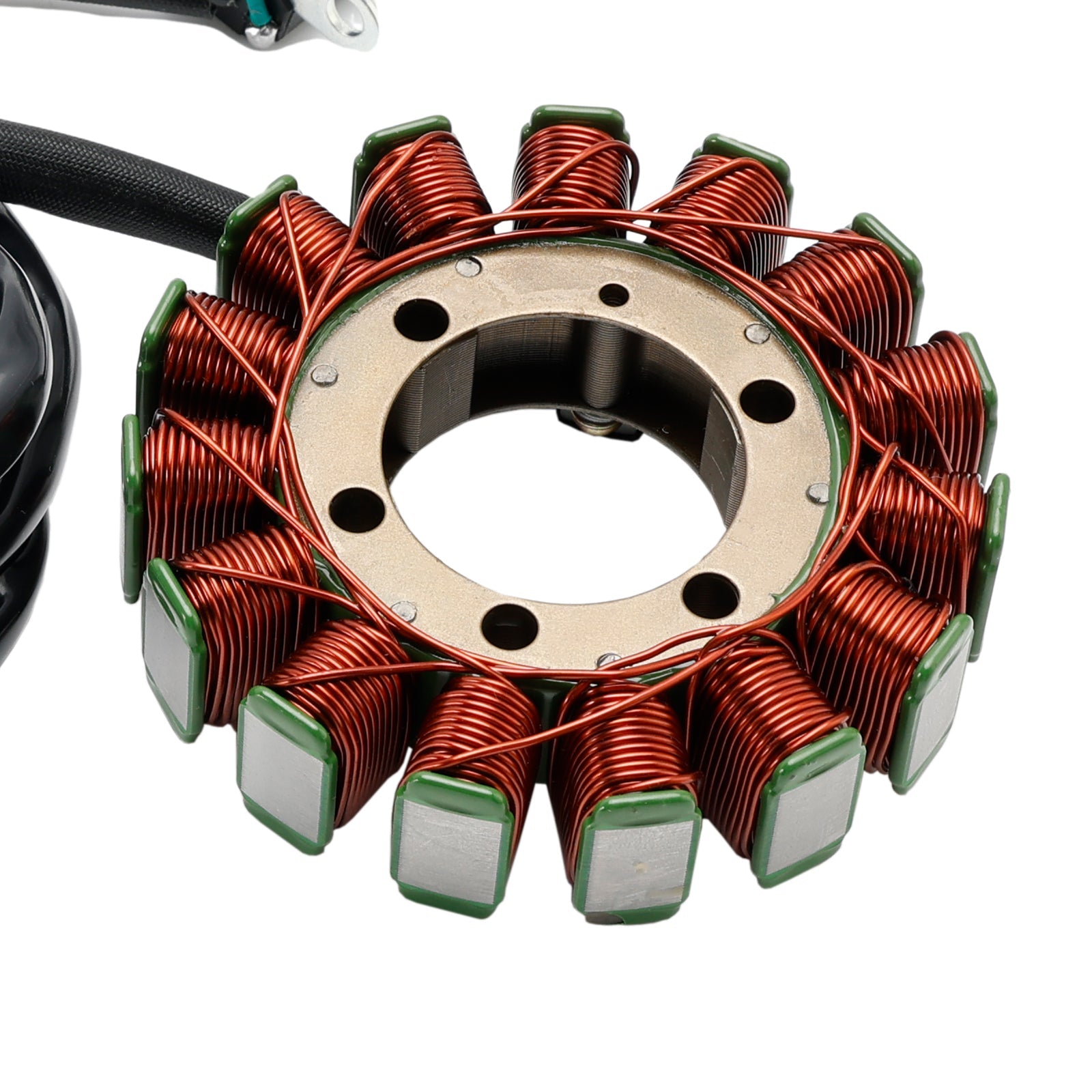

Number of poles: 15

Please compare the number of pins and plugs with the old part before purchasing.

Dimensions:
Exterior diameter : 105mm

Replacement Part Number:
31120-E20-001
A31120-E20-001
31120-E20-000
ACC-31120-E20-000

Fits Make/Model/Year:
Fit for Triton ATV Defcon 700 EFI 4x4 LOF 2012
Fit for Triton ATV Outback 700 EFI 4x4 2012
Fit for Triton ATV AX 700 4X4 LOF
Fit for GOES ATV GOES 650i HO
Fit for GOES ATV G725i s
Fit for Access ATV AMX 6.46 Basic (7.46 EFI 4X4)
Fit for Access ATV AMX 6.46 EFI 4X4 LUX (LED eyes)
Fit for Access ATV MAX 750 EFI
Fit for Access ATV MAX 750 EFI FOREST
Fit for Access ATV AMX 750 4X4
Fit for Access ATV AMX 750 4x4 UL (lange Ausf.)
Fit for Access ATV AMX 7.46 LV (lange Version) EFI 4X4 LUX
Fit for Access ATV AMX 8.57 Basic
Fit for Access ATV AMX 8.57 Basic Euro4
Fit for Access ATV AMX 8.57 EFI 4x4 EPS
Fit for Access ATV AMX 8.57 LV (lange Version) EFI 4x4 LUX
Fit for Access ATV AMX 8.57 LV Euro4 (lange Version) EFI 4x4 LUX
Fit for Access ATV Shade Xtreme 650 LoF
Fit for Access ATV Shade Xtreme 650 NG T3
Fit for Access ATV Shade Xtreme 850 Euro4
Fit for Access ATV Shade Xtreme 850 EPS DLX
Fit for Access ATV Shade Xtreme 850 LoF
Fit for Access ATV Shade Xtreme 850 LoF T3
Fit for Access ATV Shade Xtreme 850 LoF bis
Fit for Access ATV Shade Xtreme 850 LV LoF
Fit for Access ATV Shade Xtreme 850 LV LoF T3
Fit for Access ATV Shade Xtreme 850 LV LoF bis
Fit for Access ATV Shade Sport 850
Fit for Access ATV Shade Sport 850 EPS
Fit for Access ATV Shade Sport 850 EPS T3
Fit for Access ATV Shade Sport 850 LV EPS
Fit for Access ATV Shade Sport 850 LV Euro4 (A) EFI 4x4
Fit for Access ATV Shade Sport 850 LV EPS TOURING T3
Fit for Access UTV Ultimate 850

Please check and see if your stator pole's number as same as our and your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 15-Pole Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
