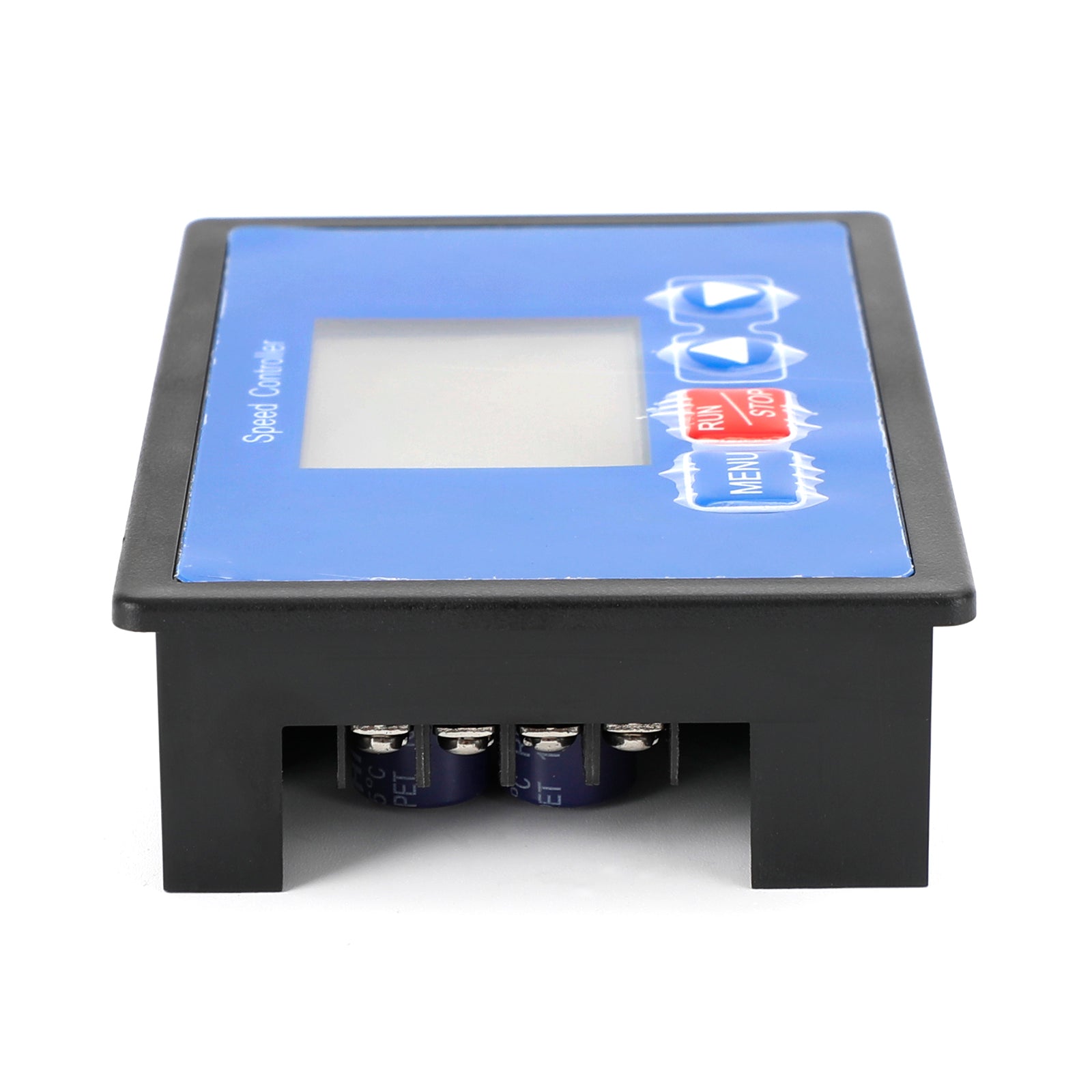

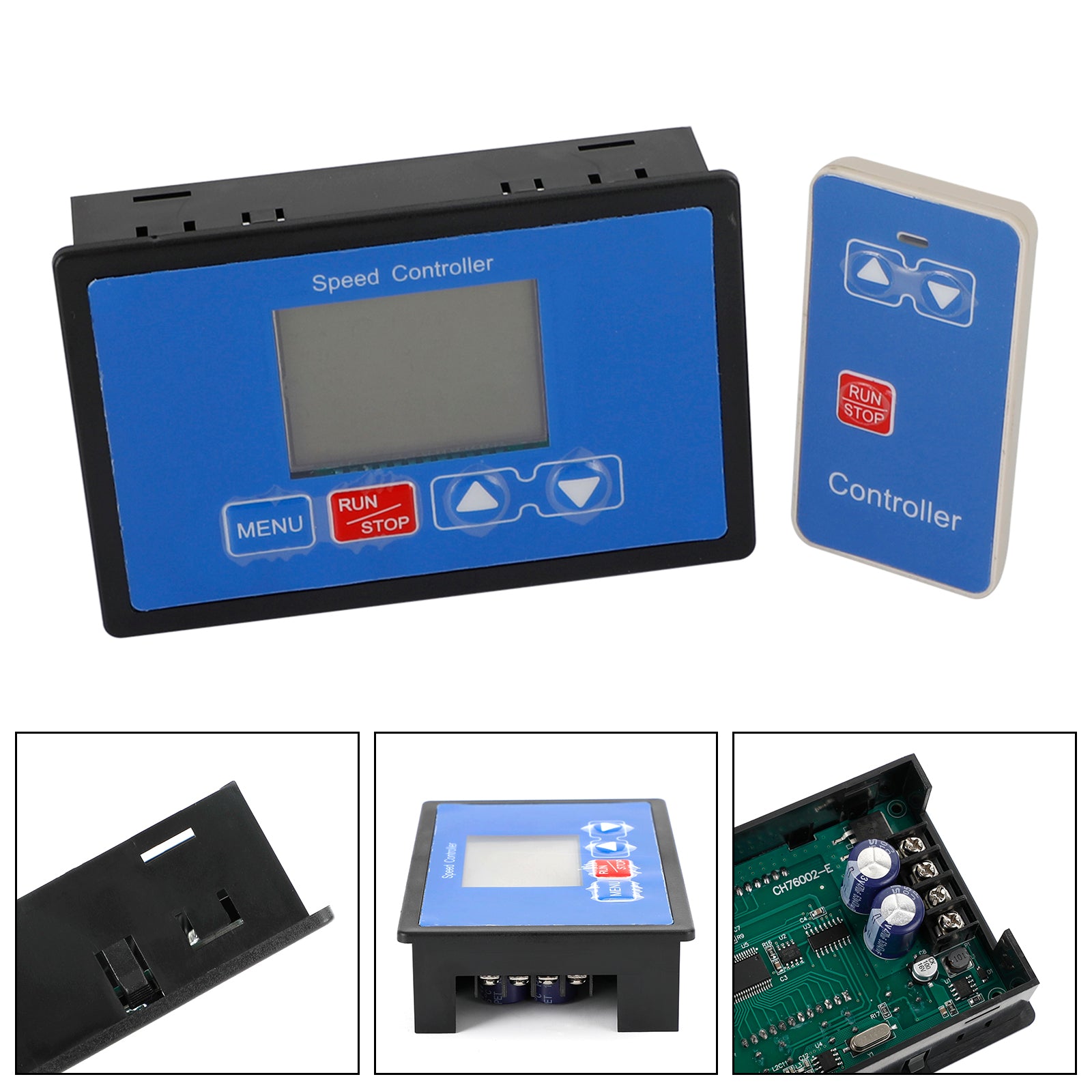

Wireless Remote Control LCD DC 12V 24V 36V 48V 30A PWM Motor Speed Controller

Feature:
1: Comes with wireless remote control.
2: The time of slow start and slow stop can be set.
3: The upper limit and lower limit of the speed can be set.
4: Can set working time, stop working when time is up.
5: The number of automatic start and stop can be set.
6: LCD screen with backlight, display working time and 0-100% rotation speed percentage.
7: The running time and stop time can be set, and the start and stop work can be repeated and automatically cycled.
8: Jogging acceleration and deceleration solves the problem that traditional potentiometers are easily damaged.

Specifics:
Condition: 100% Brand New
Input voltage: DC6.5V-55V (the specific voltage must be equal to the rated voltage of the motor)
Output voltage: linear under load
Instantaneous current: 30A
Continuous current: within 20A
Speed ​​regulation type: flow regulation
Speed ​​control method: Jog +-
Wireless remote control: support
Timing: Yes
Slow start and slow stop: Can be set
Rotation speed digital display: 0-100 percentage meter
Speed ​​adjustment range: 0-100%
Control frequency: 15KHZ
Wiring type: Barrier terminal block
Support motor: brushed motor
Module size: 116mm*76mm*30mm/4.57"*3.0"*1.18"
Product net weight: 118 grams
Panel opening: 109mm*70mm/4.29"*2.76"
Installation method: Embedded
Remote Control battery: CR2032 (include)

Note:
1. Please allow 1-3mm difference due to manual measurement.
2. The input must be divided into positive and negative. The input voltage must be equal to the rated voltage of the motor (within 6.5V-55V).
3. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

Package Included:
1 X DC Motor Speed Controller
1 X Wireless Remote Control
