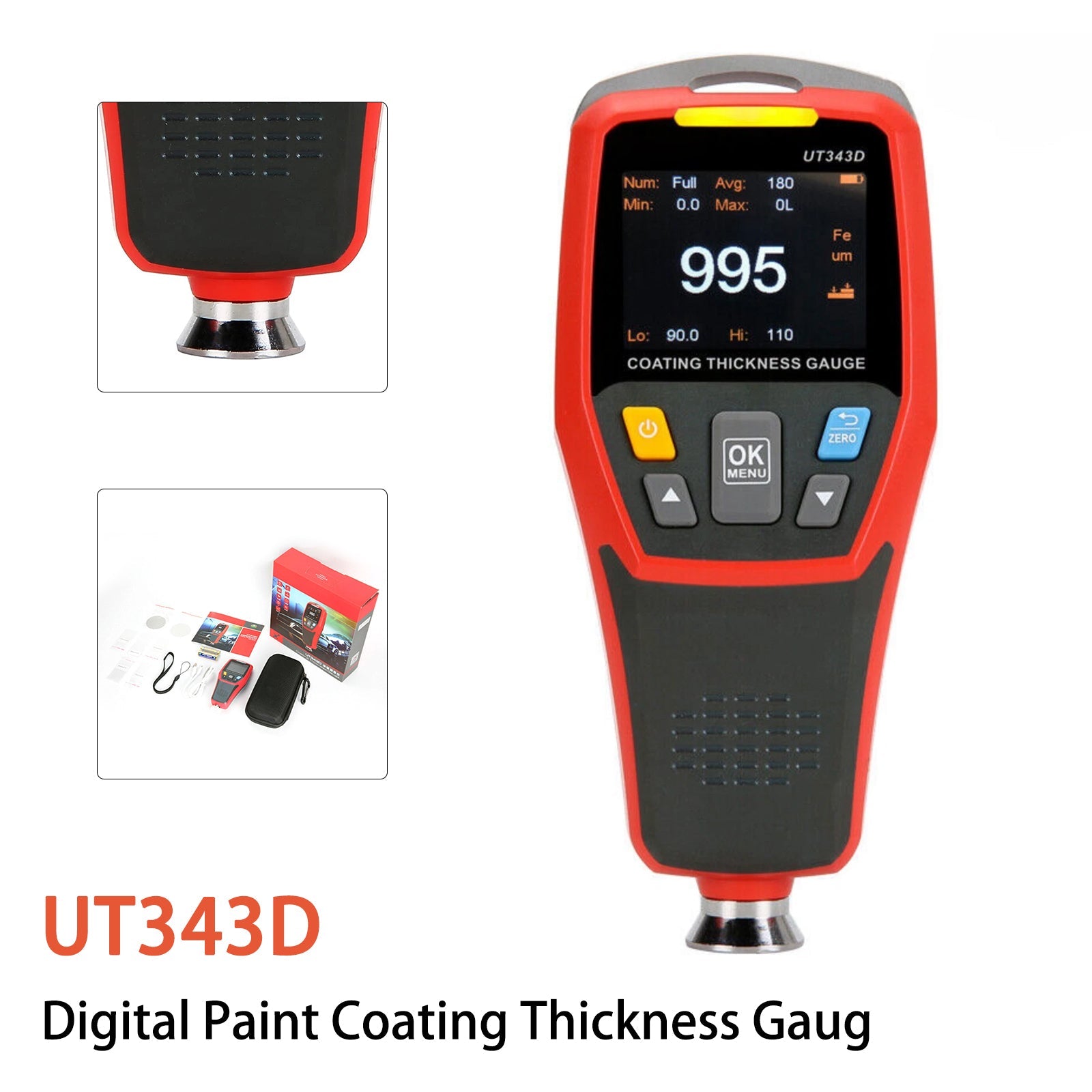

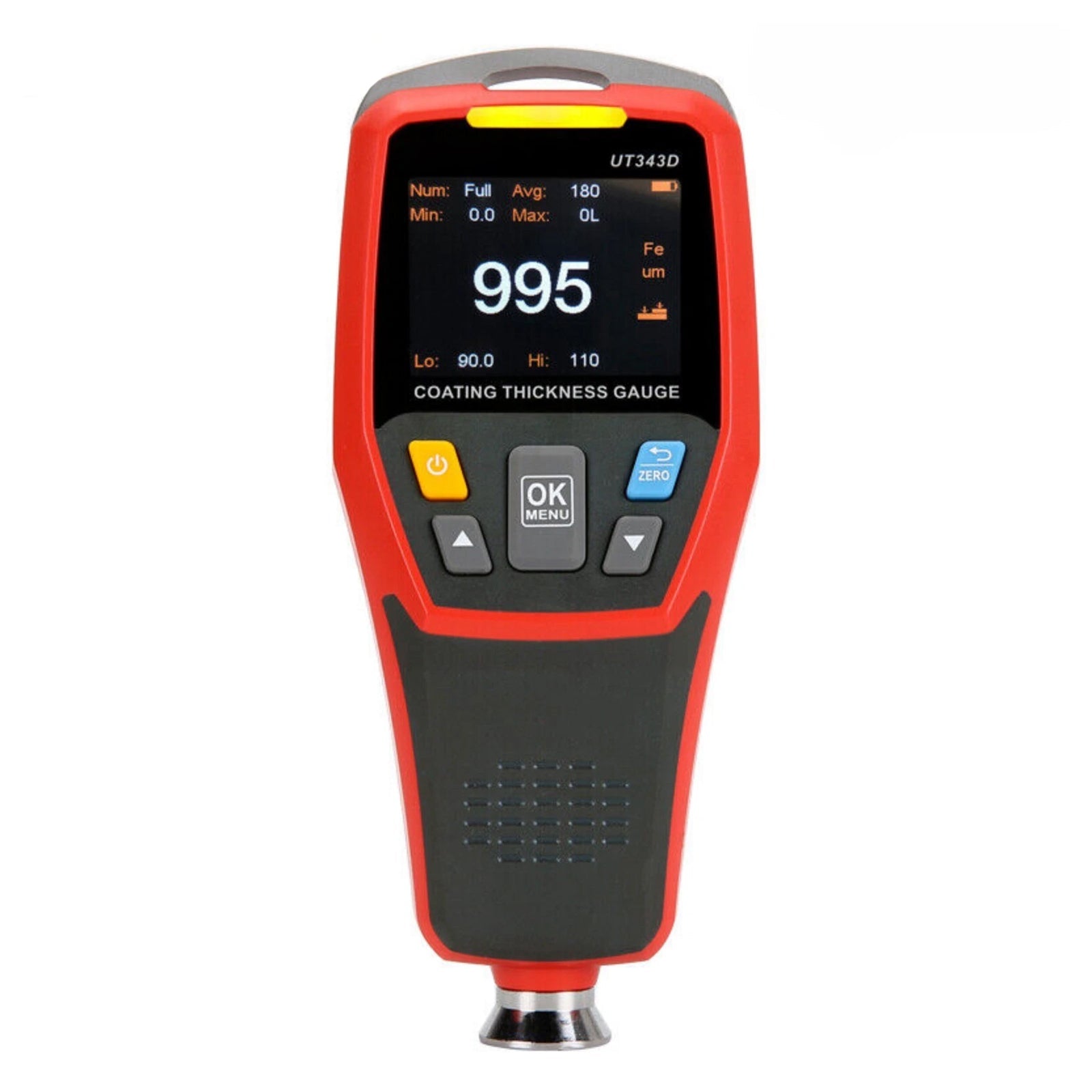

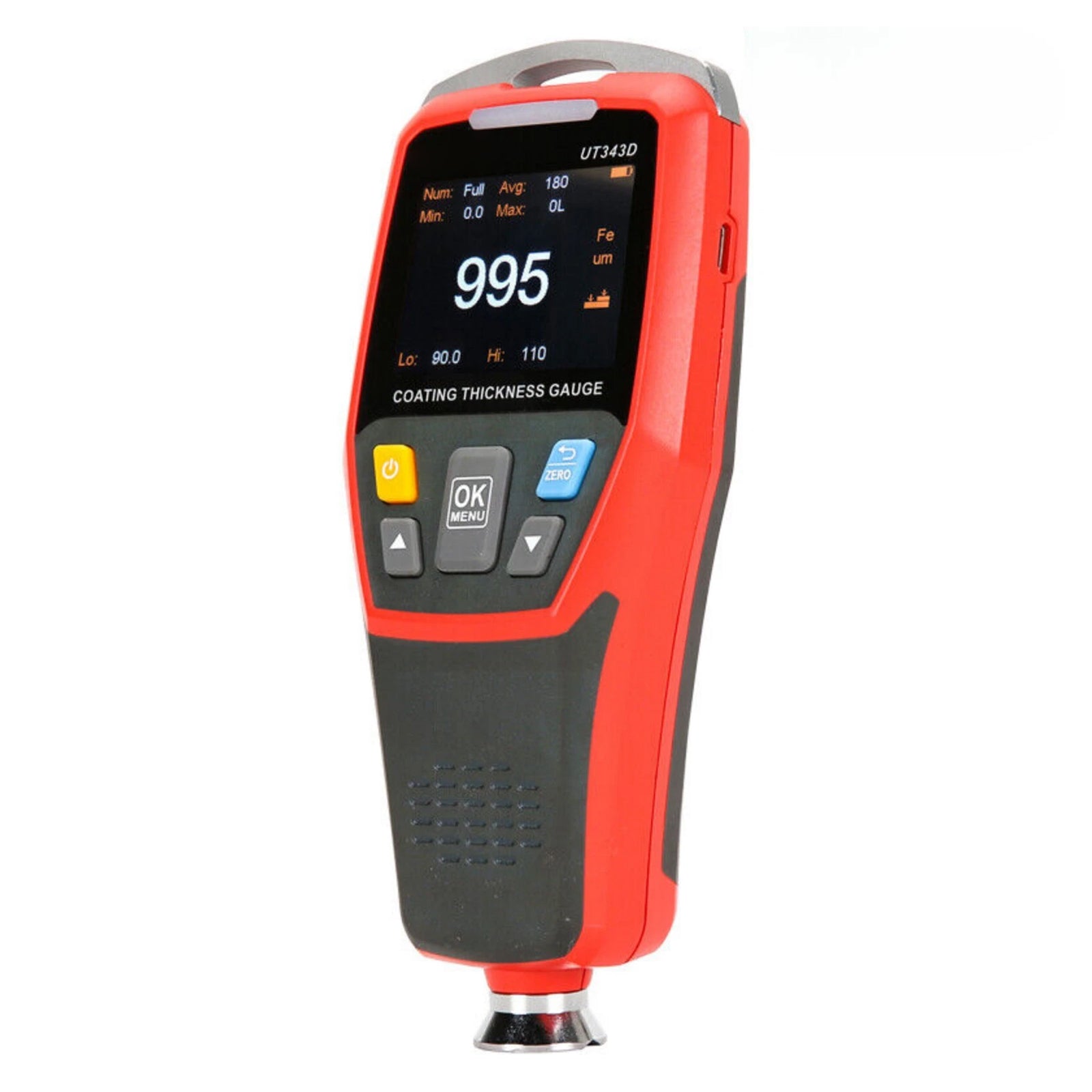

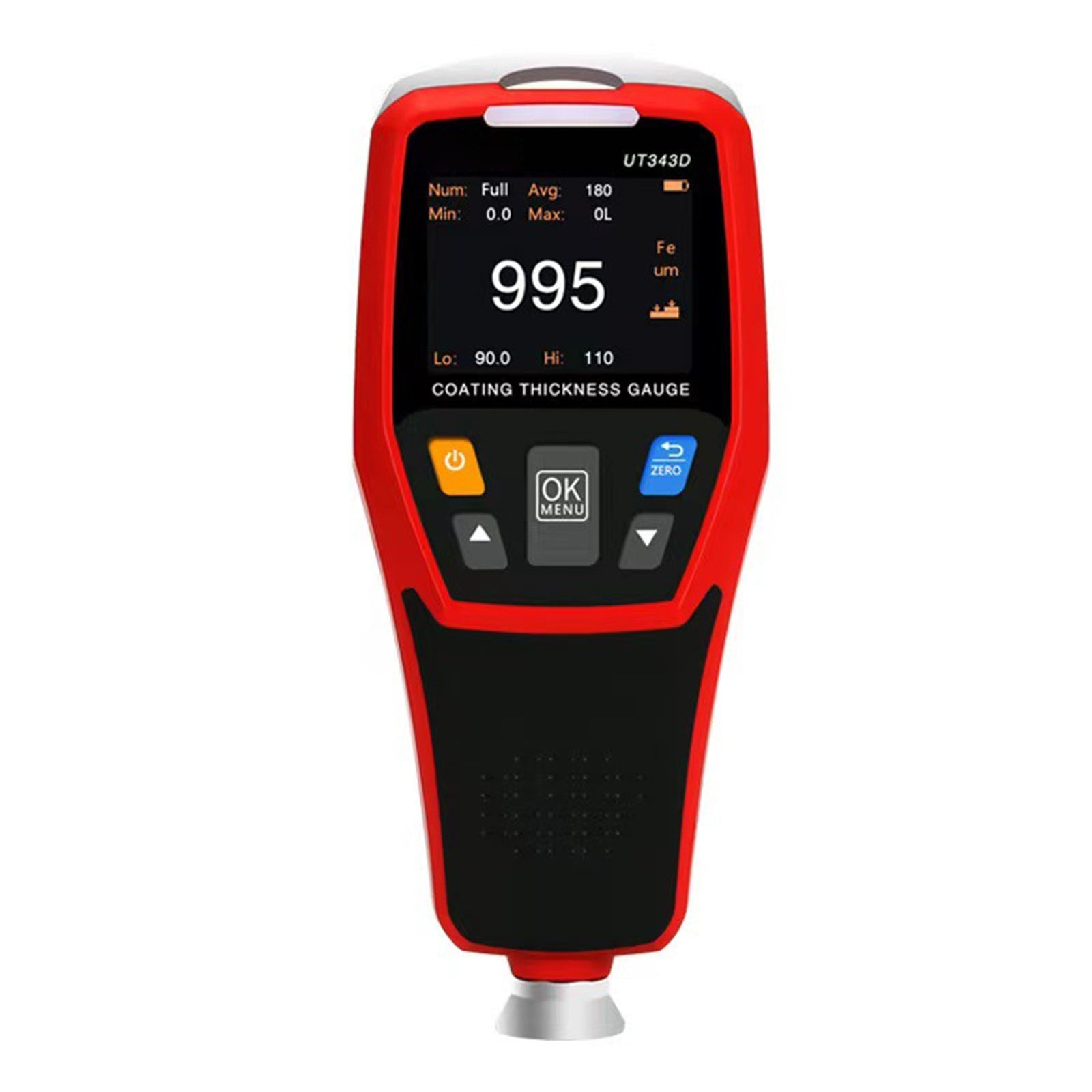

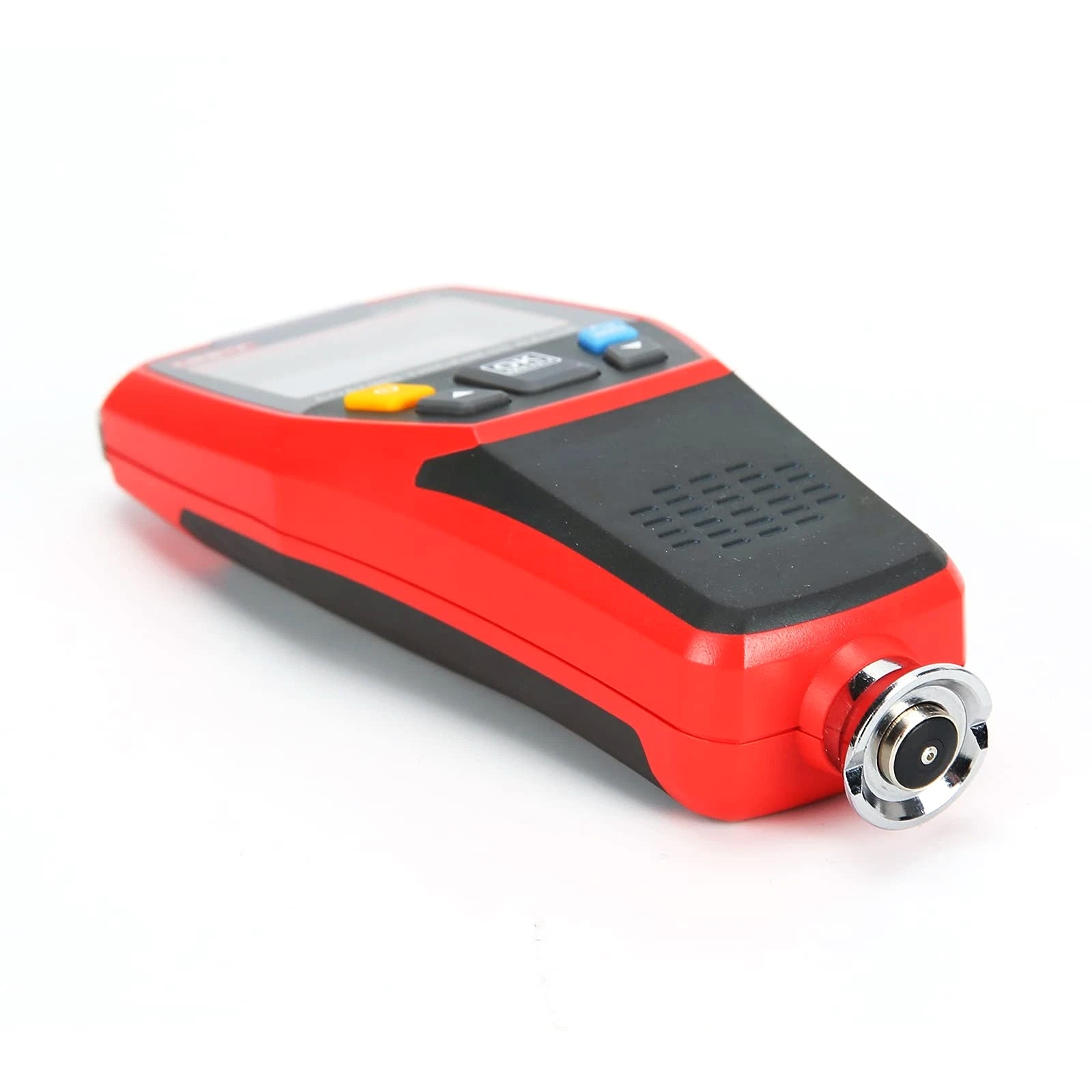

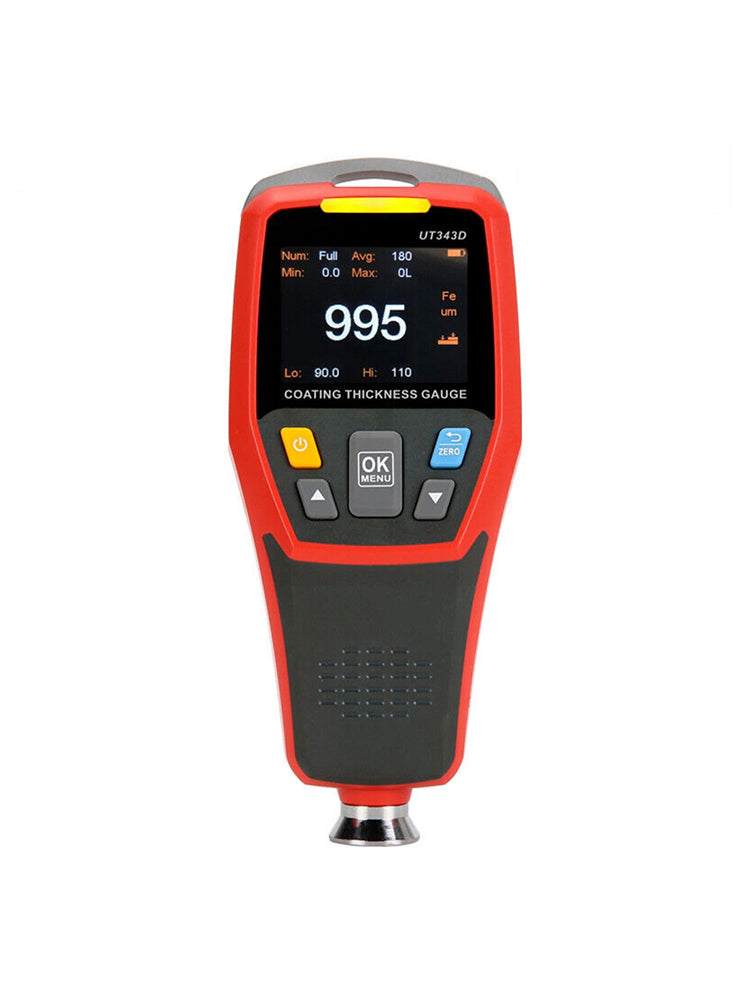

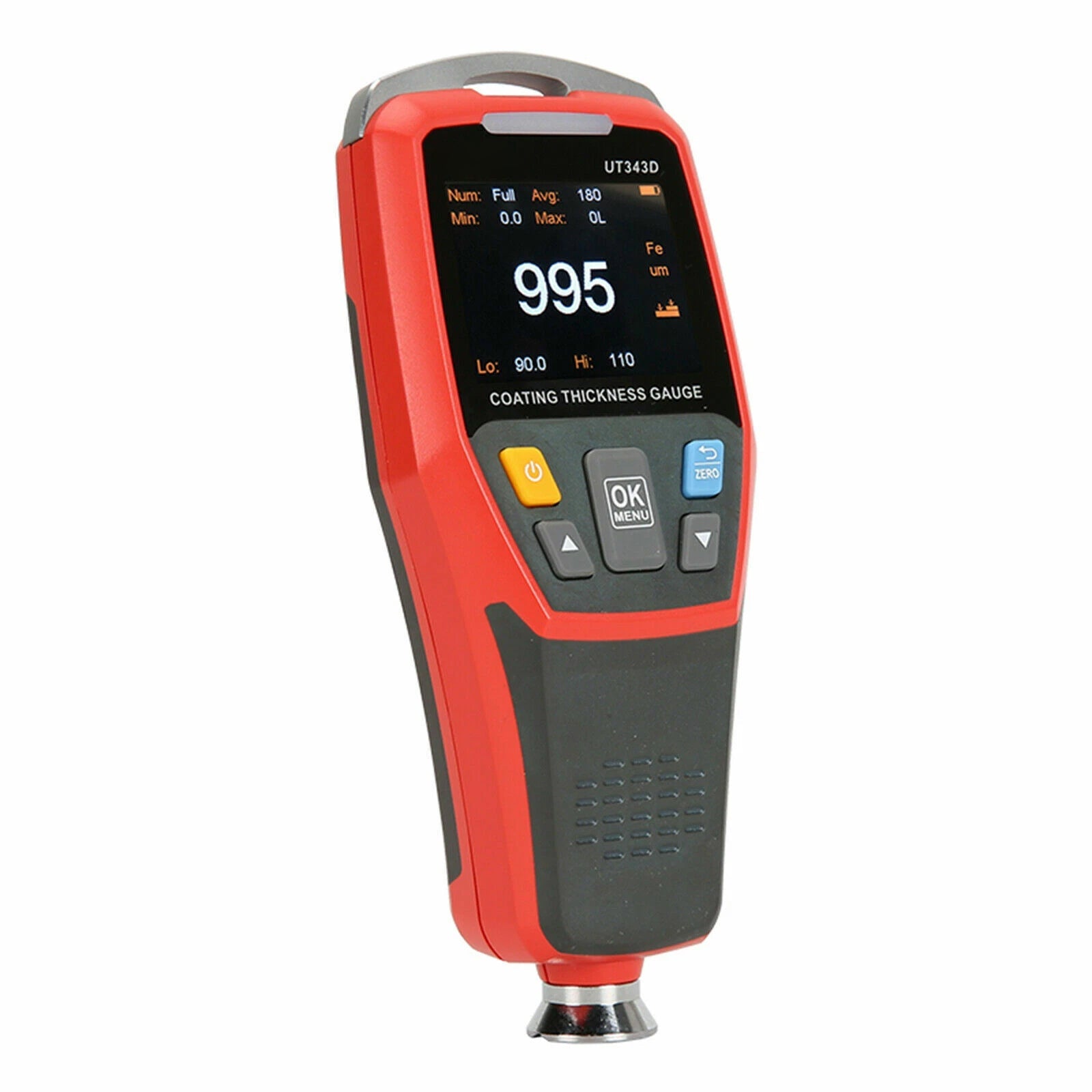

UT343D Digital Paint Coating Thickness Gauge Range 0 to 1250um F/N Probe

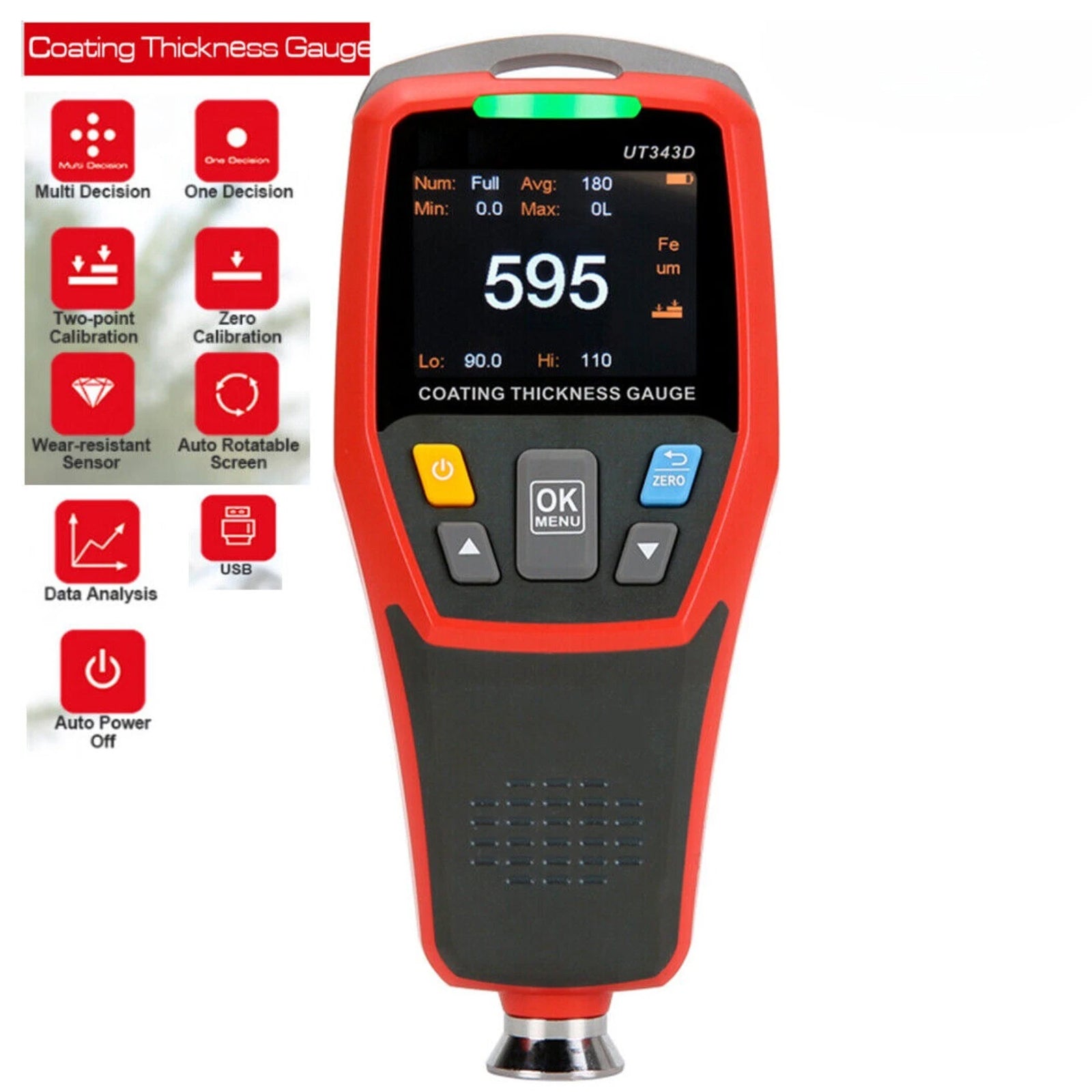

Feature:
1: Automatically identifies iron and non-ferrous substrates for accurate coating thickness measurement.
2: Dual Calibration System: Single point and two point calibration options to ensure measurement accuracy across different materials.
3: Quick Judgment Feature: Single point and multi-point quick judgment with prompt feedback using red, green and yellow warning lights.

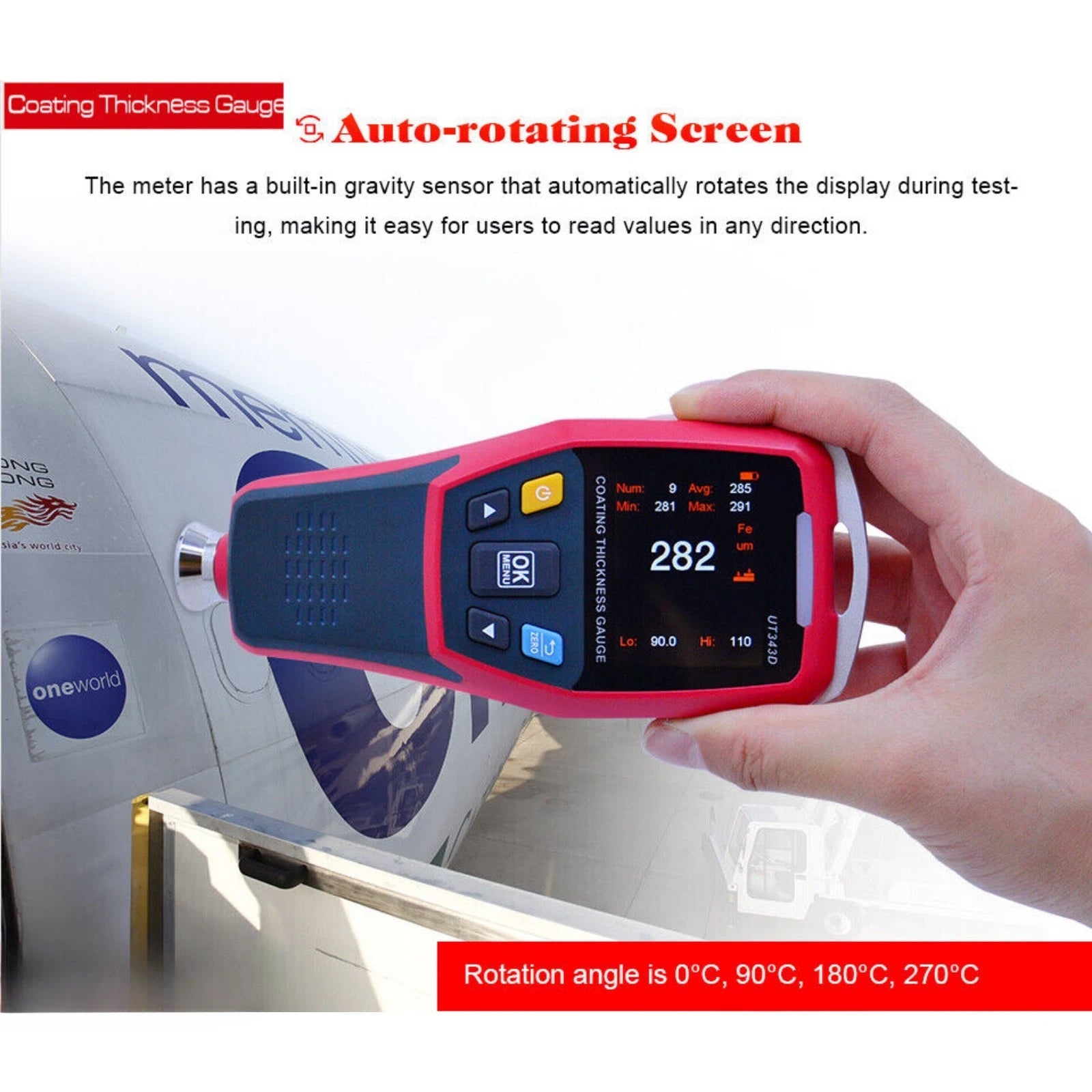

4: Auto-Rotating Display: The screen display content automatically rotates for convenient viewing from any angle.

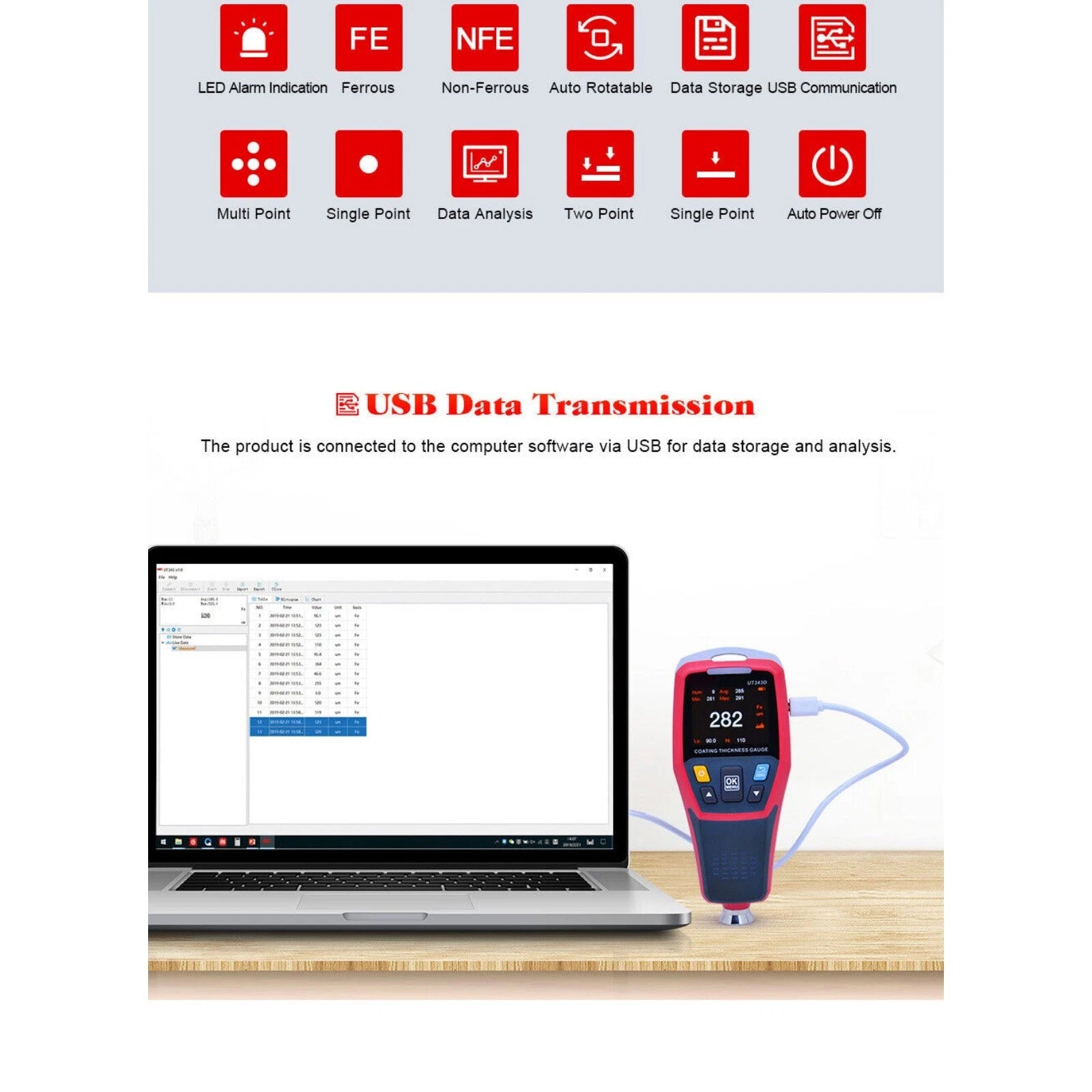

5: Data Storage and Transfer: 500 sets of storage data capacity with USB data transmission for PC analysis.
6: Wide Measuring Range: Measures coating thickness from 0 to 1250um with high precision on both ferrous and non-ferrous materials.
7: Audio and Visual Alerts: Features 3-color LED indicators and audio alarm system to quickly determine if coating falls within preset thickness range .

Specifics:
Condition: 100% Brand New
Type: Thickness Gage
Model: UT343D
Measuring range. 0~1250um
Accuracy. ±(3%H+1)um
Resolution. 0.1um (0~99.9um); 1um (100~1250um)
Measurement method. Single/Continuous
Measurement mode. Max/Min/Avg
Metal type. Ferrous/ non-ferrous
Power. 3V battery (R03) x 2 (NOT included)
Display type. 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control
Auto rotatable screen
Unit conversion
Audio alarm
LED alarm
PC analysis software
USB communication
Quick test mode
Data storage. 500 groups
Auto power off
Low battery indicator

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

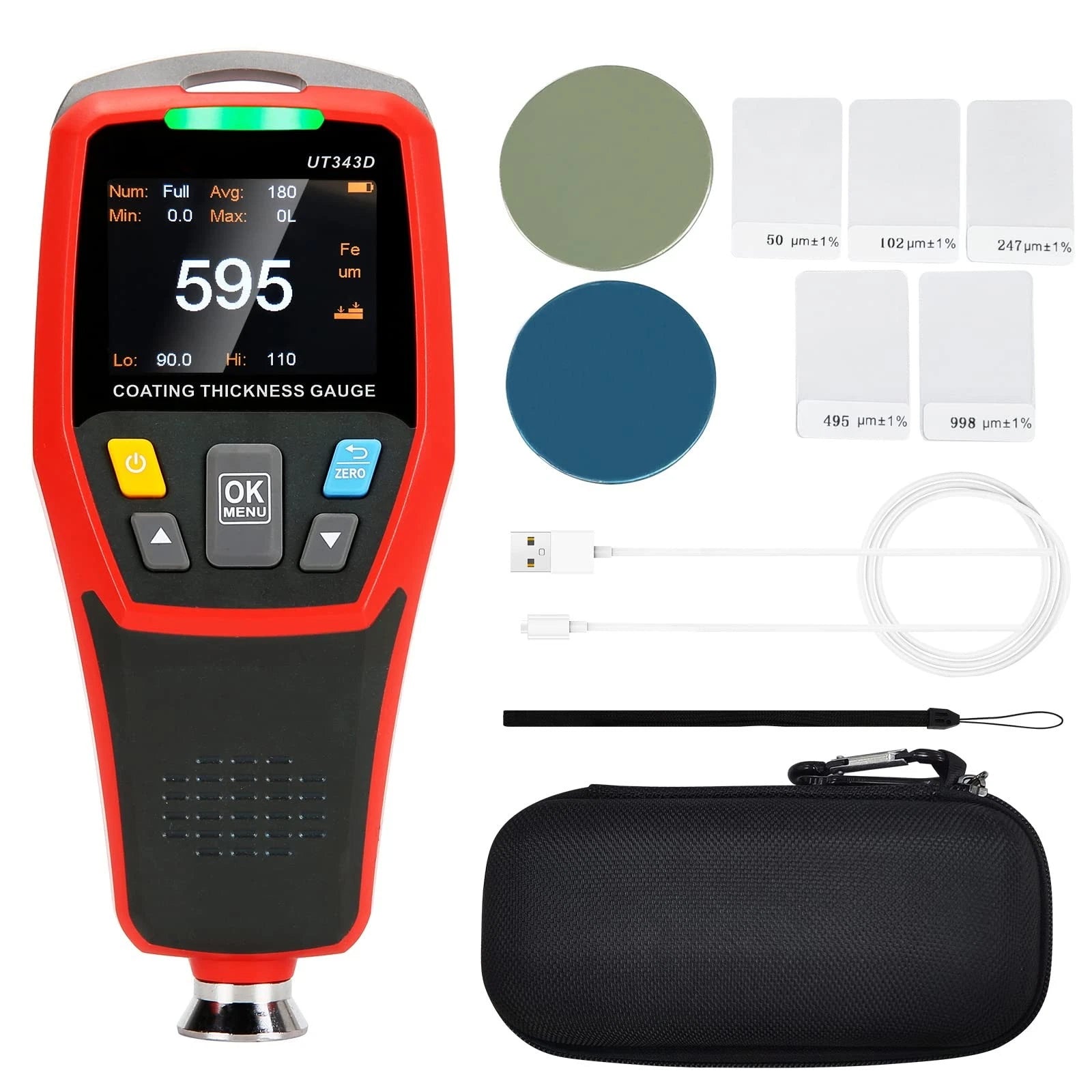

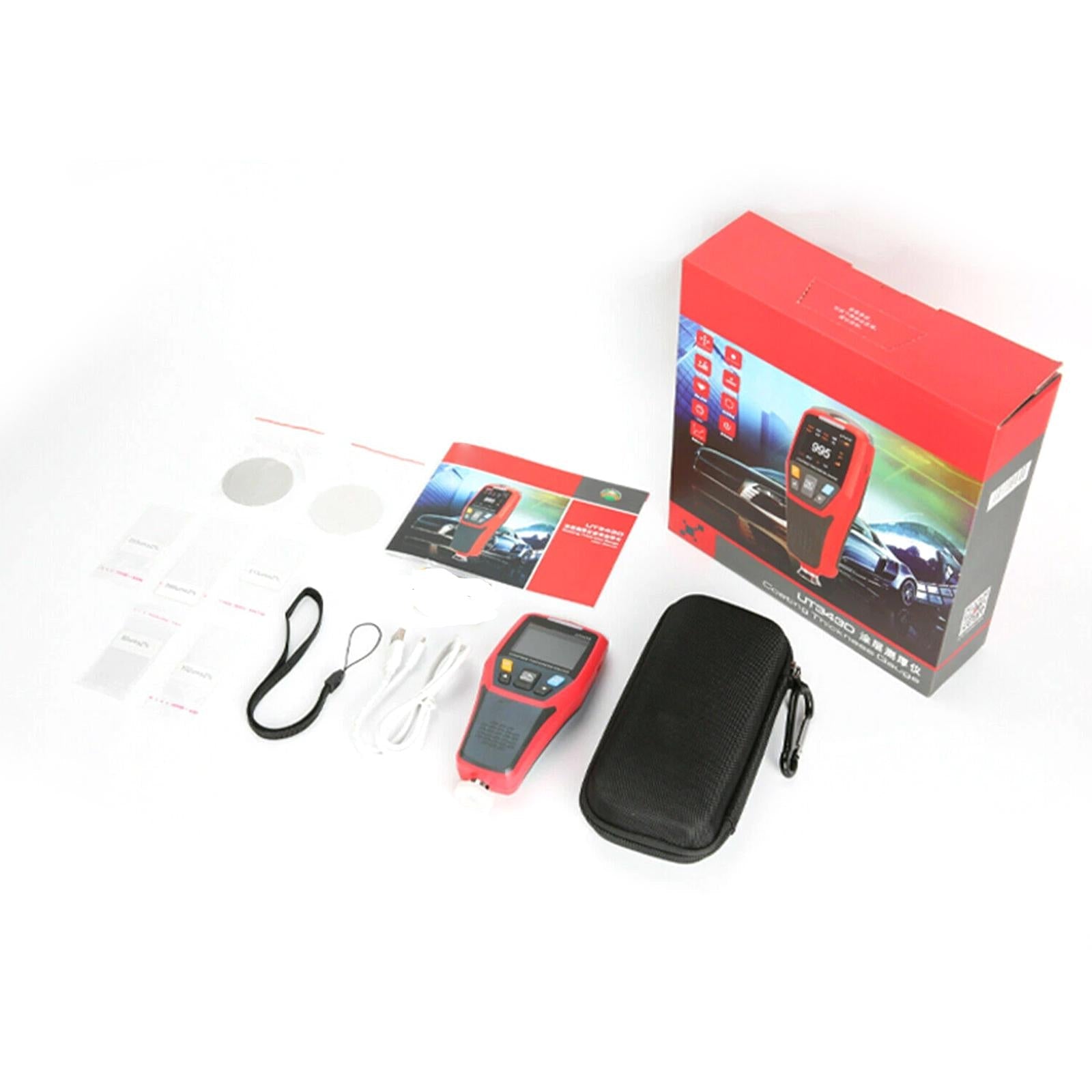

Package Included:
1x Coating Thickness Gauge
1x Micro USB interface cable
1x Standard piece
1x Cloth bag
1x User Manual
