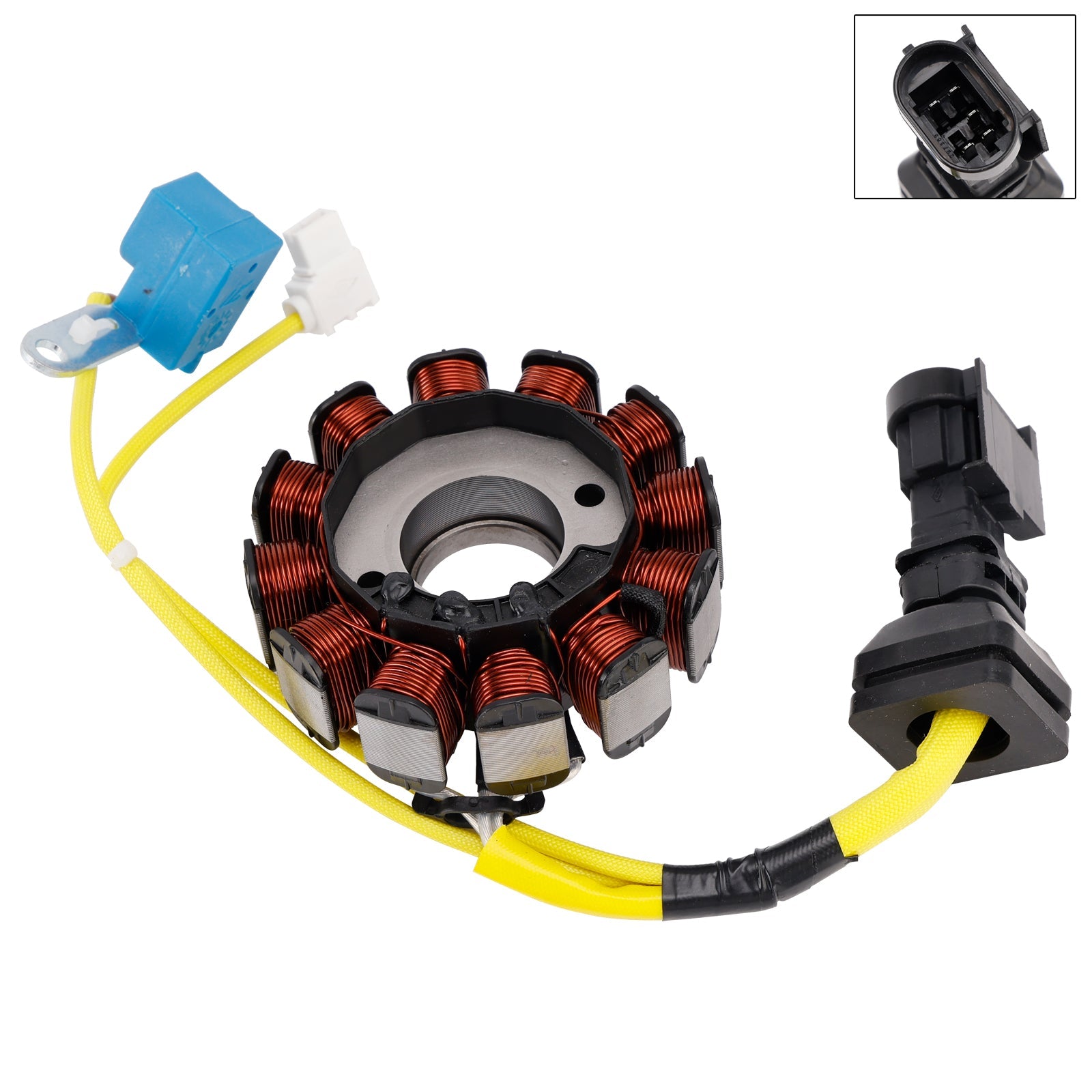

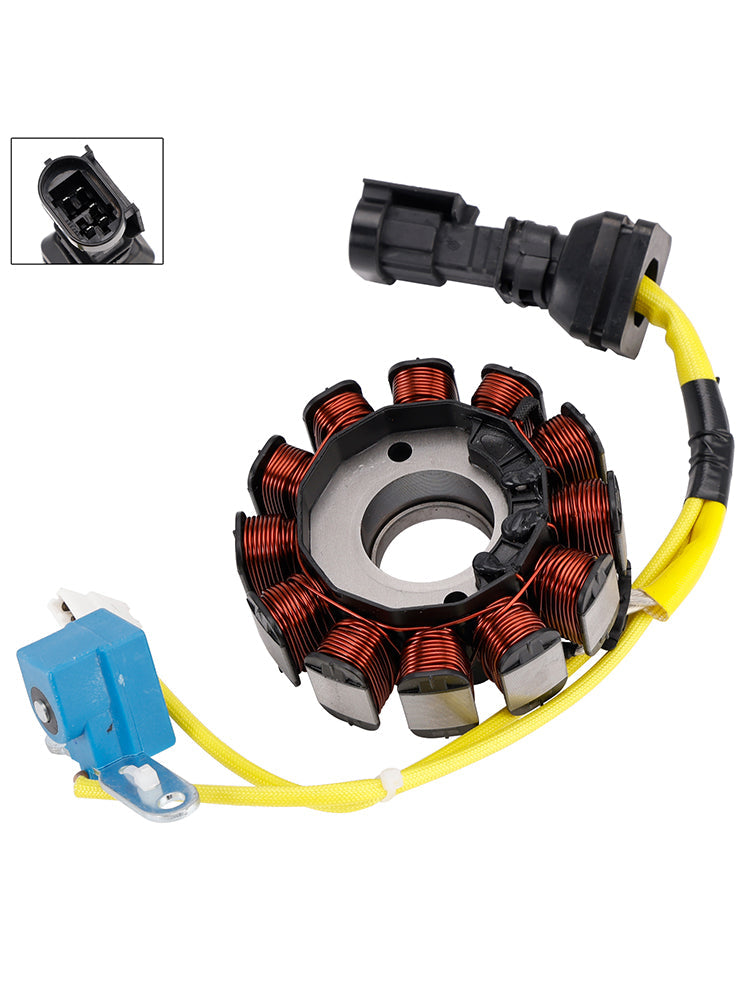

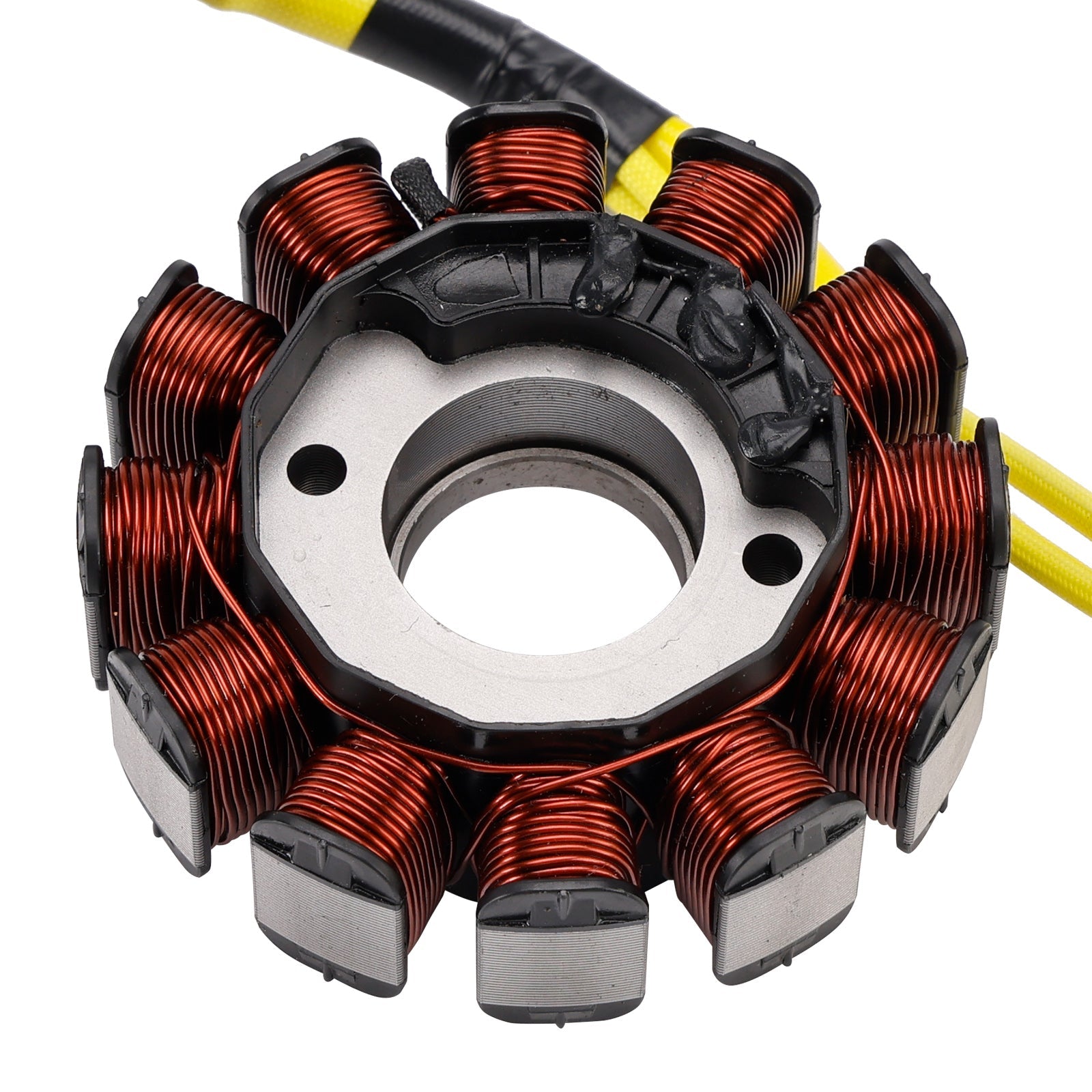

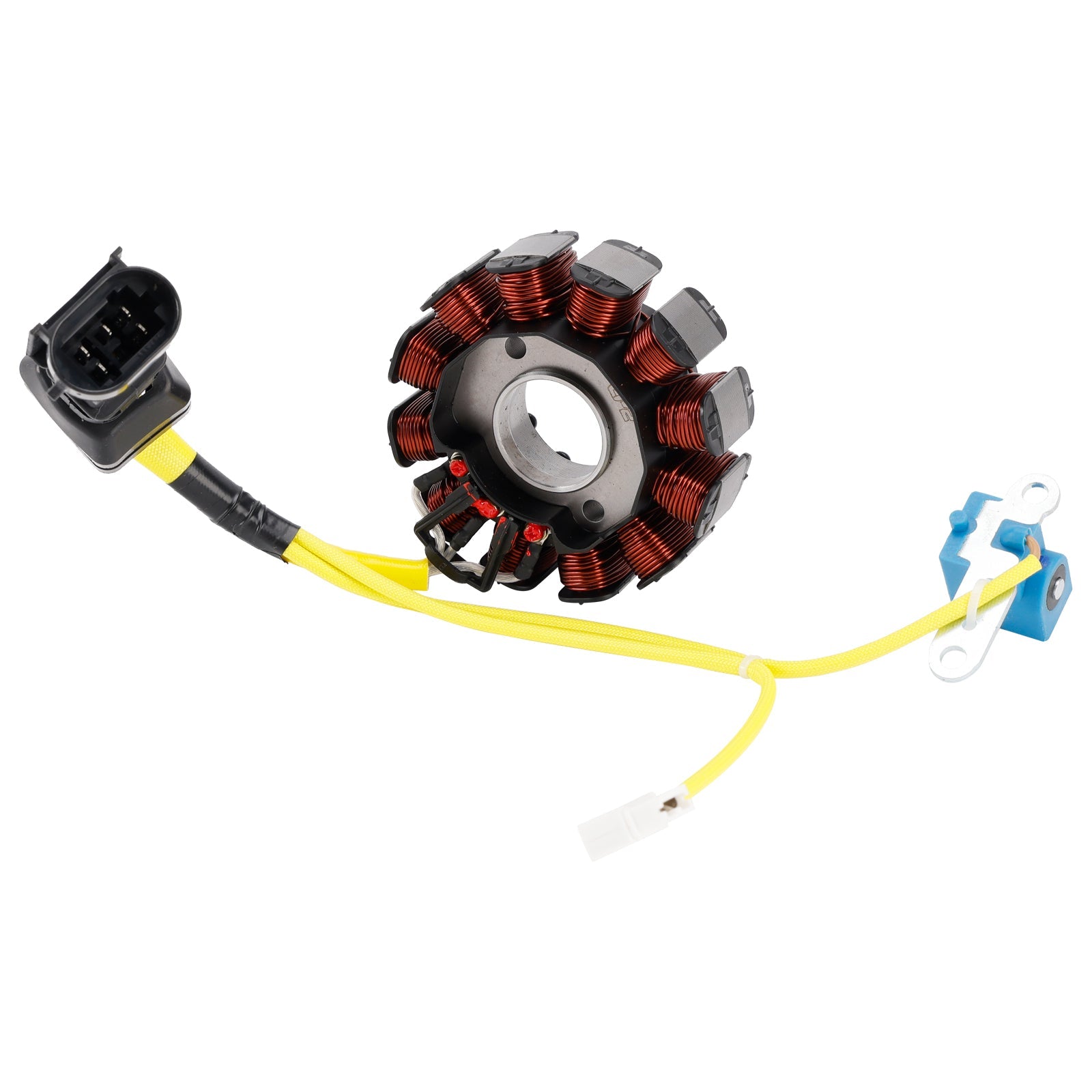

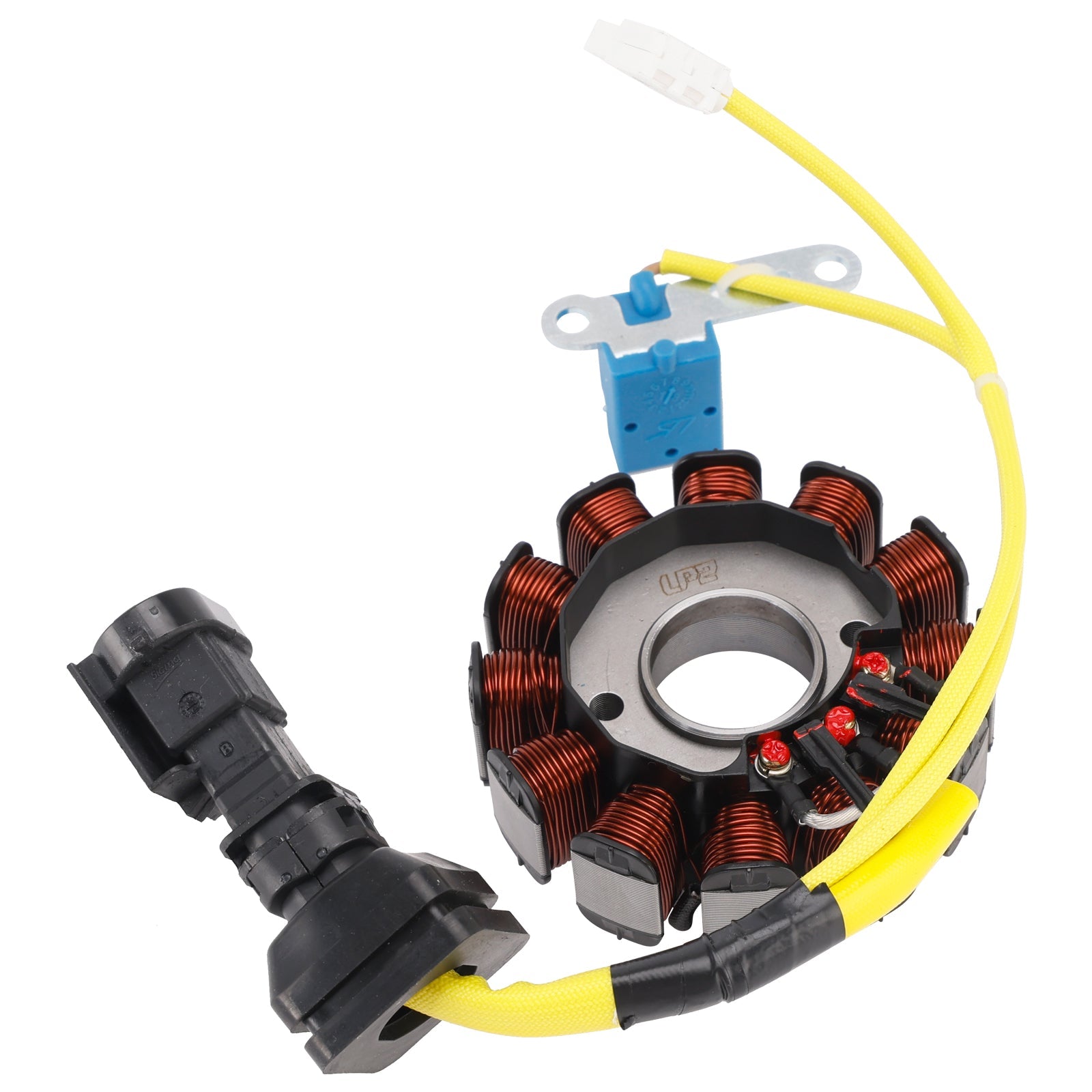

12-Pole Generator Stator Magneto Fit for Yamaha FZ25 / FAZER 25 / FZS25

Features:
Direct replacement to your original unit
Highest grade lamination materials.

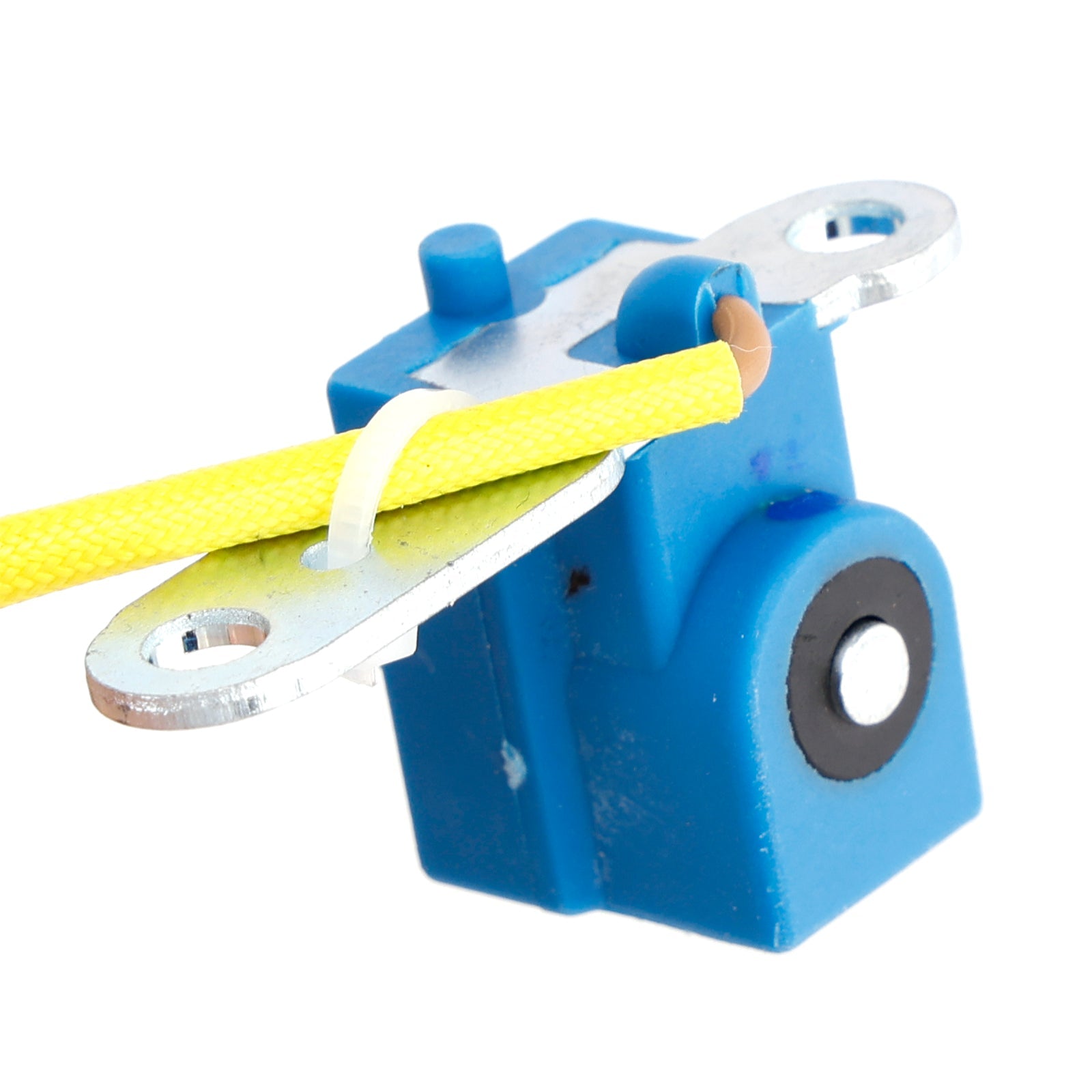

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 6

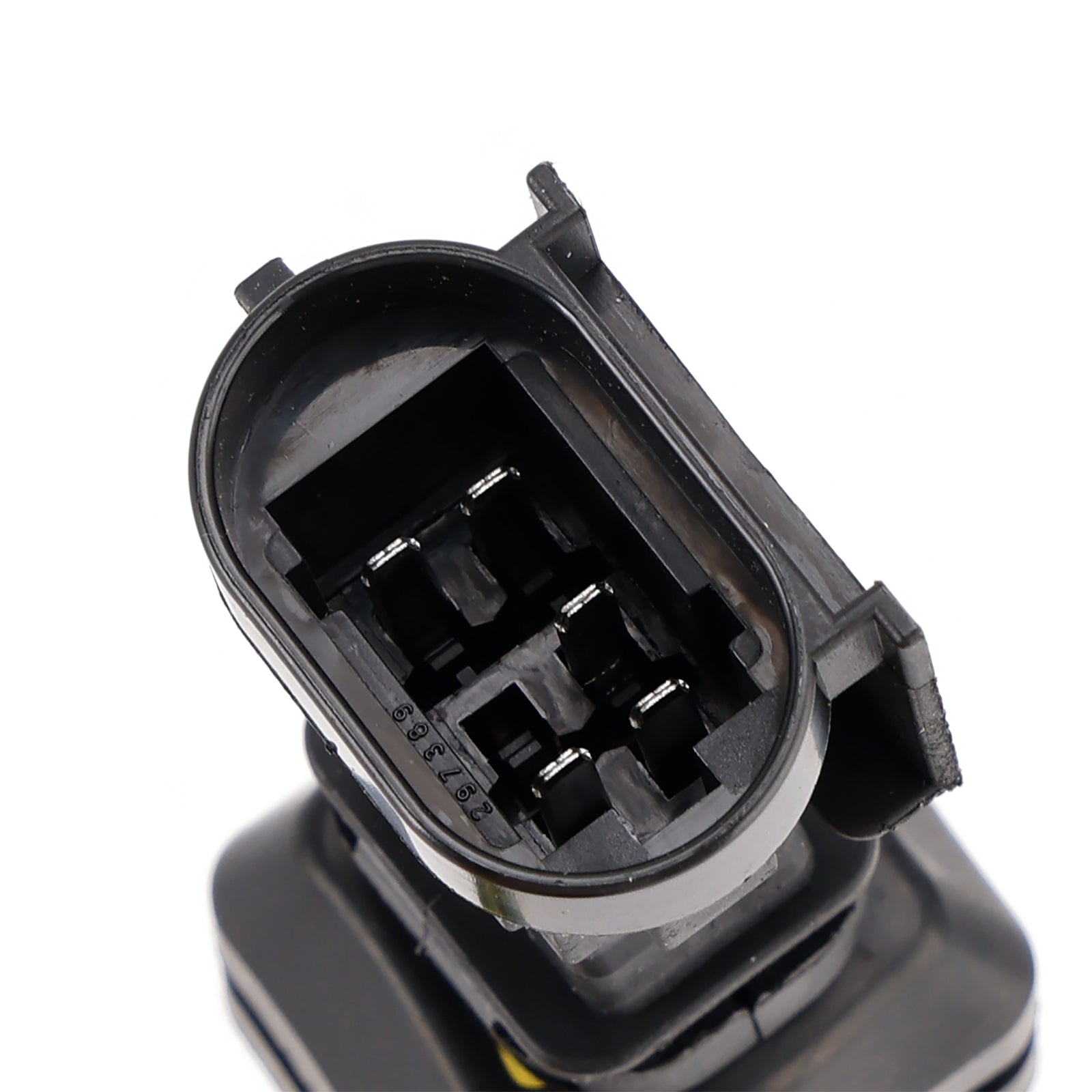

Number of plugs: 1x 5-Pin female Plug, 1x 1-Pin male Plug
Number of pins: 5 + 1
Number of fixation holes: 2
Number of poles: 12

Please compare the number of pins and plugs with the old part before purchasing.

Size:
Inner diameter: 28 mm
Outer diameter: 84 mm
Mount hole spacing center to center: 46 mm

Replacement Part Number:
584690
639727
486141
584438
827902
828135
833697
AP8540079
AP8540082
AP8580111
AP8580252

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Aprilia Atlantic 125 2003-2012
Fit for Aprilia Atlantic 125 E3 2011-2012
Fit for Aprilia Atlantic 200 2003-2006
Fit for Aprilia Atlantic 250 2003-2008
Fit for Aprilia Mojito 125 2003-2008
Fit for Aprilia Mojito 125 E3 2008-2010
Fit for Aprilia Mojito 150 Custom 2003-2008
Fit for Aprilia Scarabeo 125 E2/E3 2003-2006
Fit for Aprilia Scarabeo 200 E2/E3 2003-2006
Fit for Aprilia Scarabeo 250 E2 2004-2006
Fit for Aprilia Sport City 125 4T One 2008-2011
Fit for Aprilia Sport City 125 Cube 2008-2012
Fit for Aprilia Sport City 125 E2 2004-2006
Fit for Aprilia Sport City 125 E3 2006-2008
Fit for Aprilia Sport City 125 E3 One 2008-2010
Fit for Aprilia Sport City 200 2004-2008
Fit for Aprilia Sport City 200 Cube 2008-2010
Fit for Aprilia Sport City 250 E3 2006-2008
Fit for Aprilia SR Motard 125 4T 2012-2015

Fit for Derbi Boulevard 125 4T 2002-2015
Fit for Derbi Boulevard 150 4T 2002-2007
Fit for Derbi Boulevard 150 4T 2010-2016
Fit for Derbi Boulevard 200 4T 2004-2007
Fit for Derbi GP1 125 2006-2011
Fit for Derbi GP1 125 Racing Low Seat 2007-2011
Fit for Derbi Sonar 125 2009-2011
Fit for Derbi Sonar 150 2009-2011
Fit for Derbi Variant Sport 125 2012-2017

Fit for Gilera DNA 125 2000-2001
Fit for Gilera DNA 180 2000-2005
Fit for Gilera Nexus 125 2007-2008
Fit for Gilera Runner 125 2002-2004
Fit for Gilera Runner 125 ST 4T E3 2008-2016
Fit for Gilera Runner 125 VX 4T 2002-2007
Fit for Gilera Runner 125 VX 4T Race 2005-2006
Fit for Gilera Runner 180 VXR 4T 2000-2004
Fit for Gilera Runner 200 VXR 2002-2007
Fit for Gilera Runner 200 VXR ST 2008-2012

Fit for Italjet Jet Set 125 2002-2003
Fit for Italjet Jet Set 150 Leader engine 2002-2003
Fit for Italjet Torpedo 125 2001-2003
Fit for Italjet Torpedo 150 Leader 2000-2003

Fit for Malaguti Madison 125 2006-2010

Fit for Piaggio Beverly 125 2001-2008
Fit for Piaggio Beverly 125 RST 2004-2005
Fit for Piaggio Beverly 125 Tourer E3 2007-2010
Fit for Piaggio Beverly 200 2001-2004
Fit for Piaggio Beverly Sport E3 2007-2008
Fit for Piaggio BV 200 2005
Fit for Piaggio Carnaby 125 2007-2010
Fit for Piaggio Carnaby 200 2007-2008
Fit for Piaggio Fly 125 2004-2011
Fit for Piaggio Fly 150 2005-2012
Fit for Piaggio Hexagon 125 GTX 2000-2002
Fit for Piaggio Hexagon 180 GTX 2000-2002
Fit for Piaggio Liberty 125 4T 2000-2008
Fit for Piaggio Liberty 125 4T 2V E3 2009-2012
Fit for Piaggio Liberty 125 4T Delivery 2007-2009
Fit for Piaggio Liberty 125 4T PTT 2006-2015
Fit for Piaggio Liberty 125 4T Sport 2006-2008
Fit for Piaggio Liberty 150 2000-2002/2008-2013
Fit for Piaggio Liberty 150 4T 2V E3 PTT 2011
Fit for Piaggio Liberty 150 Sport 2008
Fit for Piaggio Liberty 200 2004-2008
Fit for Piaggio Liberty 200 Sport 2006-2007
Fit for Piaggio MP3 125 RL 2006-2008
Fit for Piaggio Scarabeo 125 E2/E3 2003-20006
Fit for Piaggio Scarabeo 200 E2/E3 2003-2006
Fit for Piaggio Scarabeo 250 E2 2004-2006
Fit for Piaggio Super Hexagon GTX 125 4V 1992/1998/2000-2003
Fit for Piaggio Super Hexagon GTX 180 1998/2000-2003
Fit for Piaggio Typhoon 125 4T 2V Euro 3 2010-2020
Fit for Piaggio X7 125 2008-2009
Fit for Piaggio X8 125 2005-2006
Fit for Piaggio X8 125 AC 2004
Fit for Piaggio X8 125 Premium 2005-2010
Fit for Piaggio X8 125 Street 2006-2008
Fit for Piaggio X8 150 Street 2006-2008
Fit for Piaggio X8 200 2004-2010
Fit for Piaggio X8 400 2007
Fit for Piaggio X9 125 2000-2003
Fit for Piaggio X9 125 Evolution 2005-2007
Fit for Piaggio X9 125 Evolution 2005-2007
Fit for Piaggio X9 180 Amalfi
Fit for Piaggio X9 200 Evolution 2002-2004
Fit for Piaggio XEvo 125 2007-2016
Fit for Piaggio XEvo 125 Sport 2014
Fit for Piaggio Zip 125 2000-2001

Fit for Vespa ET4 125 1999-2004
Fit for Vespa ET4 150 2000-2005
Fit for Vespa Granturismo L 125 2004-2006
Fit for Vespa Granturismo L 125 Potenziato 2005
Fit for Vespa Granturismo L 200 2003-2008
Fit for Vespa GT 125 2003-2006
Fit for Vespa GT 200 2003-2009
Fit for Vespa GTS 125 4T E3 2007-2012
Fit for Vespa GTV 125 4T E3 2006-2008
Fit for Vespa GTV 125 4T Navy E3 2007-2008
Fit for Vespa LX 125 4T E3 2005-2011
Fit for Vespa LX 150 4T E3 2005-2013
Fit for Vespa LXV 125 4T E3 2006-2009
Fit for Vespa LXV 125 4T Navy E3 2007-2009
Fit for Vespa LXV 150 4T 2007-2008
Fit for Vespa S 125 4T E3 2007-2010
Fit for Vespa S 150 4T E3 2007-2010

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

(The product contains all that can be seen in the picture.)
