Flywheel Rotor Generator Regulator Gasket Set For Kawasaki GPz 500 S VN 500 Vlucan

Features:
Kit include Flywheel Rotor, Stator, Regulator Rectifier and Gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

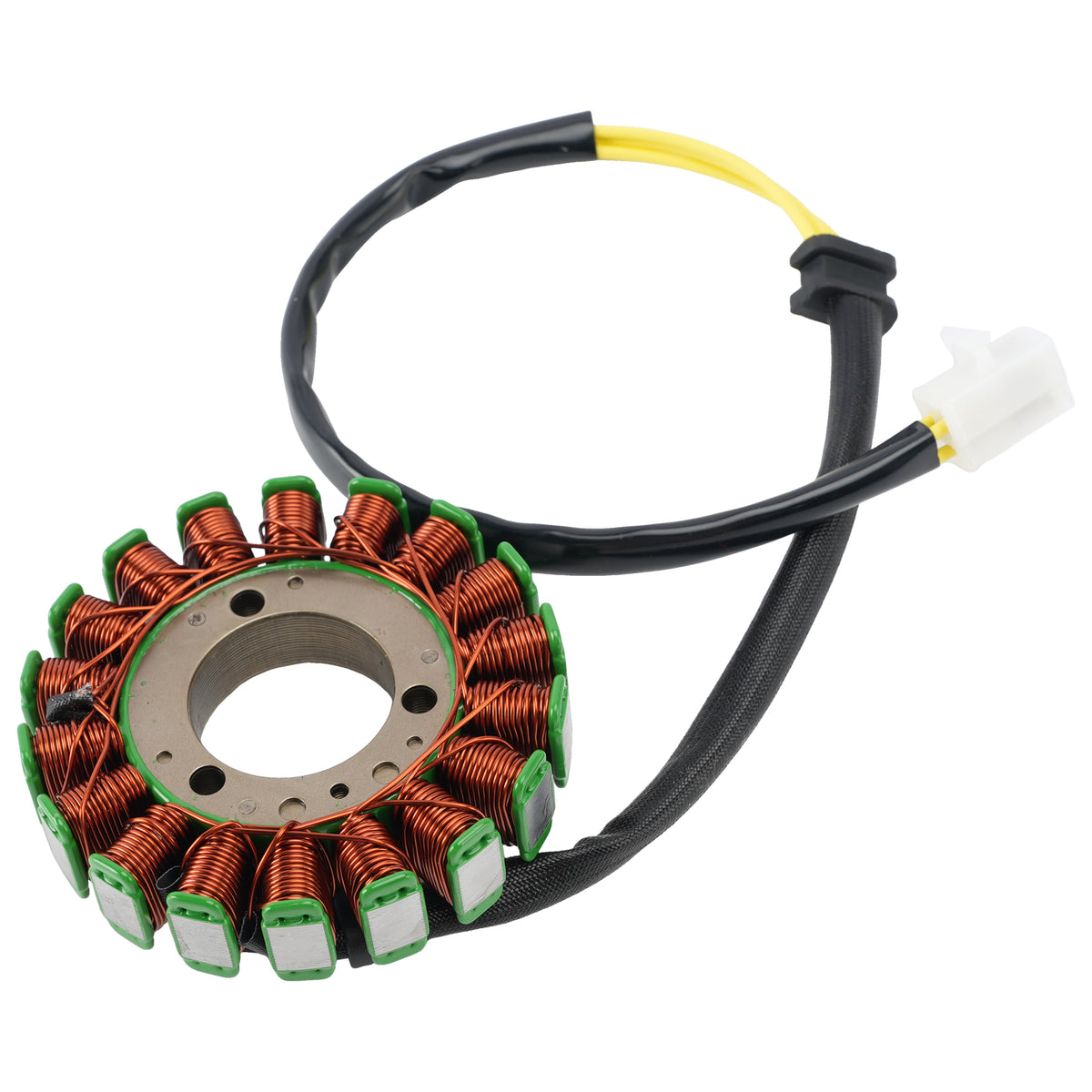

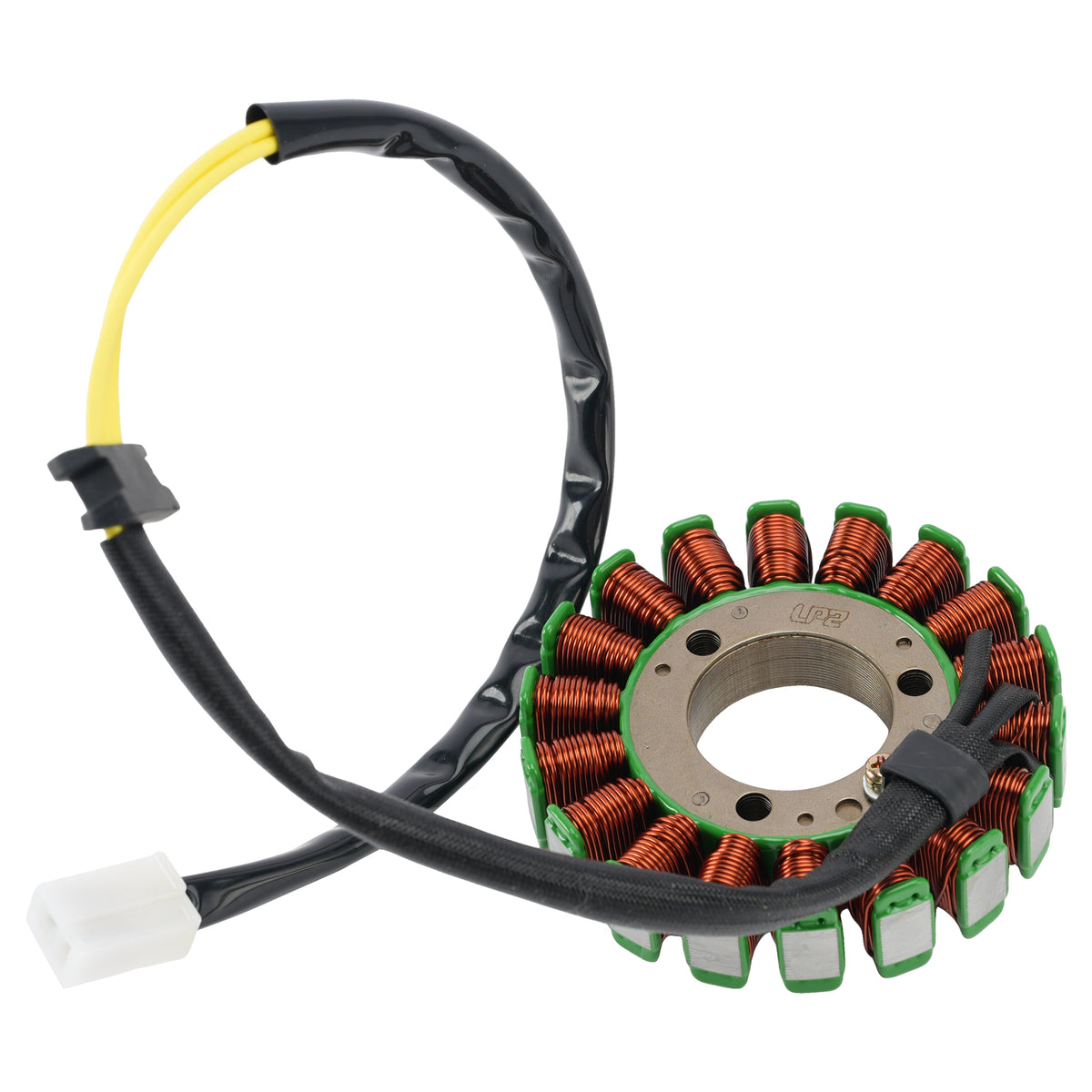

Stator
Number of wires: 3
Number of plugs: 1

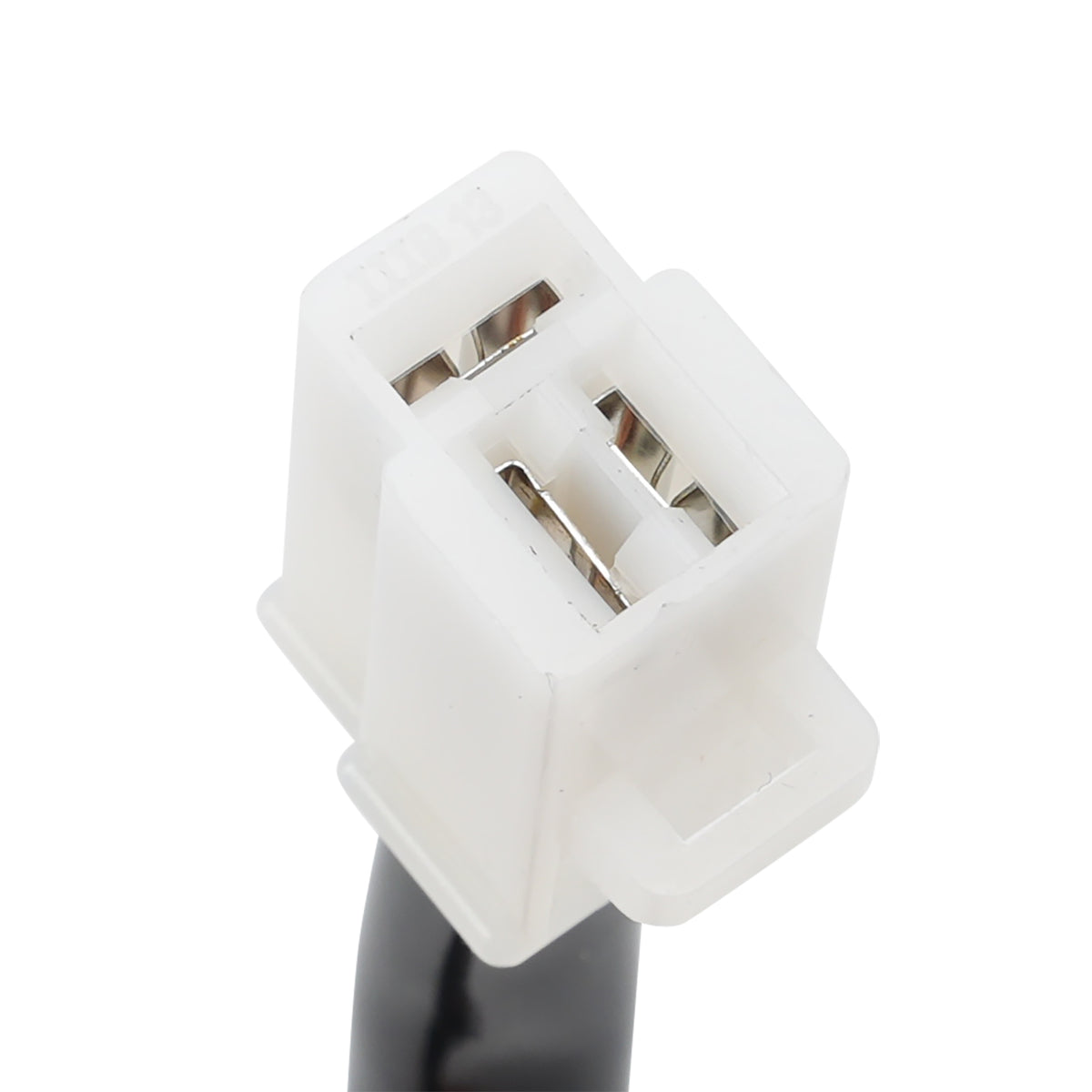

Number of pins: 3
Number of fixation holes: 3
Number of poles: 18
Interior diameter: 38 mm
Exterior diameter: 102 mm
Pick up pulsar coil included.

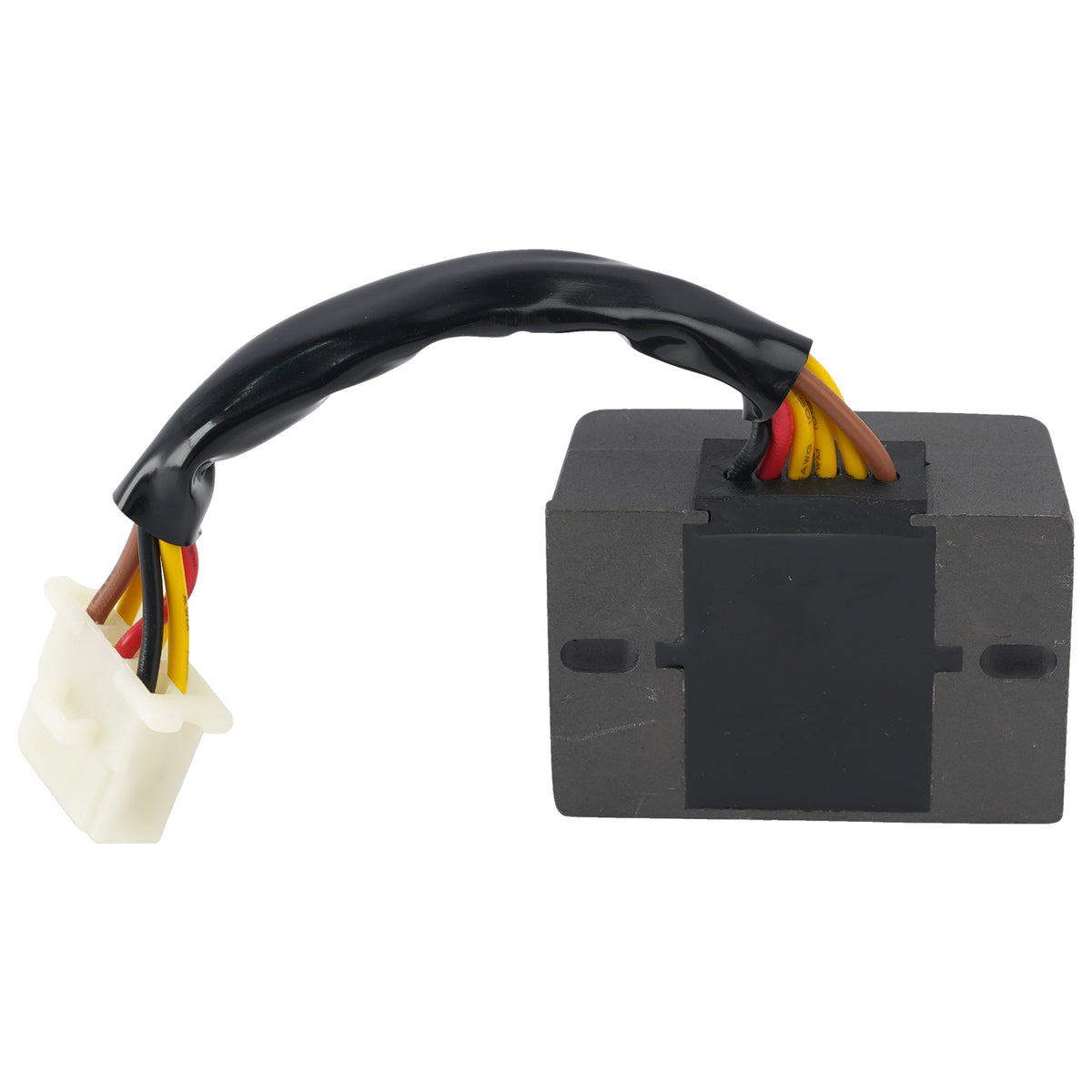

Regulator
Number of wires: 6
Number of plugs: 1

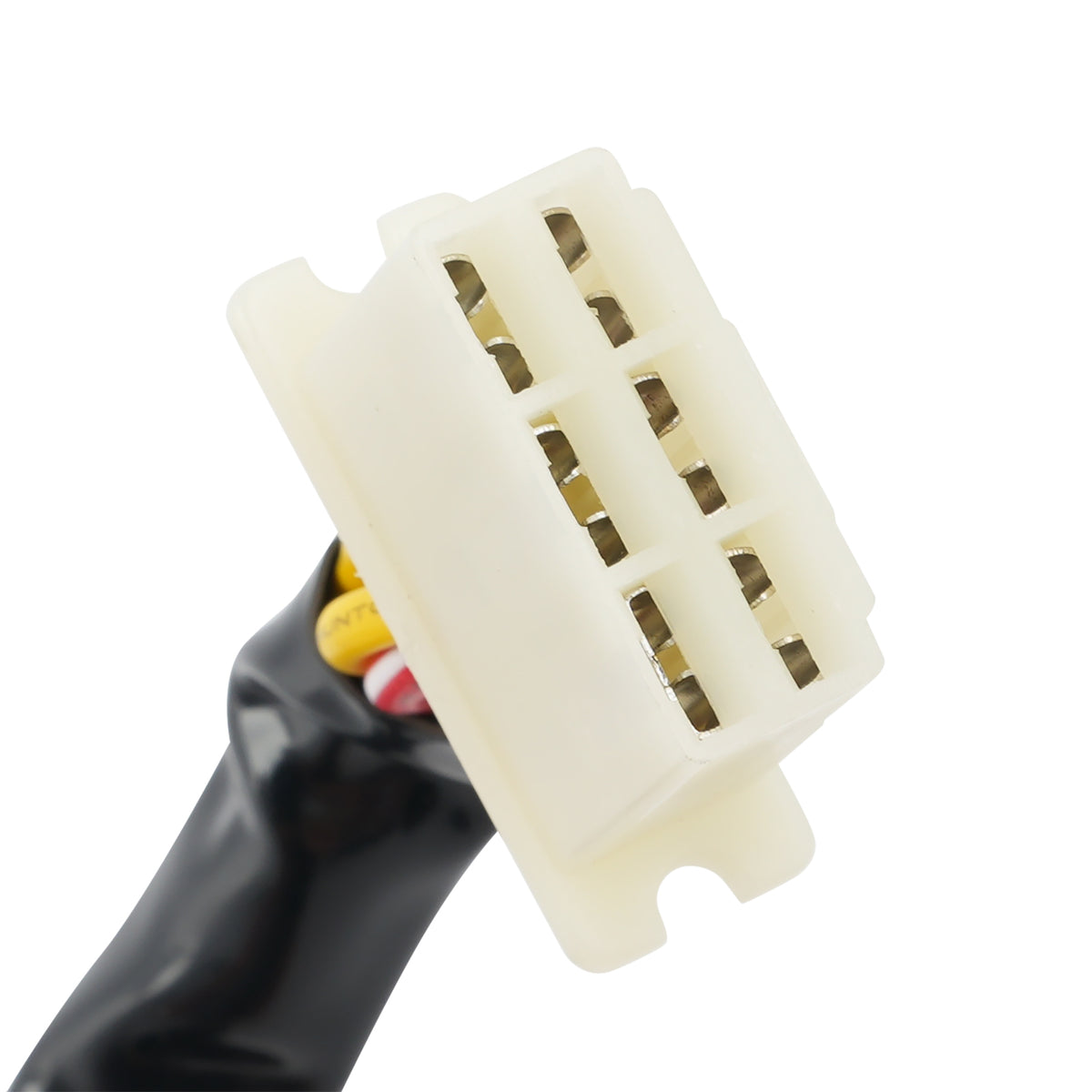

Number of pins: 6

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: 21003-1123
Pulse Generator: 59026-1126
Rectifier, regulator: 21066-1030
Improved Flywheel: 21050-1110, 21050-1171
Gasket, generator cover: 11009-1486, 11061-0273, 11009-1834

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Kawasaki EN400 EN400 Twin 1989
Fit for Kawasaki EN400 Vulcan 400 1990-1993
Fit for Kawasaki EN450 Vulcan 454LTD 1985-1990
Fit for Kawasaki EN500 Vulcan 500 1990-1996
Fit for Kawasaki EX400 GPZ400S 1988-1990
Fit for Kawasaki EX500 GPZ500 1987-1993
Fit for Kawasaki EX500 GPZ500S 1988-1995

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

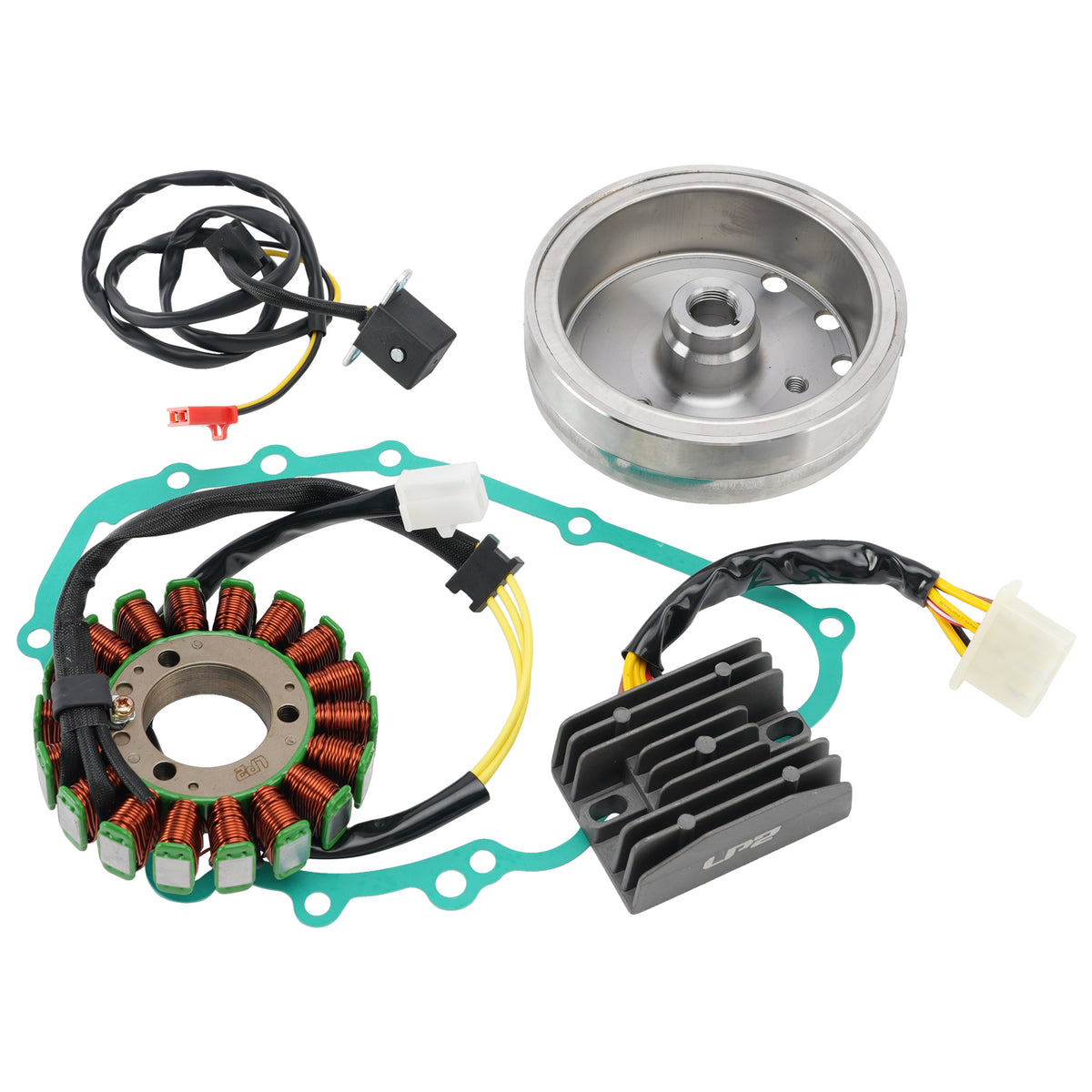

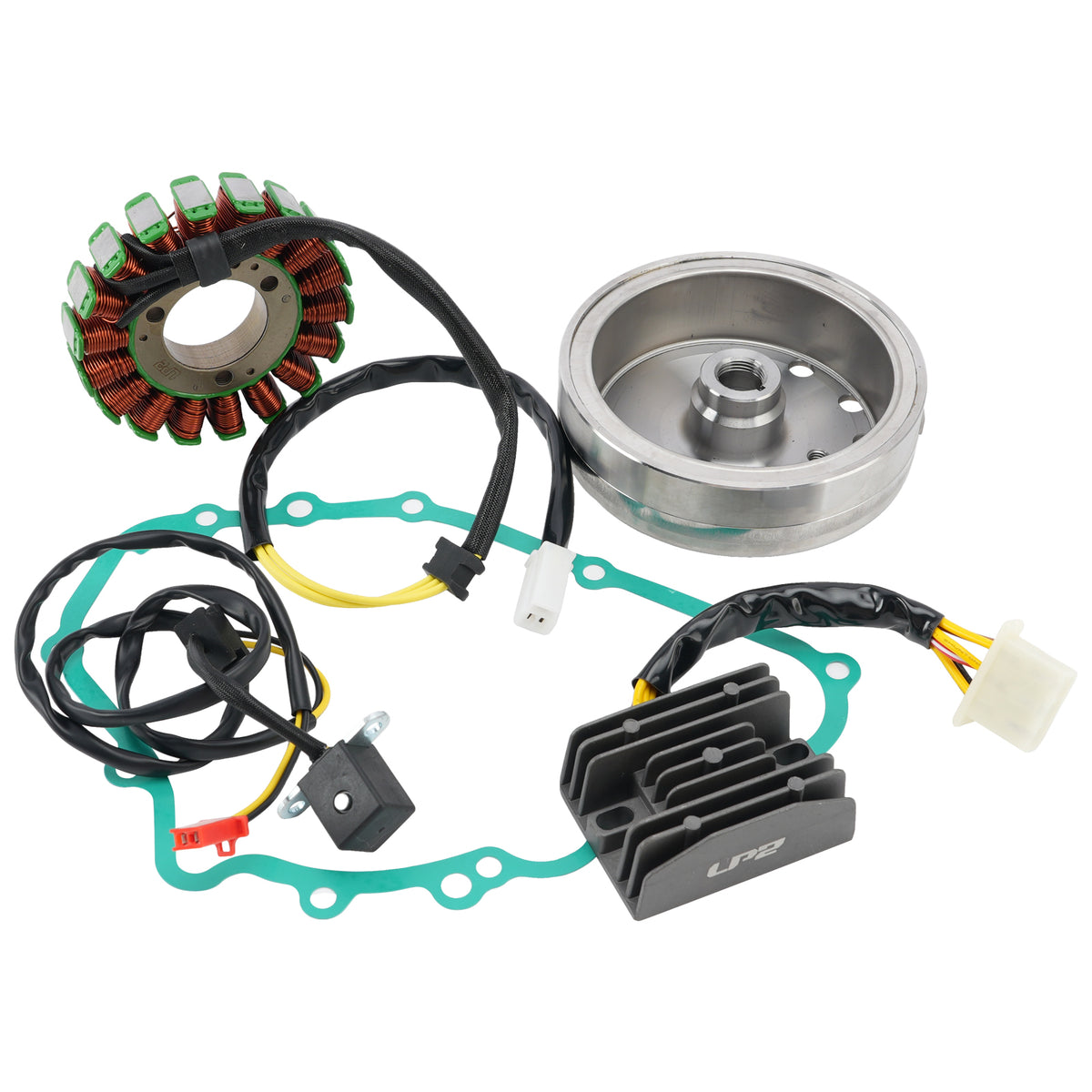

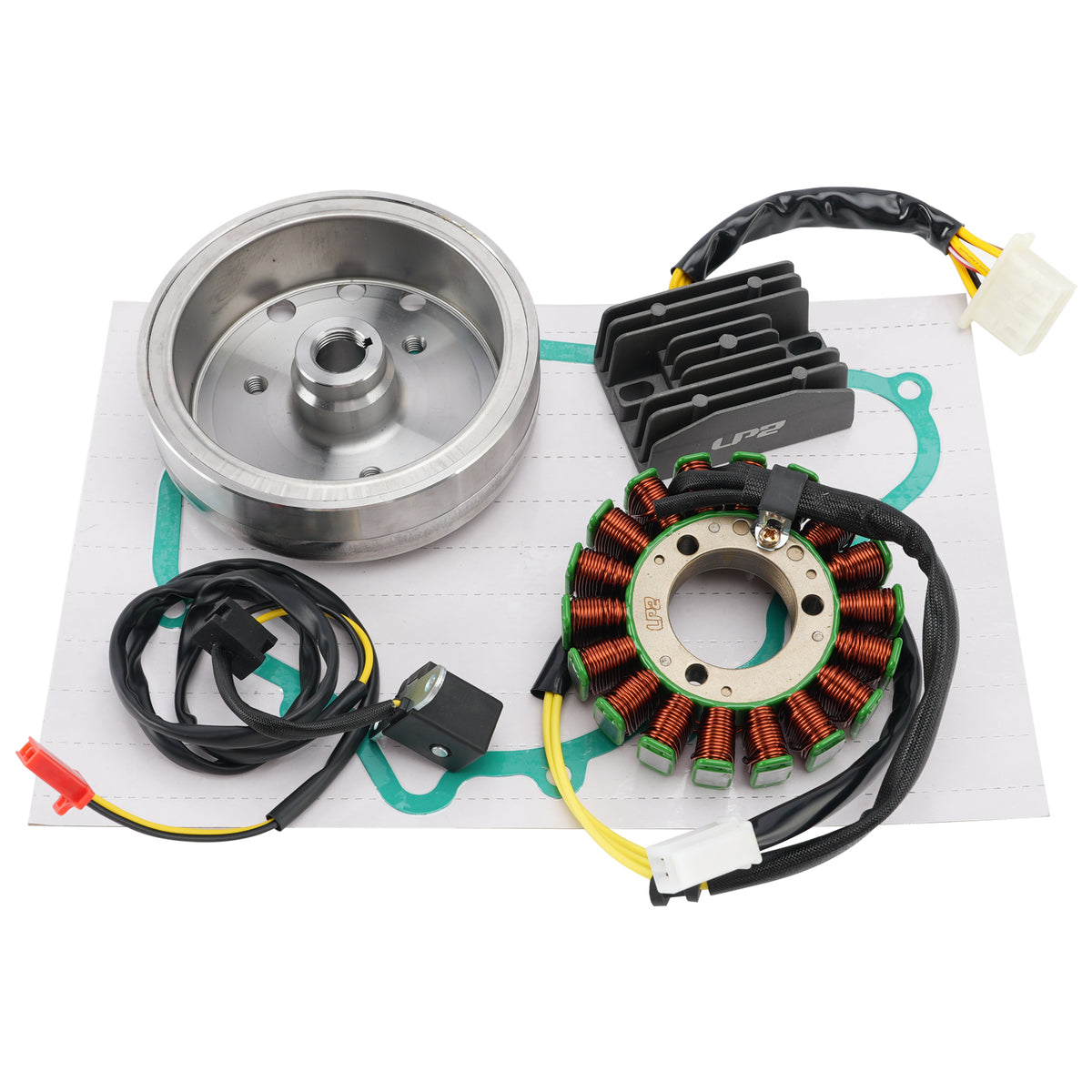

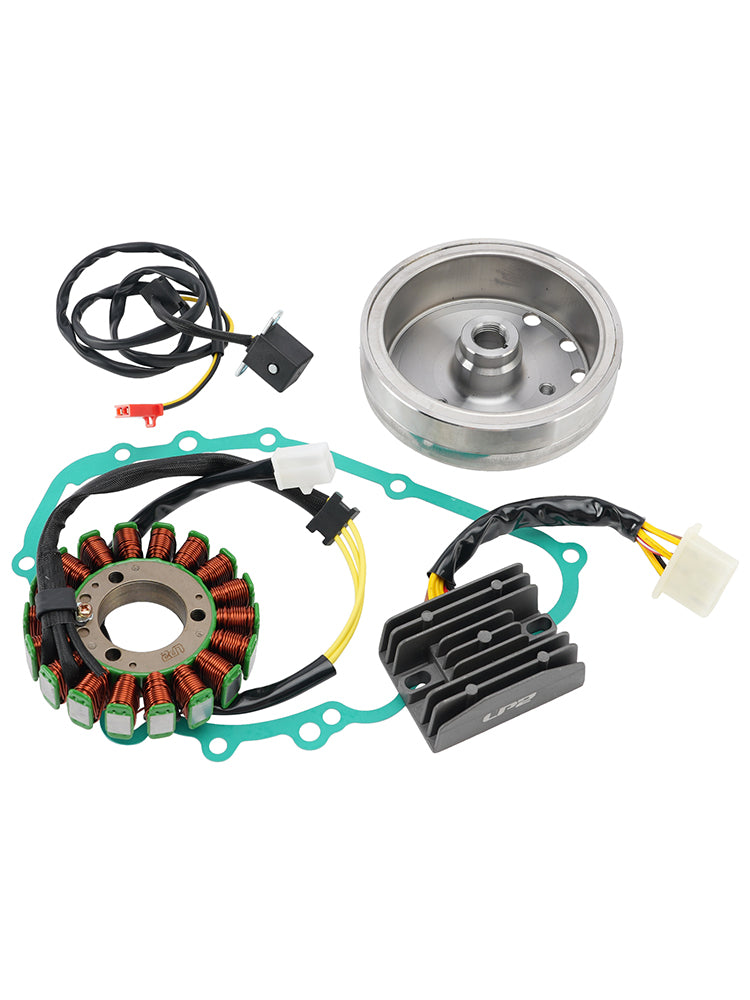

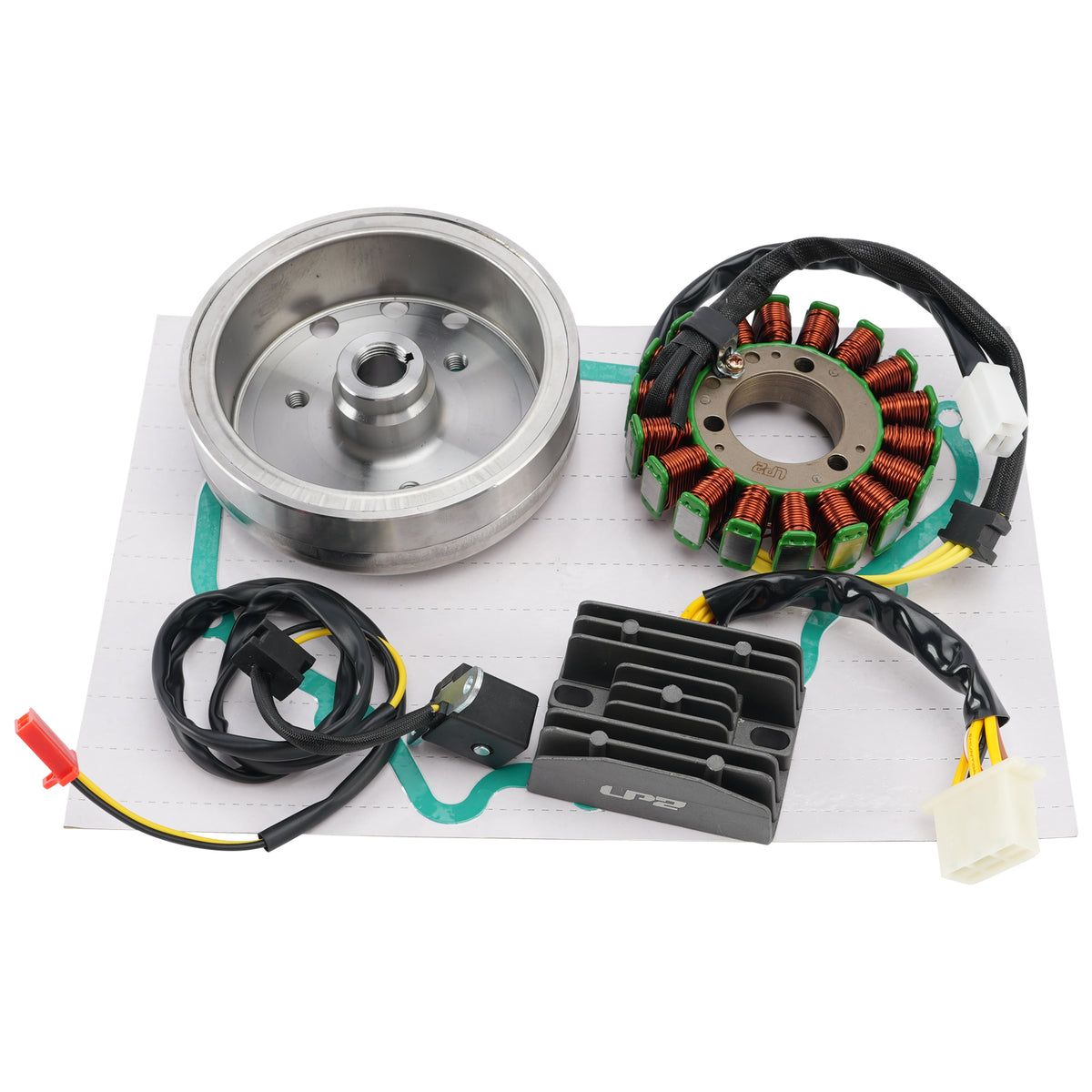

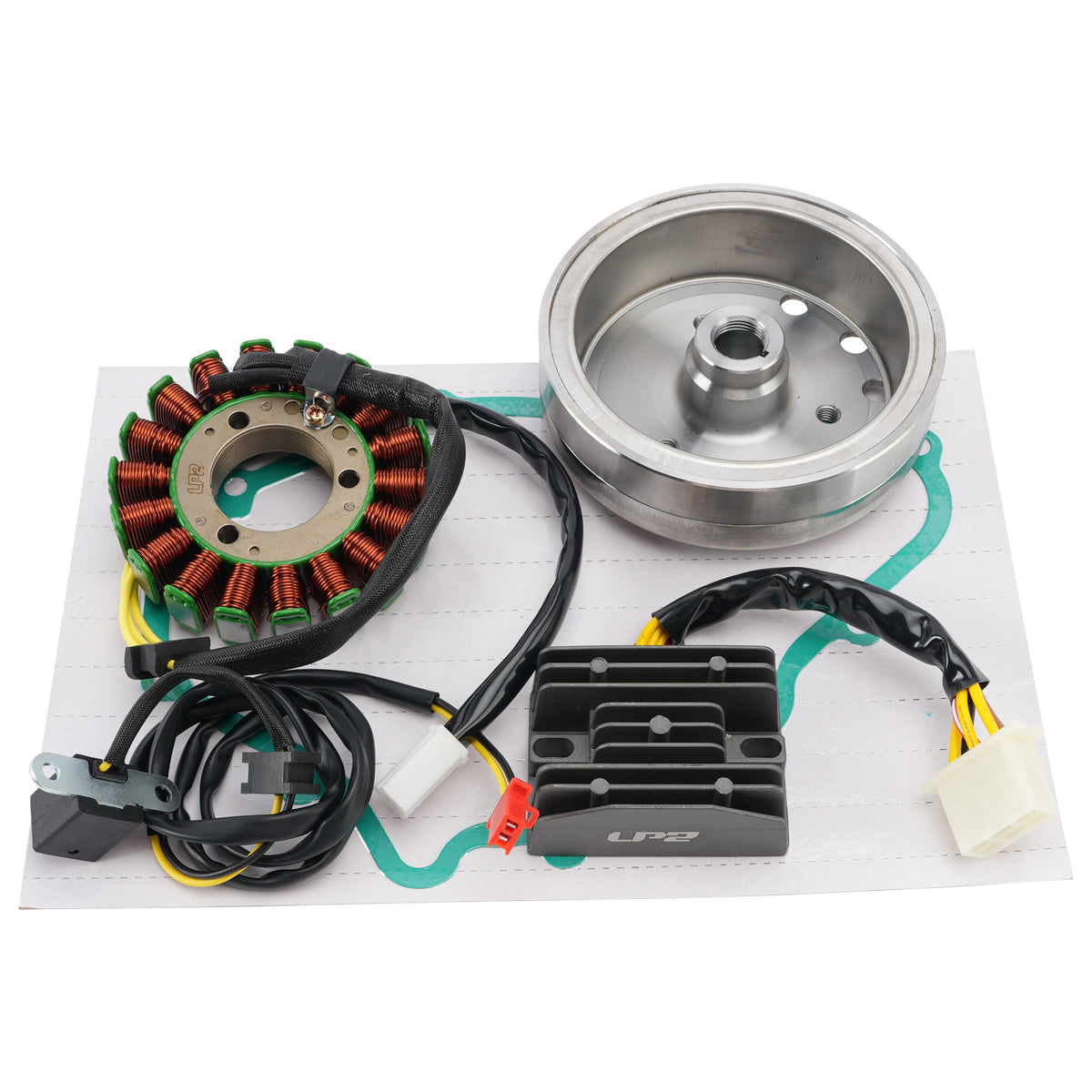

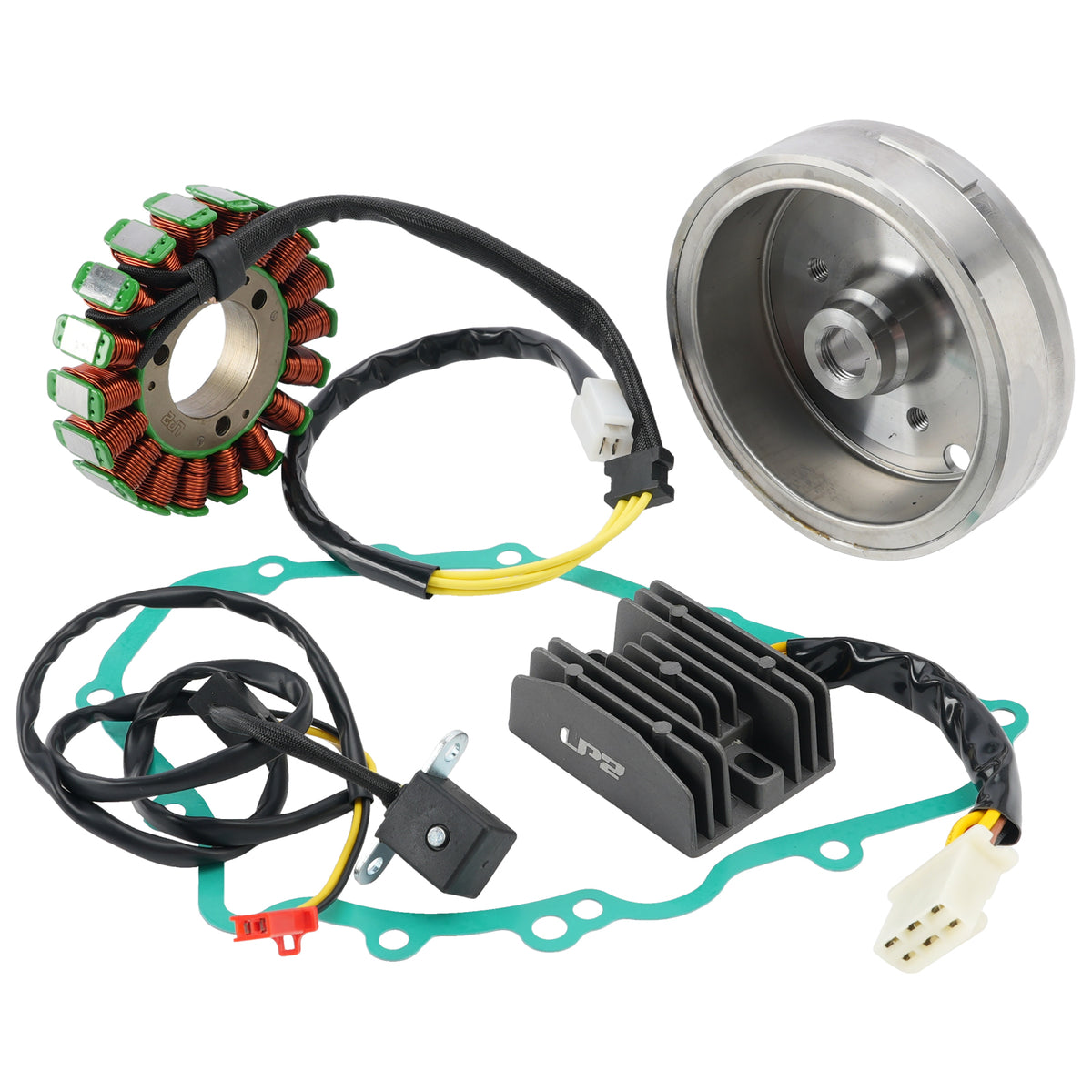

Package Includes:
1 x 3-Wire Generator Stator

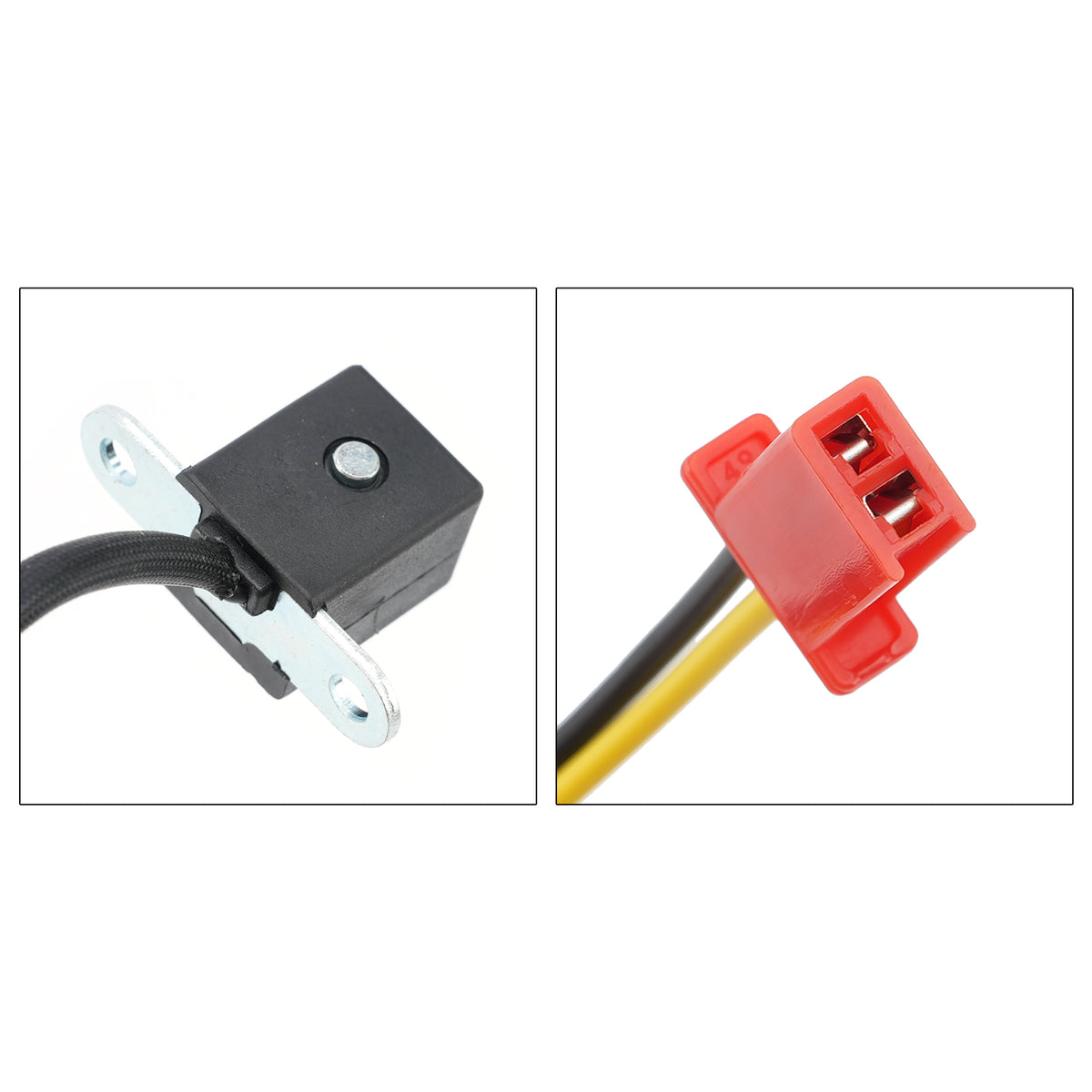

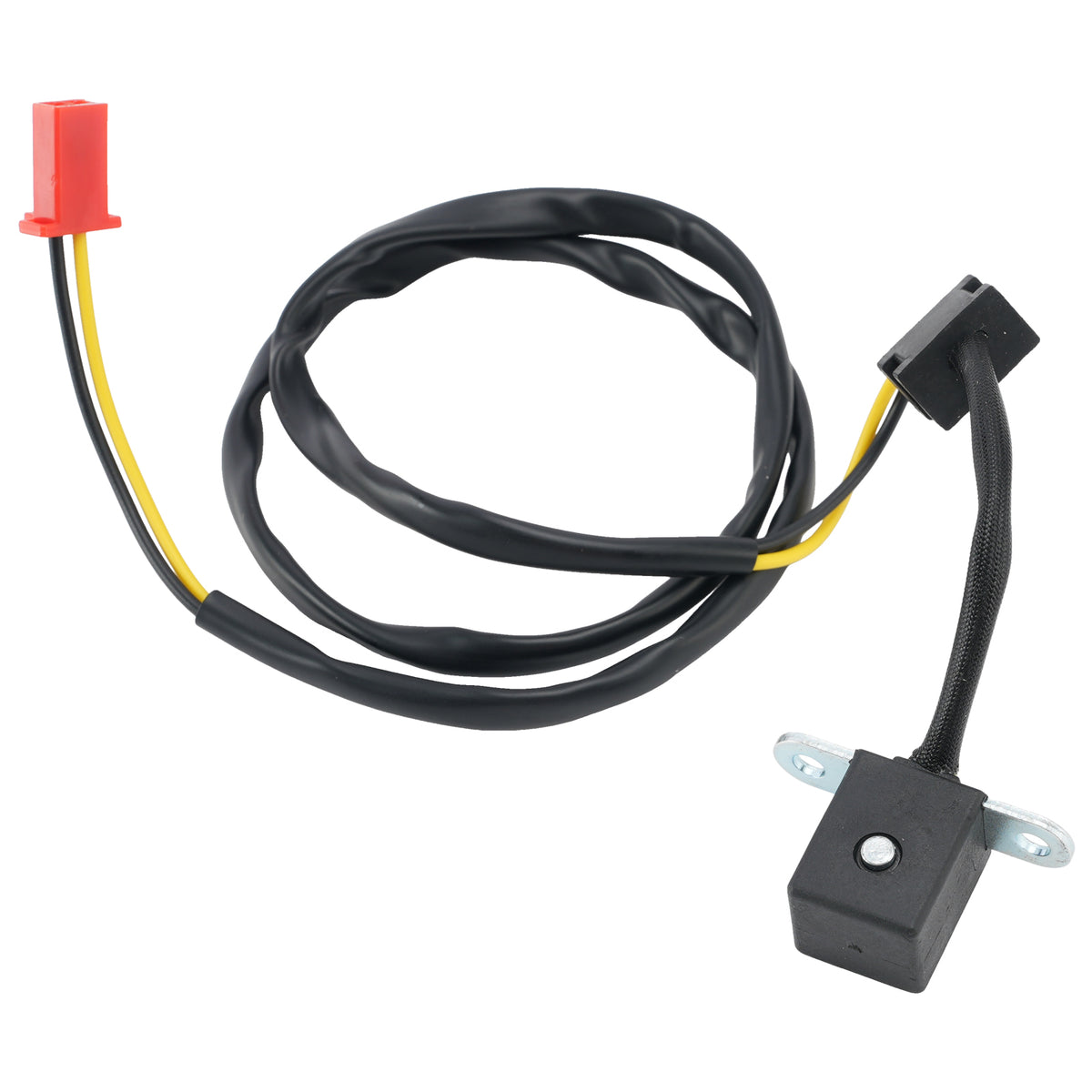

1 x Generator Pulser Coil

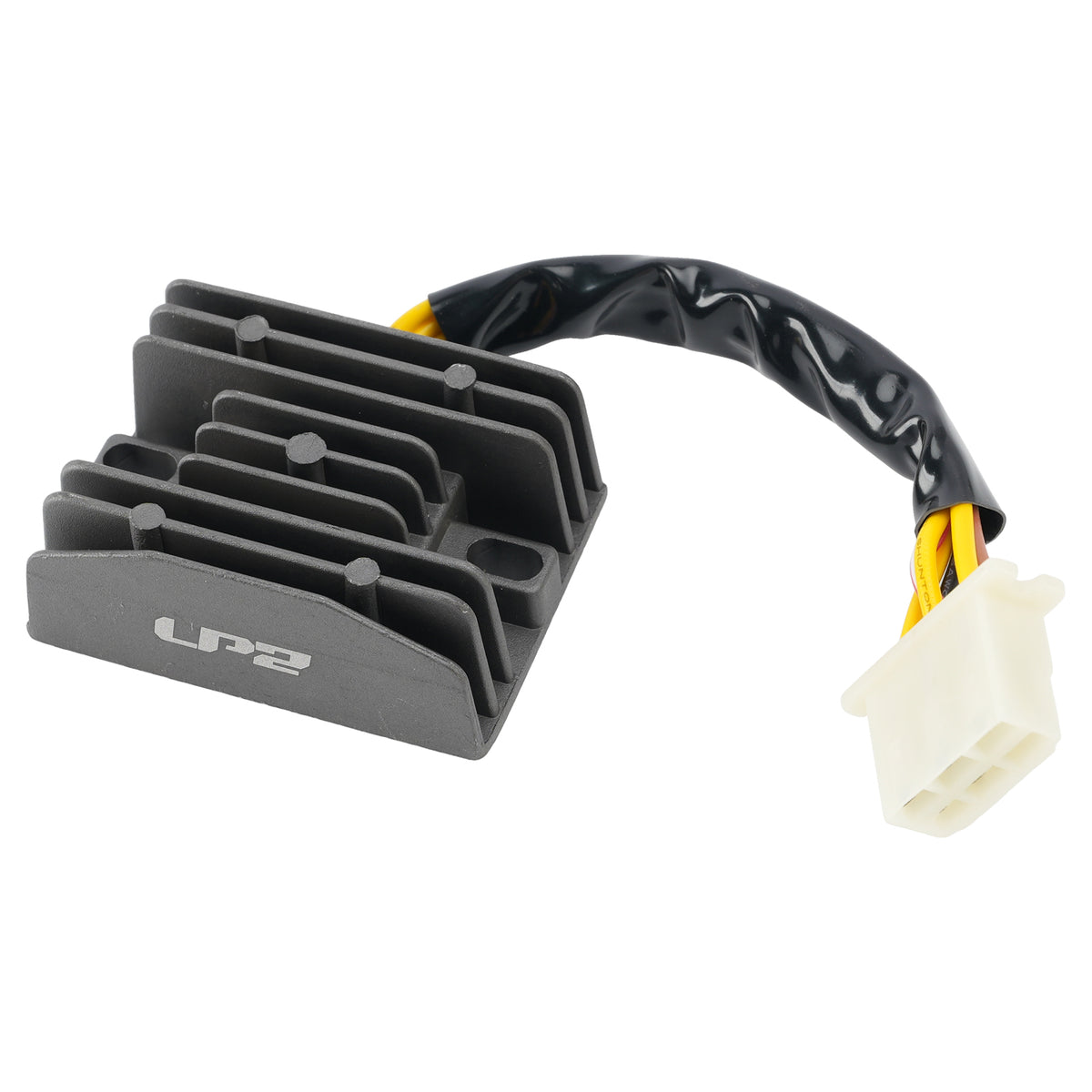

1 x 6-Wire Regulator

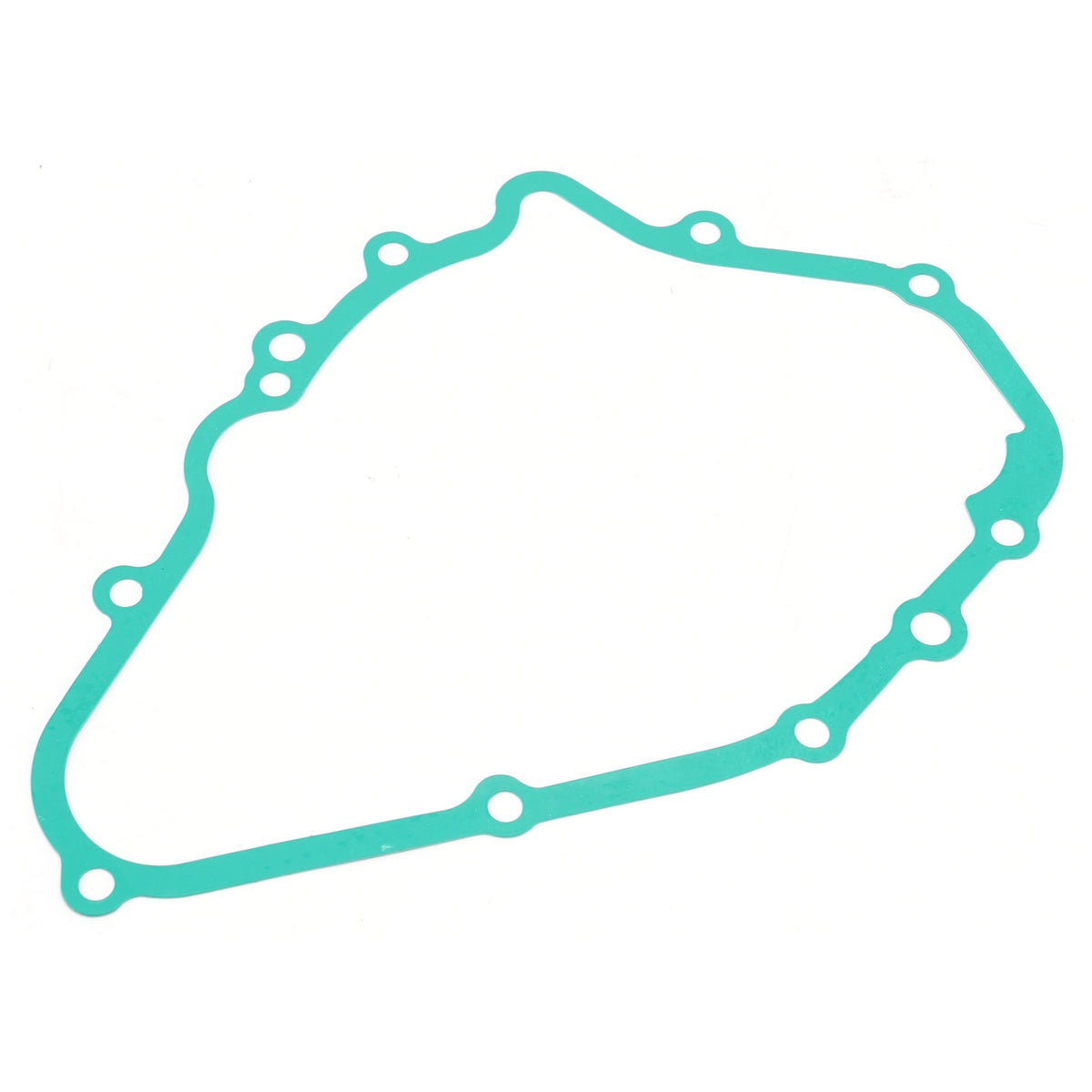

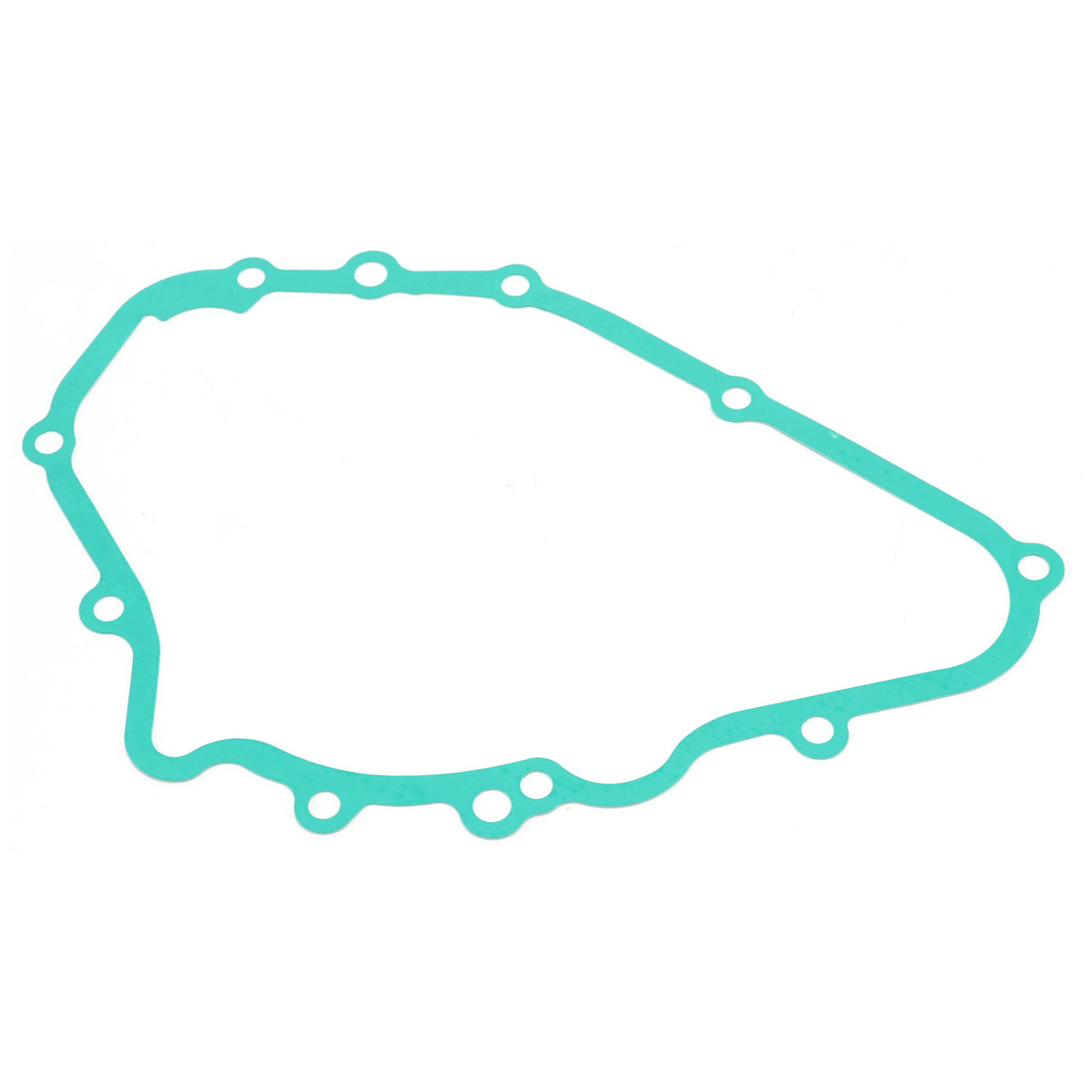

1 x Crankcase Gasket

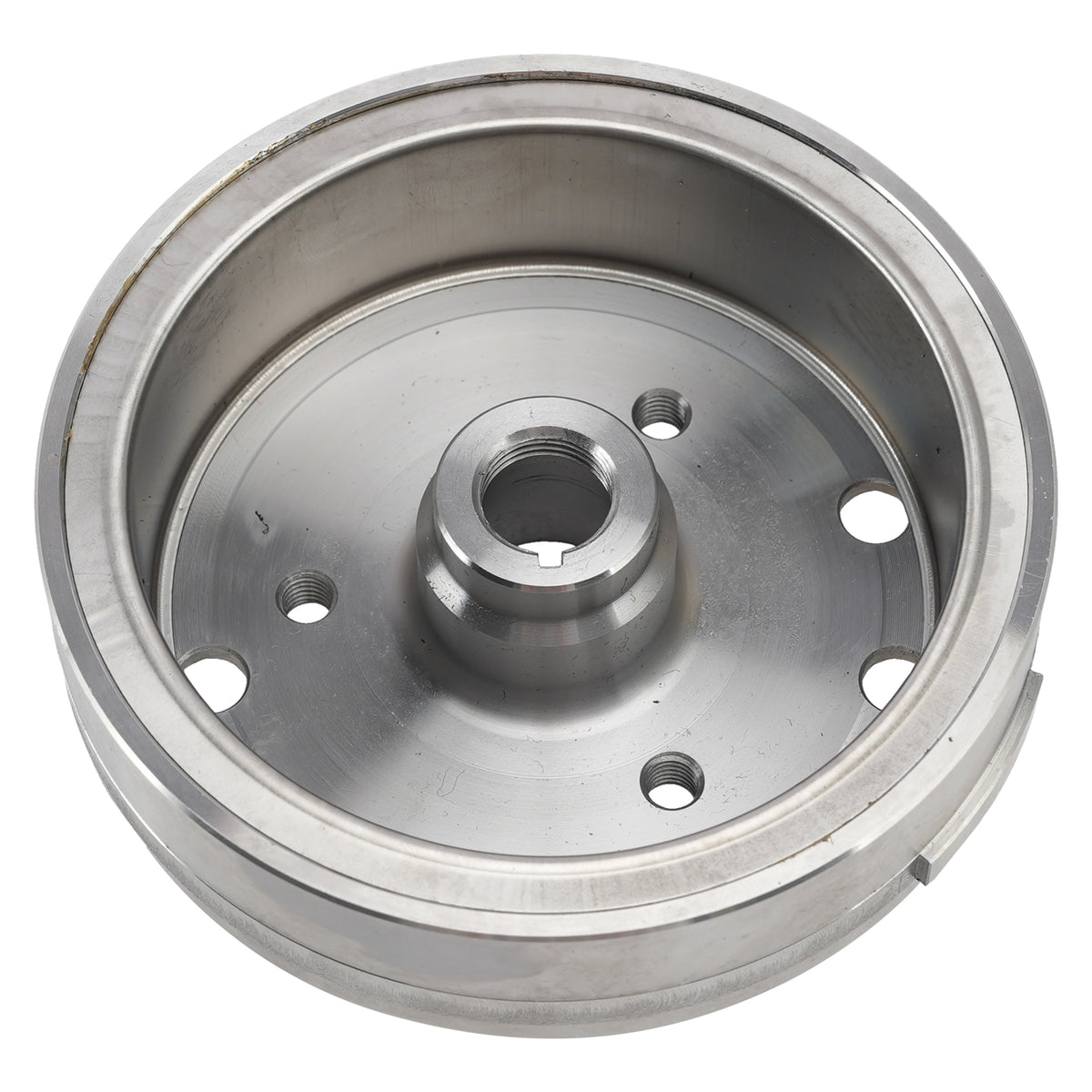

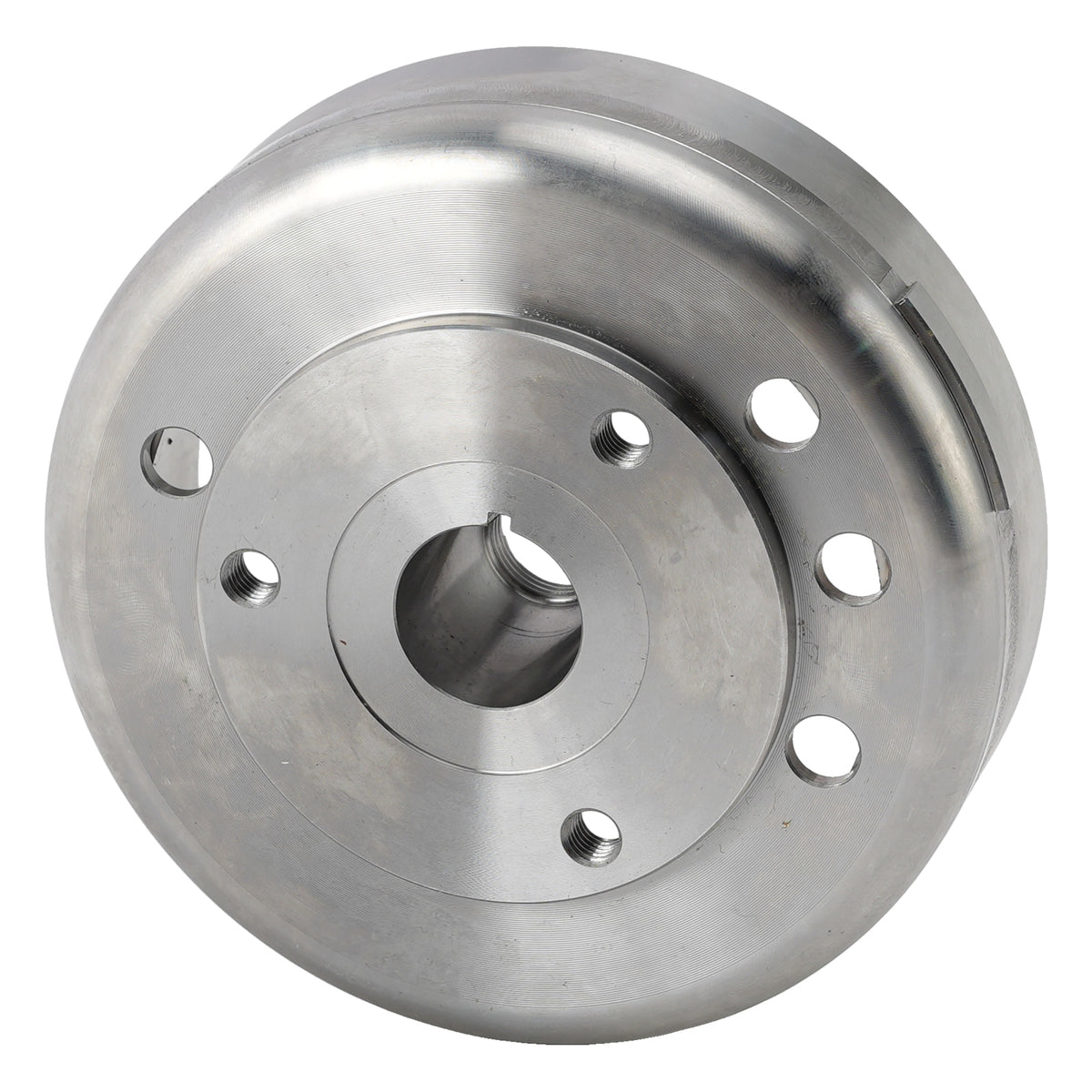

1 x Flywheel Rotor

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
